1. Working Principles

The backup storage solution provides a backup system with software and hardware deployed independently. It includes the backup software, backup agent, backup management server, backup storage server, and backup storage. Figure 1-1 shows the solution architecture.

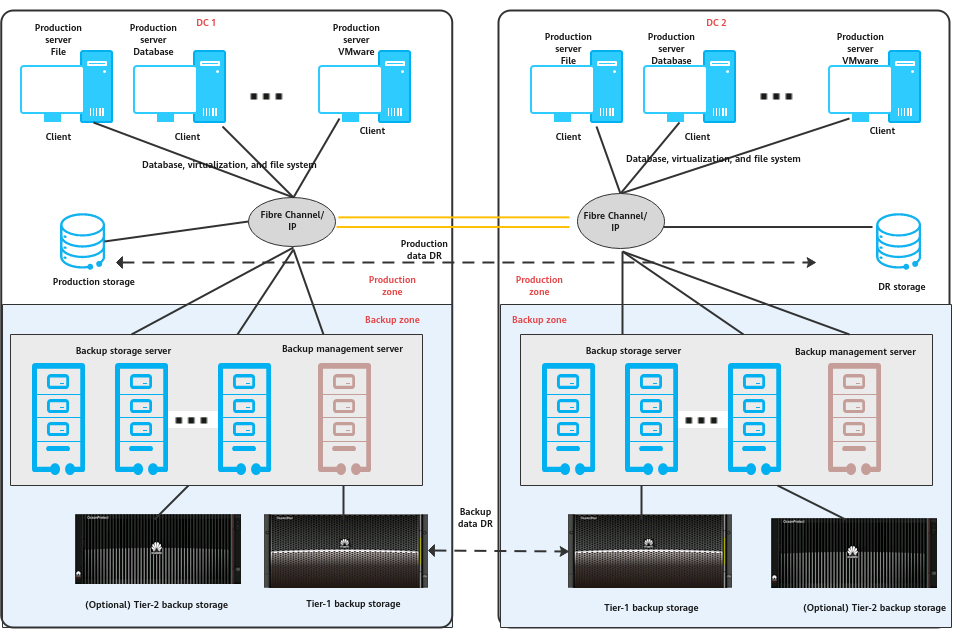

Figure 1-1 Backup storage solution architecture

Components

• Mainstream backup software includes Veritas NetBackup, Veeam, Commvault, and more.

• The backup management servers manage components in the backup system and are used to create, execute and schedule backup jobs and configure backup policies. The backup management servers can be deployed independently or together with media servers.

• Installed on protected application production servers and VMs, the backup agent client responds to backup job scheduling of the backup management servers, collects and manages data to be protected, and transmits the data to the backup storage servers.

• The backup storage servers (also called media servers) are independently deployed and respond to job scheduling of the backup management servers. The backup storage servers process backup data flows and manage backup data transmission and storage devices of backup data. Some vendors also provide backup data deduplication and compression capabilities on backup storage servers.

• Backup storage, which is connected to the backup storage servers, is used to receive and store backup data. Some backup storage devices also provide deduplication and compression capabilities. Based on service requirements, backup storage can be designed as two levels. Level-1 backup storage provides fast and efficient backup and data restoration capabilities, delivering optimal backup and restoration performance. The cost of level-1 backup storage is high, and data deduplication and compression are important. Level-2 backup storage stores data for a long term at a low cost. Backup copies stored for more than a certain period of time are migrated to level-2 backup storage, achieving the optimal comprehensive retention cost. Common backup storage types include backup storage, general-purpose storage, virtual tape libraries (VTL), object storage, and tape libraries.


Solution Description

• During backup, the backup management server delivers a backup scheduling command to the backup agent so that the backup agent collects and transmits data based on the specified backup policy. The backup storage server processes the data transmitted by the backup agent, writes the data to the backup storage in a certain format, and records the index.

• Due to the performance upper limit of a single backup storage server, if the processing performance is insufficient, scale-out of backup storage servers is supported.

• Backup data replication: Based on compliance and data security requirements, remote disaster recovery (DR) is also required for backup data. Data can be replicated and transmitted through the backup storage server or level-1 backup device.

• Long time retention (LTR) of backup data: The LTR solution is a suitable choice if customers want to retain backup copies for a long time and require quick recovery. According to policies, the most recent copies are stored on level-1 backup media to provide quick backup, quick access, and recovery. Copies that need to be stored for a long time are stored on level-2 backup media with lower cost. The combination of the two types of storage media helps achieve the optimal comprehensive retention cost.


This document describes the backup storage solution based on OceanProtect backup storage integrating backup software Commvault.

2. Overview

The backup storage solution (where Huawei OceanProtect backup storage integrates Commvault) can be used to back up application systems, replicate backup copies, and implement LTR-based tiering.

2.1 Components

2.2 Architecture

2.1 Components

2.1.1 Commvault Backup Software

Commvault can manage data in file systems, email systems, databases, VMs, application systems, desktop computers, and online storage systems:

1. Data backup and restoration

2. Online storage device snapshot management

3. Continuous data replication

4. Content search

5. Data analysis

6. Deduplication

7. Encryption of backup/archive data


Table 2-1 lists the main functions and advantages of Commvault.

Table 2-1 Main functions and advantages of Commvault

Item	Sub-item	Requirements
File system	Unix and Linux	The backup system must support the backup of AIX and HP-UX file systems.
		The backup system must support the backup of Red Hat Enterprise Linux/CentOS, SUSE Linux, and Ubuntu file systems.
		The backup system must support the backup of Solaris file systems.
	Windows	The backup system must support the backup of Windows file systems.
Operating system (OS)	OS	The backup system must support the backup of Windows, SUSE, and Red Hat OSs.
Application type	Database	The backup system must support the backup of Oracle, SAP, SQL Server, Sybase, MySQL, DB2, PostgreSQL, and Informix application clients.
	Virtualization	The backup system must support the backup of VMware, Hyper-V, Citrix, and FusionCompute and the restoration of individual VMs and files.
	Other applications	The backup system must support the backup of Exchange, SharePoint, and ERP application clients.
Backup system	NDMP backup	The backup software must support the NDMP backup mode.
	Workflow	The backup software must support customized workflow.
	Backup index	The internal index library of the backup software employs the distributed 2-level mechanism: The level-1 indexes manage the detailed backup records and are stored on multiple media servers while the level-2 indexes manage a small amount of job information and are stored on the backup management server.
	Deduplication	Parallel deduplication can be done, and DDBs can be scaled out. Both virtual and physical environments are supported. The following deduplication functions are supported: global deduplication, deduplication in the WAN environment, and secondary global deduplication after comparison of deduplicated data from different remote sites. Deduplicated data can be replicated to the remote site for data-level DR. Data can be restored even if the DDB is damaged. Source deduplication and target deduplication are supported.

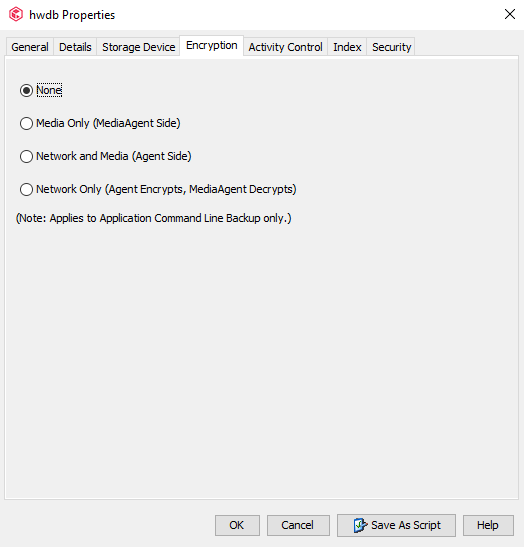

	Data encryption	Backup data is stored in a proprietary format instead of a standard format such as .tar and .cpio. Backup data can be encrypted using at least three encryption algorithms, including Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES).
	Graphical user interface (GUI)	A GUI is provided for automatic backup and restoration of OSs, files, databases, and VMs. Scripts are not required for backing up and restoring Oracle, SAP, DB2, SQL, MySQL, Informix, and Sybase databases. The report function provides statistics on jobs, data, hosts, and media. With AD, user management and audit functions are available for monitoring various backup and restoration operations, such as operation time, username, and operation records.
	Resumable backup	Resumable backup and restoration of files, Oracle databases, and email systems is supported. The system automatically resumes a backup/restoration operation from the breakpoint without manual intervention.
	Recovery of individual Oracle tables	RMAN can be used to back up Oracle data and restore individual Oracle tables without using any scripts.
	Recovery of individual emails	In addition to database-level backup for Exchange Server, restoration of individual emails is supported. Email-level backup and restoration are supported for Lotus Domino.
	Fine-grained restoration of VMs	Backup of VMware, Hyper-V, XenServer, and FusionCompute VMs, fine-grained restoration, as well as the consistent backup and fine-grained restoration of MSSQL/Exchange/SharePoint databases in VMs are supported. The backup function can be integrated into the vCenter GUI to centrally manage VM backup and restoration operations and support the restoration of individual files. The GUI also supports automatic conversion between Hyper-V and VMware VMs. New VMs can be identified automatically. Individual files in VMware VMs can be restored without using any scripts.
	Hardware snapshot	Hardware snapshot functions provided by mainstream storage vendors, including EMC, IBM, DELL, HDS, HP, NetApp, and Huawei, can be invoked.
Infrastructure	System architecture	A complete backup system comprising management, business, and client components, backup networks, and backup media, is provided. The SAN- or NAS-based centralized and unified backup mode and remote backup of data in multiple remote sites are supported.
	Networking mode	LAN-based, LAN-free, and Server-free networking modes are supported.
Capacity expansion	Scalability	Capacity expansion can be performed based on a capacity or function license. Backup media servers can be scaled to improve backup performance and the backup storage capacity can be expanded.
Reliability	Failover and load balancing are supported.	Redundant backup paths can be set and can be automatically managed for load balancing. Backup media servers, media drives, and media can be automatically selected so that backup jobs can be efficiently completed. Backup jobs can be executed on multiple backup media servers for load balancing.
	Centralized management of multiple backup domains	The backup system is able to centrally manage multiple backup domains. The backup domain at the headquarters periodically collects the index records of all backup domains, enabling centralized data query, restoration, and report within multiple data centers.
	Readiness check	The backup system can be checked periodically or before each backup operation for any software, hardware, and system issues, and a system check report can be provided to ensure the reliability of the backup system.
	Automated restoration drill	The GUI supports simplified and automated drill process of restoring files and applications to different hosts to verify the restorability of backup data.
	GUI	GUI-based centralized configuration management platform of backup services is provided. A unified report and alarm management platform is provided.

2.1.2 OceanProtect Backup Storage

Service Positioning

As the amount, types, and growth rate of data change exponentially, enterprises face increasing data loss risks due to unintentional deletion, viruses, natural disasters, and other network security threats. Therefore, data protection becomes increasingly important.

OceanProtect backup storage features rapid backup and rapid recovery, efficient reduction, and solid resilience, and helps to implement efficient backup and restoration and greatly reduce the TCO. It is widely used in government, financial, carrier, healthcare, and manufacturing industries. In addition, it offers easy-to-use management modes and convenient local/remote maintenance modes, significantly decreasing the management and maintenance costs.

OceanProtect backup storage is available in SSD form and HDD form.

• SSD form: The system supports only solid-state drives (SSDs). Both service data and metadata are stored in SSDs.

• HDD form: The system supports both SSDs and hard disk drives (HDDs). Service data is stored in the storage pool composed of HDDs. SSDs only store system metadata. SSDs with superb performance can accelerate access to metadata, improving read/write performance.


Product Highlights

Based on the full-process acceleration and active-active high-reliability architecture, OceanProtect backup storage features rapid backup and rapid recovery, efficient reduction, and solid resilience.

In addition, OceanProtect 1.2.0 provides new features such as source deduplication and deduplicated replication to effectively increase the logical bandwidth and decrease the network resource occupation for customers.

• Rapid backup, rapid recovery

• Full-process acceleration is implemented. The front-end network protocol offload technology reduces the CPU pressure, and the back-end CPU multi-core parallel scheduling is implemented. Dedicated cores are used through grouping and job partitioning, efficiently improving the processing capability of nodes.

• Multiple sequential data flows are aggregated for read and write to greatly improve bandwidth performance. Source deduplication reduces the amount of data to be transmitted over the network and shortens the backup duration.

• The system provides high IOPS performance and can work with mainstream backup software. Backup image data can be accessed immediately, implementing fast utilization of backup data.

• Efficient reduction

• Accurate backup data segmentation, backup data aggregation preprocessing, and multi-layer inline variable-length deduplication are used to increase the logical capacity and reduce the total cost of operations (TCO).

• Data flow features can be identified. Compression after combination, high-performance predictive encoding, and byte-level compaction are used to improve the data reduction ratio.

• Source deduplication and deduplicated replication are used to reduce network bandwidth costs.

• Solid resilience

• The active-active hardware architecture design ensures that ongoing backup jobs can be switched over within seconds if a single controller is faulty, ensuring uninterrupted backup jobs.

• Protocol encryption, replication link encryption, array encryption, secure snapshots, and write once read many (WORM) are used to ensure security and availability of copies.


2.2 Architecture

2.2.1 Overall Solution Architecture

Figure 2-1 Overall architecture of the OceanProtect backup storage + Commvault solution

Overview

• Backup and restoration

• OceanProtect supports multiple protocols: DataTurbo (IP, recommended), DataTurbo (Fibre Channel (« FC » for short), recommended), standard NFS/CIFS, and SAN.

• For the software license mode of Commvault, the front-end capacity license or client license is recommended, and you are advised to disable Commvault deduplication and compression. Commvault MediaAgent (« MA » for short) writes backup data to OceanProtect backup storage, and the data is deduplicated and compressed on OceanProtect, delivering an optimal deduplication ratio. The solution is recommended for the mainstream scenario of replacing solutions provided by peer vendors.

• Remote replication

• The remote replication of the OceanProtect backup storage (HyperReplication) is preferred. When storage-layer replication is used, the data transmission path is shortened from « storage > backup software > storage » to « storage > storage », improving transmission efficiency and reducing the overhead of backup media servers.

• When a Replica Library created on Commvault is used to integrate OceanProtect backup storage, replication copies can be directly managed in the remote system of Commvault.

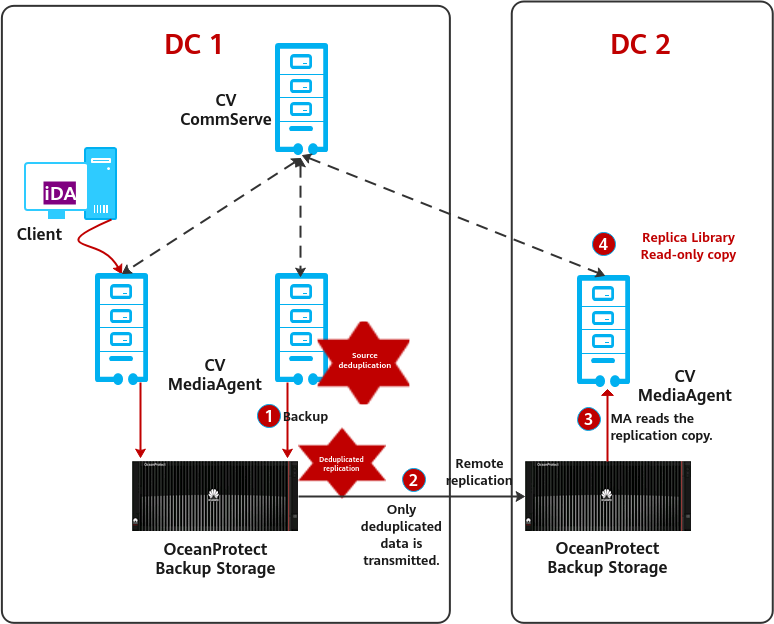

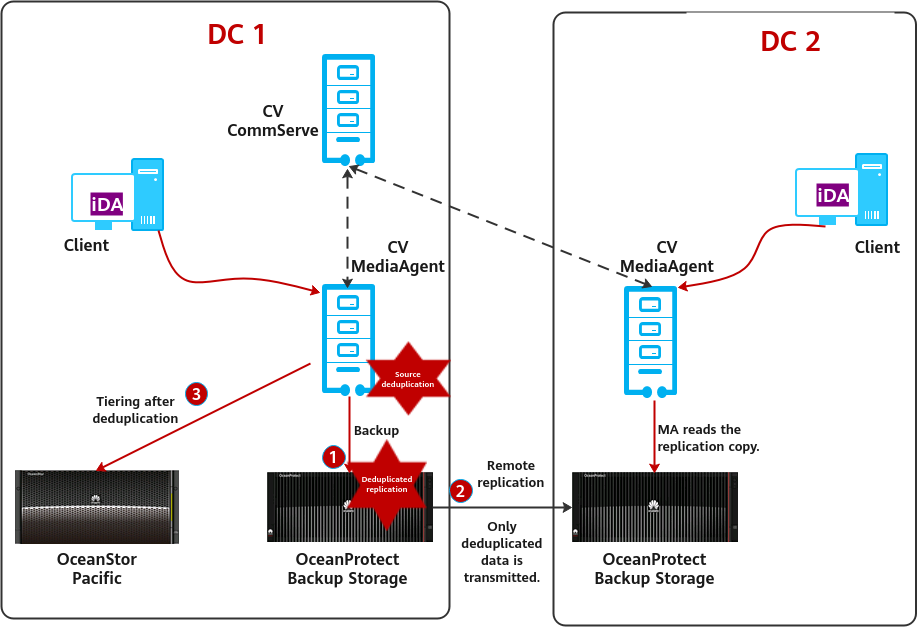

• OceanProtect 1.2.0 supports deduplicated replication. Only deduplicated copies are transmitted to the remote site, effectively reducing replication bandwidth usage.

• In OceanProtect 1.3.0, copy-based recovery after remote replication can be performed without splitting the replication pair.

• Tiering for LTR

• After MA deduplicates and tiers data, LTR copies are stored in the OceanStor Pacific object storage or public cloud storage.

• The copies tiered to the object storage or public cloud storage can be directly used for data restoration.


2.2.2 Solution Architecture

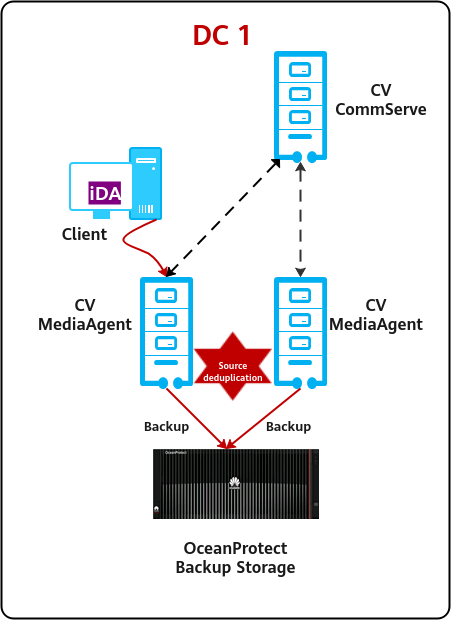

Figure 2-2 Solution architecture

Overview

• CV components

• CommServe (CS): the management server of Commvault, which manages data backup, archive, and restoration. CS manages all software components. It contains a SQL Server database that stores all configurations, security attributes, operation history, and metadata. In a Commvault backup domain, there can be only one CS which can be installed on a physical machine (PM), virtual machine (VM), or cluster and supports Windows OS.

• MA: the media agent server of Commvault, which manages data transmission and data storage libraries such as disk libraries, tape libraries, and cloud storage. CS directs and coordinates MA to execute jobs. Multiple MAs can be deployed in a Commvault backup domain to improve the performance. MA can be installed on a PM, VM, or cluster and supports Windows, Linux, and Unix OSs.

• iDataAgent (iDA): the client agent installed on the client computer or agent server, which secures, manages, and transfers data. Under the dispatching of CS, iDA can directly transmit data to MA. There are various agents for managing different types of data such as backup agents for Windows and Linux file systems and Oracle databases. iDA can be installed in a PM, VM, or cluster.

• Integration solution


When the Commvault + OceanProtect backup storage solution is used, the OceanProtect backup storage serves as the backup storage media while Commvault as backup software. With all existing backup functions of Commvault supported, the data can be written from the client to the OceanProtect backup storage.

• Integration protocol


Commvault supports multiple backup media such as SAN, NAS, object storage, and tape libraries. Protocols such as Fibre Channel, iSCSI, NFS, CIFS, and S3 are supported.

The OceanProtect backup storage supports multiple protocols such as DataTurbo and CIFS/NFS. DataTurbo is a Huawei proprietary NAS protocol that supports source deduplication. FC SAN is used only in a scenario where the SAN network on the live network cannot be replaced with an IP network.

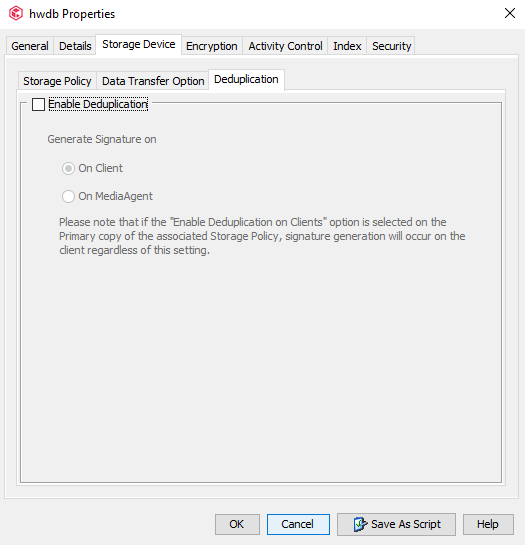

• Deduplication and compression

• When Commvault uses a front-end capacity or client license, Commvault deduplication is disabled, and only the deduplication and compression features of OceanProtect are used, delivering an optimal deduplication ratio. This solution is recommended and applies to mainstream scenarios.

• When Commvault uses a back-end capacity license, Commvault deduplication is enabled. In this case, the deduplication and compression for the second time performed on OceanProtect deliver a low data reduction ratio. Commvault deduplication is enabled to reduce the Commvault license cost.


2.2.3 Architecture of the Backup Copy Replication Solution

There are two backup copy replication solutions.

• Backup software-based replication. Data is read by the backup software, replicated by backup servers, and written to the backup storage by the remote backup software.

• Backup storage-based replication. Data is directly replicated from the local backup storage system to remote backup storage system and can be identified by the remote backup software for further use.


Backup storage-based replication is preferred with shorter data I/O path and lower read/write performance overhead of backup software replication.

The following figure shows the typical replication network between Commvault and the OceanProtect backup storage.

Replication network between Commvault and the OceanProtect backup storage

Overview

• One-to-one, one-to-many, and many-to-one replication networks are supported.

• When the deduplication-based replication of the OceanProtect backup storage is used, only deduplicated data is transmitted, saving the replication bandwidth.

• The OceanProtect backup storage integrates Commvault. The file system at the target end replicated by the OceanProtect backup storage is mounted to the target MA, and is used to create a Replica Library in read-only mode.

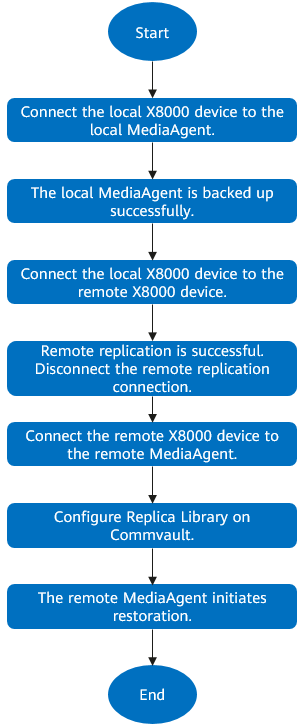

• When restoration is required, you can select the target MA on CV CommServe, and MA automatically finds and restores the required data in the file system of the target end.


2.2.4 Tiering Solution Architecture

Figure 2-4 Tiering solution architecture

Overview

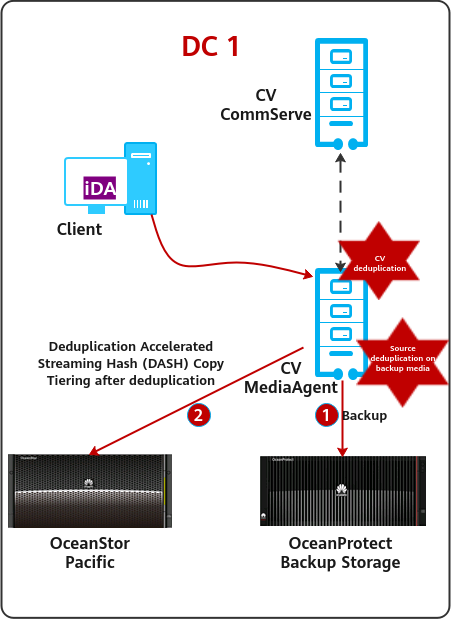

Data in OceanProtect is tiered to the OceanStor Pacific object storage or public cloud storage using CV. Data is replicated to the OceanStor Pacific object storage using the DASH Copy function of CV.

• Production data is backed up to OceanProtect backup storage for short-term retention.

• DASH Copy of CV is used to tier data to the OceanStor Pacific object storage. Data can be tiered after deduplication for LTR

• Retention policies can be configured on CV for tiered copies. Copies on the OceanStor Pacific object storage can be directly used for restoration.

• CV supports mainstream S3 object storage and public cloud storage.

• For tiered copies for LTR, enable DASH Copy of CV to provide the post-deduplication tiering capability. Otherwise, AUX Copy without deduplication will be used.


2.2.5 Architecture of the WORM Anti-Tampering Solution

Figure 2-5 Architecture of the WORM anti-tampering solution

Overview

Ransomware infiltrates a backup system and deletes backup data before encrypting production data and using that to demand ransom. Without backup data available, users have to pay the ransom to get their data back. Therefore, anti-tampering of backup data is particularly important in defense against ransomware attacks.

Solution description

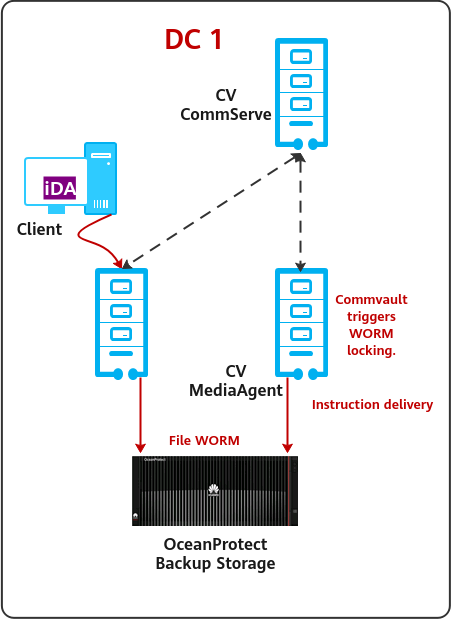

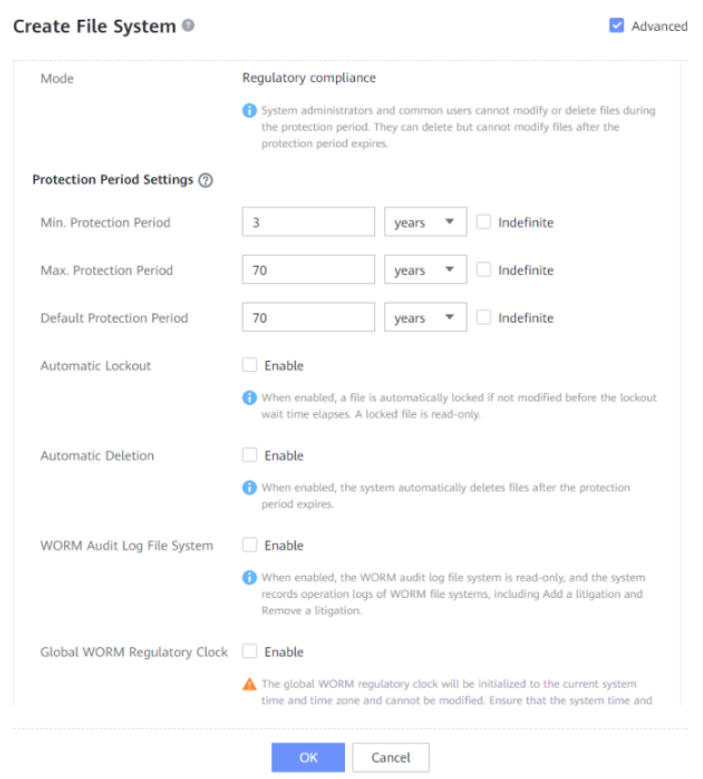

• The OceanProtect backup storage provides a WORM file system at the storage hardware layer. You can set a protection period for backup data to prevent data from being modified or deleted.

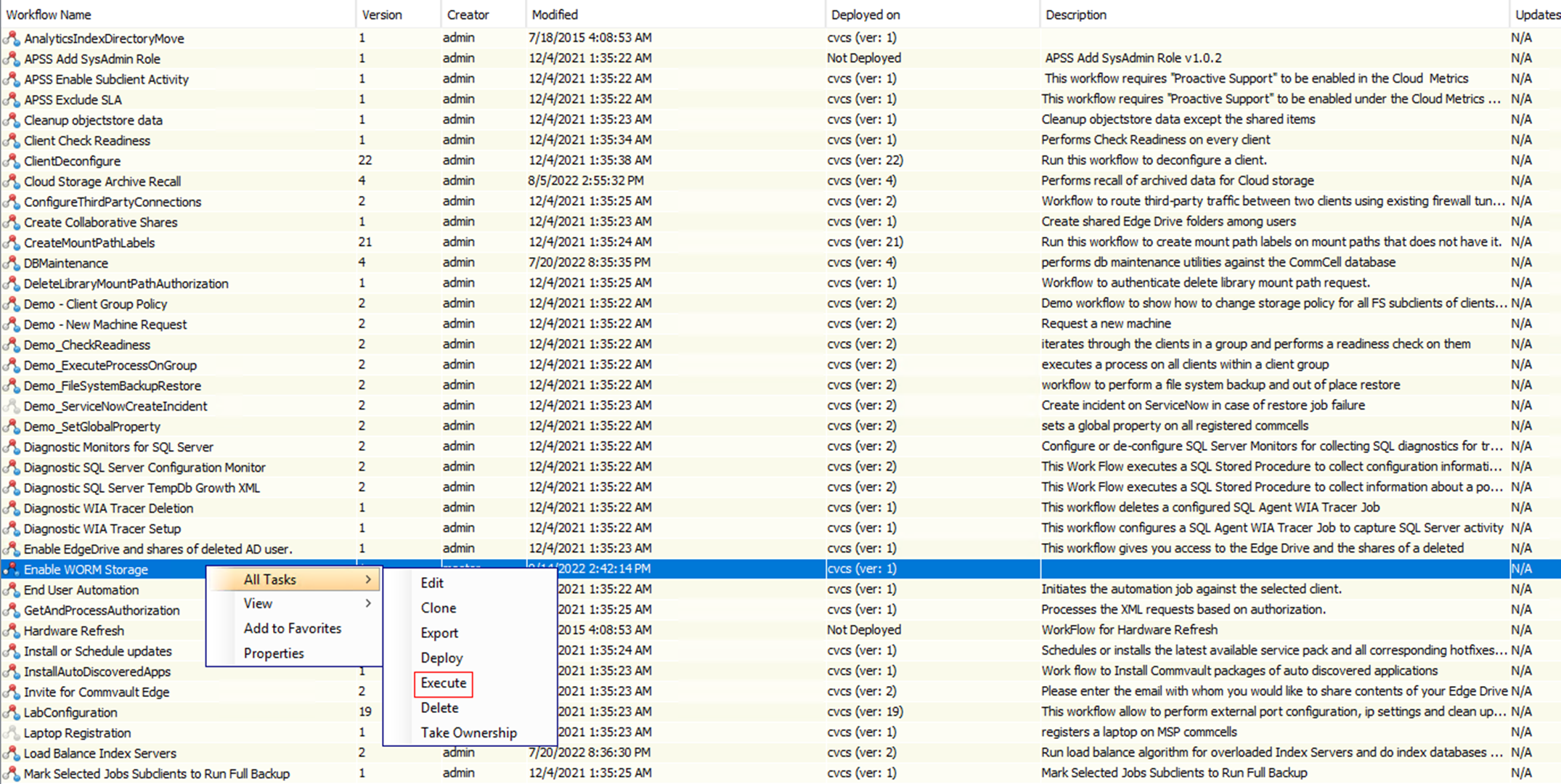

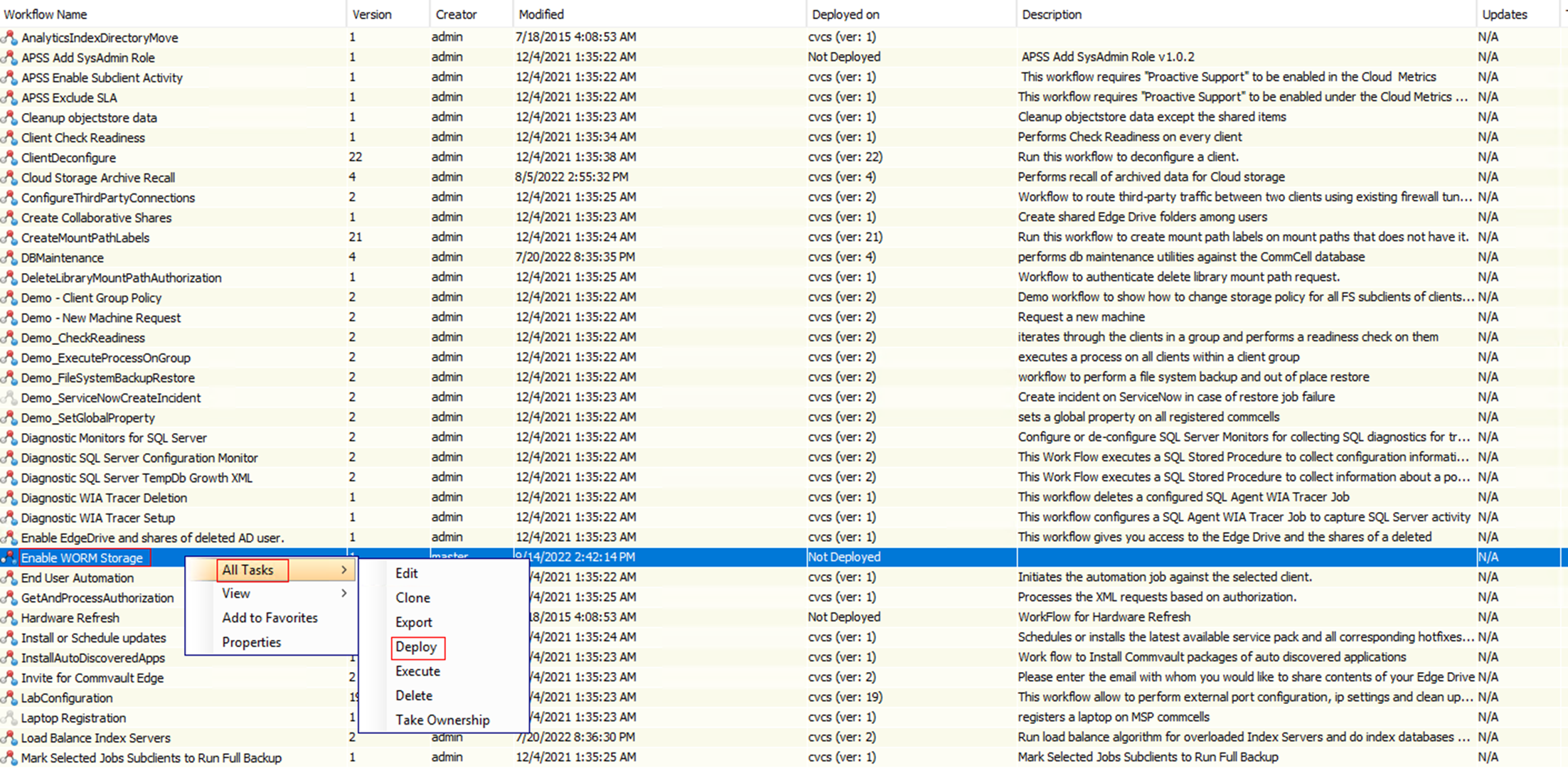

• After a backup job is complete, Commvault invokes the OceanProtect interface to lock the backup files and retain them for a certain period.

• The solution uses Commvault to implement WORM protection for specified backup copies at the backup storage hardware layer.


3. Planning Suggestions

3.1 Backup Planning for Integrating Applications

3.2 System Backup Capacity and Performance Planning

3.1 Backup Planning for Integrating Applications

3.1.1 Planning Suggestions for Integrating Production Applications

The OceanProtect backup storage + Commvault solution supports integration with various production application systems for data backup. This document uses typical application integration scenarios as examples.

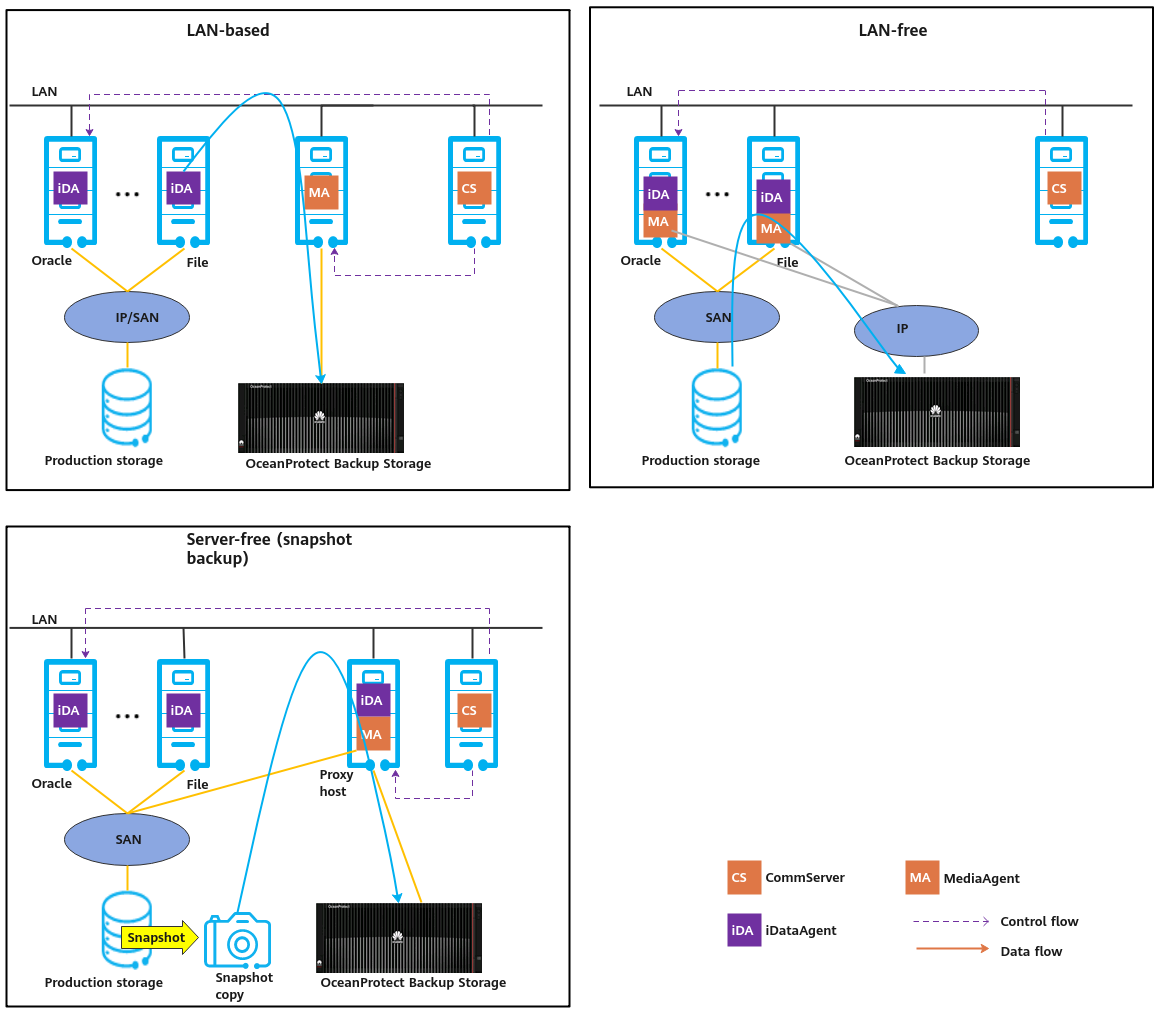

3.1.1.1 Integration Planning in VMware VM Backup Scenarios

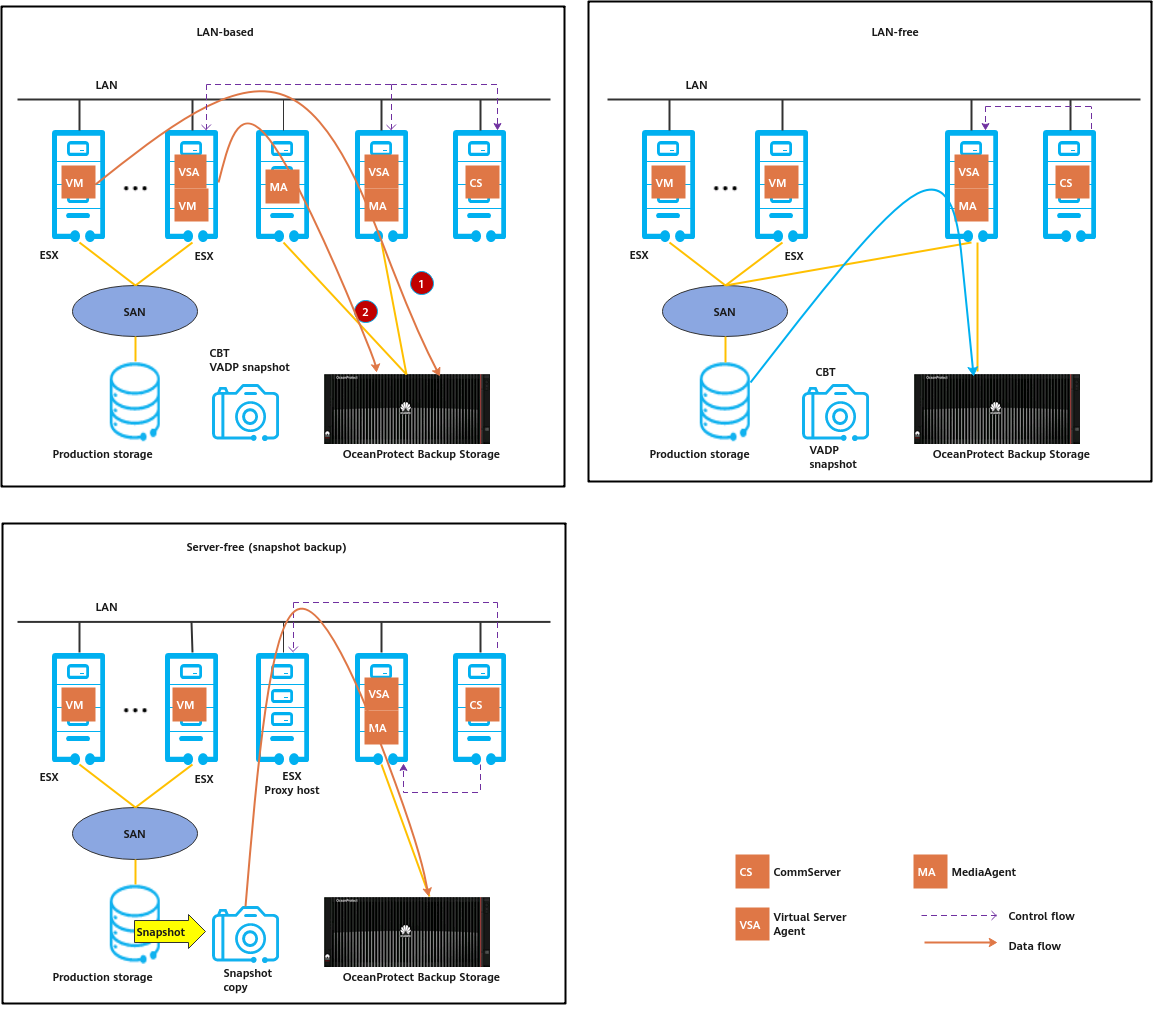

For VMware VM backup, there are three common networking modes, that is, LAN-based, LAN-free, and Server-free.

Figure 3-1 VMware VM backup networking

LAN-based

In LAN-based networking mode, backup data is transmitted over an existing LAN. VMware VMs can be backed up in NBD or Hot-add mode.

• In NBD mode, as shown in (1) in Figure 3-1, the Virtual Server Agent (VSA) is deployed on the MA server. VM files are backed up to the OceanProtect backup storage at the backend of the MA over the LAN. In this mode, the backup efficiency is low.

• Hot-add mode: As shown in (2) in Figure 3-1, the VMware platform for backup provides one VM for installing the VSA. The VSA VM is used to access other VM files and back up data to the OceanProtect backup storage at the backend of the MA over the LAN.


LAN-free

In LAN-free backup mode, backup data is transmitted over the SAN of the production system, and VMware SAN backup mode is used.

The VSA is installed on the MA server. During backup, the VSA uses the VADP interface (a VMware standard backup interface) to create VM snapshots and obtains backup data by using the snapshots. The MA of Commvault is connected to the SAN of the production system, reads backup data from the VMware platform over the SAN, and stores the data in the OceanProtect backup storage at the back end of the MA.

Server-free (Snapshot-based Backup)

In Server-free backup mode, backup data is transmitted over the SAN of the production system by using IntelliSnap.

The VSA is installed on the MA server, and an ESXi proxy host needs to be deployed. (Simplified deployment is supported, and the VSA and MA share the same physical host.) The ESXi proxy host is connected to the SAN of the production storage. During backup, the VSA schedules the production storage to create snapshots and mounts the snapshots to the ESXi proxy host. Then the VSA backs up data from the ESXi proxy host. In this mode, storage snapshots are used to reduce the impact of the silent time for creating VM snapshots on VMware production services. This networking mode requires that the production storage be compatible with Commvault.

3.1.1.2 Integration Planning in Oracle Database and Host File Backup Scenarios

There are three types of networking modes for Oracle database backup and host file backup, that is, LAN-based, LAN-free, and Server-free.

Networking for Oracle database backup and host file backup

LAN-based

In LAN-based networking mode, backup data is transmitted over LAN.

iDataAgent for Oracle or File is installed on the production host. MA is independently deployed. During backup, iDA transmits data over LAN. After being processed by the MA (such as generating indexes), the data is stored in the back-end OceanProtect backup storage. This networking is simple and makes full use of the existing network. Some network bandwidth for production services is occupied.

LAN-free

In LAN-free networking mode, backup data is transmitted over SAN.

In the typical networking, MA and iDA are installed on the production host, and the backup storage is directly connected to the production host. During backup, data is processed by iDA and MA on the production host and directly transmitted to the OceanProtect backup storage. This networking has little impact on the existing service network and delivers good backup performance. However, this networking mode increases network investment and has high requirements on production hosts.

Server-free (Snapshot-based Backup)

In Server-free backup mode, backup data is transmitted over the SAN of the production system by using IntelliSnap.

iDA is installed on the production host, and an independent MA is deployed. Another iDA is installed on MA as the proxy host of Oracle database or files. The MA is directly connected to the SAN of the production storage and is connected to the production storage. During backup, Commvault schedules the production storage to create snapshots, mounts the snapshots to the proxy host, backs up data from the proxy host, and writes the backup data to the OceanProtect backup storage at the back end of MA. In this mode, backup data is read from storage hardware snapshots, which has little impact on the production host and existing network. This networking mode requires that the production storage be compatible with Commvault.

3.2 System Backup Capacity and Performance Planning

3.2.1 Network Planning for Different OceanProtect Models

In OceanProtect 1.3.0, the customer can select OceanProtect X3000, X6000, X8000, and X9000 based on different backup capacity and performance requirements. The networking configuration principles of all models must comply with the principles described in 4.3 Configuration Planning for Commvault Integration.

3.2.2 Overall Capacity and Performance Planning

Before planning and designing a backup solution, survey the customer’s production system and plan the backup system according to the following procedure.

1. Configure a backup policy.


Survey the service systems to be backed up, and formulate a proper backup policy for each service system based on service requirements. For example, the frequency of full and incremental backups can be once every week and once every day respectively, and the backup data can be retained for one month.

Table 3-1 describes a typical backup policy.

Table 3-1 Typical backup policy

No.	Backup Object	Incremental Backup Interval	Retention Period of Incremental Backup (Day)	Copies of Incremental Backup	Full Backup Interval	Retention Period of Full Backup (Day)	Copies of Full Backup
1	VM	Every day	90	87	Every month	90	4
2	File	Every day	90	77	Every week	90	14
3	E-mail	Every day	365	353	Every month	365	13
4	Database	Every day	90	77	Every week	90	14

1. Calculate the backup capacity.


Survey the production capacity of each service system to be backed up and the data change rate (such as daily, weekly, monthly, and annual change rates). Based on the above information, you can use eDesinger to calculate the deduplication rate and post-deduplication capacity.

Table 3-2 shows a typical example of calculating the backup capacity.

Table 3-2 Backup capacity calculation

No.	Site	Backup Object	Initial Capacity (GB)	Capacity Growth Rate	Three-Year Before-deduplication Capacity (GB)	Data Deduplication Ratio	Three-Year Post-deduplication Capacity (GB)
1	Data center	VM	5000	1% per month	32,177	5:1	6435
2		File	2500	2% per month	81,206	5:1	16,241
3		E-mail	1000	2% per month	33,199	8:1	4150
4		Database	5000	1% per month	112,042	3:1	37,347
5		Total:	13,500		258,624		64,175
6	Remote site 1	VM	2500	1% per month	16,089	5:1	3218
7		File	1250	2% per month	40,603	5:1	8121
8		Total:	3750		56,692		11,339
9	Remote site 2	VM	5000	1% per month	32,177	5:1	6435
10		File	3000	2% per month	97,447	5:1	19,489
11		Total:	8000		129,624		25,924
12	Total (all sites):		25,250		444,940		101,438

1. Calculate backup performance and bandwidth.


You are advised to perform the first full backup after the backup system is delivered for the first time. You need to plan a backup window for the first full backup. A daily backup window needs to be planned for periodic backup or incremental backup based on the backup policy required by the customer. Generally, it is recommended that the periodic full backup of each application system be performed in off-peak hours. In a period, the full and incremental backup jobs of each application system should be executed based on the backup policies.

Table 3-3 shows a typical example of calculating backup performance and bandwidth.

Table 3-3 Example for calculating backup performance and bandwidth

No.	Site	Backup Object	Daily Full Backup Volume After Three Years (GB)	Backup Window (Hour)	Backup Bandwidth (MB/s)
1	Data center	VM	7154	4	509
2		File	5100	2	725
3		E-mail	2040	1	580
4		Database	7154	5	407
5	Remote site 1	VM	3577	2	509
6		File	2550	2	363
7	Remote site 2	VM	7154	4	509
8		File	6120	3	580

1. Determine the number of media servers.


For different backup data capacities, five types of media server configurations, from Extra Small to Extra Large, are recommended. More advanced configuration specifications indicate larger backup capacity supported by a single MA. In an actual project, select a proper type and number of media servers based on the front-end or back-end capacity.

1. Create a replication policy.


If backup copy replication is required for DR, a replication policy must be created. You need to plan the execution window of the replication jobs.

Table 3-4 describes a typical replication policy.

Table 3-4 Replication policy example

No.	Source Site	Target Site	Replication Type	Replication Trigger Type	Replication Time Window
1	Remote site 1	Data center	Commvault DASH Copy	Trigger by time, automatic copy	7:00–11:00
2	Remote site 2	Data center	Commvault DASH Copy	Trigger by time, automatic copy	7:00–11:00
3	Data center	Remote site 2	Commvault DASH Copy	Trigger by time, automatic copy	11:00–21:00

1. Calculate replication performance and bandwidth.


Determine the replication time window based on customer requirements. Calculate replication performance requirements based on the volume of data to be replicated.

Table 3-5 shows a typical example of calculating replication bandwidth.

Table 3-5 Typical example of calculating replication bandwidth

No.	Source Site	Target Site	Daily Replication Data Volume (GB)	Replication Time Window (Hour)	Replication Bandwidth (MB/s)
1	Remote site 1	Data center	1225	2	174
2	Remote site 2	Data center	2655	4	189
3	Data center	Remote site 2	5090	9	161

Maximum replication data volume per day per site = ∑(Full backup data volume of all applications/Deduplication rate)

3.2.3 Configuration Planning for OceanProtect Backup Storage

Backup Capacity and Performance Planning

• Backup capacity calculation


The capacity of OceanProtect X8000 is planned based on the capacity and retention period of the customer’s backup data.

For details about the commercial configuration of OceanProtect X8000, visit https://app.huawei.com/unistar/edesigner/#/.

• Backup performance calculation


Generally, the backup performance of a backup system is planned based on the backup window and backup capacity of the customer.

Planning Storage Resources

• Disk type planning: Storage pools can be created using SSDs and HDDs. Table 3-6 describes disk type planning.


Table 3-6 Disk type planning

Storage Form	OceanProtect X8000 (all-flash)	OceanProtect X8000 (HDD-based)
Disk Type	All disks in a storage pool are SSDs.	A storage pool consists of SSDs and HDDs.
Disk Quantity	For all-flash storage systems, storage pools support only SSDs. Both data and metadata are stored in SSDs. At least eight SSDs are required.	At least six SSDs (cache disks) and eight HDDs (data disks) must be deployed in each controller enclosure. The capacity of SSDs (cache disks) must be greater than or equal to 5% of the capacity of HDDs (data disks).

• Storage capacity planning: The capacity of OceanProtect X8000 is planned based on the customer’s backup data capacity and retention period.

• Compression mode planning: The storage pool supports two compression modes: high reduction ratio (default) and high performance.


With regard to the compression ratio, the high reduction ratio mode outperforms the high performance mode.

• Storage pool planning: A storage pool is a container that stores resources. It provides storage space for all application servers. For core services, RAID-TP is recommended. Table 3-7 describes the protection level policies of storage pools.


Table 3-7 Protection levels of storage pools

Protection Level	Number of Parity Bits	Redundancy and Data Recovery Capability	Maximum Number of Allowed Faulty Disks
RAID 6 (default)	2	High. Parity data is distributed on different chunks. In each chunk group, the parity data occupies the space of two chunks. RAID 6 is able to tolerate simultaneous failures on two chunks. If three or more chunks fail, RAID 6 protection can no longer be provided.	2
RAID-TP	3	High. Parity data is distributed on different chunks. In each chunk group, the parity data occupies the space of three chunks. RAID-TP is able to tolerate simultaneous failures on three chunks. If four or more chunks fail, RAID-TP protection can no longer be provided.	3

File system planning

• File system planning: Table 3-8 describes the key parameters that are used for file system planning.


Table 3-8 File system planning

Parameter	Description
Capacity	The capacity of a file system is planned based on actual services.
Quantity	See 3.2.4 Commvault Deployment Planning. Plan this parameter based on actual service requirements.
Application type	The file system application type can be Reduction_Global_Mode (default), Performance_Global_Mode, Reduction_Prioritized_Mode_enhanced, or Performance_Prioritized_Mode_enhanced. By default, Reduction_Global_Mode is recommended for file systems, and the high reduction ratio mode is recommended for the storage pool compression mode. If the customer has a tight backup window and requires high backup bandwidth, it is recommended that the file system application type be set to Performance_Global_Mode and the storage pool compression mode be set to high performance mode.

• File system sharing: OceanProtect X8000 provides CIFS, NFS, and DataTurbo shares. DataTurbo is used for file system sharing in this solution, for SourceDedupe to work. For details about the OS versions and backup software versions supported by the DataTurbo client, see the compatibility query website.


https://info.support.huawei.com/storage/comp/#/oceanprotect

Network Planning

• Planning physical ports

• Quantity planning: Plan the quantity of required NICs and ports based on the backup network bandwidth requirements.

• Configuration planning: OceanProtect X8000 is a dual-controller device. To ensure reliability, the planned NICs must be evenly distributed to controllers A and B.

• Planning logical ports

• Quantity planning: Logical ports are created for running NAS services. You are advised to configure at least one logical port for each physical port.

• Configuration planning: OceanProtect X8000 is a dual-controller device and consists of controllers A and B. When mounting a file system, you are advised to use the logical port of controller A for the file system of controller A and the logical port of controller B for the file system of controller B.


To achieve a good deduplication effect, you are advised to disable the deduplication and compression functions of backup software and disable the compression and encryption functions of applications to be backed up. For example, disable compression and encryption of Oracle RMAN.

3.2.4 Commvault Deployment Planning

Commvault MediaAgent Planning

For example, if the DataTurbo protocol is used to integrate the SourceDedupe feature and the backup software, the Commvault 11 SP 30 backup software and OceanStor DataTurbo must be deployed on Commvault MediaAgents.

• Server requirements: The backup capability of each MediaAgent depends on the server type. For details about the bandwidth capability of each server type, see the related Commvault documentation. Plan the number of servers based on the backup network bandwidth. For details about DataTurbo’s requirements on servers, see « Backup Server Requirements » in the OceanProtect Backup Storage 1.6.0 SourceDedupe User Guide.

• Deployment requirements: To achieve higher performance, you are advised to deploy the CommServe and MediaAgent separately.

• NIC requirements: A MediaAgent is connected to both the production system and backup storage devices. Both the front-end and back-end NICs must meet the backup bandwidth requirements to avoid bottlenecks.

• Front-end network: It is used to establish connections with the production environment. To achieve the backup capability of each MA, the front-end network should be properly configured to prevent it from becoming a bottleneck. For example, if the capability of a single MediaAgent is evaluated as 3.3 GB/s, prepare 4 x 10GE ports for the front-end network, which can be adjusted based on the MediaAgent capability in actual tests.

• Back-end network: This solution uses the SourceDedupe feature. Therefore, the back-end network of the MediaAgent does not need to have the same configuration as the front-end network. You are advised to configure 2 x 10GE ports (one connected to controller A and the other connected to controller B of OceanProtect X8000) on each MediaAgent.

• The following figure shows the networking when the SAN transmission mode is used for the VMware application backup and two MediaAgents are used. The number of physical links to the production system is determined by the capability and number of MediaAgents. The physical bandwidth for connecting to OceanProtect is calculated as follows: Number of MediaAgents x 2 x 10GE. The DataTurbo plug-in is used to mount file systems.


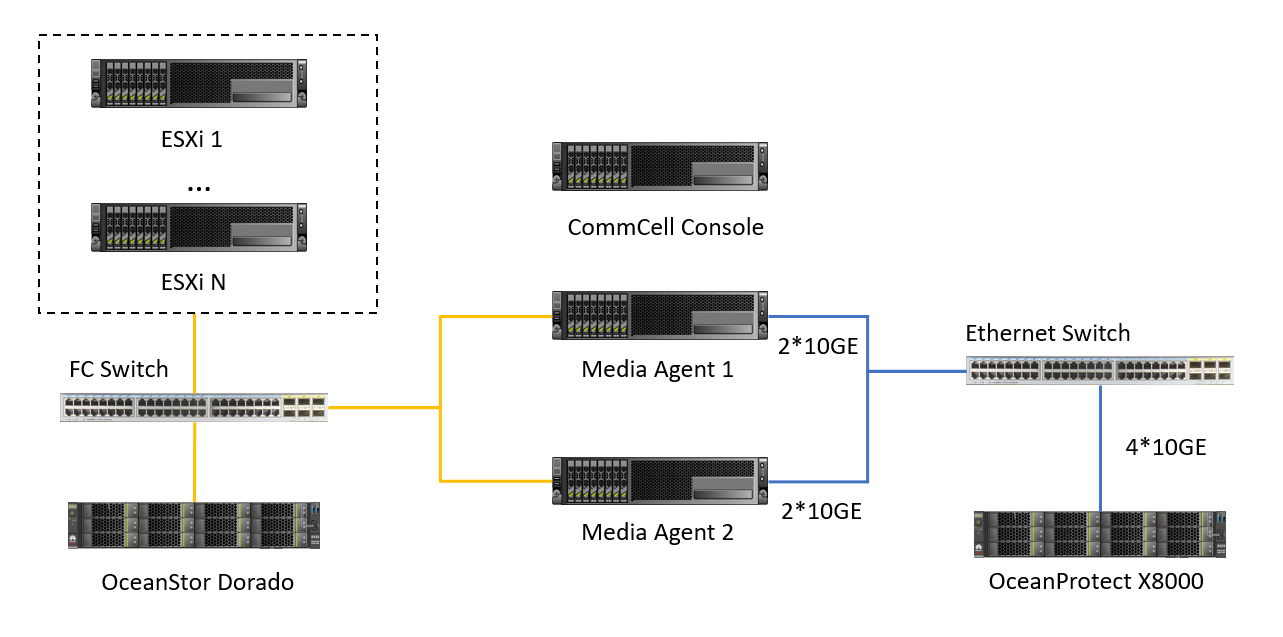

Figure 3-3 Networking diagram of OceanProtect X8000 and Commvault for backing up VMware applications in SAN transmission mode (all hosts in the figure are connected to the management network)

Commvault Library Planning

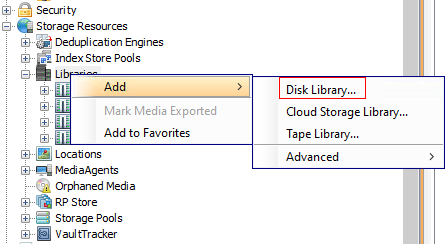

• Library planning: File systems created on OceanProtect X8000 are mounted to Commvault MediaAgent. You are advised to mount the file systems according to the following principles:

• OceanProtect X8000 is a dual-controller device. Therefore, when using the DataTurbo protocol to establish connections, you are advised to connect each MediaAgent to both controller A and controller B.

• One file system is mounted to each MediaAgent.


This section recommends three library planning solutions, which can be flexibly adjusted in various scenarios, such as value-added features of file systems and backup set classification. Select a solution based on service conditionsand customer requirements.

1. One-to-one solution (one file system to MediaAgent)


One or more file systems are used. A file system is mounted to a MediaAgent and the mount point is created as a mount path of a library.

The following figure shows an example when there are four MediaAgents.

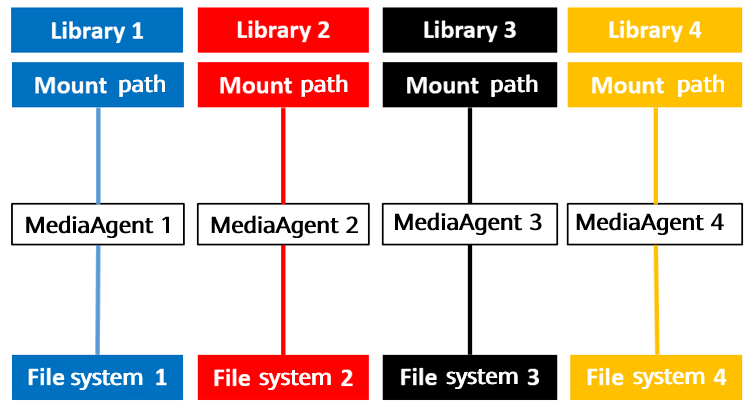

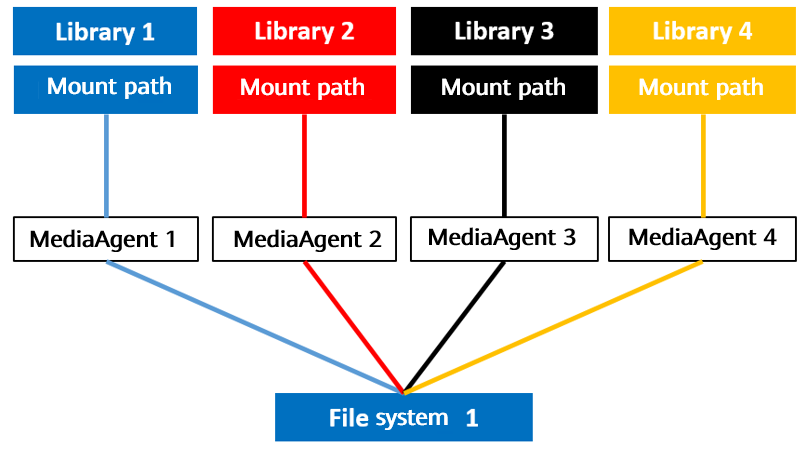

Figure 3-4 Example of the one-to-one solution for library planning

1. One-to-many solution (one file system to multiple MediaAgents)


Only one file system is mounted to all MediaAgents and the mount point on each MediaAgent is created as a mount path of a library.

The following figure shows an example when there are four MediaAgents.

Figure 3-5 Example of the many-to-one solution for library planning

3. GridStor solution

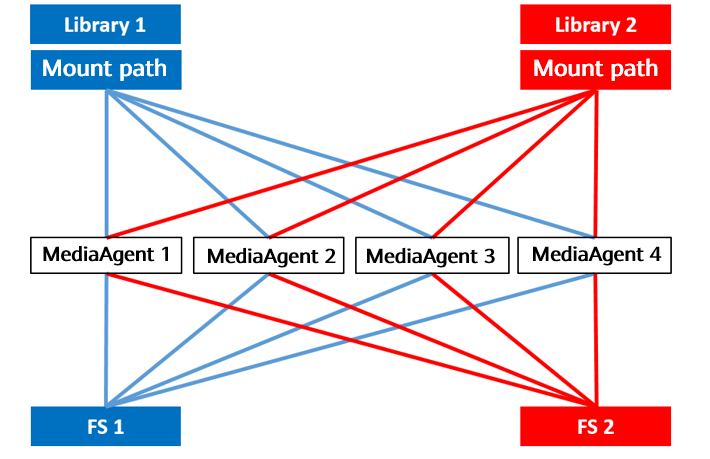

Each file system is mounted to all MediaAgents. The mount directory of one MediaAgent is created as the mount path of a library. The Share Mount Path operation is performed on the mount path to share the mount directories of the same file system on other MediaAgent hosts to the mount path. For details, see 4.4.5.3 Configuring a Library.

The following figure shows an example when there are four MediaAgents and two libraries to be configured.

Figure 3-6 Example of the GridStor solution for library planning

The best practice planning in this document applies to OceanProtect 1.6.0 delivery scenarios. For upgrade scenarios, contact R&D engineers for evaluation.

Commvault Policy Planning

Create one policy for each library and associate each MediaAgent with two or three policies.

4. Configuration Example

This chapter uses the source deduplication of OceanProtect X8000 as an example to describe the configuration process and test results of backup and restoration, remote replication, and WORM by integrating OceanProtect with Commvault 11 SP 30 to back up Oracle databases and VMware VMs.

4.1 Solution Networking

4.2 Hardware and Software Configuration

4.3 Configuration Planning for Commvault Integration

4.4 Commvault Backup and Restore Configuration

4.5 Configuring the Remote Replication Environment

4.6 Configuring the WORM Feature

4.7 (Optional) Configuring Virtual Synthetic Full Backup Using DASH Full

4.8 Best Practice Verification Examples

4.1 Solution Networking

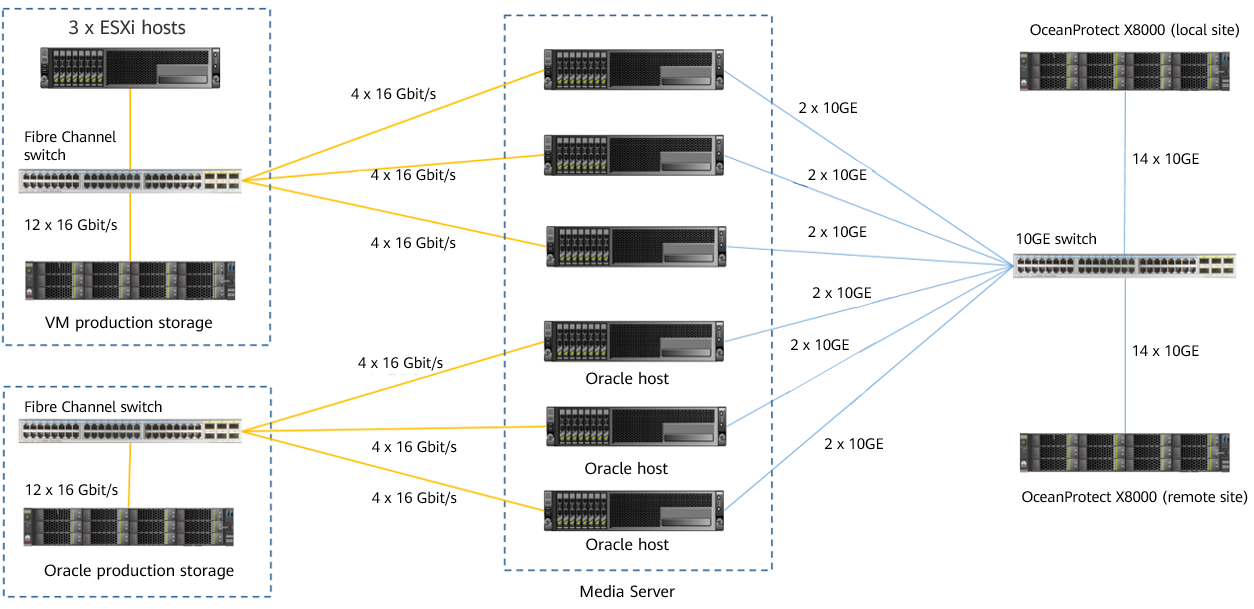

Figure 4-1 shows the networking of the Oracle database and VMware backup solution in this practice.

Figure 4-1 Networking diagram of the OceanProtect X8000 and Commvault solution for backing up Oracle and VMware data

Figure 4-1 is only an example. For details about connections between OceanProtect X8000 controller enclosures and application servers, between controller enclosures and disk enclosures, and between controller enclosures, see « Cabinet Layout and Connection Planning » in the OceanProtect X6000, X8000 1.x Installation Guide.

Solution networking for backing up Oracle and VMware data using Commvault:

• Oracle: In this practice, three Oracle physical hosts are co-deployed with MediaAgents and are connected to one production storage device.

• Oracle hosts are connected to OceanStor Dorado 8000 through a Fibre Channel switch. Each Oracle host uses 4 x 16 Gbit/s Fibre Channel links. OceanStor Dorado 8000 uses 12 x 16 Gbit/s Fibre Channel links.

• LUNs are created on OceanStor Dorado 8000 and mounted to Oracle hosts through the FC protocol. They are used as volumes for storing Oracle data files and archive logs.

• A Commvault MediaAgent is installed on each Oracle host and connected to OceanProtect X8000 by using 2 x 10GE optical fibers through a 10GE switch.

• VMware: In this practice, three ESXi hosts are deployed and are connected to one production storage device.

• The two file system hosts are connected to OceanStor Dorado 6000 through a Fibre Channel switch.

• OceanStor Dorado 6000 uses 12 x 16 Gbit/s Fibre Channel links to connect to the Fibre Channel switch, in which six links are used by controller A and the other six links are used by controller B.

• CommServe: CS is deployed on a VM and is connected to all MediaAgents through the management network.

• Commvault MediaAgent: In this practice, six MediaAgents are deployed.

• Three MediaAgents are co-deployed with Oracle hosts and connected to the Oracle production storage device through a Fibre Channel switch.

• The three MediaAgents used to back up VMware data are connected to the VMware production storage device by using 4 x 16 Gbit/s Fibre Channel links through a Fibre Channel switch.

• Each MediaAgent uses two 10GE ports to connect to the 10GE switch and to establish a connection between the switch and OceanProtect X8000.

• Local OceanProtect X8000: It is connected to the 10GE service switch through 14 x 10GE optical fibers. Each controller is connected to 7 x 10GE optical fibers. The 12 physical ports are used as backup links to connect to backup servers and two physical ports are used as replication links to connect to remote devices.

• Remote OceanProtect X8000: Controllers A and B are separately connected to the 10GE service switch through 14 x 10GE optical fibers, in which 12 physical ports are used as standby restoration links to connect to backup servers and two physical ports are used as replication links to connect to remote devices.


4.2 Hardware and Software Configuration

4.2.1 Hardware Configuration

Name	Description	Quantity	Function
ESXi server	x86 server CPU: 2 x Intel(R) Xeon(R) Gold 6151 CPU @ 3.00 GHz Memory: 256 GB Network: connects to the production storage device through Fibre Channel links	3	Used to create VMs.
Oracle server	x86 server CPU: 2 x Intel(R) Xeon(R) Platinum 8260 CPU @ 2.40 GHz Memory: 12 x 32 GB Network: two 10GE optical ports + four 16 Gbit/s Fibre Channel ports	3	Oracle host where the Oracle 19c database is installed.
Commvault CommServe	VMware VM Network: GE management network	1	Manages MediaAgents and Commvault clients.
Production storage	Huawei OceanStor Dorado 6000 with dual controllers, 25 SSDs (3.84 TB each), and two 4-port FE 16 Gbit/s Fibre Channel I/O modules	2	Stores production service data to be backed up for testing.
Production storage	Huawei OceanStor Dorado 8000 with four controllers, 86 SSDs (3.84 TB each), and six 4-port FE 16 Gbit/s Fibre Channel I/O modules	1	Stores production service data to be backed up for testing.
Backup service switch	Huawei CE6850	4	10GE switch on the backup service plane
Fibre Channel switch	Huawei SNS2248	2	A 16 Gbit/s Fibre Channel switch used to connect an Oracle host, a file system, and production storage.

High-configuration backup media server

Name	Description	Quantity	Function
Commvault MediaAgent	x86 server CPU: 2 x Intel(R) Xeon(R) Platinum 8260 CPU @ 2.40 GHz Memory: 12 x 32 GB Network: two 10GE optical ports + four 16 Gbit/s Fibre Channel ports	6	Commvault proxy server which reads and writes backup data and manages Commvault storage media

Standard-configuration backup media server

Name	Description	Quantity	Function
Commvault MediaAgent	x86 server CPU: 2 x Intel(R) Xeon(R) Silver 4214R Memory: 8 x 16 GB Network: 6 x 10GE optical ports	4	Commvault proxy server which reads and writes backup data and manages Commvault storage media

4.2.2 OceanProtect X8000 (All-Flash) Configuration

Table 4-1 OceanProtect X8000 (all-flash) configuration

Name	Description	Quantity
OceanProtect engine	Huawei OceanProtect X8000 with two controllers	2
10GE front-end interface module	Four 10 Gbit/s SmartIO interface modules	8
SAS SSD	Huawei 7.68 TB SAS SSD	25

4.2.3 Test Software and Tools

Table 4-2 Software description

Software Name	Description
OceanStor DataTurbo 1.3.0	The SourceDedupe client, which is deployed on the backup server to perform source deduplication and compression on backup data, reducing the amount of physical data transmitted from the backup server to the storage and improving the overall bandwidth capability of backup services.
Commvault 11 SP 26 and Commvault 11 SP 30	Commvault 11 SP 30 is used for the newly verified single-MA performance and full synthesis, and Commvault 11 SP 26 is used for the rest.
Oracle 19C	Oracle database
ESXi 8.0	Enterprise-level hypervisor developed by VMware, which is used to provide hardware virtualization services
CentOS 7.6	CentOS Linux open-source operating system
SwingBench 2.6	Third-party tool for generating Oracle test data
Vdbench	Third-party tool for generating VMware and file backup test data
SSH client software	SSH terminal connection tool

4.3 Configuration Planning for Commvault Integration

Commvault backup solution planning:

• Storage pool on OceanProtect X8000: Create a storage pool, configure 25 SAS SSDs (7.68 TB each), and set the RAID policy to RAID 6.

• File system on OceanProtect X8000: One file system is planned to be configured, and the file system capacity is planned to be 200 TB.

• Logical ports of OceanProtect X8000: OceanProtect X8000 is connected to six front-end Commvault MediaAgents by using twelve 10GE physical links. Each physical port is configured with one logical port.

• Commvault library planning

• Repeatedly mount the file system in OceanProtect to the six MediaAgents and configure six libraries on Commvault.

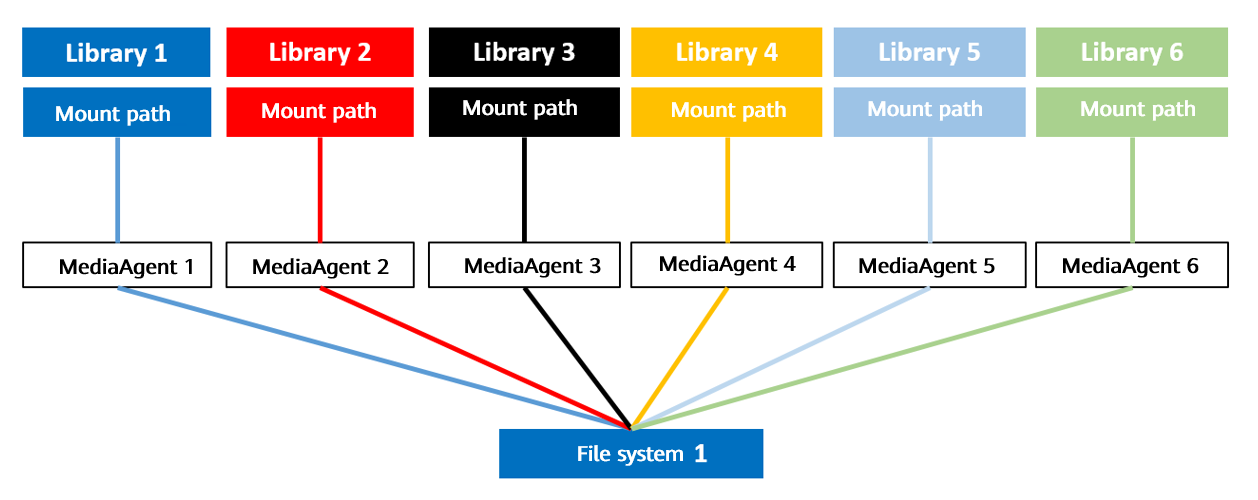

Figure 4-2 Diagram of mounted file systems

• Commvault policy: Configure six policies, where each policy corresponds to one library and one MediaAgent.


Networking principles:

• Scenarios where Commvault uses GridStors: It is recommended that the same type of applications should correspond to one GridStor; one GridStor should correspond to a file system; in a GridStor, one mount path should correspond to the file system mount directory on a backup media server.

• Scenarios where Commvault does not use GridStors: It is recommended that the same type of applications should correspond to one library; one library should correspond to the file system mount directory on a backup media server.

• To maximize performance, all controllers must be used to carry services.


4.4 Commvault Backup and Restore Configuration

4.4.1 Configuration Process

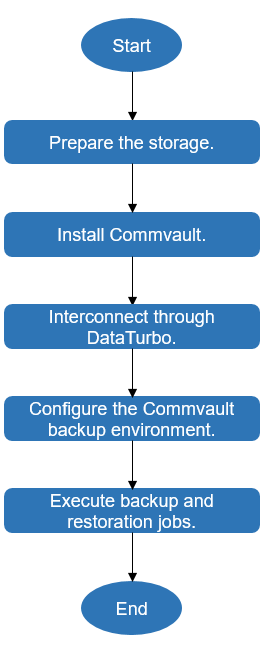

Figure 4-3 NetBackup backup and restore process

4.4.2 Preparing the Storage

According to the plan in this practice, create one file system and DataTurbo shares on OceanProtect X8000. The configuration procedure is as follows: Create a storage pool, logical ports, file systems, a vStore DataTurbo administrator, and DataTurbo shares.

4.4.2.1 Creating a Storage Pool on OceanProtect X8000

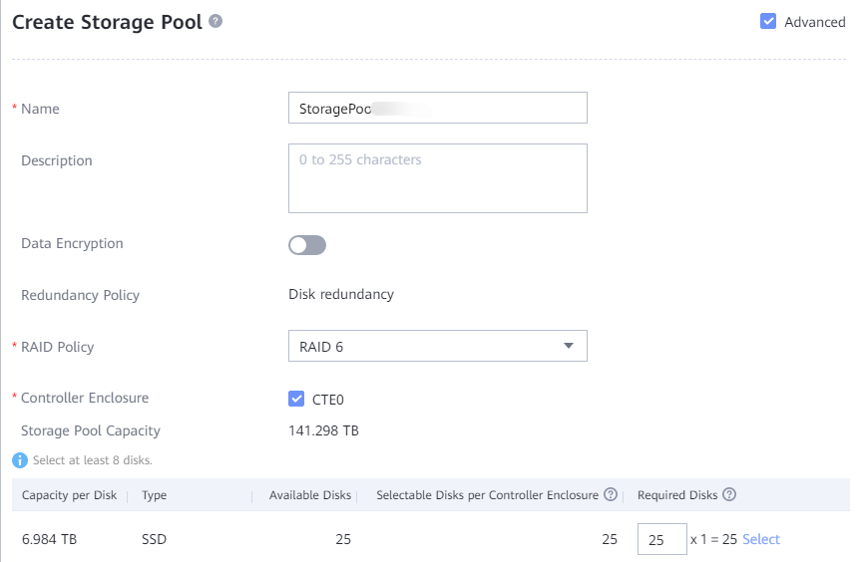

Step 1 On OceanProtect X8000, select 25 disks to create a storage pool and set RAID Policy to RAID 6.

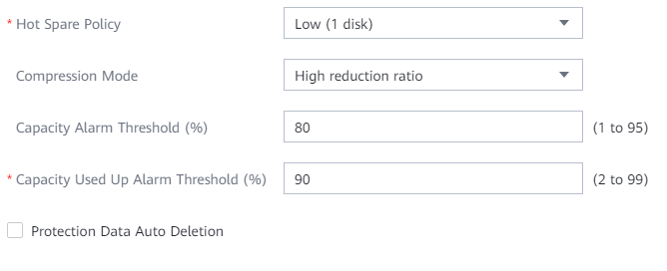

Step 2 Click Advanced, and set Compression Mode, which can be set to High reduction ratio (default) or High performance.

—-End

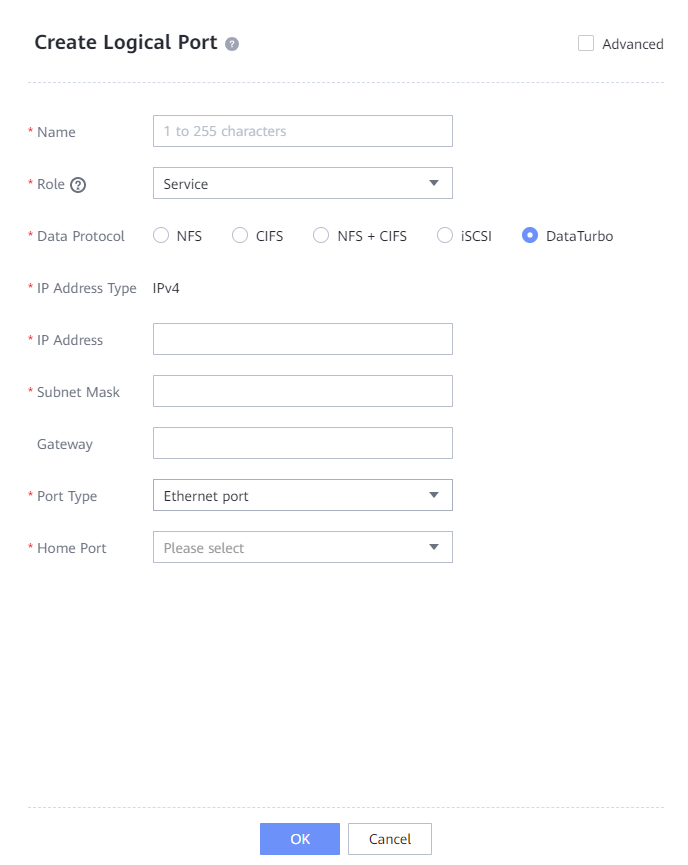

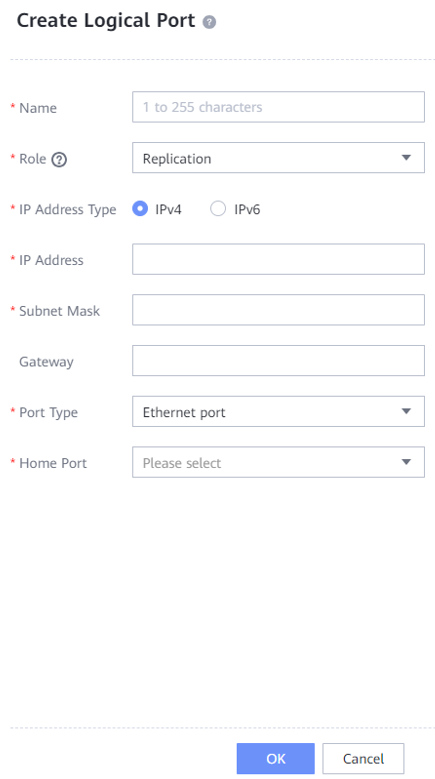

4.4.2.2 Creating Logical Ports on OceanProtect X8000

In this practice, OceanProtect X8000 has 12 physical ports for backup, and each physical port is configured with a logical port. Therefore, create a total of 12 logical ports and set the data protocol to DataTurbo.

The following figure shows a configuration example.

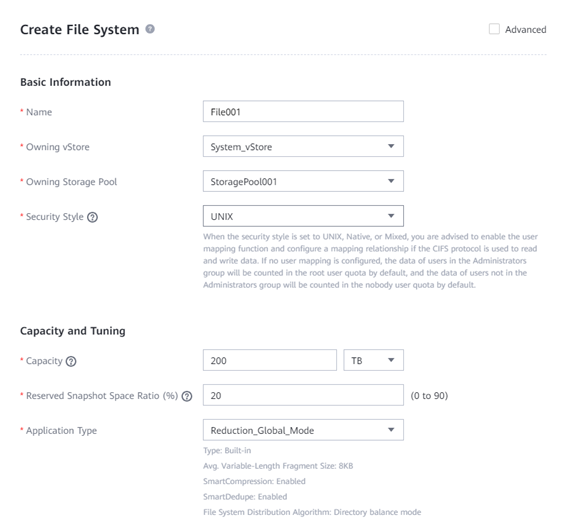

4.4.2.3 Creating File Systems and Shares

Step 1 Create a file system, select the created storage pool, and set the capacity to 200 TB.

Step 2 If Application Type is set to Reduction_Global_Mode, the high reduction ratio mode is used for the compression mode to save storage resources. If Application Type is set to Performance_Global_Mode, the high performance mode is used for the compression mode.

The following figure shows a file system configuration example.

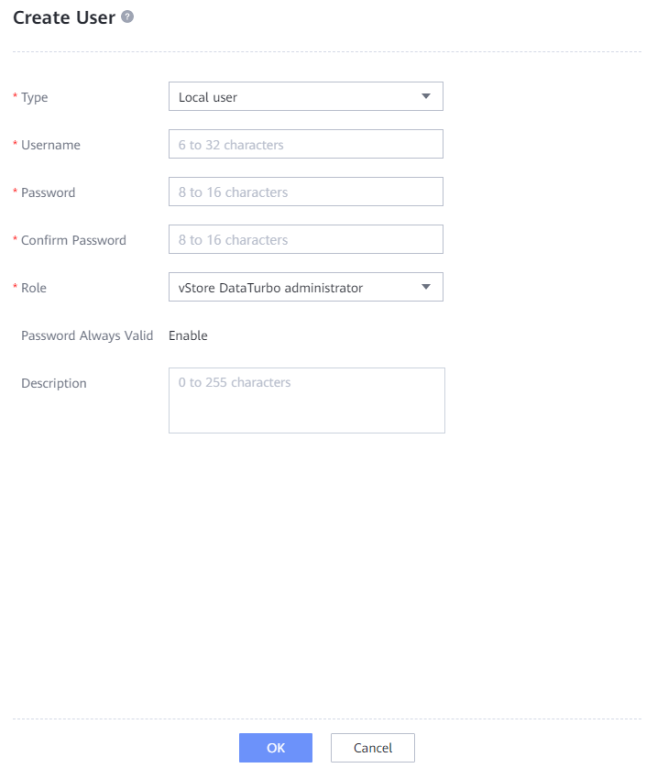

Choose Services > vStores > System_vStore > User Management, click Create, set Role to vStore DataTurbo administrator, enter the username in the Username text box, enter the password in the Password and Confirm Password text boxes, and click OK.

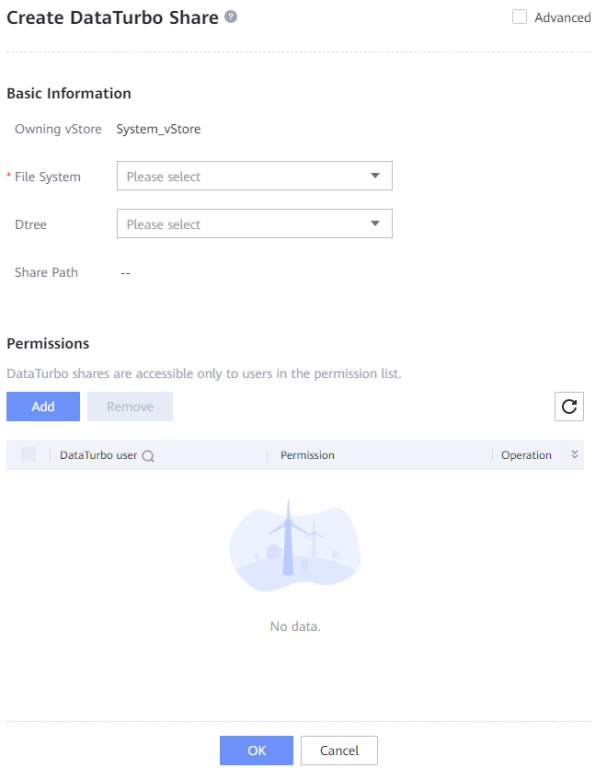

Step 3 Choose Services > Shares > DataTurbo Shares > Create, select the file system for which you want to create a share, click Add, and select the vStore DataTurbo administrator created in Step 3.

—-End

4.4.3 Installing Commvault

In this backup solution, Commvault 11 SP 30 is used. The corresponding Commvault software must be installed on Commvault CommServe and Commvault MediaAgents. For details about the installation process of the Commvault software, see the official documentation.

4.4.4 Integration Through DataTurbo

In this solution, the DataTurbo protocol is used for integration with the backup host. For details, see the OceanProtect Backup Storage 1.6.0-1.7.0 SourceDedupe User Guide.

4.4.4.1 Installation and Deployment

OceanStor DataTurbo must be installed on all MediaAgents. For details, see « Installation, Upgrade, and Uninstallation » in the OceanProtect Backup Storage 1.6.0-1.7.0 SourceDedupe User Guide. During the installation, set the performance level to high.

4.4.4.2 Configuring Source Deduplication

The DataTurbo configuration includes establishing connections and mounting file systems.

• Establishing connections


Separately connect the two ports on each backup host to one logical port on controller A and one logical port on controller B of OceanProtect X8000. That is, connect each backup host to the back-end storage through two 10GE links.

• Mounting file systems


Each backup host uses DataTurbo to mount the file system.

Establishing Connections

Step 1 Run the dataturbo create storage_object storage_name=name ip_list=IP command (name indicates the user-defined storage name and IP indicates the logical port IP address created in 4.4.2.2 Creating Logical Ports on OceanProtect X8000) to establish a connection between OceanStor DataTurbo and the backup storage system. Enter the DataTurbo username and password set in 4.4.2.3 Creating File Systems and Shares as prompted.

In the following example, the storage name is storage1 and the logical port IP address is 10.10.10.10.

[root@host192 mnt]# dataturbo create storage_object storage_name=storage1 ip_list=10.10.10.10
Please input username:
dataturbo_user
Please input password:
**********
Create storage object successfully.

Step 2 Run the dataturbo show storage_object command to check whether the connection is established successfully.

If the following information is displayed in the command output and Status is Normal, the connection is established successfully.

[root@host192 mnt]# dataturbo show storage_object
Storage Name: huawei
User : dataturbo_user
Ips : 10.10.10.10
IpPair :
ID Local Address Remote Address Status
—————————————————————
1 10.10.10.101 10.10.10.10 Normal

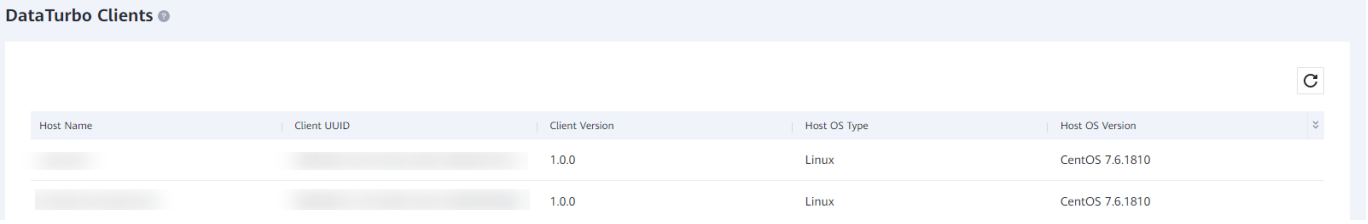

Step 3 After the connection is established, log in to DeviceManager and choose Services > DataTurbo Clients to view the backup server information.

—-End

Mounting File Systems

Step 1 Run the dataturbo mount storage_object storage_name=name filesystem_name=/fsname mount_dir=/mnt/test command to mount a file system created on the backup storage to a specified mount point.

name indicates the storage name defined in Establishing Connections. fsname indicates the name of the file system created in 4.4.2.3 Creating File Systems and Shares.

In the following example, the storage name is storage1, the file system name is testfile, and the mount point is /mnt/test.

[root@host192 mnt]# dataturbo mount storage_object storage_name=storage1 filesystem_name=/testfile mount_dir=/mnt/test
Command executed successfully.

Step 2 Run the df -h command to check whether the mounting is successful.

Filesystem Size Used Avail Use% Mounted on
/dev/mapper/centos-root 45G 24G 21G 55% /
devtmpfs 4.8G 0 4.8G 0% /dev
tmpfs 4.9G 8.0K 4.9G 1% /dev/shm
tmpfs 4.9G 9.3M 4.8G 1% /run
tmpfs 4.9G 0 4.9G 0% /sys/fs/cgroup
/dev/sda1 1014M 179M 836M 18% /boot
tmpfs 984M 0 984M 0% /run/user/0
/testfile 80G 0 80G 0% /mnt/test

—-End

4.4.5 Configuring the Commvault Backup Environment

4.4.5.1 Starting the Commvault Commcell Console

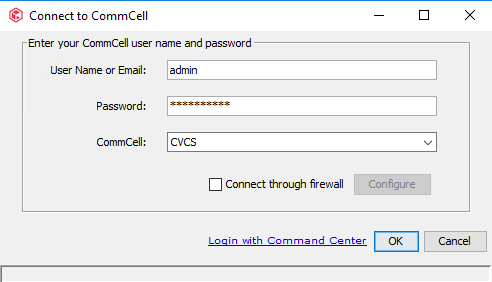

Open the CommCell console, enter the user name and password, and click OK.

4.4.5.2 Configuring Oracle Hosts on CommServe

Configure all Commvault-related hosts, including Oracle hosts and MediaAgents, on CommServe.

Procedure

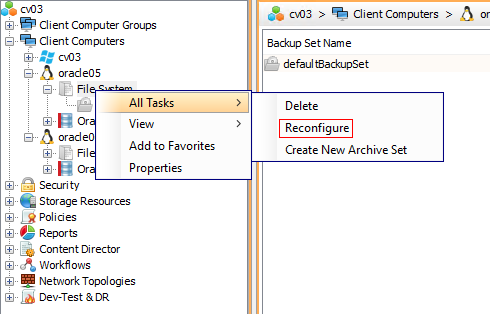

Step 1 On the Client Computers page, right-click File System under the Oracle host, choose All Tasks from the shortcut menu, and click Reconfigure.

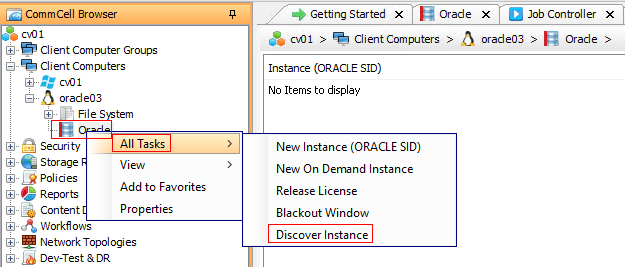

Step 2 Right-click Oracle under the Oracle host, choose All Tasks from the shortcut menu, and click Discover Instance. Then, Commvault can discover the existing instances on the Oracle host.

—-End

4.4.5.3 Configuring a Library

Step 1 In the Storage Resources window, right-click Libraries and choose Add > Disk Library from the shortcut menu.

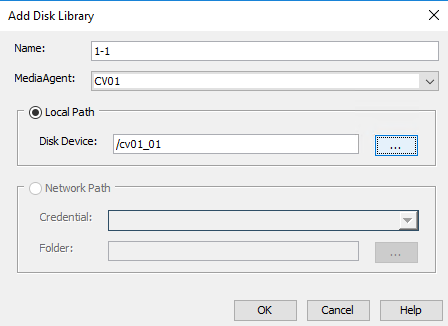

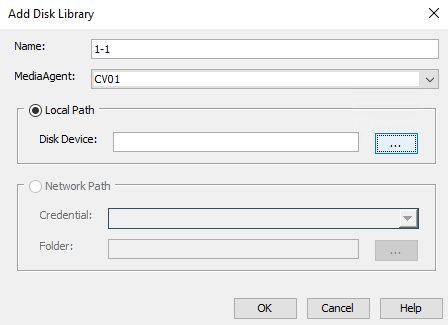

Step 2 On the Add Disk Library page, enter the library name, select the MediaAgent corresponding to the library, select Local Path, and click … to select a directory.

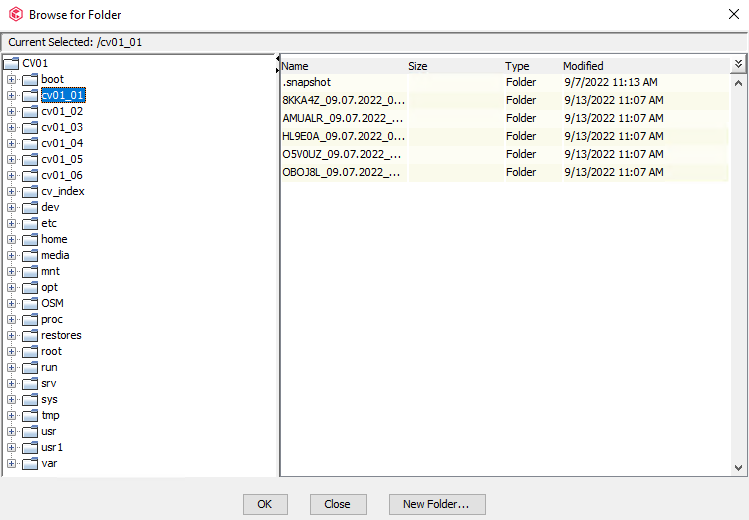

Step 3 Select the path on the MediaAgent to which OceanProtect X8000 is mounted and click OK.

Step 4 Click OK. The library configuration is complete.

Step 5 (Optional) Perform this step when the Figure 3-6 is used.

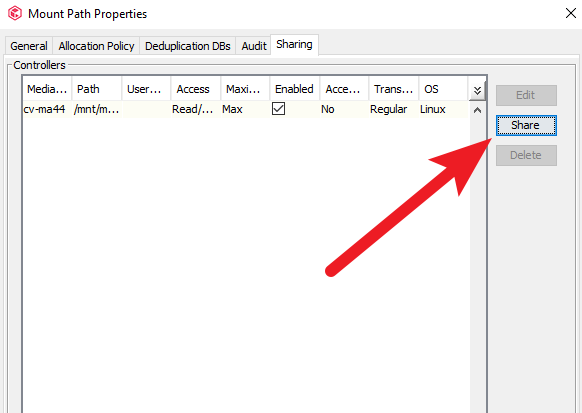

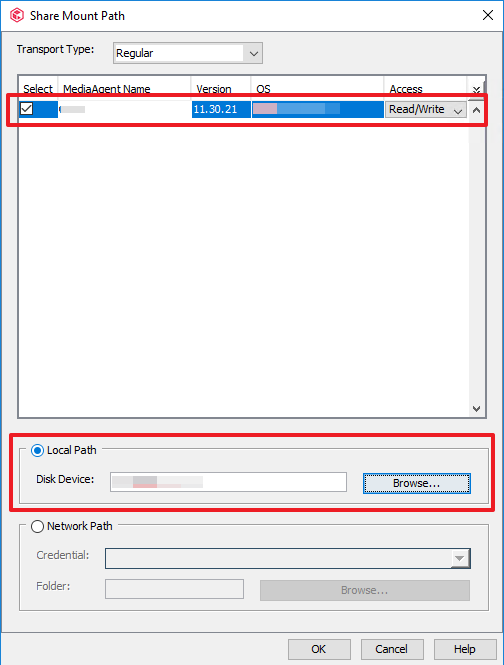

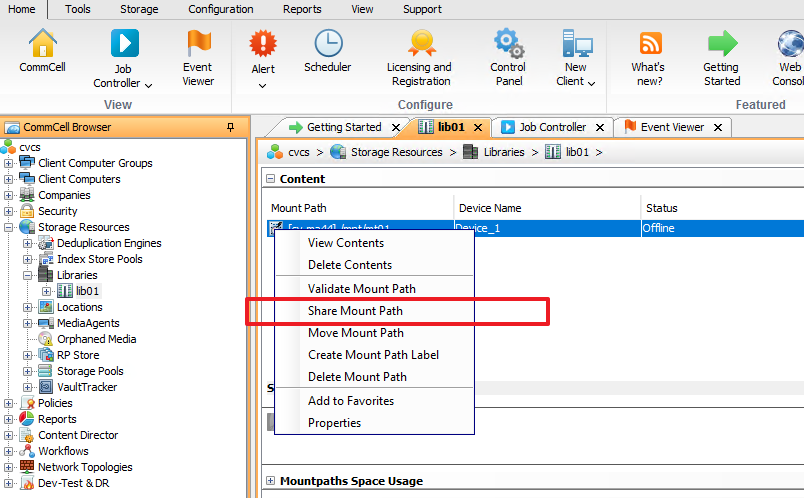

Select the created mount path and click Share Mount Path.

Click Share.

Select the host to be used and select the mount directory of the same file system on the host in Local Path.

Save the modification of the mount path.

Step 6 Repeat Step 1 to 5 to create multiple libraries as planned.

—-End

4.4.5.4 Configuring Storage Pools

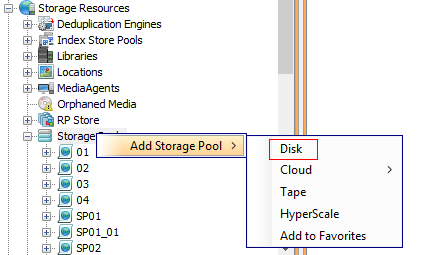

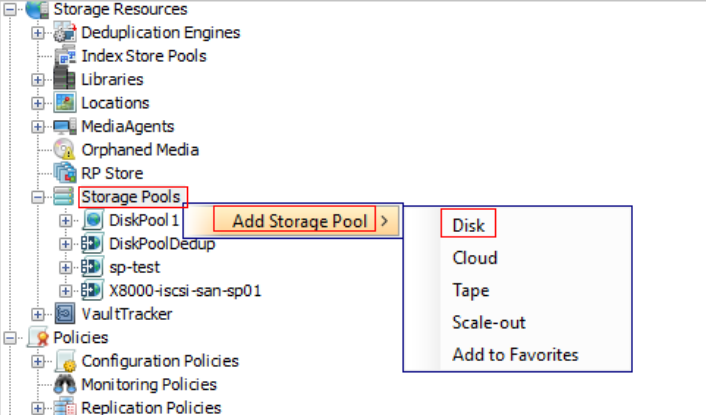

Step 1 On the Storage Resources window, right-click Storage Pools and choose Add Storage Pool > Disk from the shortcut menu.

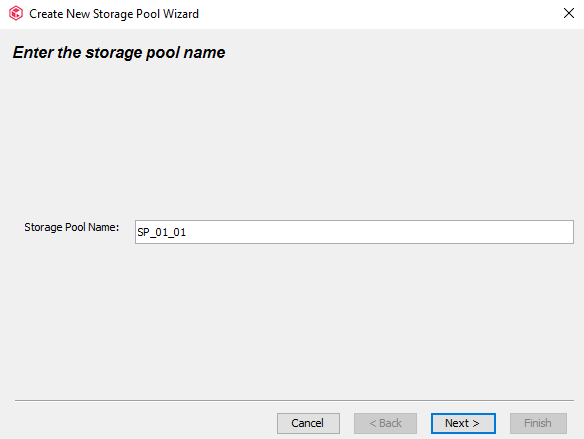

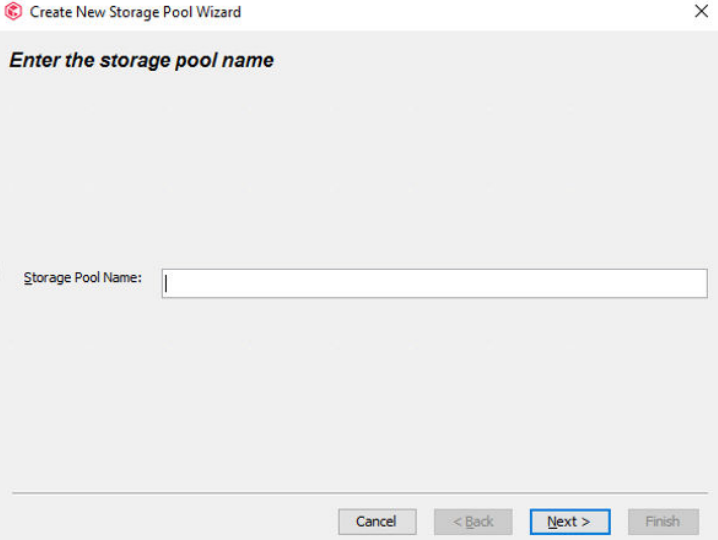

Step 2 Set Storage Pool Name and click Next.

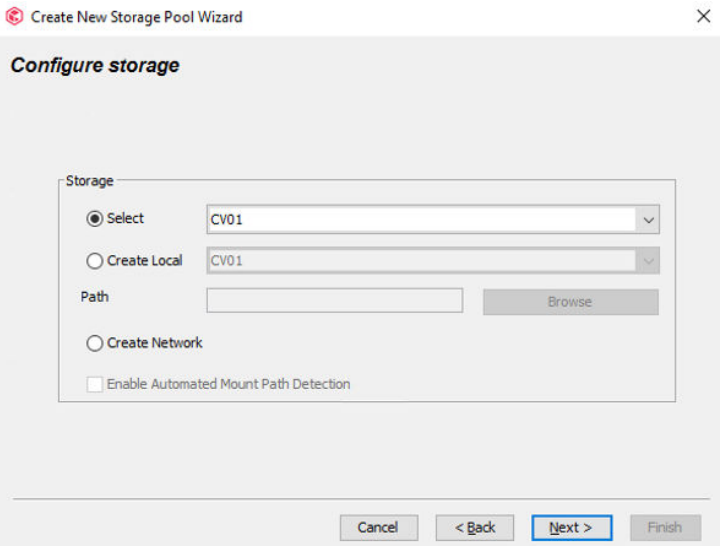

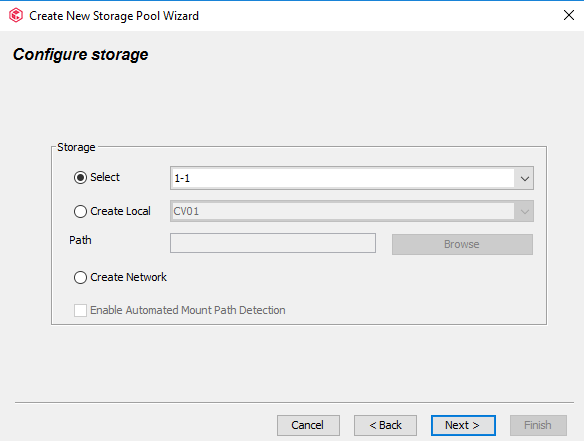

Step 3 In the Storage area, select the library created and click Next.

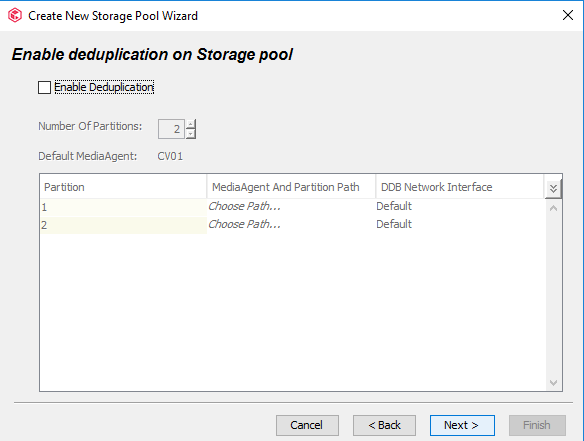

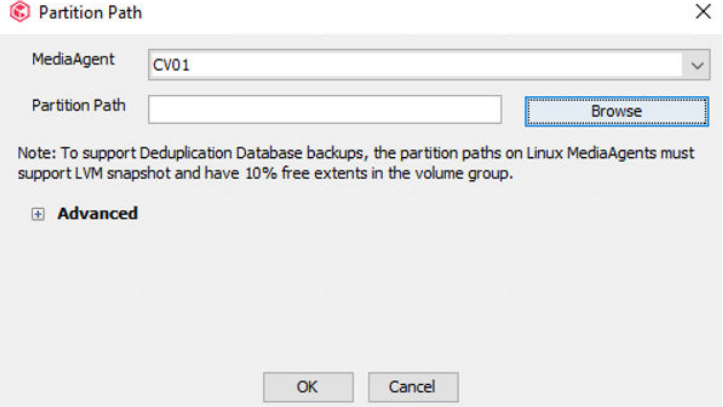

Step 4 Deselect Enable Deduplication to disable deduplication and click Next.

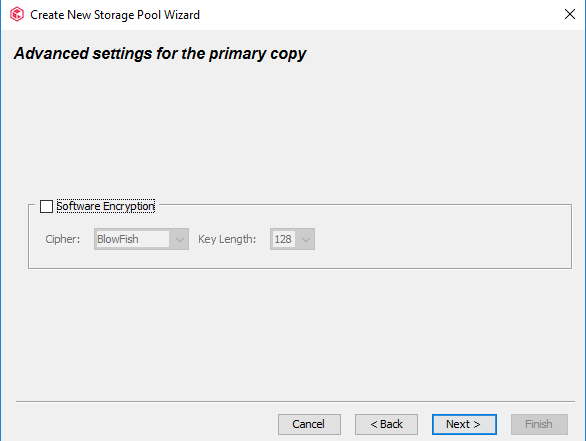

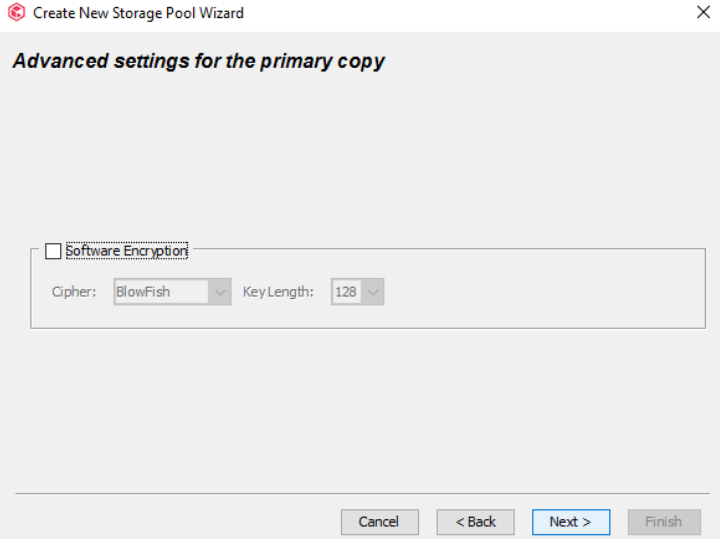

Step 5 By default, Software Encryption is deselected. Click Next.

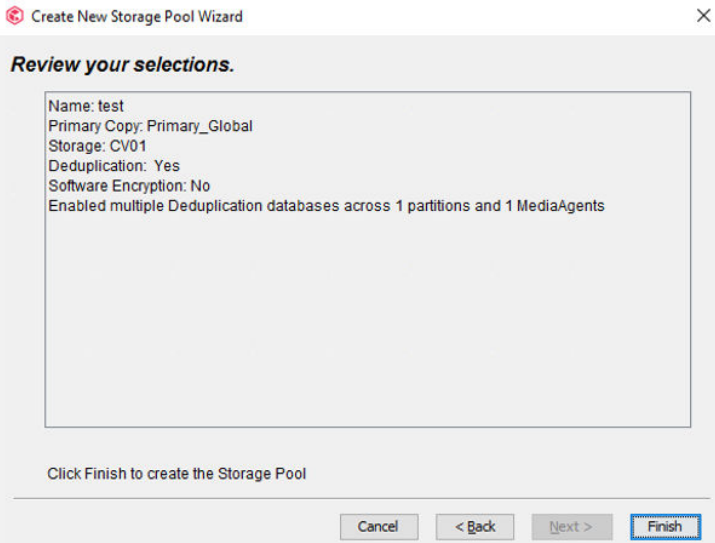

Step 6 Click Finish. The storage pool configuration is complete.

—-End

4.4.5.5 Configuring Storage Policies

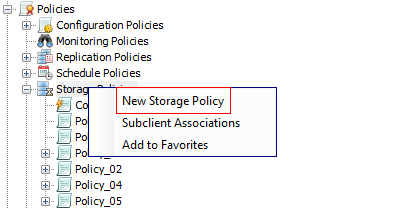

Step 1 On the Policies window, right-click Storage Policies and choose New Storage Policy from the shortcut menu.

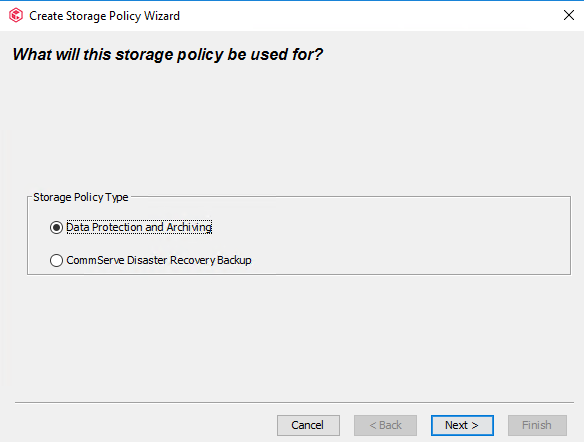

Step 2 Retain the default value Data Protection and Archiving and click Next.

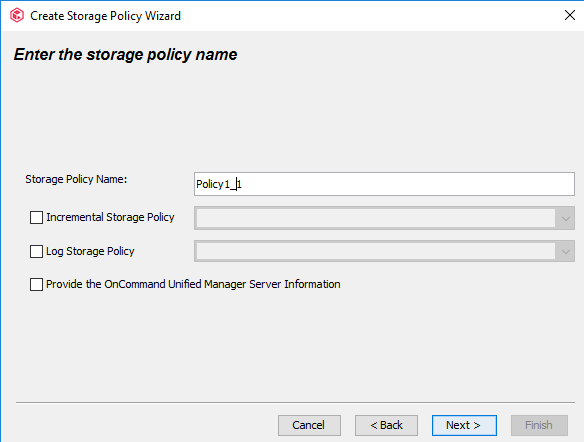

Step 3 Enter a policy name, deselect other options by default, and click Next.

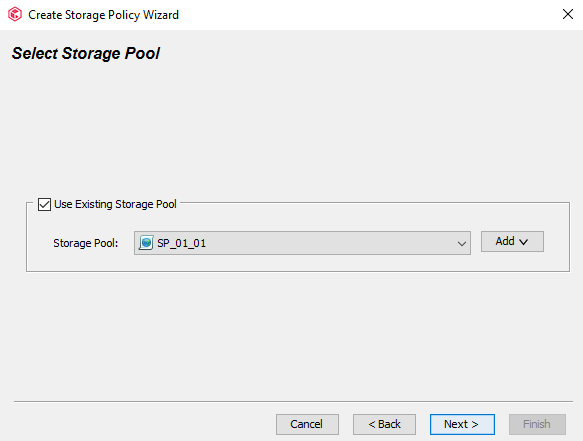

Step 4 Select Use Existing Storage Pool, select a storage pool from the drop-down list, and click Next.

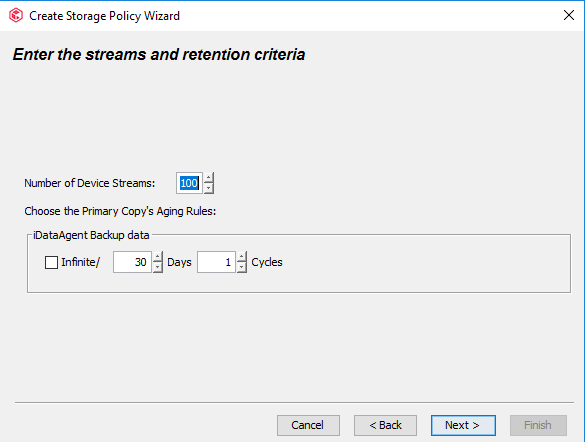

Step 5 Configure streams. Retain the default value 100 in Number of Device Streams and click Next.

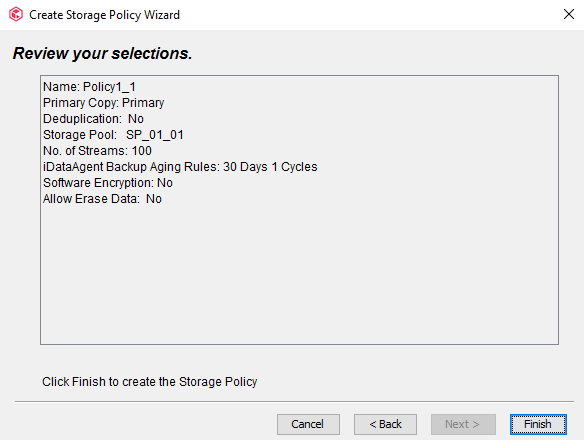

Step 6 Confirm the configuration of the policy and click Finish.

—-End

4.4.5.6 Configuring an Oracle Instance on Commvault

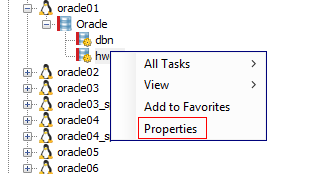

Step 1 On the Client Computers page, select the Oracle host to be backed up, click Oracle, right-click the discovered instance, and choose Properties from the shortcut menu.

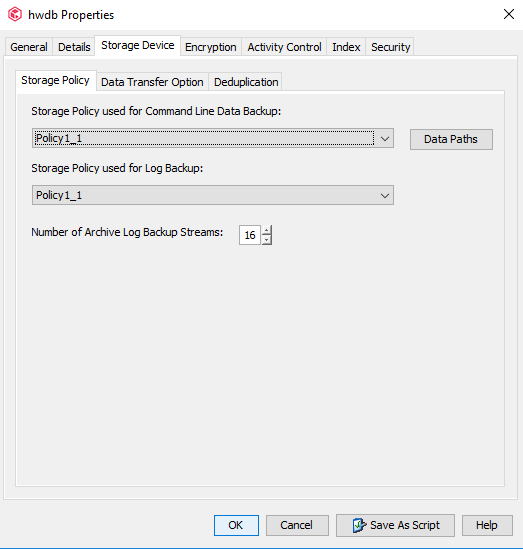

Step 2 Choose Storage Device > Storage Policy, configure the storage policy for the backup of data files and log files, and change the value of Number of Archive Log Backup Streams to 16, that is, the number of archive log backup channels in the Recovery Manager (RMAN) tool.

Step 3 Click the Data Transfer Option tab and set Software Compression to Off.

Step 4 Click the Deduplication tab and deselect Enable Deduplication.

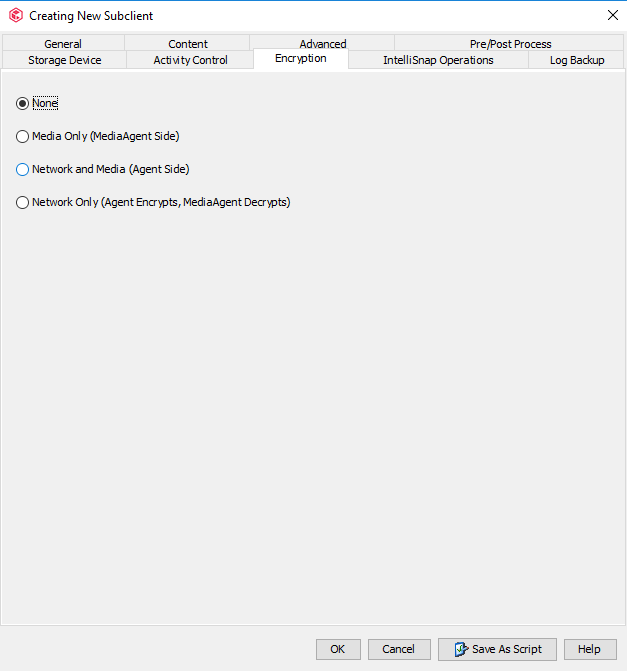

Step 5 Click the Encryption tab and select None.

Step 6 Click OK. The Oracle instance configuration is complete.

—-End

4.4.5.7 Configuring a Subclient for an Oracle Database

You need to create a subclient for each Oracle host to back up Oracle database instances.

Procedure

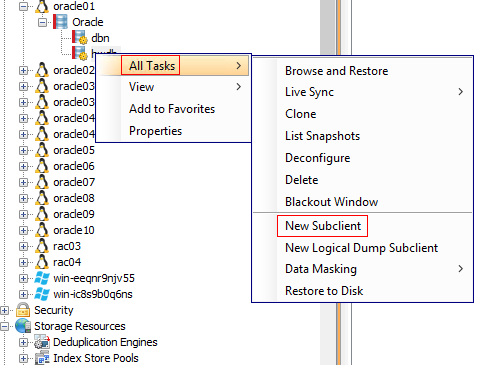

Step 1 On the Client Computers page, select the Oracle host for backup, click Oracle, right-click the discovered instance, and choose All Tasks > New Subclient.

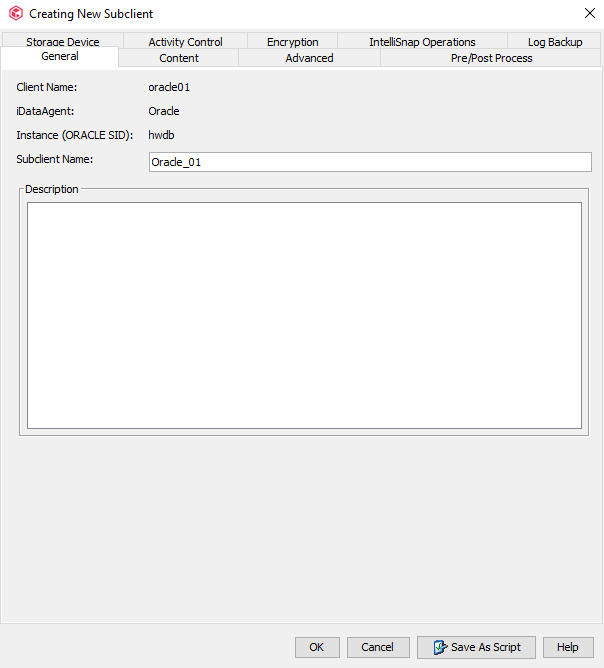

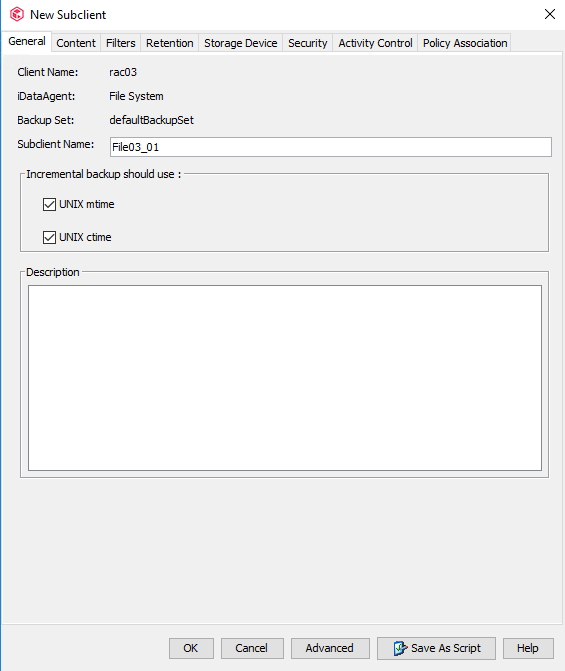

Step 2 On the General tab page, enter a subclient name.

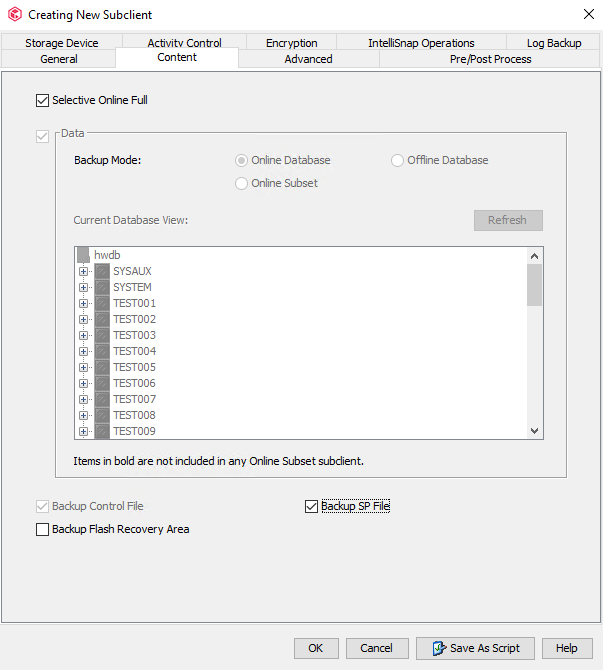

Step 3 Click the Content tab, select the data source to be backed up, and select Selective Online Full and Backup SP File.

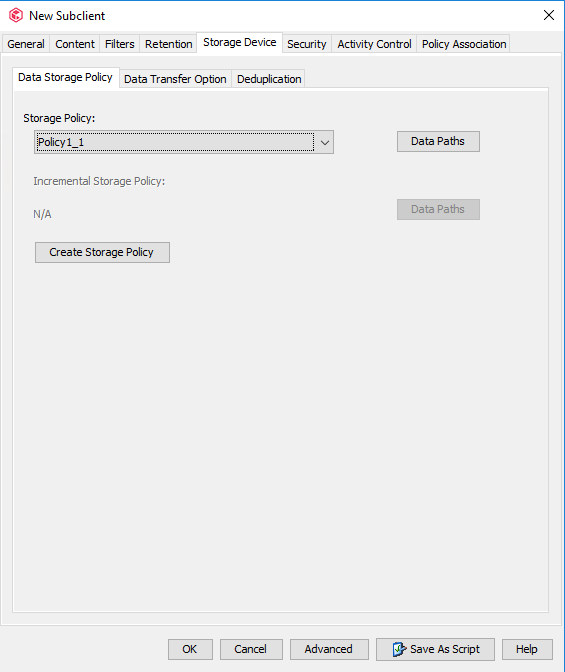

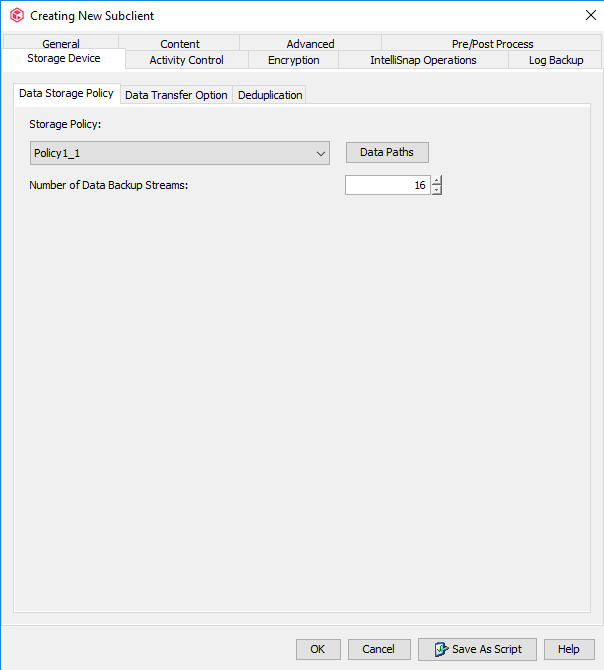

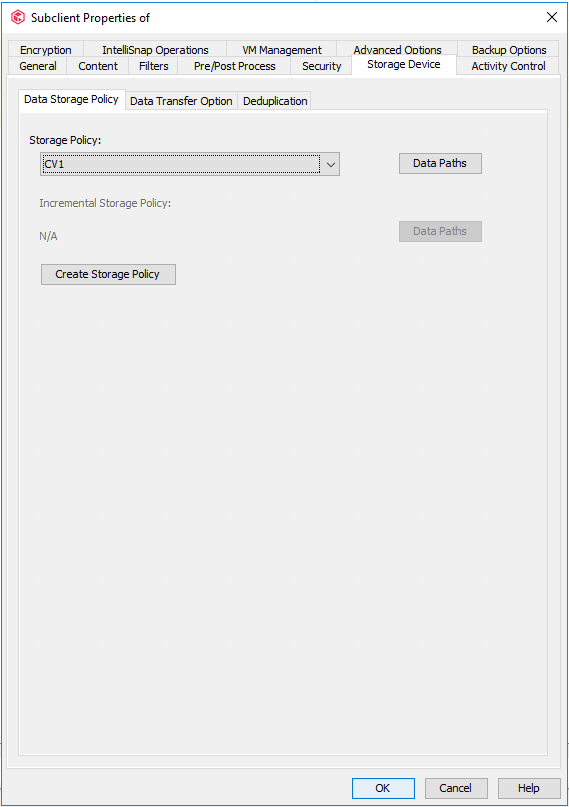

Step 4 Click the Storage Device tab. On the Data Storage Policy tab page, select the policy to be used by the subclient and set Number of Data Backup Streams to 16. This parameter is the number of data file backup channels in the RMAN tool, which can be adjusted based on actual conditions.

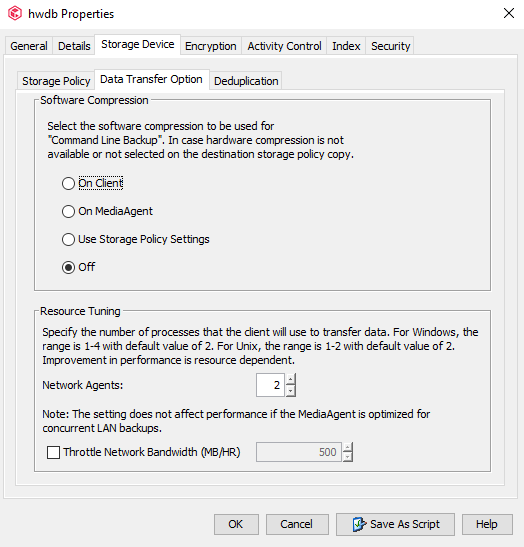

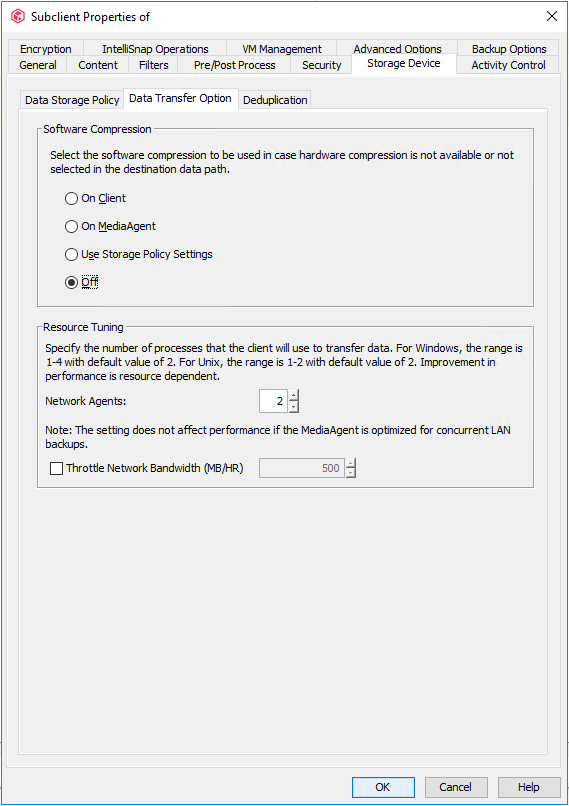

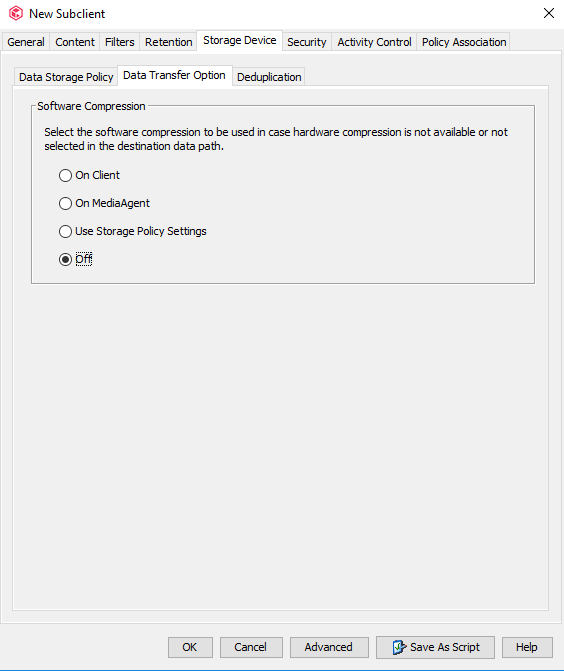

Step 5 Click the Data Transfer Option tab and set Software Compression to Off.

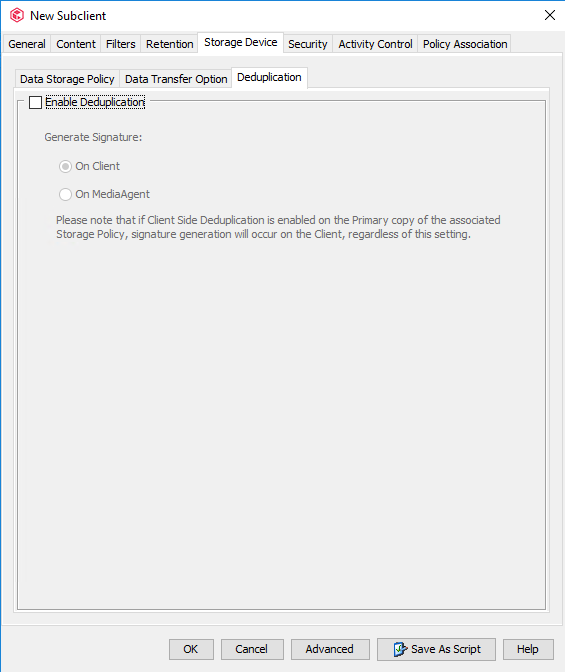

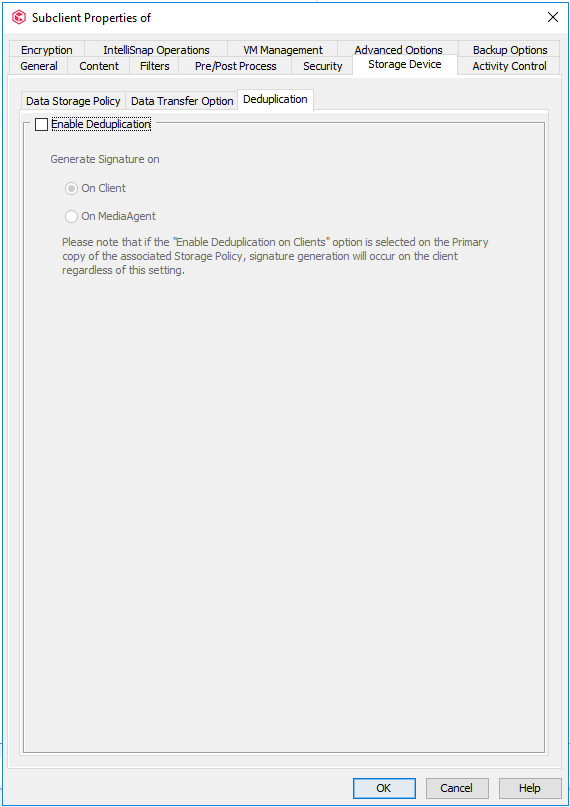

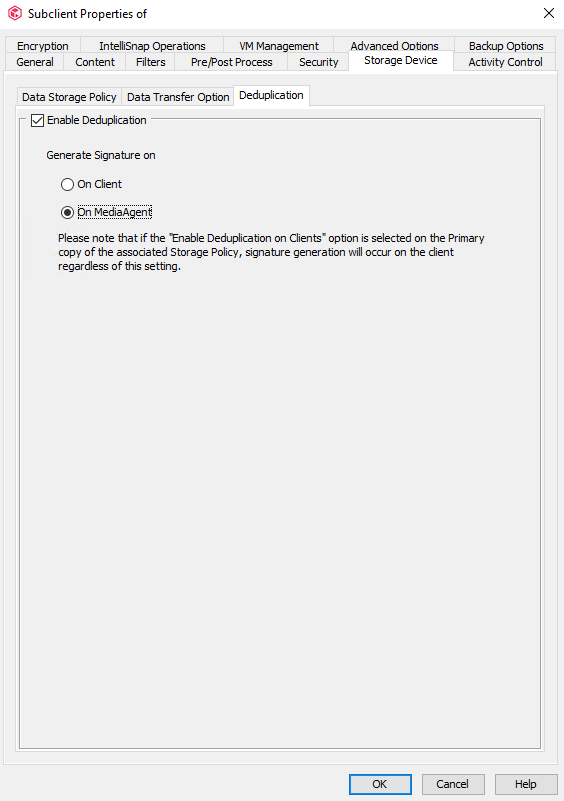

Step 6 Click the Deduplication tab and deselect Enable Deduplication.

Step 7 Click the Encryption tab and select None.

Step 8 Click OK. The subclient configuration of the Oracle database is complete.

—-End

4.4.5.8 Configuring a File System Subclient

You can perform the following steps to back up the file system host.

Procedure

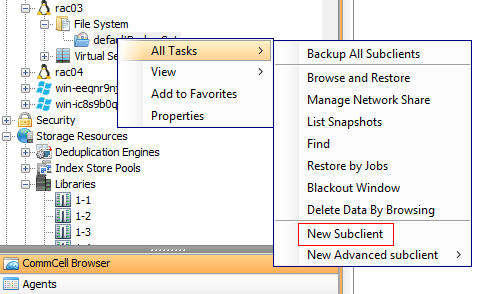

Step 1 Expand the file system host to the defaultBackupSet level, and choose All Tasks > New Subclient, and create a file system subclient.

Step 2 On the General tab page, enter a subclient name.

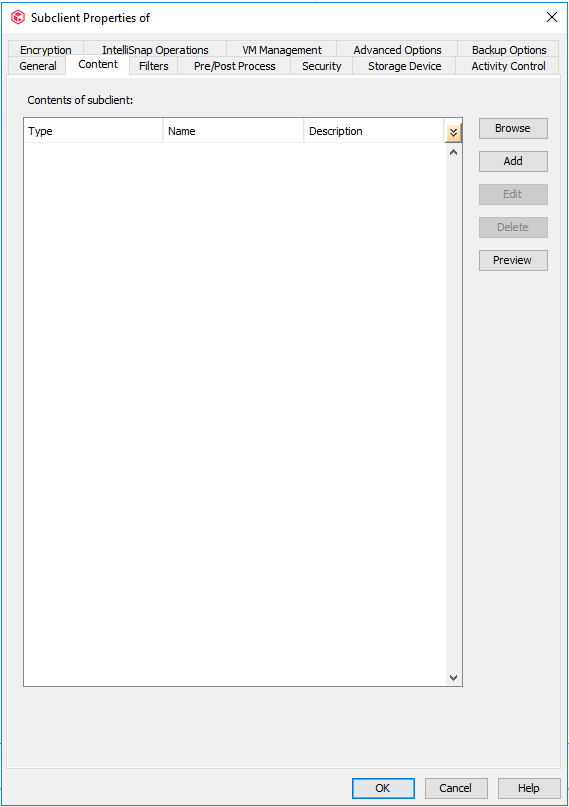

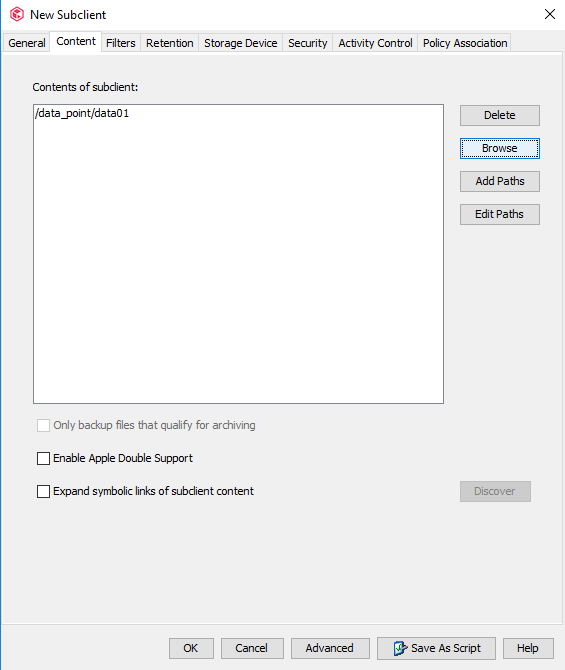

Step 3 Click the Content tab, select the data source to be backed up, click Browse, and select the directory for backup.

Step 4 On the Storage Device tab page, click the Data Storage Policy tab, and select the policy to be used by the subclient.

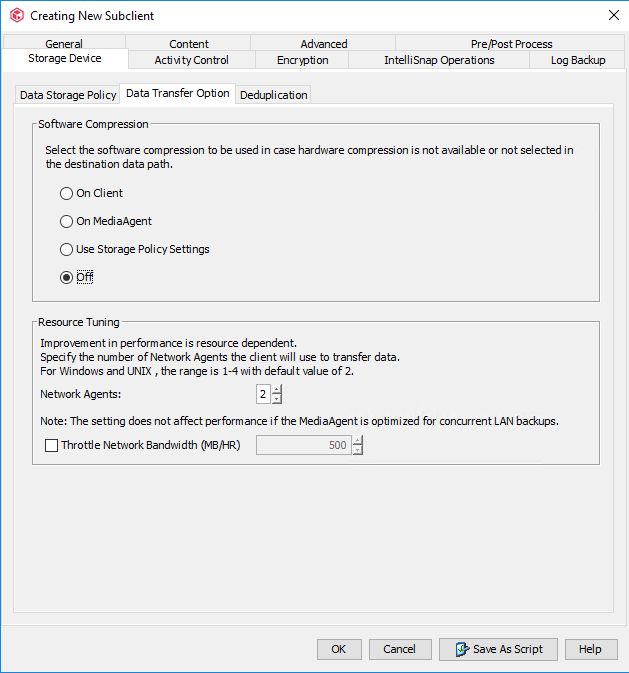

Step 5 Click the Data Transfer Option tab and set Software Compression to Off.

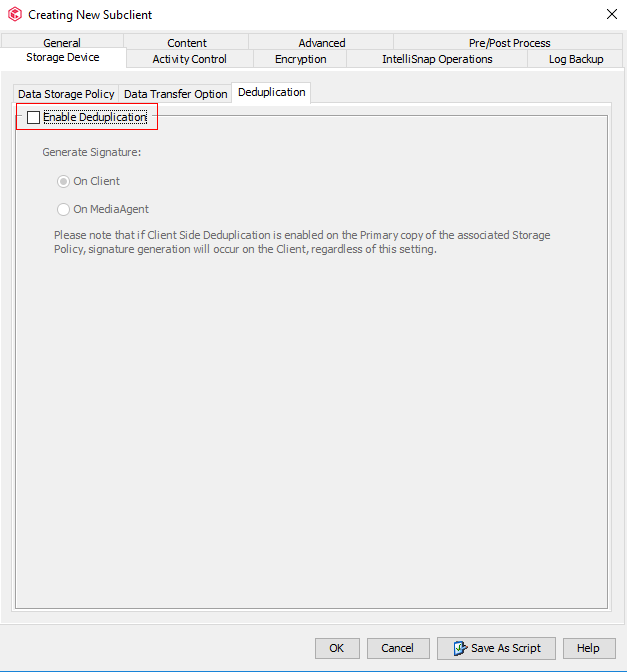

Step 6 Click the Deduplication tab, deselect Enable Deduplication to disable the deduplication function of the subclient, and click Advanced to configure advanced options.

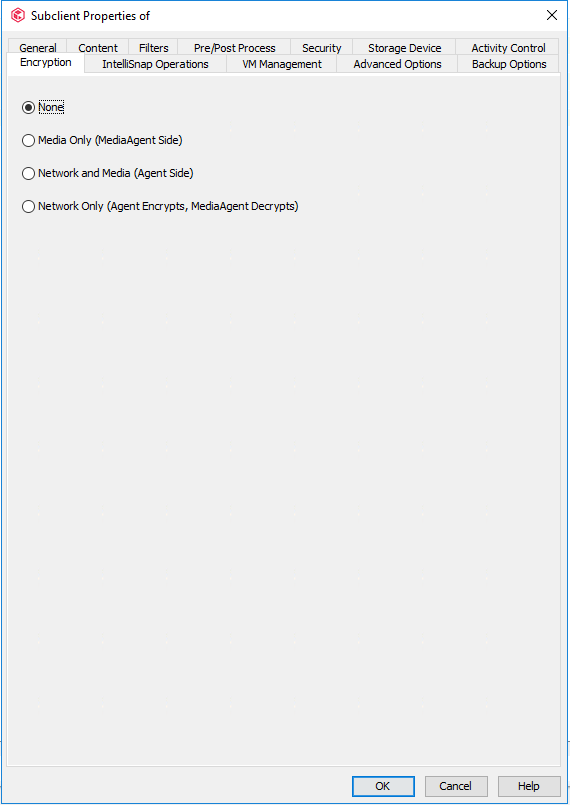

Step 7 Click the Encryption tab and select None.

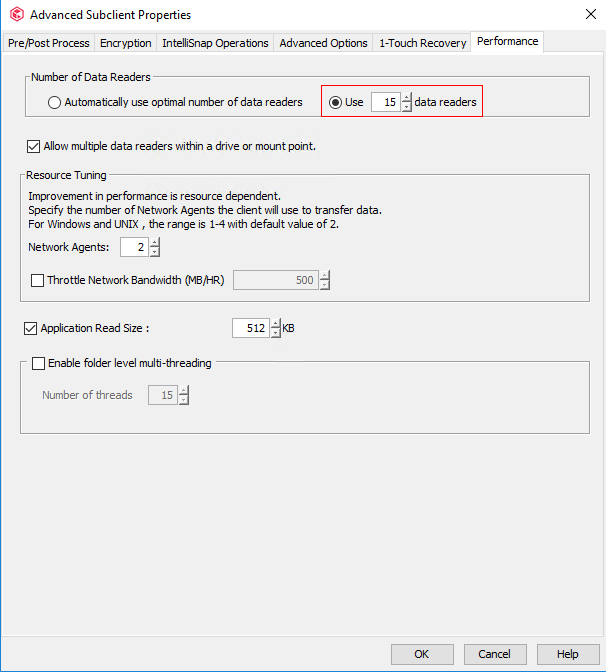

Step 8 Click the Performance tab and set the value of Number of Data Readers to Use 15 data readers. That is, change the number of concurrent backup jobs of the subclient to 15.

Step 9 Click OK. The subclient configuration of the file system is complete.

—-End

4.4.5.9 Configuring VMware on CommServe

Procedure

Step 1 On the Client Computers page, choose New Client > Virtualization > VMware vCenter.

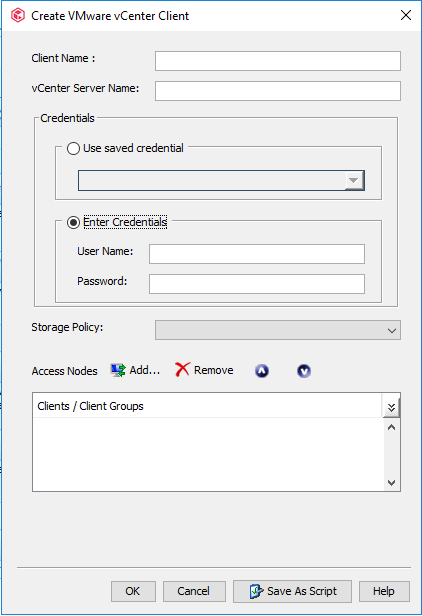

Step 2 In the Create VMware vCenter Client window that is displayed, enter the vCenter IP address in Client Name, and enter the vCenter username and password in User Name and Password, respectively.

Step 3 Click Add next to Access Nodes. In the Select Clients/Client Groups window that is displayed, select the host where the Virtual Server client component is deployed and click Include. Click OK.

Step 4 On the Create VMware vCenter Client page, click OK.

—-End

4.4.5.10 Configuring a VMware Subclient

Procedure

Step 1 Expand the VMware host to the defaultBackupSet level, choose All Tasks > New Subclient, and create a VMware subclient.

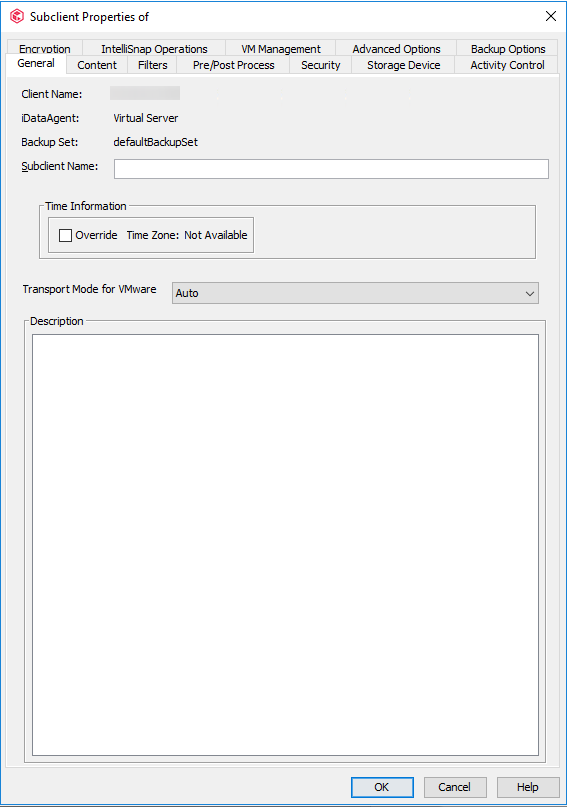

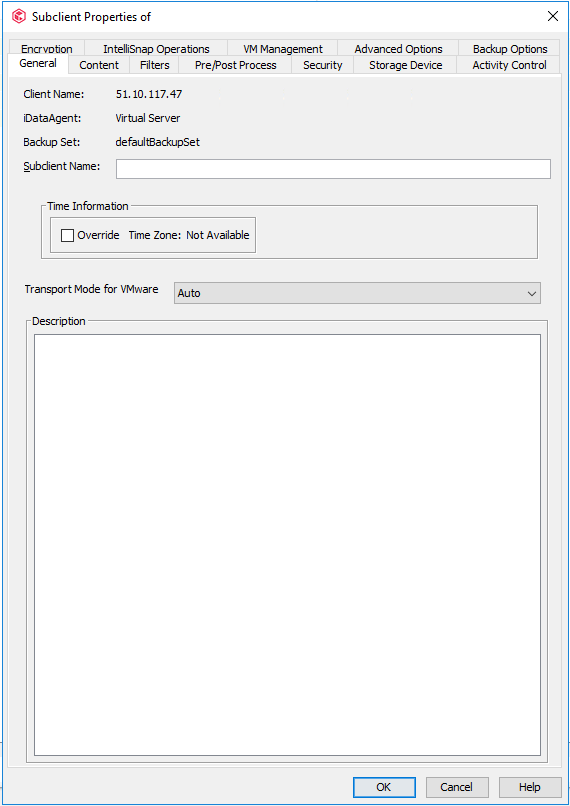

Step 2 On the General tab page, enter a subclient name.

Step 3 Click the Content tab, select the data source to be backed up, click Browse, and select the VM for backup.

Step 4 On the Storage Device tab page, click the Data Storage Policy tab, and select the policy to be used by the subclient.

Step 5 Click the Data Transfer Option tab and set Software Compression to Off.

Step 6 Click the Deduplication tab and deselect Enable Deduplication.

Step 7 Click the Encryption tab and select None.

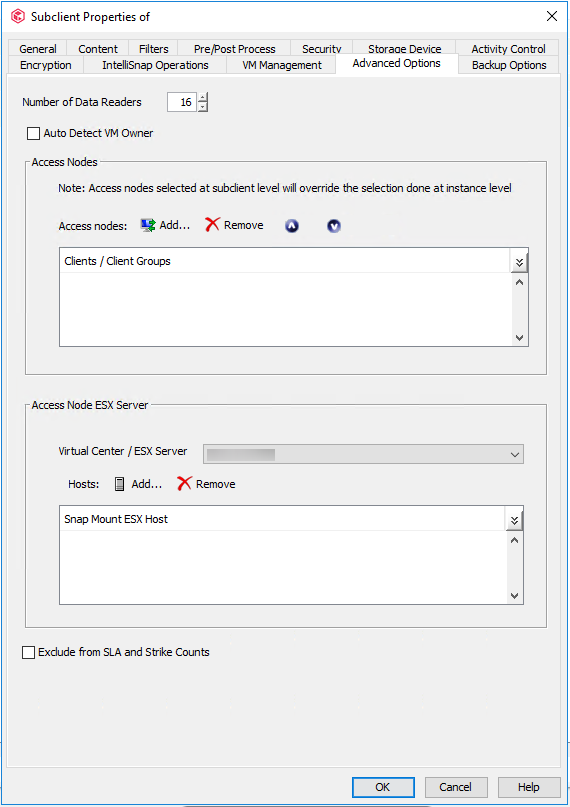

Step 8 Click the Advanced Options tab and set the value of Number of Data Readers to 16. That is, change the number of concurrent backup jobs of the subclient to 16.

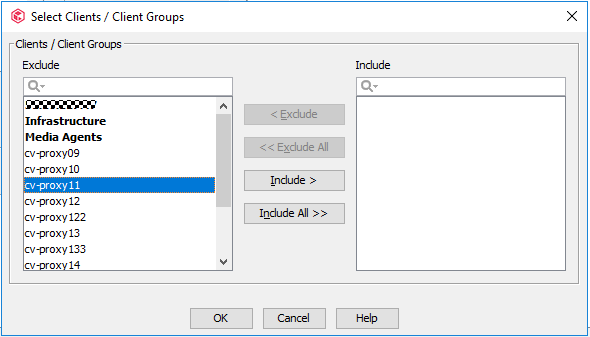

Step 9 Click Add. In the Select Clients/Client Groups window that is displayed, select the host where the Virtual Server client component is deployed and click Include. Click OK.

Step 10 Click OK. The VMware subclient configuration is complete.

—-End

4.4.6 Performing Backup

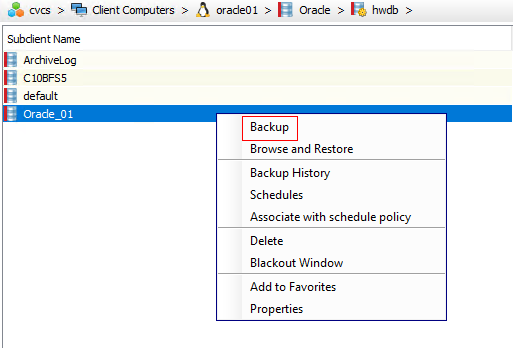

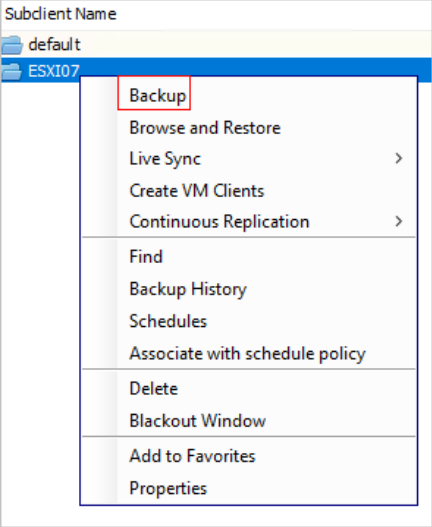

Step 1 Expand the Oracle/file system/VMware host, right-click the subclient created, and choose Backup to perform full backup.

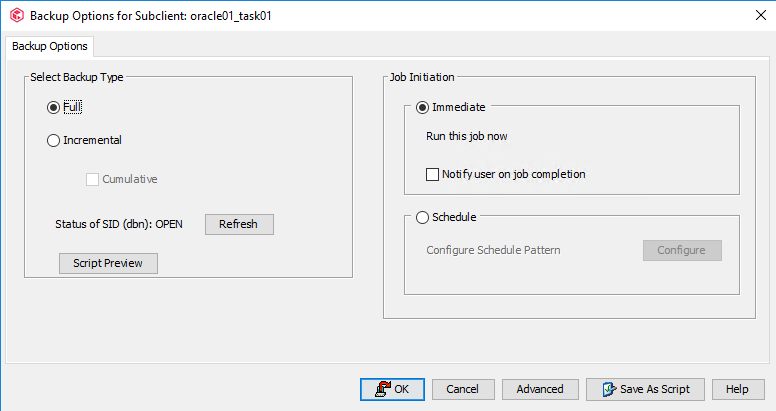

Step 2 Select Full in Select Backup Type and Immediate in Job Initiation to perform a full backup immediately.

Step 3 Click OK. The system starts to perform the full backup.

—-End

4.4.7 Performing Restoration

4.4.7.1 Configuring Oracle Restoration

This section describes only how to restore Oracle data files and control files to the original locations on the original host (through overwriting). During the actual test, restore the files as required. For details about the restoration procedure, see the Commvault official documentation.

When restoring Oracle control files, start the instance and wait until it enters the nomount state. When restoring Oracle data files, start the instance and wait until it enters the mount state.

Procedure

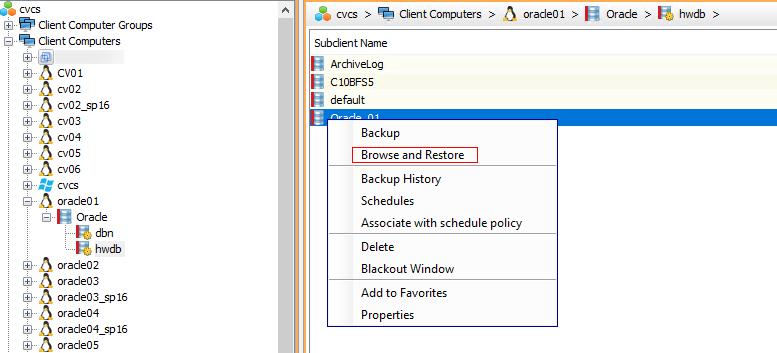

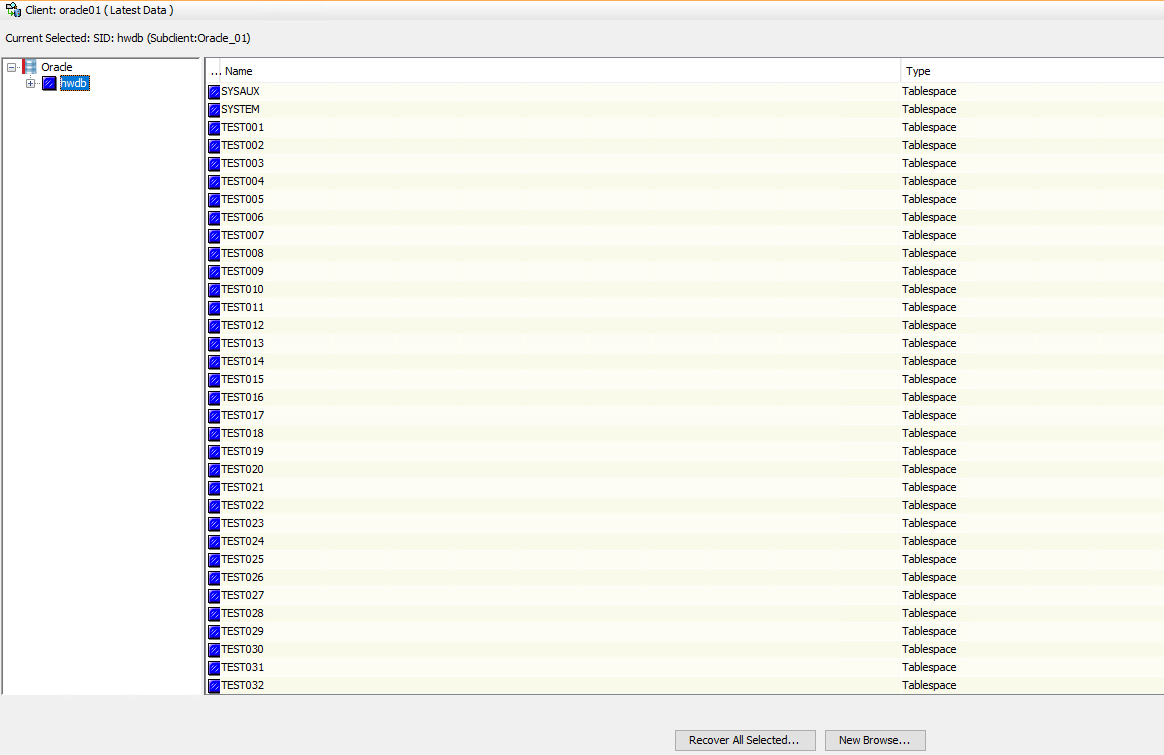

Step 1 Expand the Oracle host to the instance level, right-click the created subclient, and choose Browse and Restore from the shortcut menu.

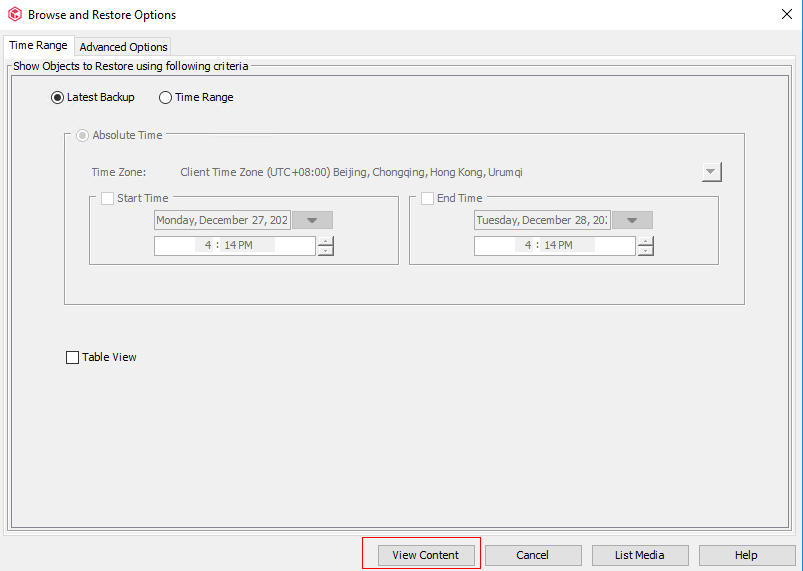

Step 2 On the Browse and Restore Options page, click the Time Range tab, and click View Content to view the data to be restored.

Step 3 Select the data to be restored and click Recover All Selected.

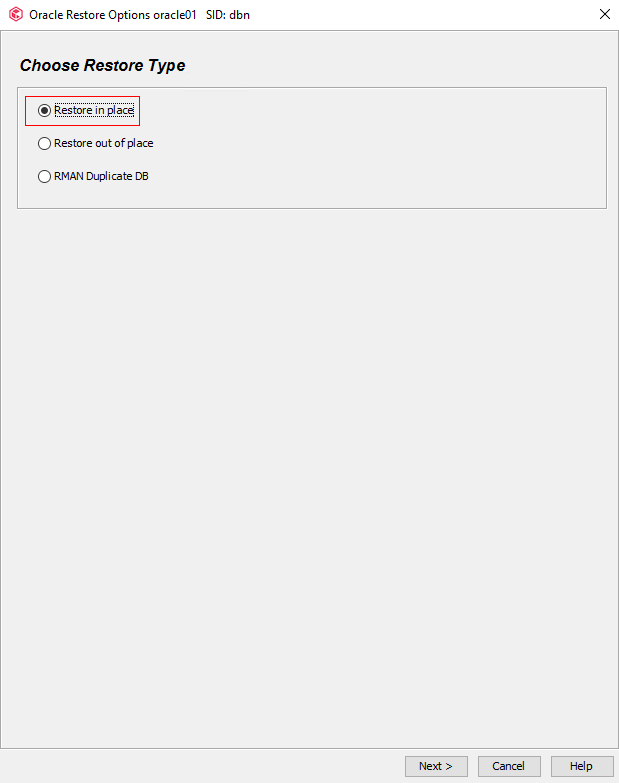

Step 4 On the Choose Restore Type tab page, select Restore in place and click Next.

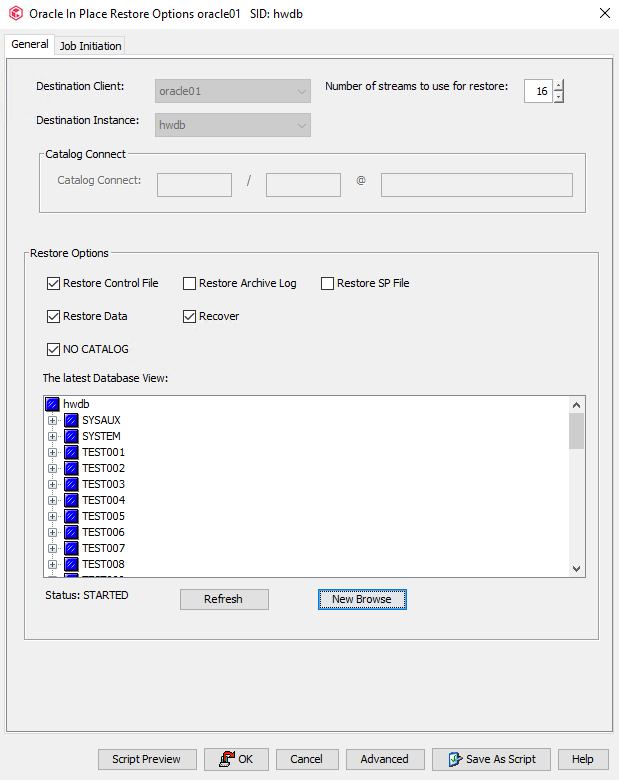

Step 5 On the General tab page, set the value of Number of streams to use for restore to 16. That is, enable 16 channels for restoration. Click Advanced.

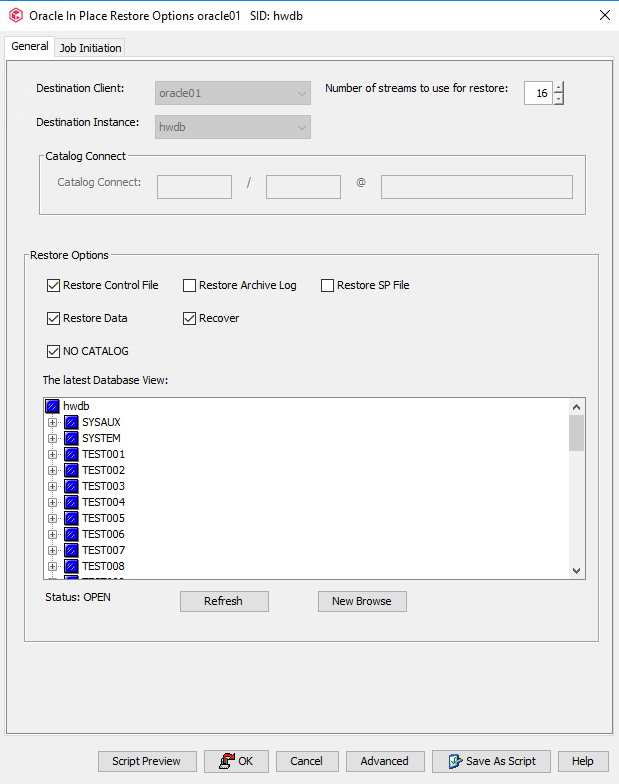

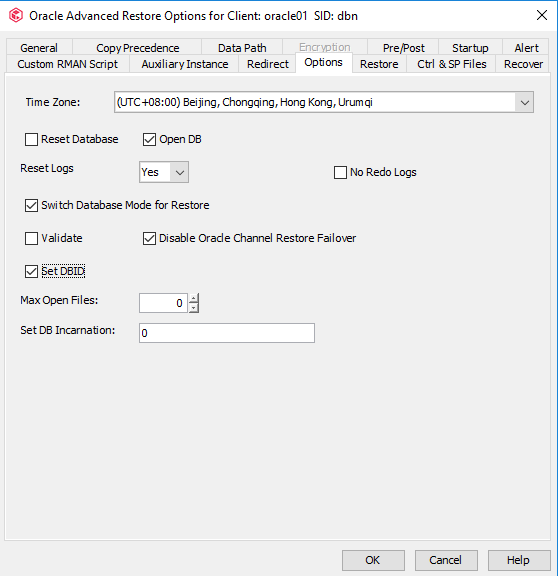

Step 6 On the page that is displayed, click the Options tab, select Switch Database Mode for Restore and Set DBID, and click OK.

Step 7 Verify that the database status is STARTED. On the General tab page, click OK.

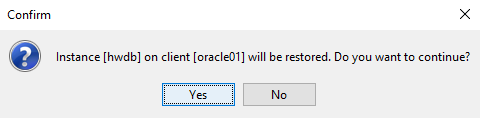

Step 8 In the dialog box that is displayed, click Yes.

—-End

Commvault can restore multiple types of Oracle files, including data files, archive log files, control files, and parameter files. For details, see the Commvault official documentation.

4.4.7.2 Configuring File System Restoration

This section describes only how to restore file systems to the original locations on the original host (through overwriting). During the actual test, restore data as required. For details about the restoration procedure, see the Commvault official documentation.

Procedure

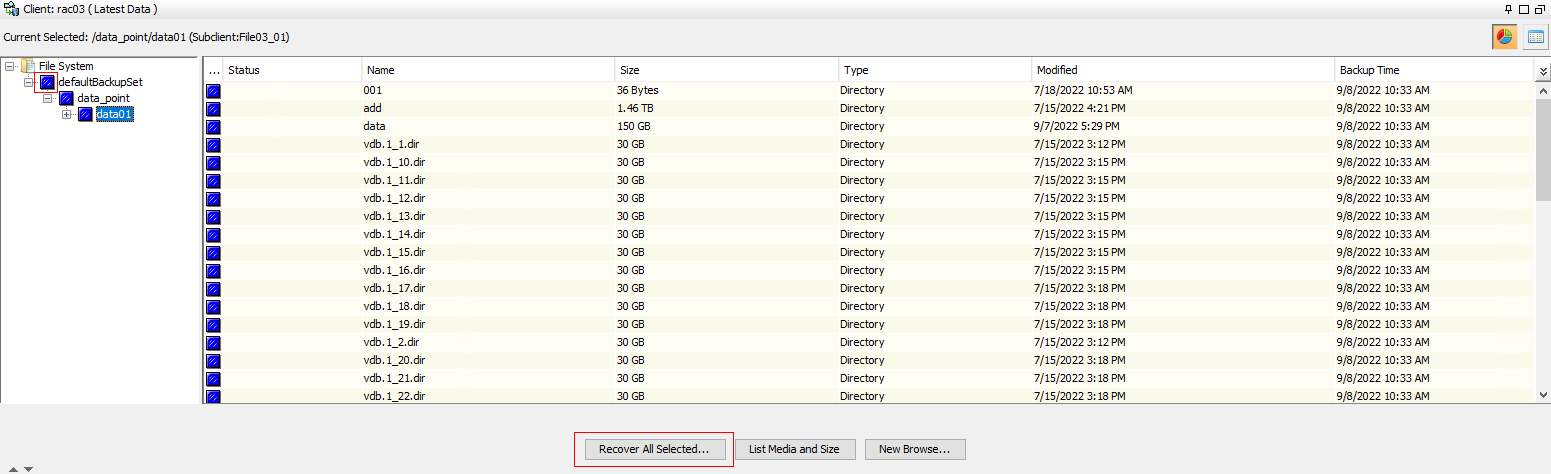

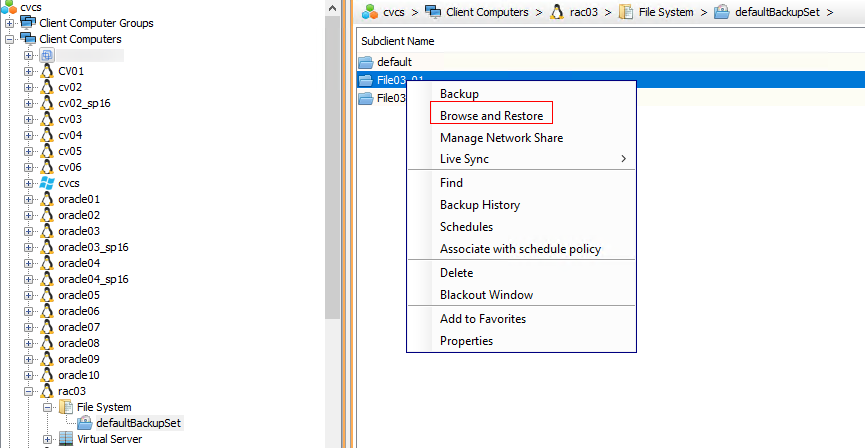

Step 1 Expand the file system host to the defaultBackupSet level, right-click the created subclient, and choose Browse and Restore from the shortcut menu.

Step 2 On the Browse and Restore Options page, click the Time Range tab, and click View Content to view the data to be restored.

Step 3 Select the data to be restored and click Recover All Selected.

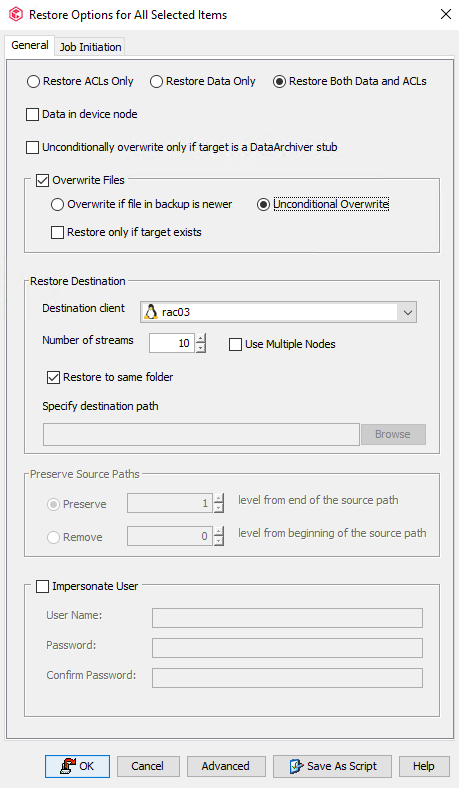

Step 4 Select Unconditional Overwrite from the Overwrite Files drop-down list, set the value of Number of Streams, and click OK.

—-End

4.4.7.3 Configuring VMware VM Restoration

This section describes only how to restore VMs to the original locations on the original host (through overwriting). During the actual test, restore data as required. For details about the restoration procedure, see the Commvault official documentation.

Procedure

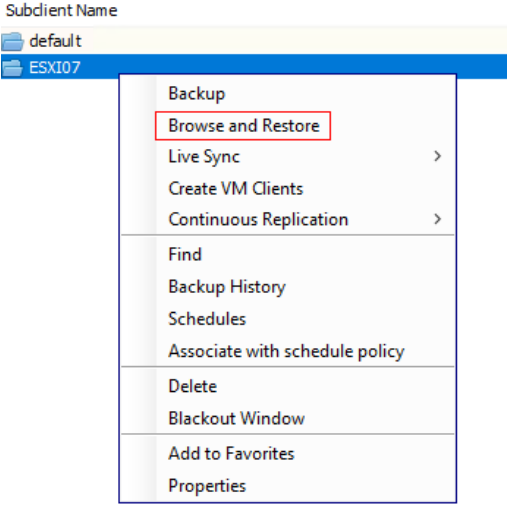

Step 1 Expand the VMware host to the defaultBackupSet level, right-click the created subclient, and choose Browse and Restore from the shortcut menu.

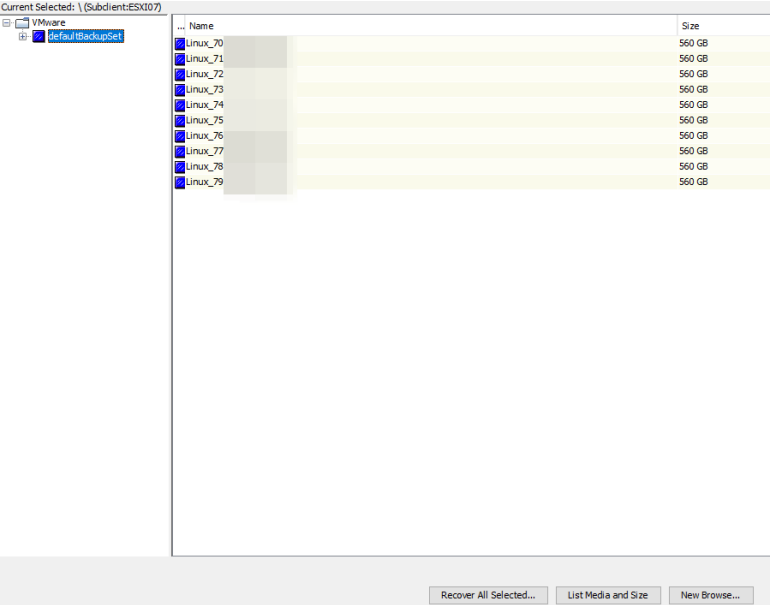

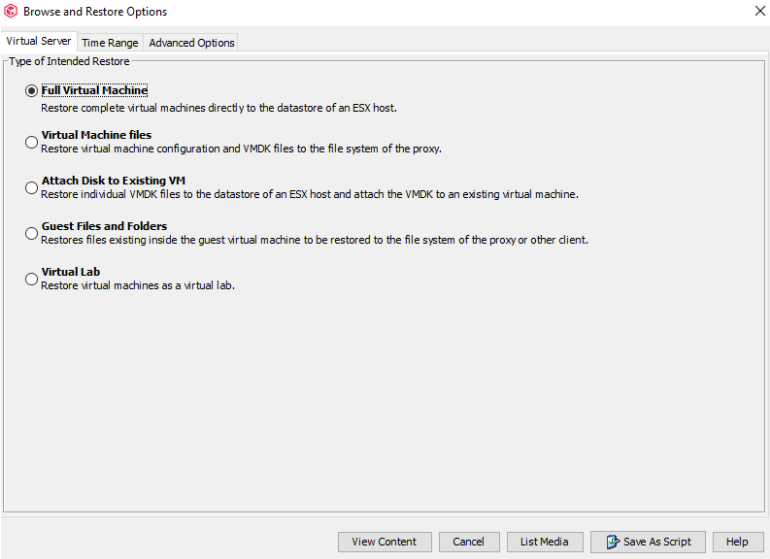

Step 2 On the Virtual Server tab page in the Browse and Restore Options window, select Full Virtual Machine in Type of Intended Restore, and click View Content to view the data to be restored.

Step 3 Select the data to be restored and click Recover All Selected.

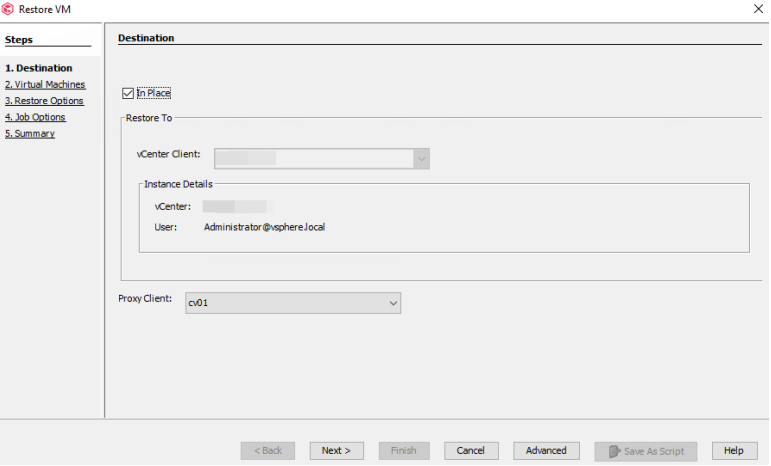

Step 4 On the Destination tab page, retain all the default settings and click Next.

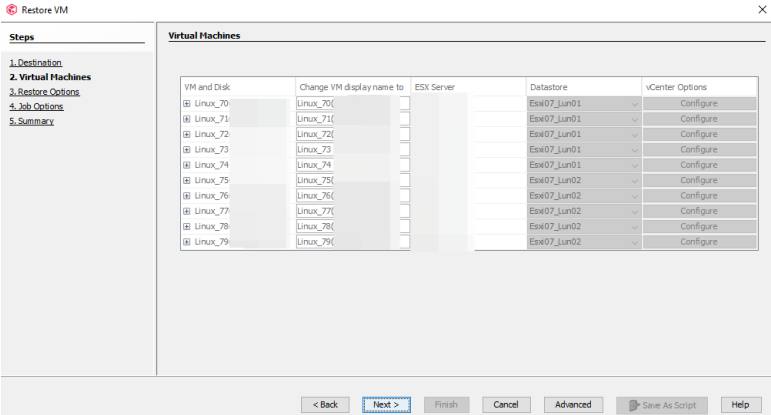

Step 5 On the Virtual Machines tab, retain all the default settings and click Next.

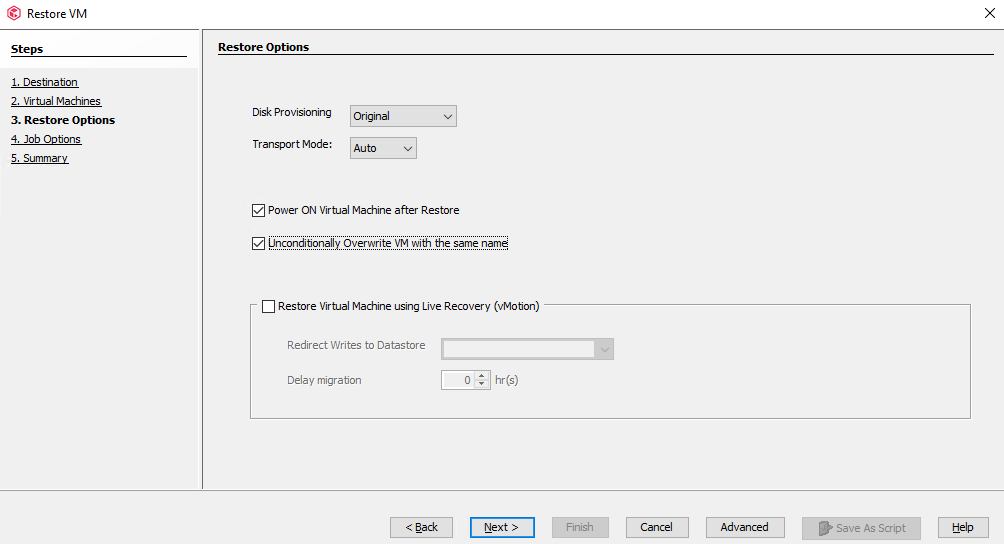

Step 6 On the Restore Options tab page, set Disk Provisioning to Original and Transport Mode to Auto, select Power ON Virtual Machine after Restore and Unconditionally Overwrite VM with the same name, and click Next.

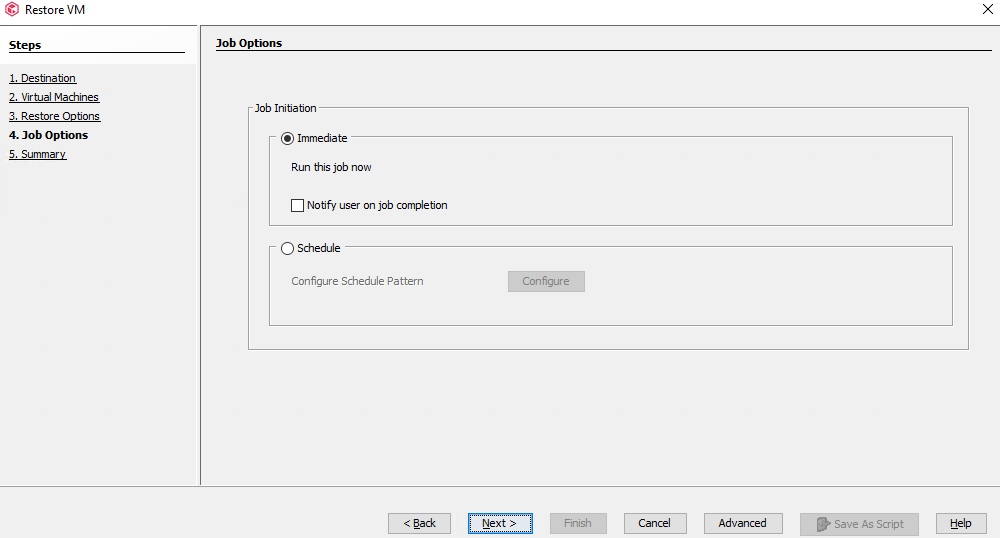

Step 7 On the Job Options tab page, select Immediate under Job Initiation and click Next.

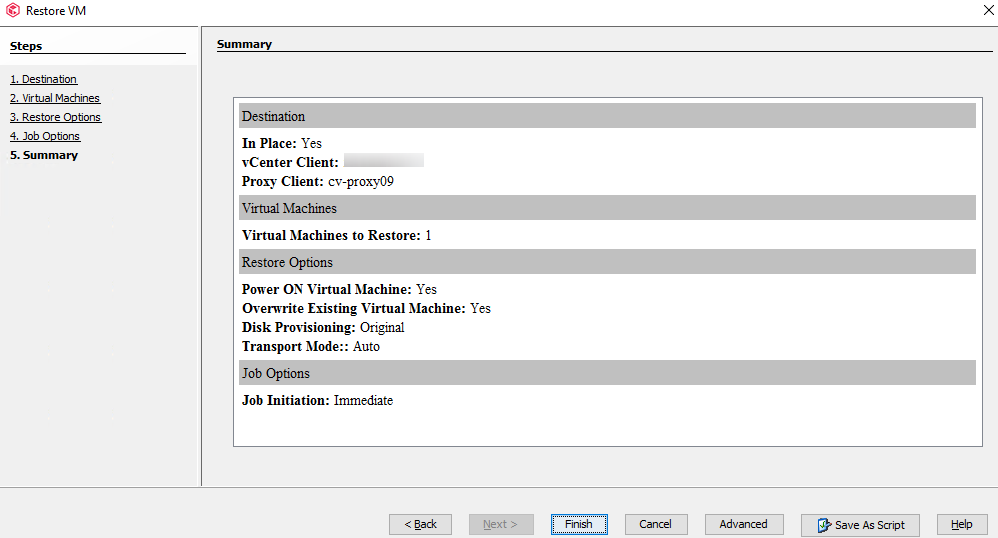

Step 8 Click Finish. The restoration job configuration is complete.

—-End

4.5 Configuring the Remote Replication Environment

4.5.1 Configuration Process

This section describes how to configure the OceanProtect Backup Storage. For details about how to integrate the OceanProtect Backup Storage with Commvault, and configure backup and restoration, see « Remote Replication Between OceanProtect Backup Storage Systems » in the OceanProtect Backup Storage 1.6.0 Commvault Integration User Guide (Backup Storage Solution).

4.5.2 Configuring Remote Replication

4.5.2.1 Creating Replication Logical Ports

In this practice, OceanProtect X8000 has two physical ports that can be used as replication links. Each physical port is configured with one logical port. A total of two logical ports are created. Use the same method to configure logical ports on the local and remote devices. The following is an example of configuring logical ports:

Step 1 Log in to DeviceManager of the remote device.

Step 2 Choose Services > Network > Logical Ports.

Step 3 Select All vStores for vStore. Click Create. On the Create Logical Port page that is displayed, set Role to Replication and enter key information such as the IP address.

—-End

4.5.2.2 Creating a Remote Device Administrator

Step 1 Log in to DeviceManager of the remote device.

Step 2 Choose Settings > User and Security > Users and Roles > Users.

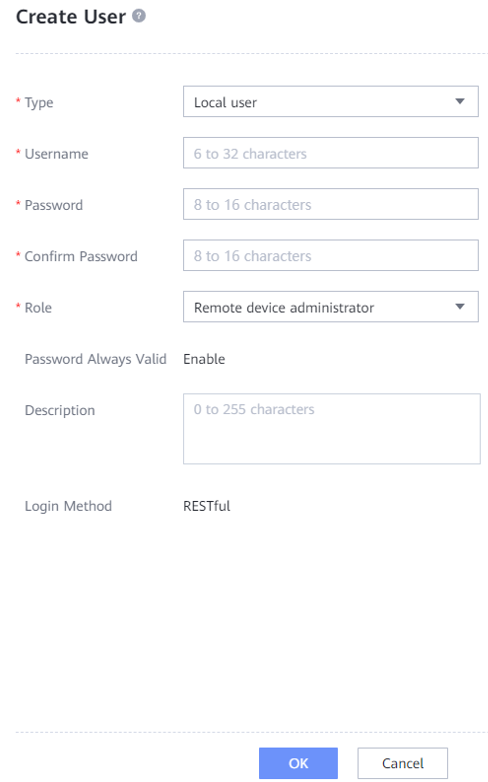

Step 3 Click Create. On the Create User page that is displayed, set Role to Remote device administrator, enter the username and password, and click OK to create a remote device administrator.

Step 4 The following figure shows a configuration example.

—-End

4.5.2.3 Creating a Remote Device

Step 1 Log in to DeviceManager of the local device.

Step 2 Choose Data Protection > Remote Devices.

Step 3 Click . The Add Remote Device page is displayed.

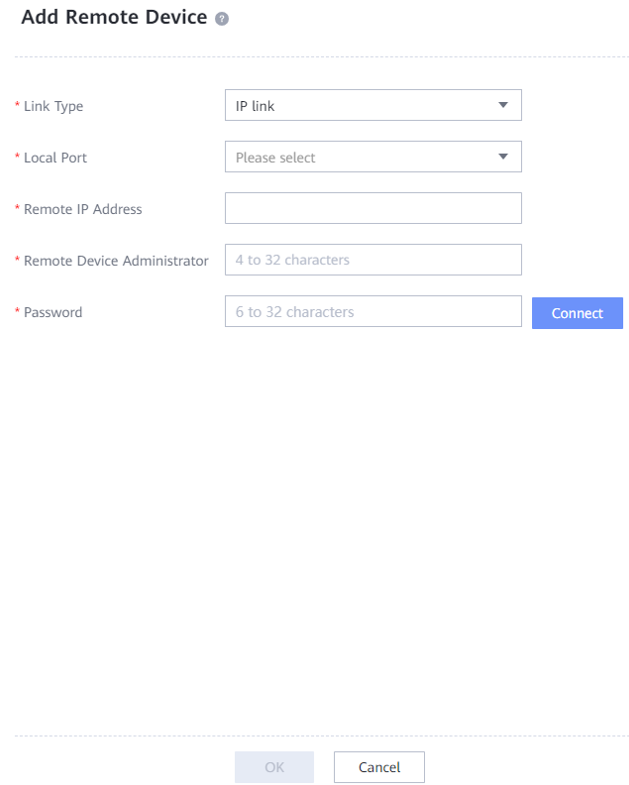

Set Link Type to IP link, and set Local Port, Remote IP Address, Remote Device Administrator, and Password. Then, click Connect.

—-End

4.5.3 Creating Remote Replication

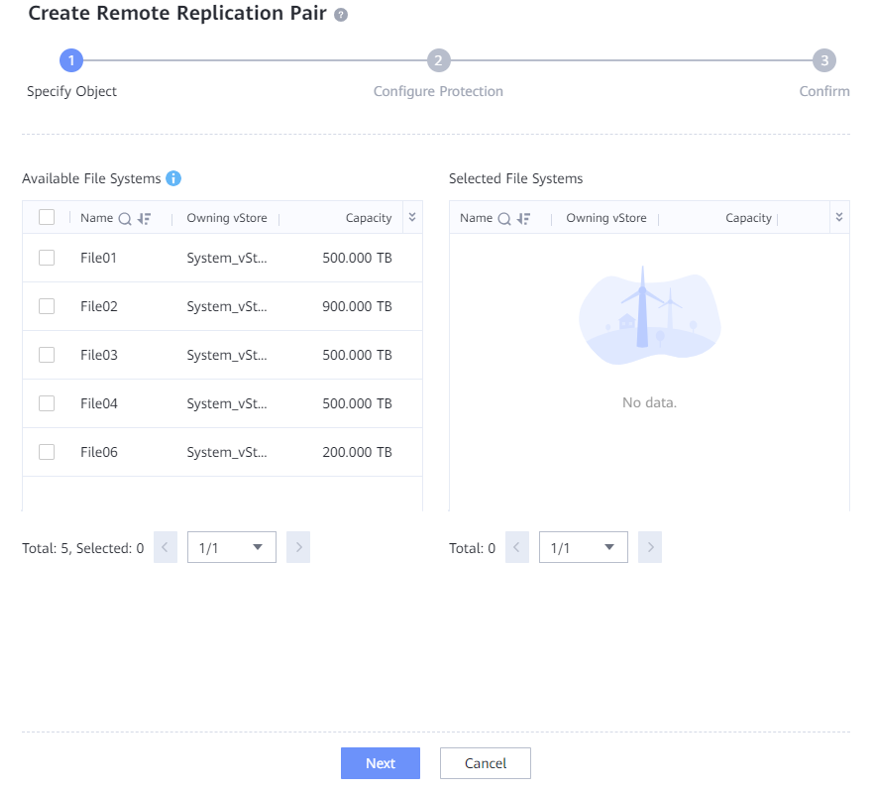

Step 1 Log in to DeviceManager of the local device. Choose Data Protection > Remote Replication > File Systems, and click Create. On the Create Remote Replication Pair page that is displayed, select file systems for which you want to create a remote replication pair, and click Next.

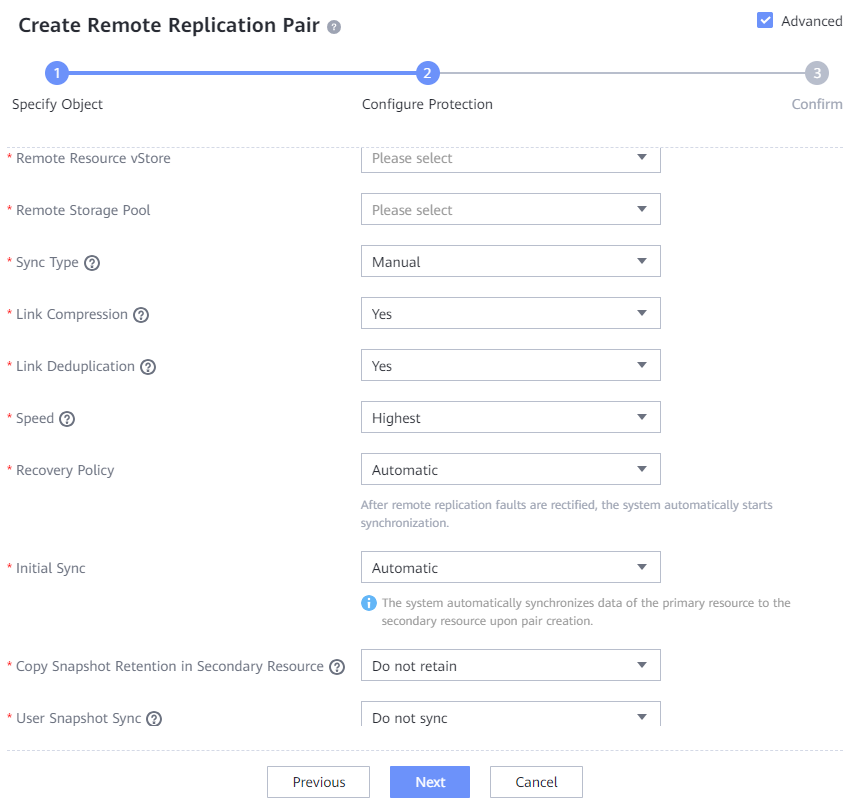

Step 2 On the Configure Protection page, select Advanced, set Link Compression to Yes, Link Deduplication to Yes, and Speed to Highest, and retain the default settings for other options.

—-End

4.6 Configuring the WORM Feature

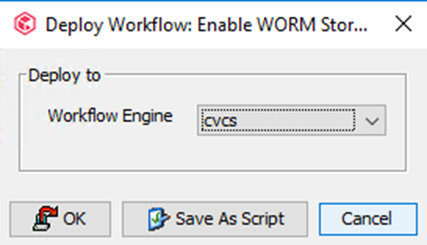

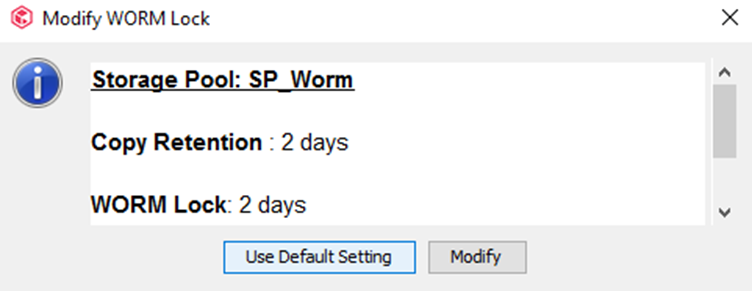

To integrate Commvault with the WORM feature of OceanProtect X8000, you need to make configurations on both Commvault and OceanProtect X8000.

OceanProtect X8000 provides a WORM protection period. The WORM protection period set by Commvault must be within this period. The WORM protection period of backup files is the WORM protection period set by Commvault. If the WORM protection period set by Commvault is less than the minimum WORM protection period provided by OceanProtect X8000, the WORM protection period of backup files is the minimum WORM protection period provided by OceanProtect X8000. Otherwise, if the WORM protection period set by Commvault is greater than the maximum WORM protection period provided by OceanProtect X8000, the WORM protection period of backup files is the maximum WORM protection period provided by OceanProtect X8000.

4.6.1 Configuring the WORM Feature of OceanProtect X8000

You only need to enable the WORM feature on OceanProtect X8000 when configuring the file system. Other configurations are the same as those in 4.4.2 Preparing the Storage.

Set the WORM properties of the file system to be hidden. To display hidden options, click Advanced. The WORM file system ensures that a file enters the protected state after being written. In this case, the file cannot be modified, moved, or deleted, but can be read for multiple times.

Before creating a WORM file system for the first time, you must initialize the WORM regulatory clock. After this parameter is enabled, the global security regulatory clock is initialized to the current system time and time zone.

Set the protection period as required.

4.6.2 Configuring the WORM Feature on Commvault

4.6.2.1 Configurations

You need to start Commvault CommCell Console, configure the client host on CommServe, configure libraries, configure storage pools, and configure storage policies. The operations are the same those from 4.4.5.1 Starting the Commvault Commcell Console to 4.4.5.5 Configuring Storage Policies.

4.6.2.2 Importing an Enable Storage Workflow

Step 1 You need to download an Enable WORM Storage workflow from the Commvault official website.

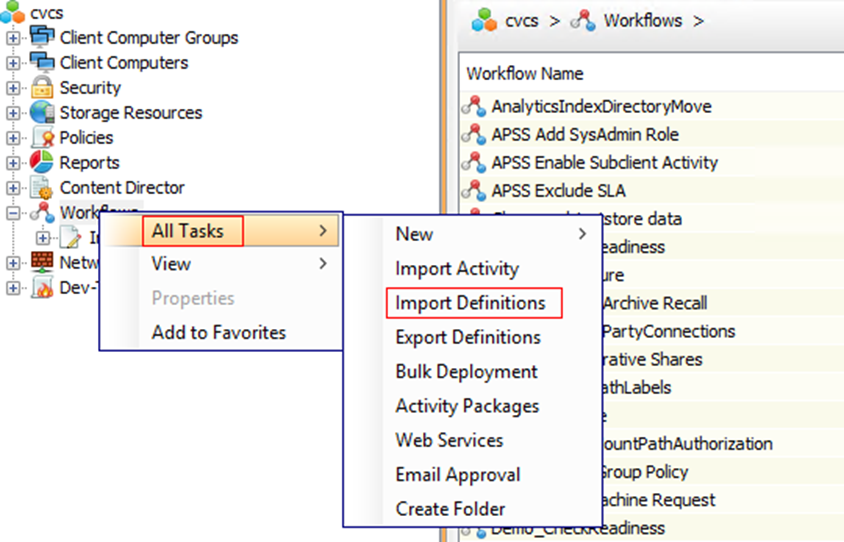

Step 2 Import an Enable WORM Storage workflow to Commvault. Right-click Workflows, choose All Tasks, and click Import Definitions.

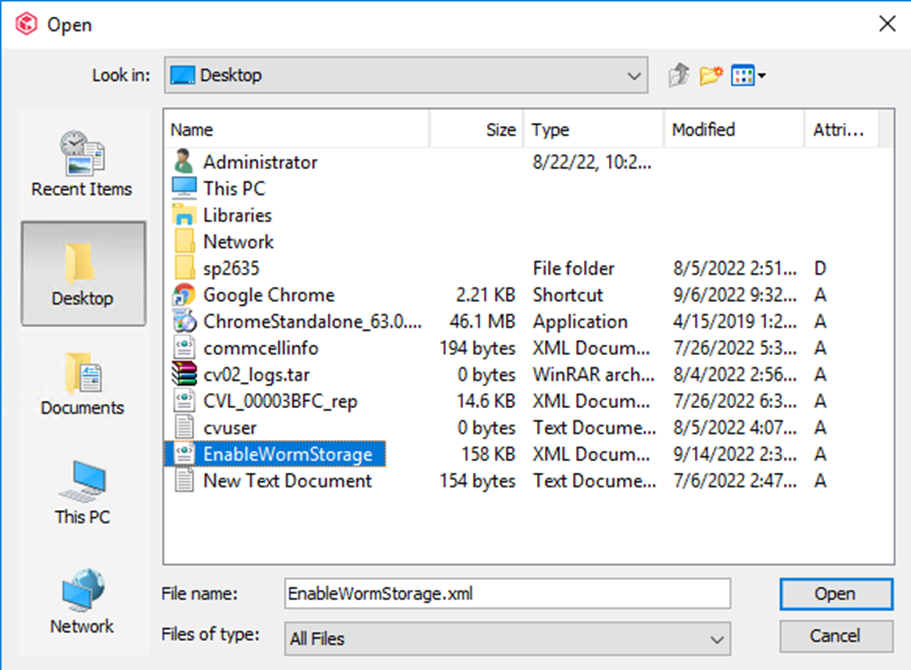

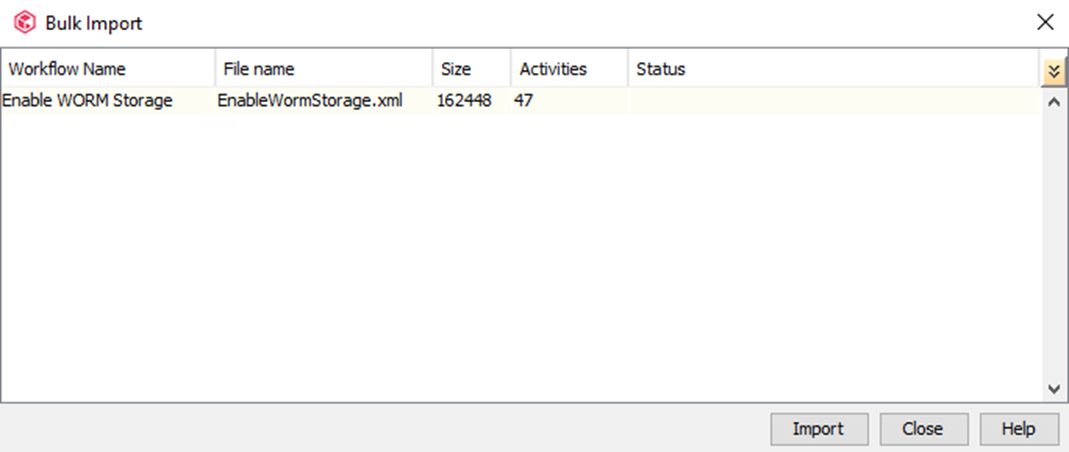

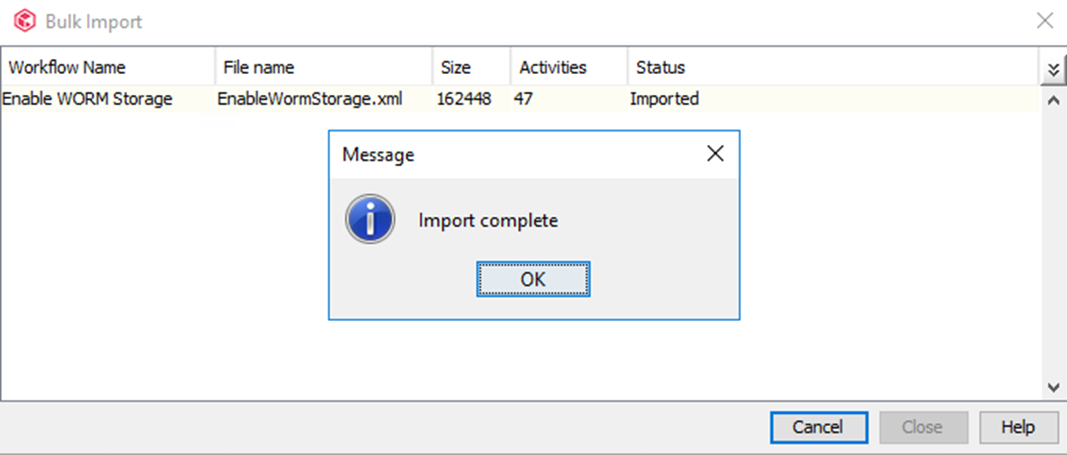

Step 3 Select the downloaded EnableWormStorage file and click Open. On the Bulk Import page, click Import and OK.

—-End

4.6.2.3 Configuring the WORM Storage Workflow

Step 1 On the Workflows page, right-click Enable WORM Storage, choose All Tasks, and click Deploy.

Step 2 Select an engine and click OK. In the message box that is displayed, click OK.

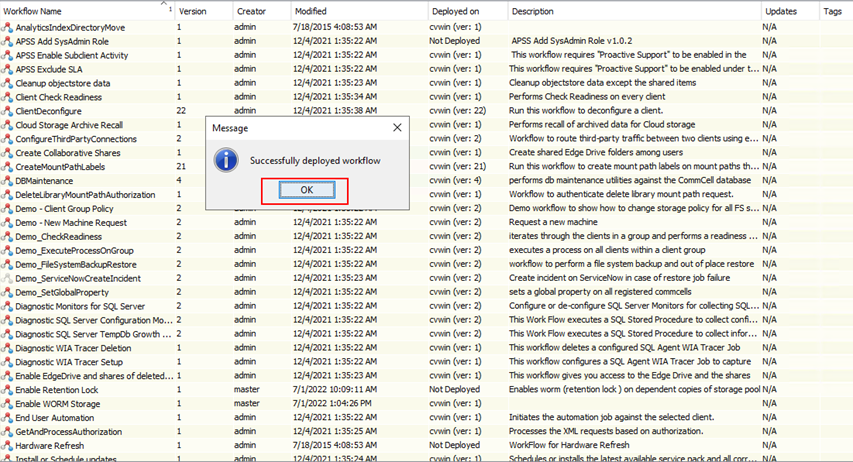

Step 3 Right-click Enable WORM Storage, choose All Tasks, and click Execute.

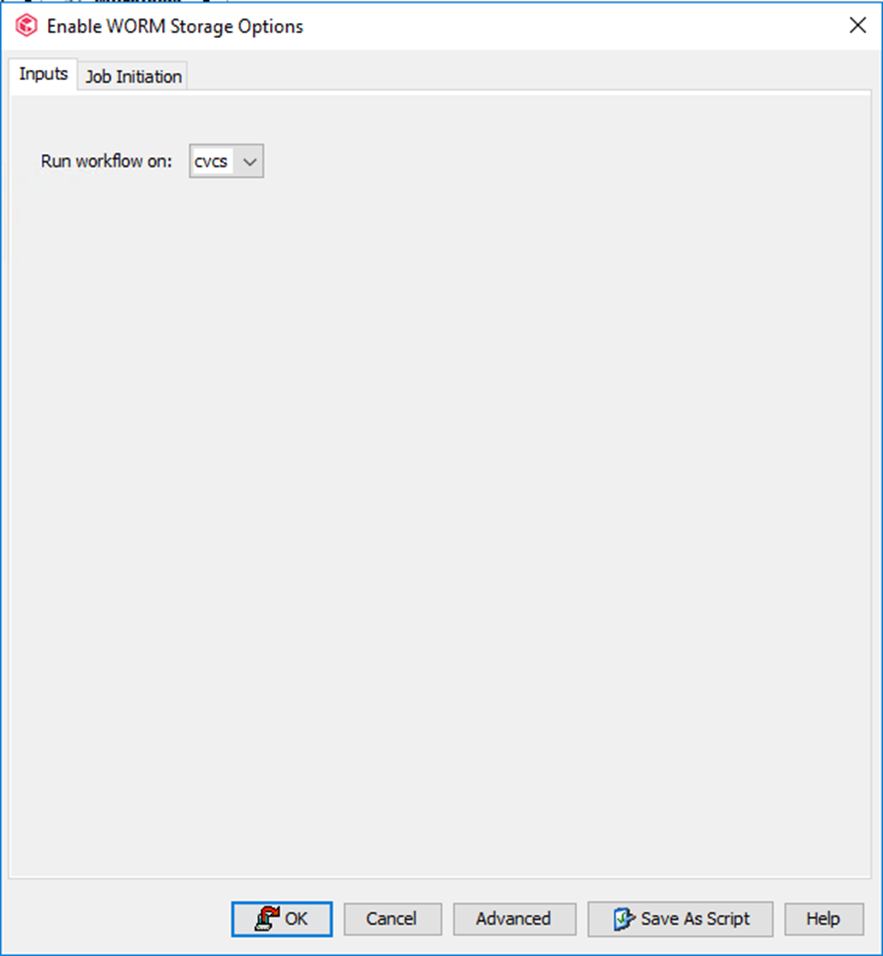

Step 4 On the Enable WORM Storage Options page, select the host where the workflow is running.

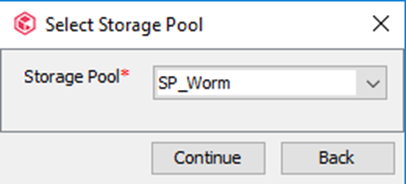

Step 5 On the Select Storage Pool page, select the storage pool for which you want to configure WORM. The WORM Lock period is the copy retention period retained in the Storage Policy.

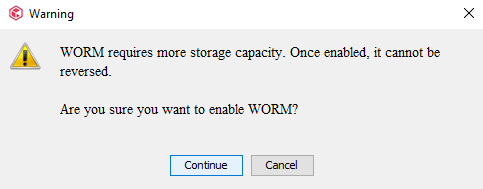

Step 6 In the Warning dialog box, click Continue.

—-End

4.6.2.4 Verifying the WORM Storage Workflow

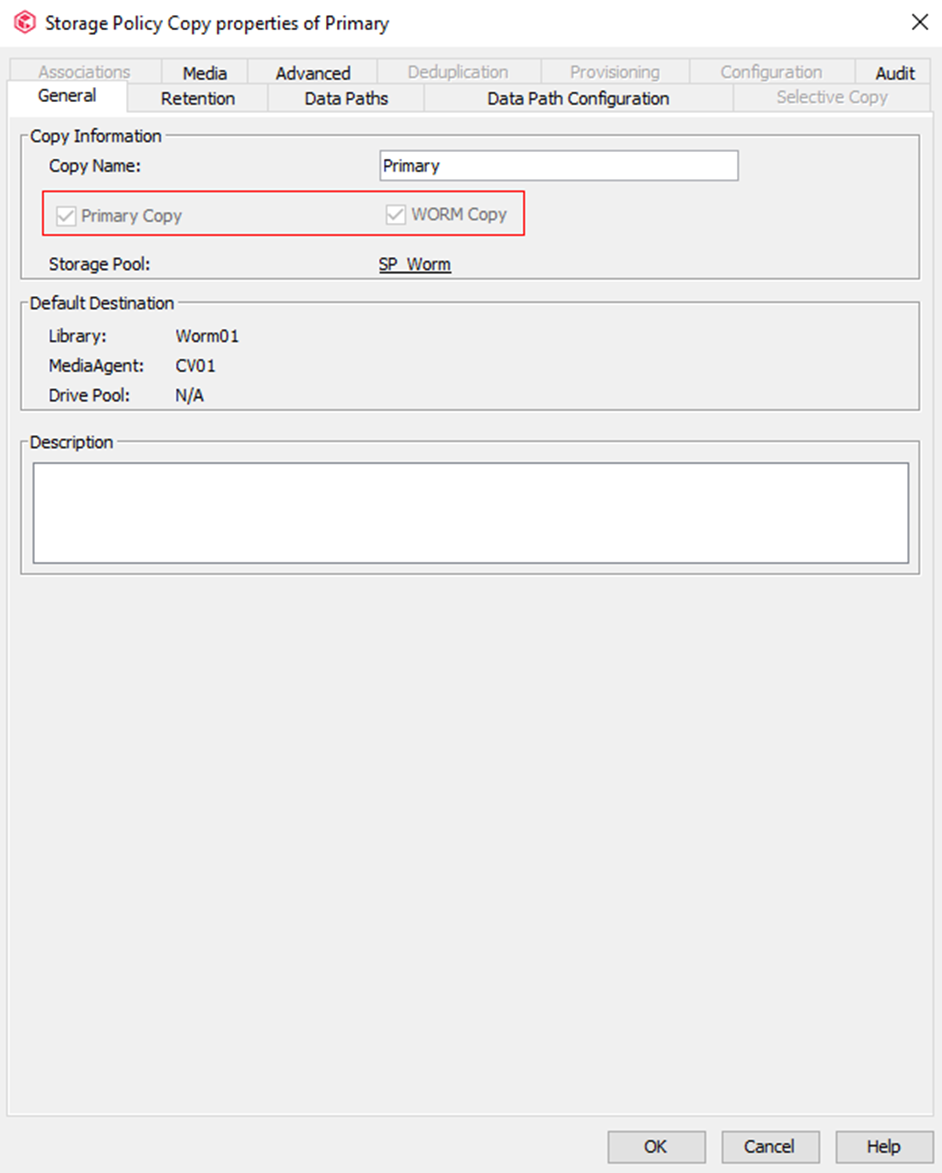

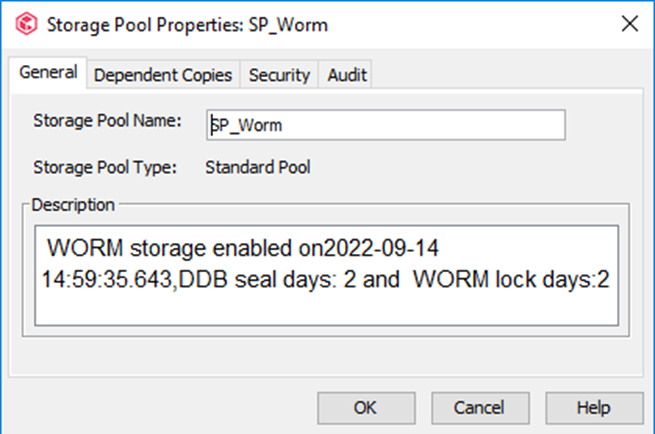

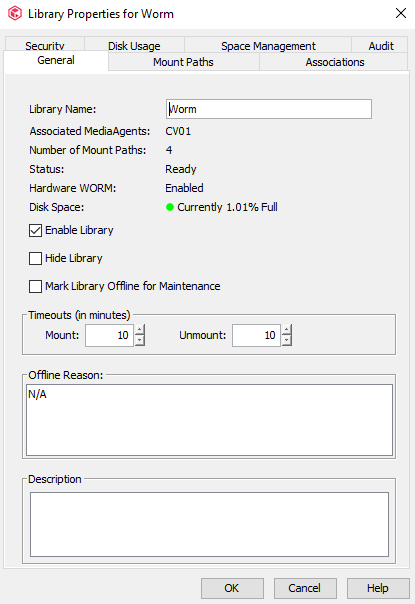

Step 1 Right-click the created library with the WORM feature and verify that Hardware WORM is Enabled.

Step 2 Right-click the created storage pool with the WORM feature and check whether WORM storage enabled is displayed in Description.

Step 3 Right-click the created storage policy with the WORM feature and ensure that Primary Copy and WORM Copy are selected.

—-End

4.6.2.5 Configuring a Subclient

The procedure for configuring a subclient is the same as that in 4.4.5.7 Configuring a Subclient for an Oracle Database or 4.4.5.8 Configuring a File System Subclient.

4.6.3 Performing Backup

The procedure for executing a backup job is the same as that described in 4.4.6 Performing Backup.

4.6.4 Performing Restoration

The procedure for executing a restoration job is the same as that described in 4.4.7 Performing Restoration.

4.7 (Optional) Configuring Virtual Synthetic Full Backup Using DASH Full

After a full backup and multiple incremental backups are complete, you can perform a synthetic full backup as required.

For a common synthetic full backup, the latest full copy is copied and then incremental data is synthesized.

If you want to use virtual synthetic full backup (only synthesizing backup copy indexes without copying a full copy), you need to use the Commvault DASH Full feature, which takes effect after Commvault deduplication is enabled.

4.7.1 Creating and Mounting Logical Volumes

Select a local SSD of the MediaAgent server to create a logical volume and mount the logical volume to a specified directory on the MediaAgent for the DDB directory in 4.7.3 Configuring Storage Pools.

Step 1 Run the lsblk command on the MediaAgent server to check the status of local disk.

Step 2 Run the pvcreate /dev/xxx command and create /dev/xxx as a physical volume.

Step 3 Run the vgcreate vgname /dev/xxx command to create a logical volume group. In this command, vgname indicates the name of the logical volume group.

Step 4 Run the lvcreate -n vlname -L Gg vgname command to create a logical volume. In this command, vlname indicates the logical volume name, Gg indicates the logical volume size, and vgname indicates the logical volume group name.

Step 5 Run the mkfs.ext4 /dev/vgname/vlname command to format the logical volume. In this command, vlname indicates the logical volume name and vgname indicates the logical volume group name.

Step 6 Run the mount /dev/vgname/vlname /xxx command to mount the logical volume to the execution directory. In this command, vgname indicates the logical volume group name, vlname indicates the logical volume name, and /xxx indicates the specified directory.

—-End

4.7.2 Configuring a Library

For details, see 4.4.5.3 Configuring a Library.

4.7.3 Configuring Storage Pools

Step 1 In the navigation tree on the left, click Storage Resources and right-click Storage Pools.

Step 2 Choose Add Storage Pool > Disk and create a storage pool.

Step 3 In the Enter the storage pool name window, enter a storage pool name and click Next.

Step 4 In the Configure storage window, select the library for which you want to create a storage pool and click Next.

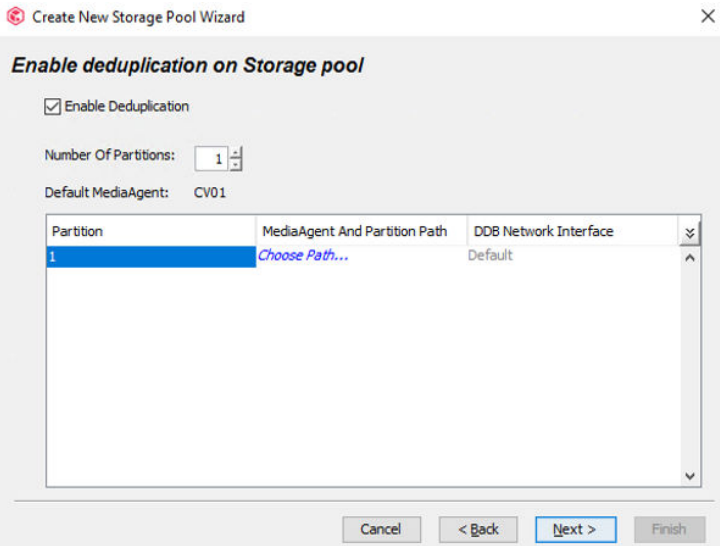

Step 5 Set parameters in the Enable deduplication on Storage pool window.

• Select Enable Deduplication to enable deduplication.


• Set Number Of Partitions.

• Click Choose Path. In the Partition Path dialog box, set MediaAgent.


• In the Partition Path dialog box, click Browse and select the mounted logical volume as the DDB directory. For details about how to create and mount logical volumes, see 4.7.1 Creating and Mounting Logical Volumes.

• Click OK.

• After the configuration in the Enable deduplication on Storage pool window is complete, click Next.


Step 6 In the Advanced settings for the primary copy window, determine whether to perform encryption based on the site requirements (encryption not required in this practice) and click Next.

Step 7 In the Review your selections. window, confirm the storage pool configuration and click Finish.

—-End

4.7.4 Configuring Storage Policies

For details about the configuration procedure, see 4.4.5.5 Configuring Storage Policies. Select the storage pool created in 4.7.3 Configuring Storage Pools for Storage Pool.

4.7.5 Configuring a VMware Client

For details, see 4.4.5.9 Configuring VMware on CommServe.

4.7.6 Configuring a Subclient

Step 1 Expand the VMware host to the defaultBackupSet level, choose All Tasks > New Subclient, and create a VMware subclient.

Step 2 On the General tab page, enter a subclient name.

Step 3 Click the Content tab, select the data source to be backed up, click Browse, and select the VM for backup.

Step 4 On the Storage Device tab page, click the Data Storage Policy tab, and select the policy to be used by the subclient.

Step 5 Click the Data Transfer Option tab and set Software Compression to Off.

Step 6 Click the Deduplication tab, select Enable Deduplication and On MediaAgent to enable deduplication for subclients.

Step 7 Click the Encryption tab and select None.

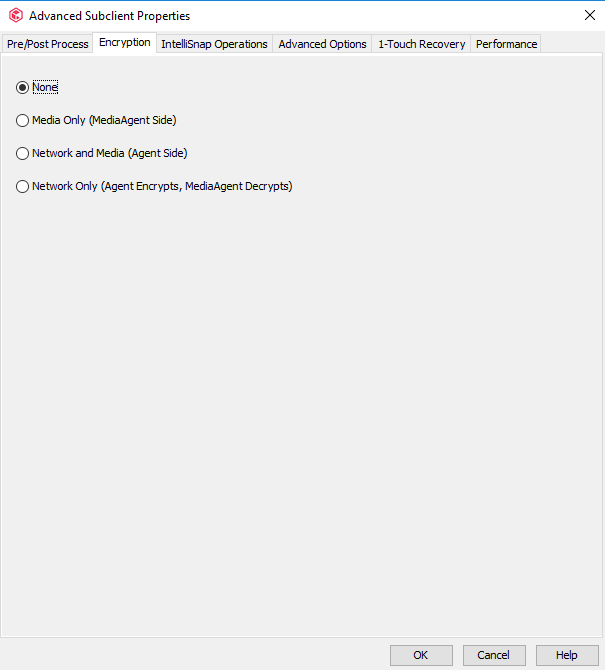

Step 8 Click the Advanced Options tab and set the value of Number of Data Readers to 16. That is, change the number of concurrent backup jobs of the subclient to 16.

Step 9 Click Add. In the Select Clients/Client Groups window that is displayed, select the host where the Virtual Server client component is deployed and click Include. Click OK.

Step 10 Click OK. The VMware subclient configuration is complete.

—-End

4.7.7 Performing Synthetic Full Backup

After a full backup and multiple incremental backups are complete, you can perform a synthetic full backup for VMs.

Step 1 Right-click the subclient that requires synthetic full backup and choose Backup from the shortcut menu.

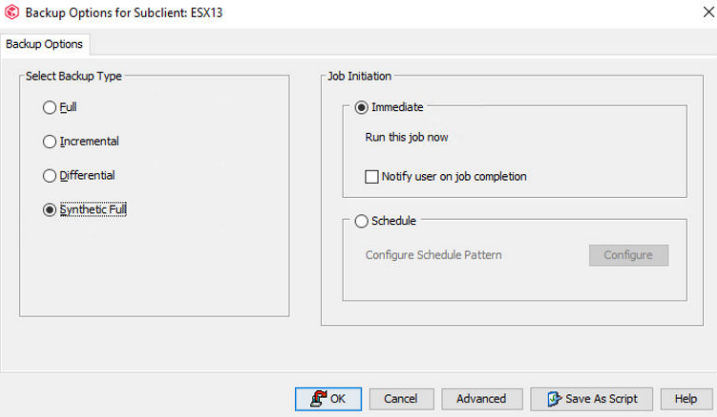

Step 2 On the Backup Options page, set Select Backup Type to Synthetic Full and Job Initiation to Immediate or Schedule based on the site requirements.

Step 3 Click OK.

—-End

4.8 Best Practice Verification Examples

The performance test result does not apply to the scenario of upgrade from an earlier version. For details about the performance in the upgrade scenario, contact R&D engineers for evaluation.

4.8.1 Backup and Restoration Bandwidth Performance Test Results of High-Configuration Servers

When Commvault is used to back up Oracle and VMware data:

This solution tests the backup performance when the WORM feature is enabled and disabled. The test conclusions are as follows:

• The WORM feature takes effect. After the WORM feature is enabled, copies backed up to OceanProtect X8000 cannot be modified or deleted.

• There is no obvious difference in the backup bandwidth and restoration bandwidth performance when WORM is enabled compared with those when WORM is disabled.


In this high-performance scenario, two solutions in 3.2.4 Commvault Deployment Planning are tested: one-to-one solution (one file system to MediaAgent) and one-to-many solution (one file system to multiple MediaAgents). The detailed performance test scenarios are as follows:

1. Production environment: Commvault is used to back up three Oracle hosts and three ESXi hosts.
   1. Each Oracle host is preset with 40 to 60 data files. The size of each data file ranges from 36 GB to 54 GB. The size of each database ranges from 2.2 TB to 2.3 TB. The total data volume of the three Oracle databases is about 7 TB.

   2. Each ESXi host has eight VMs to be backed up. Each VM contains six disks, including one 50 GB system disk and five 120 GB data disks, and a total of 500 GB data is preset in the data disks. Therefore, there is 11.5 TB data in total for backup of 24 VMs.

2. Backup environment: OceanProtect X8000 (all-flash). Create a file system and connect it to six Commvault MediaAgents through DataTurbo.

3. Test model: In the backup performance test, the first, second, and third full backups are performed with 5% data changed each time. In the restoration performance test, all VMs and Oracle database instances that have been backed up are restored.

4. Library solution planning:
   1. One-to-one mapping between file systems and MediaAgents: OceanProtect X8000 uses six file systems and six MediaAgents. One file system is mounted to one MediaAgent and each mount directory is created as a unique mount path in a library. Table 4-3 describes the test results of the maximum bandwidth performance between the high performance and high reduction ratio compression modes of OceanProtect.

   2. One-to-many solution (one file system to multiple MediaAgents): OceanProtect X8000 uses one file system and six MediaAgents. One file system is mounted to the six MediaAgents and each mount directory is created as a unique mount path in a library. Table 4-4 describes the maximum bandwidth performance of the high reduction ratio compression mode of OceanProtect.


Table 4-3 Backup and restoration bandwidth performance test results of the one-to-one solution for file systems and MediaAgents

Compression Mode	Backup Type	Peak Backup Bandwidth (GB/s)	Backup Data Volume (TB)	Backup Duration (min)	Average Backup Bandwidth (GB/s)
High performance	Initial backup	–	18.5	26	11.93
	Second backup	20.1	18.5	25	12.40
	Third backup	20.1	18.5	24	12.92
	Restoration	7.5	18.5	67	4.63
High reduction ratio	Initial backup	–	18.5	40	7.75
	Second backup	19.5	18.5	23	13.48
	Third backup	18.5	18.5	25	12.40
	Restoration	6.7	18.5	70	4.43

Table 4-4 Backup and restoration bandwidth performance test results of the one-to-many solution (one file system to multiple MediaAgents)

Compression Mode	Backup Type	Peak Backup Bandwidth (GB/s)	Backup Data Volume (TB)	Backup Duration (min)	Average Backup Bandwidth (GB/s)
High reduction ratio	Initial backup	–	18.5	39	7.9
	Second backup	20	18.5	23	13.5
	Third backup	18.5	18.5	24	12.9
	Restoration	6.65	18.5	73	4.25

The high performance mode and the high reduction ratio mode in Table 4-3 and Table 4-4 are set as follows:

• High performance mode: Set the compression mode of the storage pool to High performance and the file system application type to Performance_Global_Mode.

• High reduction ratio mode: Set the compression mode of the storage pool to High reduction ratio and the file system application type to Reduction_Global_Mode.


Restoration performance:

• Some restoration jobs are slow. As a result, the overall restoration process takes a long time.

• The restoration bandwidth closely depends on the performance of the restoration destination host. The test results do not represent the maximum restoration capability of OceanProtect X8000.


4.8.2 Backup Bandwidth Performance Test Results of Typical-Configuration Servers

When Commvault is used to back up VMware VMs:

1. The GridStor solution in 3.2.4 Commvault Deployment Planning is tested in the typical server configuration scenario. Two libraries are created. For details, see Figure 3-6.

2. Production environment: Commvault is used to back up four ESXi hosts, including 32 VMs. 500 GB data is preset on each VM. The total data volume is about 14.5 TB.

3. Backup environment: OceanProtect X8000 (all-flash). Two file systems are created and connected to four MediaAgents through DataTurbo. The MediaAgent server uses typical configuration: 2 x Intel(R) Xeon(R) Silver 4214R CPU and 16 x 16 GB memory.

4. Test model: The first and second full backups are tested with 5% data volume changed each time. In the restoration performance test, all VMs and Oracle database instances that have been backed up are restored.

5. Table 4-5 describes the performance result.


Table 4-5 Backup and restoration bandwidth performance test results when Commvault is used to back up VMware VMs and four MediaAgents are deployed

Compression Mode	Backup Type	Peak Backup Bandwidth (GB/s)	Backup Data Volume (TB)	Backup Duration (min)	Average Backup Bandwidth (GB/s)
High performance	Initial backup	6.3	14.5	61	4.06
	Second backup	6.7	14.5	65	3.81
	Restoration	4.1	14.5	70	3.53
High reduction ratio	Initial backup	5.6	14.5	71	3.49
	Second backup	7	14.5	70	3.53
	Restoration	3.9	14.5	66	3.75

• The backup and restoration speeds vary greatly with VMs in a job. The backup and restoration of some VMs are too slow. As a result, the overall job runs for a long time.

• The restoration bandwidth closely depends on the performance of the restoration destination host. The test results do not represent the maximum restoration capability of OceanProtect X8000.


4.8.3 Data Reduction Test Results

When Commvault is used to back up Oracle databases and file systems, use Commvault to back up 10 Oracle hosts and two file system hosts to perform a data reduction test. OceanProtect X8000 is configured in high reduction ratio mode. The production data and backup policies are as follows:

• Preset data model:

• There are two file system hosts. One LUN is mounted to each file system host. Two directories are created, with 100 files preset in each directory. The size of each file is 30 GB. The deduplication ratio is 1.3:1, and the compression ratio is 2:1.

• There are 10 Oracle databases. Each Oracle host is preset with 40 to 60 data files. The size of each data file ranges from 36 GB to 54 GB, and the size of each database ranges from 1.7 TB to 2.1 TB.

• Backup policy: Initial, second, and third full backups.

• Backup data difference: Data in the file system and Oracle database changes by 5% between two backups.


Table 4-6 lists the end-to-end data reduction test results.

Table 4-6 Data reduction test results when Commvault is used to back up Oracle databases and file systems

Backup Type	Number of Oracle Databases	Number of File Systems	Data Volume (TB)	Data Reduction Ratio
Initial full backup	10	2	30.97	3.576:1
Second full backup	10	2	30.97	6.726:1
Third full backup	10	2	30.97	9.543:1

When Commvault is used to back up VMware VMs, use Commvault to back up eight VMs and perform a data reduction test. The production data and backup policies are as follows:

• Preset data model: There are eight VMs, and more than 5000 files are preset on each VM. The data volume is 450 GB. The total data volume of the eight VMs is around 3.71 TB.

• Backup policy: Initial, second, and third full backups.

• Backup data difference: Construct 5% data volume change of the VM between two backups.


Table 4-7 lists the end-to-end data reduction test results.

Table 4-7 Data reduction test results of a single MediaAgent when Commvault is used to back up VMware VMs

Compression Mode	Backup Type	Number of VMs	Data Volume (TB)	Data Reduction Ratio
High performance	Initial full backup	8	3.71	4.232:1
	Second full backup	8	3.71	7.779:1
	Third full backup	8	3.71	10.726:1
High reduction ratio	Initial full backup	8	3.71	5.062:1
	Second full backup	8	3.71	9.241:1
	Third full backup	8	3.71	12.781:1

• High reduction ratio mode: Set the compression mode of the storage pool to High reduction ratio and the file system application type to Reduction_Prioritized_Mode_enhanced.

• Data reduction ratio: indicates the ratio of the amount of user data written into the storage pool to the used capacity of the storage pool.

• The actual data reduction ratio is closely related to the data model and the backup policy. The test results are based on the preceding backup policy and data model.


4.8.4 Remote Replication Test Results

Two OceanProtect X8000 devices are used to form a remote replication environment.

• Networking: Use two 10GE network cables to connect the two OceanProtect X8000 devices to the same switch to form a replication network, and create a remote device.

• Remote replication configuration: Enable deduplicated replication and link compression, and change the rate to the highest.

• Backup data difference: data changes by 5% between two backup jobs, and Oracle archive logs are not disabled during data reconstruction.


Table 4-8 Data reduction test results

Backup Type	Data Volume (GB)	Link Data Reduction Ratio	Backup Duration (s)	Average Bandwidth (GB/s)
First remote replication	507.34	3.345:1	405	1.25
Second remote replication	549.58	46.088:1	155	3.55

4.8.5 Synthetic Full Backup Test Results

Use Commvault to back up VMware VMs to perform a synthetic full backup test. OceanProtect X8000 is configured in high reduction ratio mode, and Commvault is enabled with data deduplication. The production data and backup policies are as follows:

• Preset data model: There are eight VMs, and more than 5000 files are preset on each VM. The data volume is 450 GB. The total data volume of the eight VMs is around 3.71 TB.

• Backup policy: Full backup, five incremental backups, and synthetic full backup.

• Backup data difference: Construct 5% data volume change of the VM between two backups. Do not construct data changes before the synthetic full backup.


Table 4-9 Data reduction test results

Backup Type	Data Volume (GB)	Link Data Reduction Ratio	Backup Duration (s)	Average Bandwidth (GB/s)
Full backup	3789	5.01:1	2869	1.32
Five incremental backups	–	–	–	–
Synthetic full backup	3789	8.56:1	3343	1.13
