Test Case

Storage Involved

Protocol(s) Tested

Results

Add the storage to the archive server as S3 target storage using Virtual Style

Huawei OceanStor Dorado All-Flash Storage/OceanStor Capacity Flash Storage/OceanStor Hybrid Flash Storage

S3

Passed

Add the storage to the archive server as S3 target storage using Path Style

Huawei OceanStor Dorado All-Flash Storage/OceanStor Capacity Flash Storage/OceanStor Hybrid Flash Storage

S3

Passed

Archive files to the S3 target storage through the archive server

Huawei OceanStor Dorado All-Flash Storage/OceanStor Capacity Flash Storage/OceanStor Hybrid Flash Storage

S3

Passed

Retrieve archived files from the S3 target storage through the archive server

Huawei OceanStor Dorado All-Flash Storage/OceanStor Capacity Flash Storage/OceanStor Hybrid Flash Storage

S3

Passed

Name

Model

Version

Quantity

Storage

Huawei OceanStor Dorado All-Flash Storage/OceanStor Capacity Flash Storage/OceanStor Hybrid Flash Storage

(hereinafter referred to as Huawei OceanStor Flash Storage)

V700R001C20

1

Name

description

Quantity

Administration Client

Install the OpenText Administration Client software for management.

1

Archive Server

Install the OpenText Archive Server software.

1

Database Server

Install the SQL server and hold the configuration information for OpenText Archive Server.

1

Ethernet switch

Ethernet switches for management networking and service networking.

2

Software Name

Version

Quantity

Administration Client

22.4

1

Archive Server

22.4

1

SQL Server

SQL Server 2019

1

Operation System

Windows 2019

1

Test Purpose

To verify that the storage can be added to the archive server as S3 target storage using Virtual style.

Test Networking

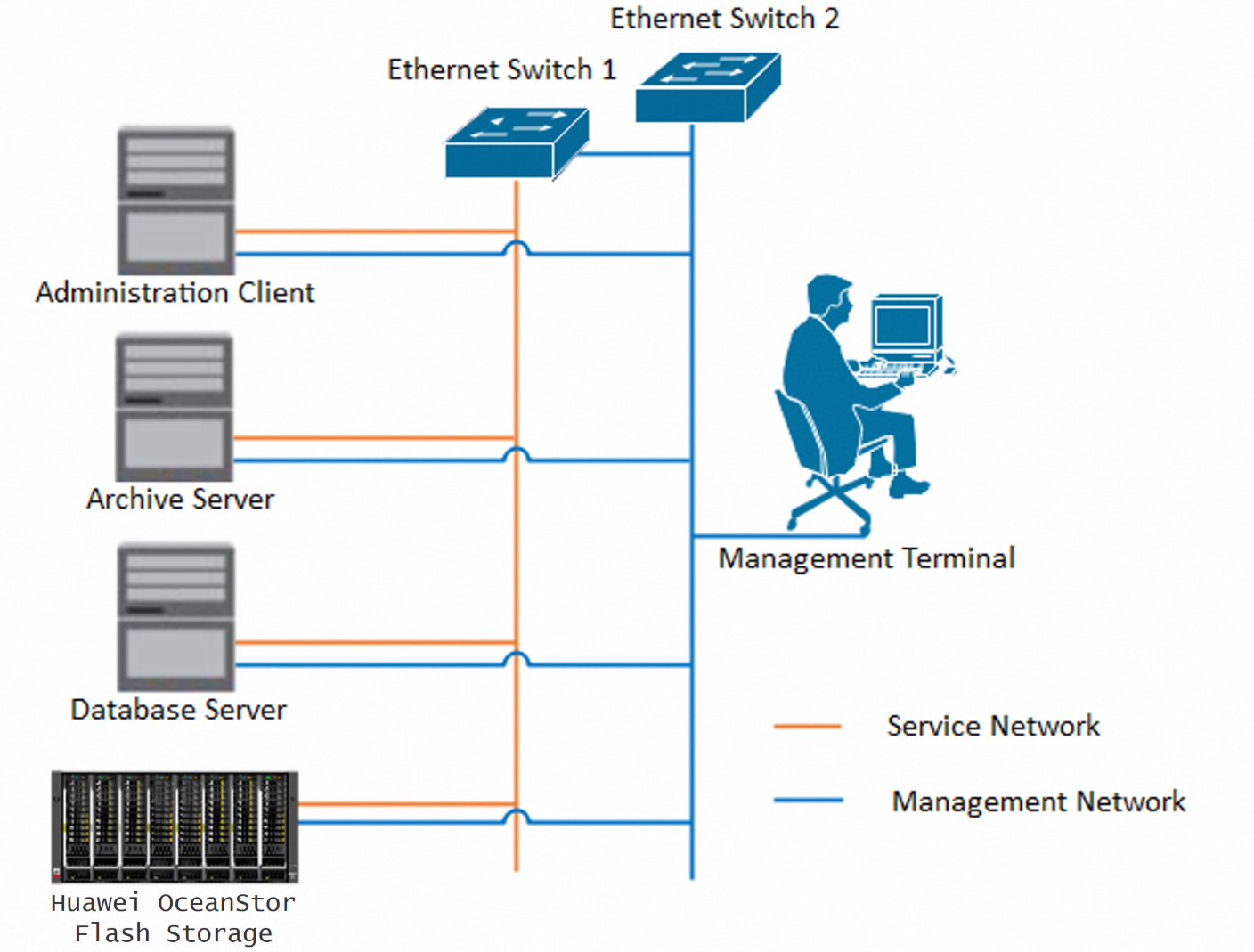

Huawei OceanStor Flash Storage and Archive Server Test Networking

Prerequisites

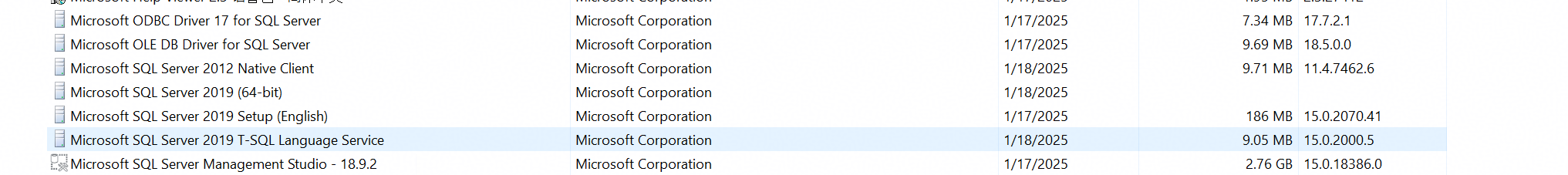

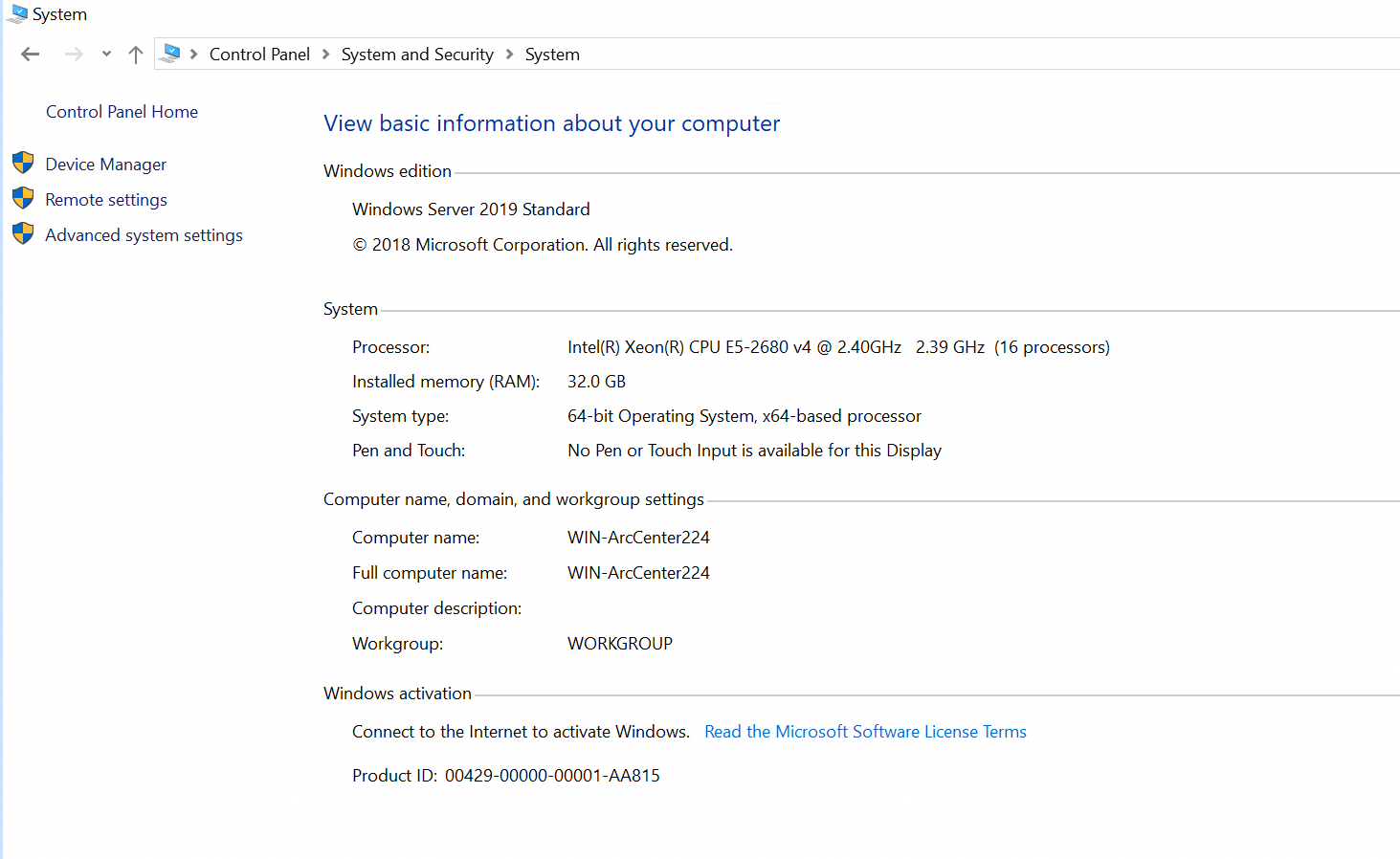

1. The administration client, archive server, and SQL database have been deployed and configured successfully.

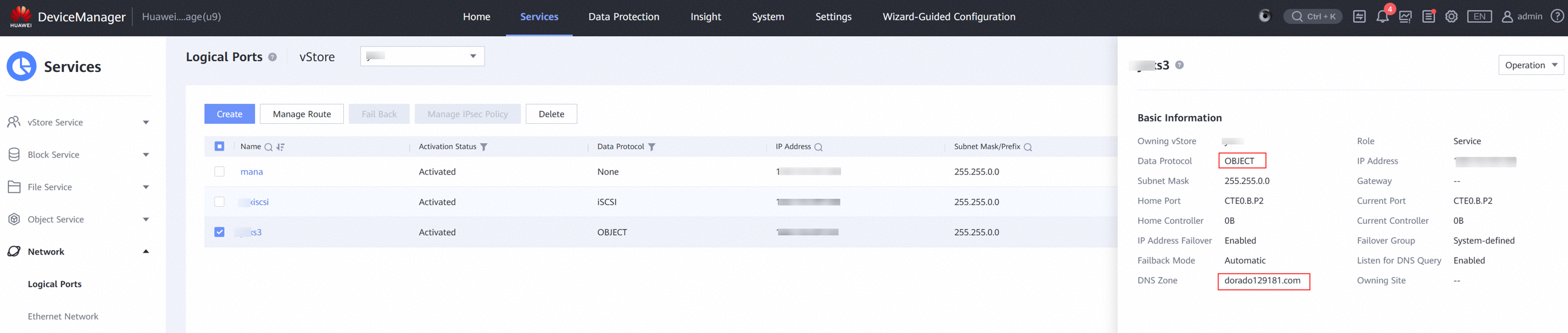

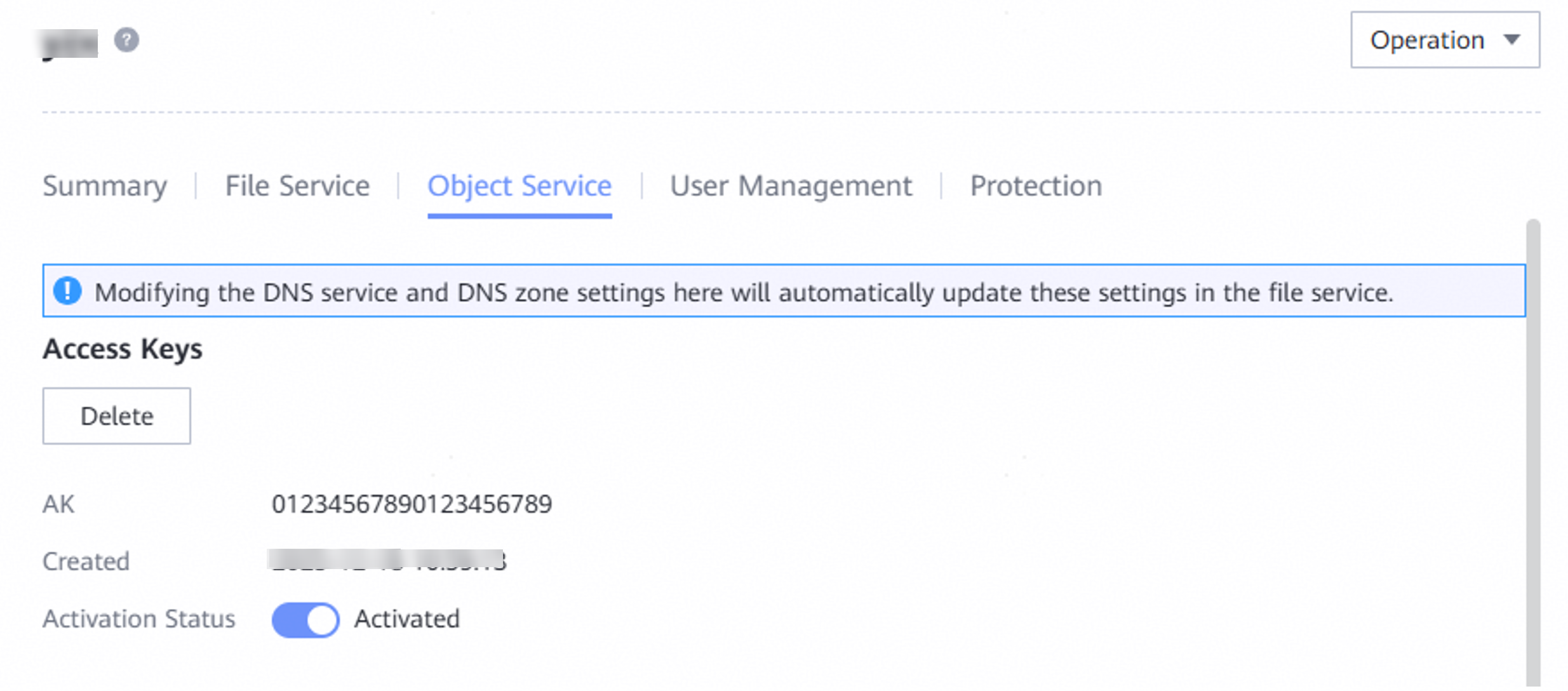

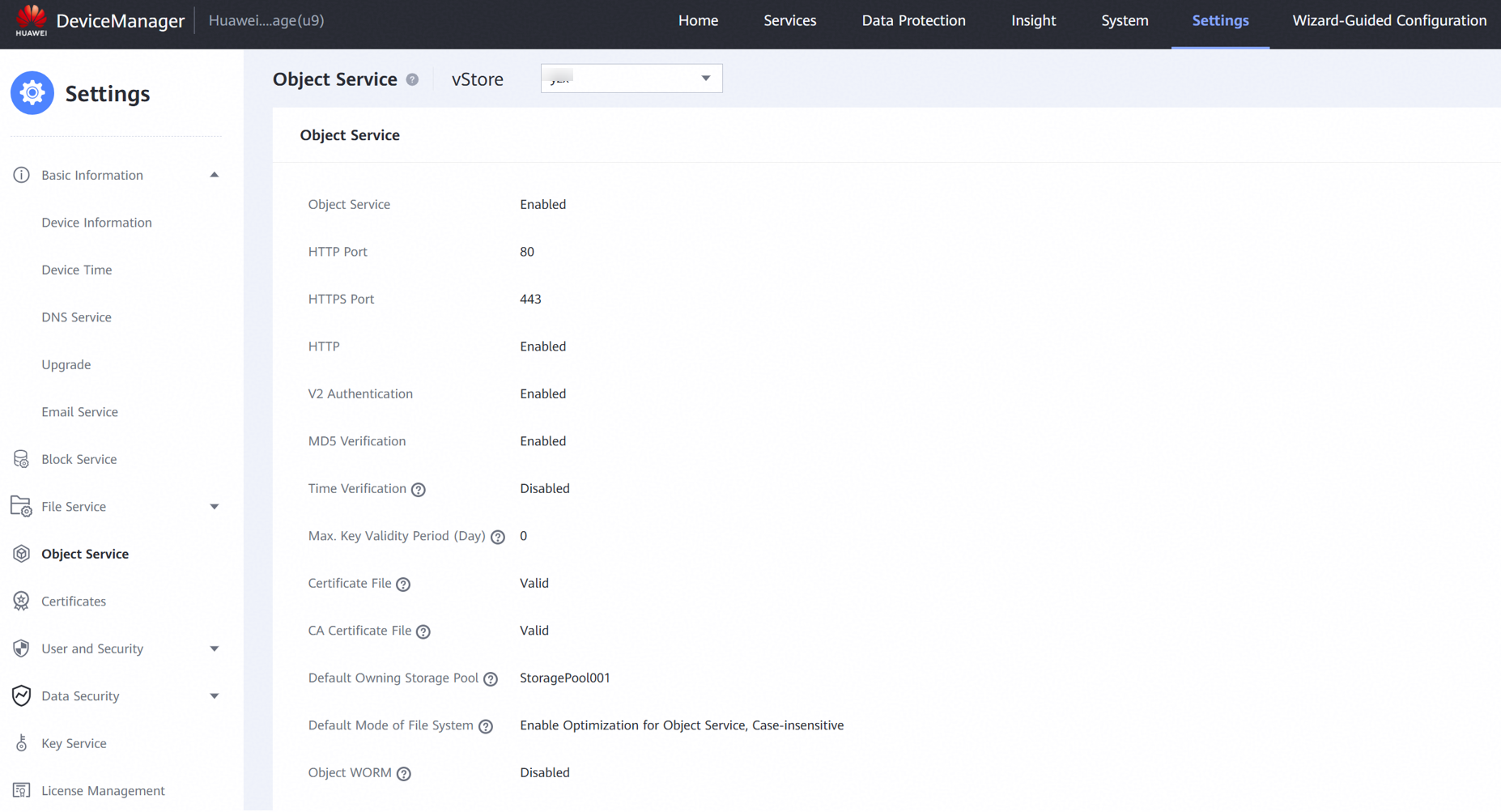

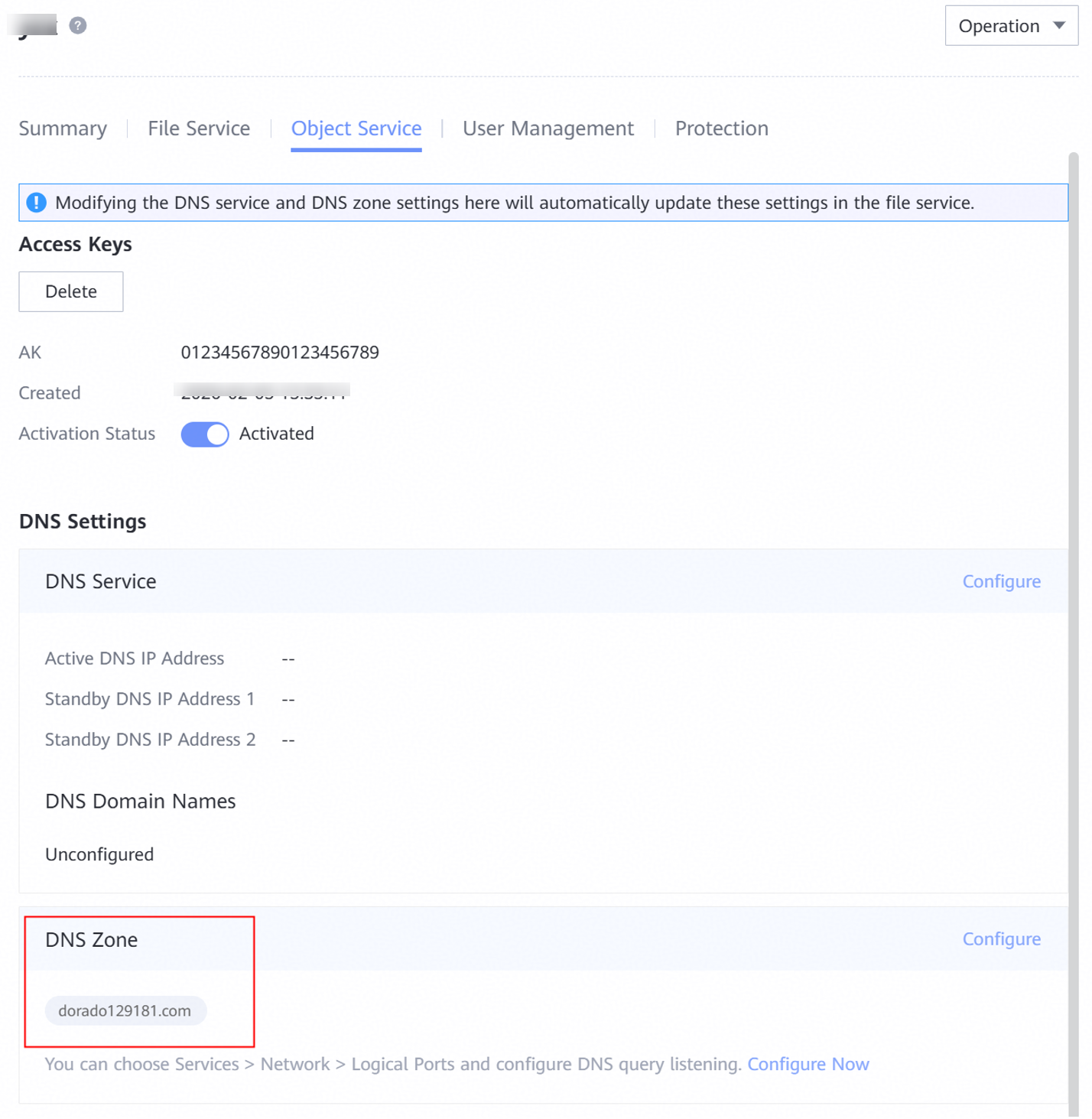

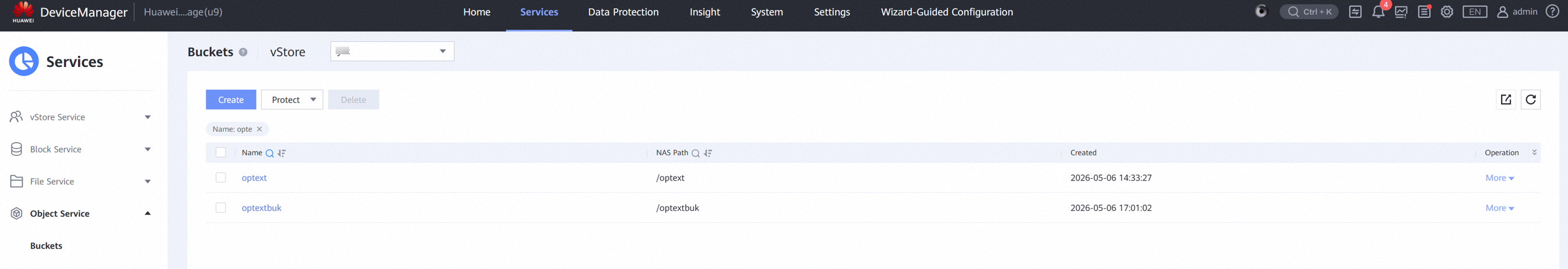

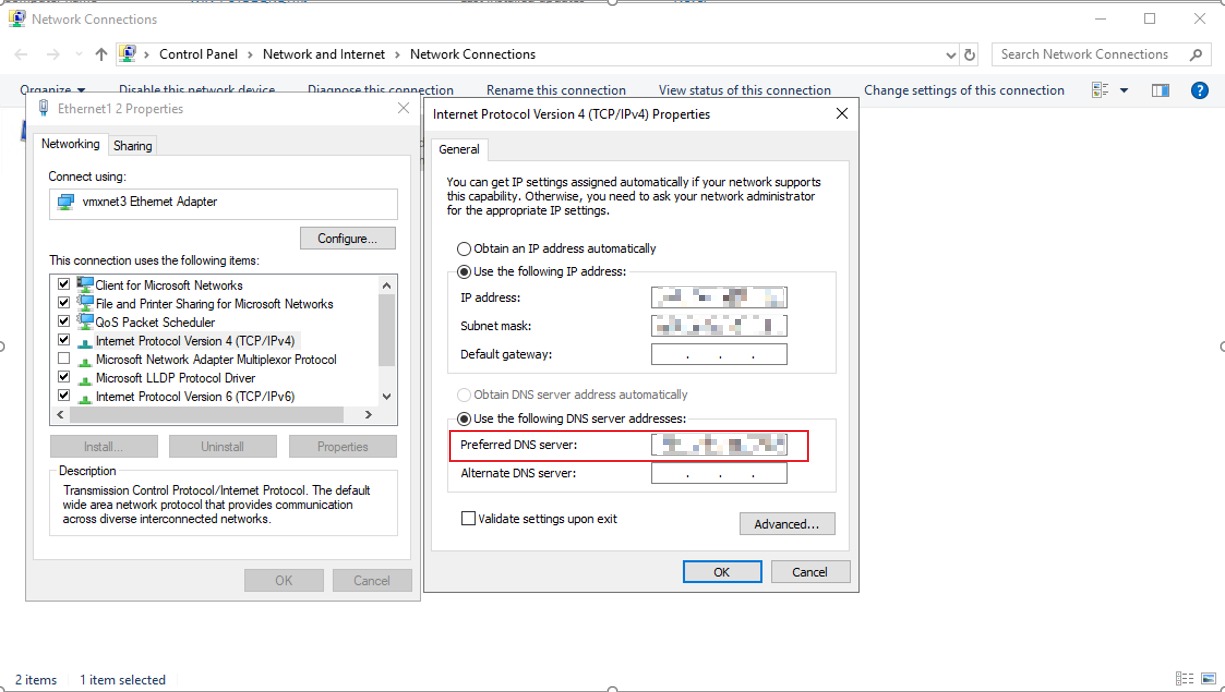

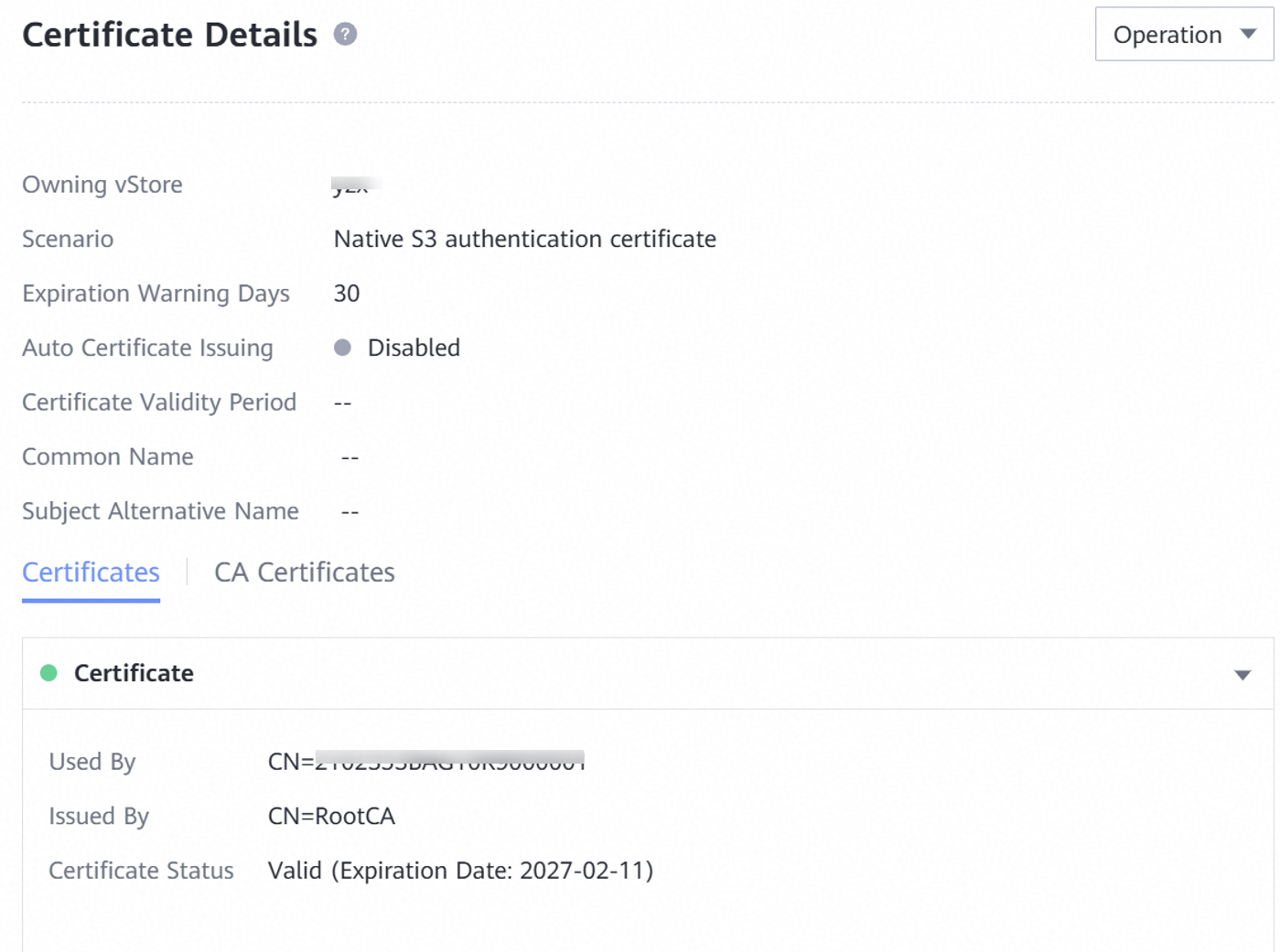

2. The S3 services of the storage have been configured successfully, including accounts, bucket, access certificates, security certificates, SSL certificates and service networks.

Test Procedure

1. On the administration client, add the archive server.

2. Add the storage to the archive server through the S3 protocol.

3. Test the connection between the storage and the archive server.

4. Add the connection for the storage device.

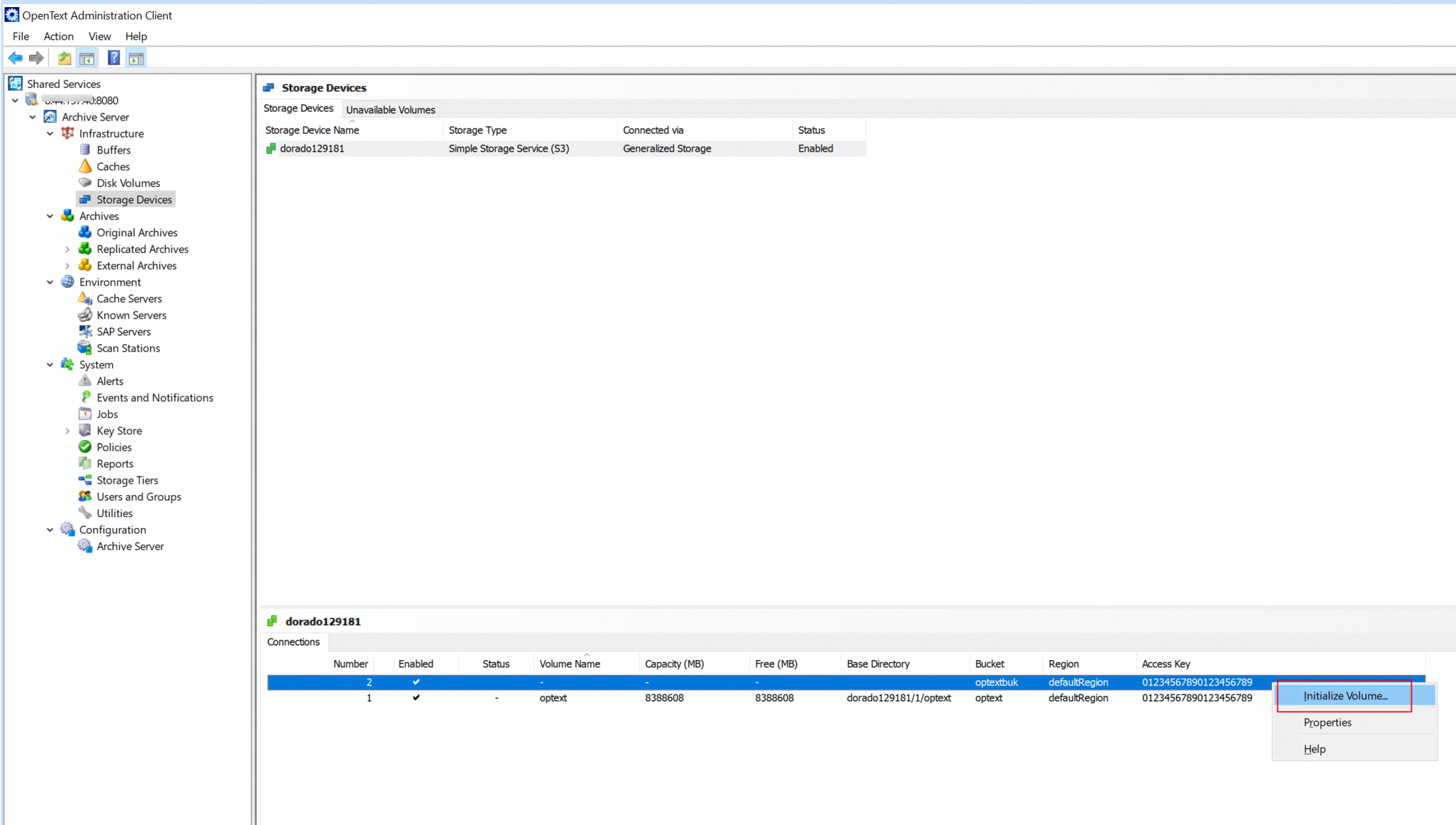

5. Initialize volume for the connection.

Expected Result

1. In step 2, succeed to add the storage to the archive server.

2. In step 3, the connection test succeeded.

3. In step 4, succeed to add the connection.

4. In step 5, succeed to initialize volume.

Test Results

1. On the administration client, add the archive server.

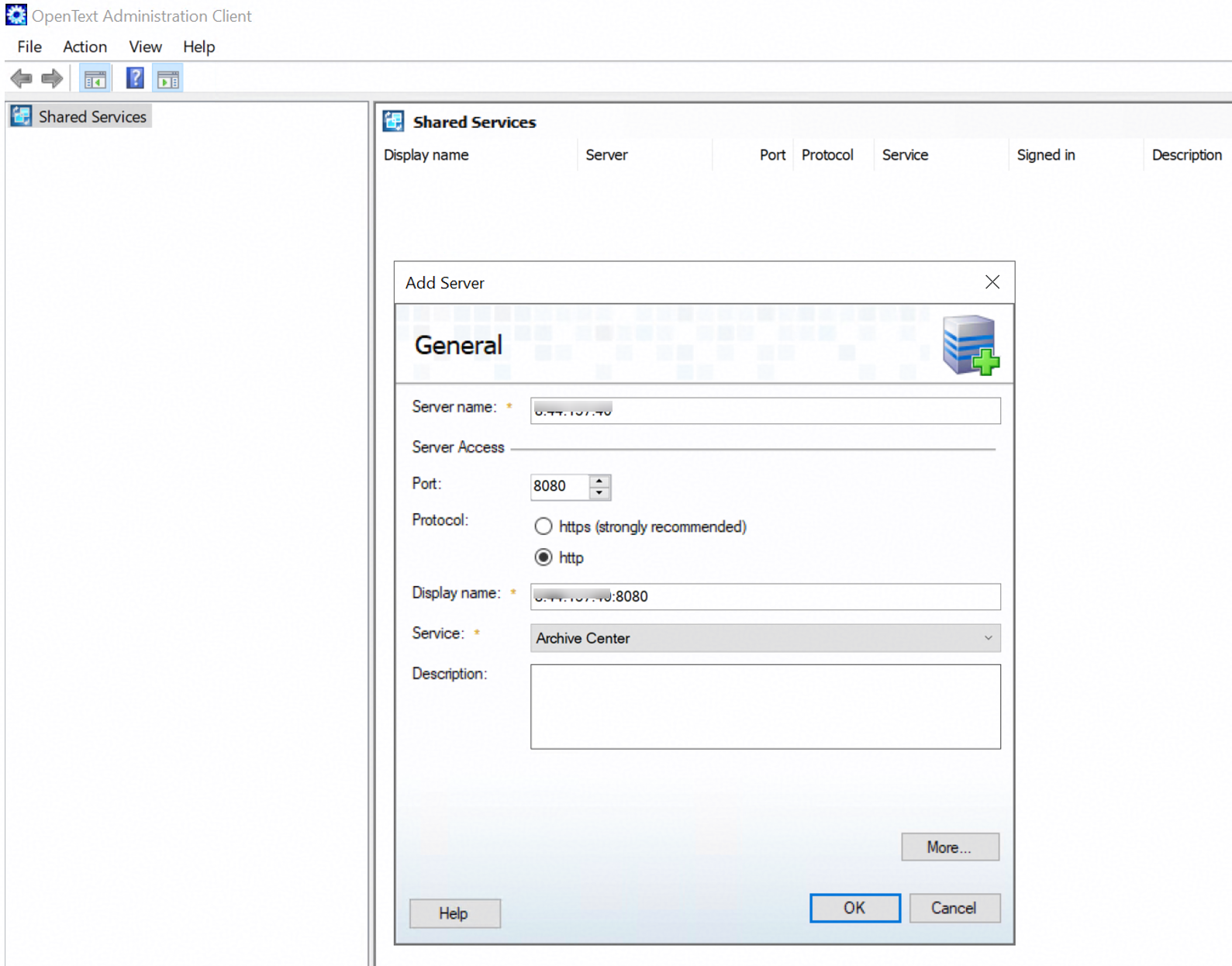

1.1 Input the IP address of the archive server in the Server name field. And input the Port and Display name. Then click OK.

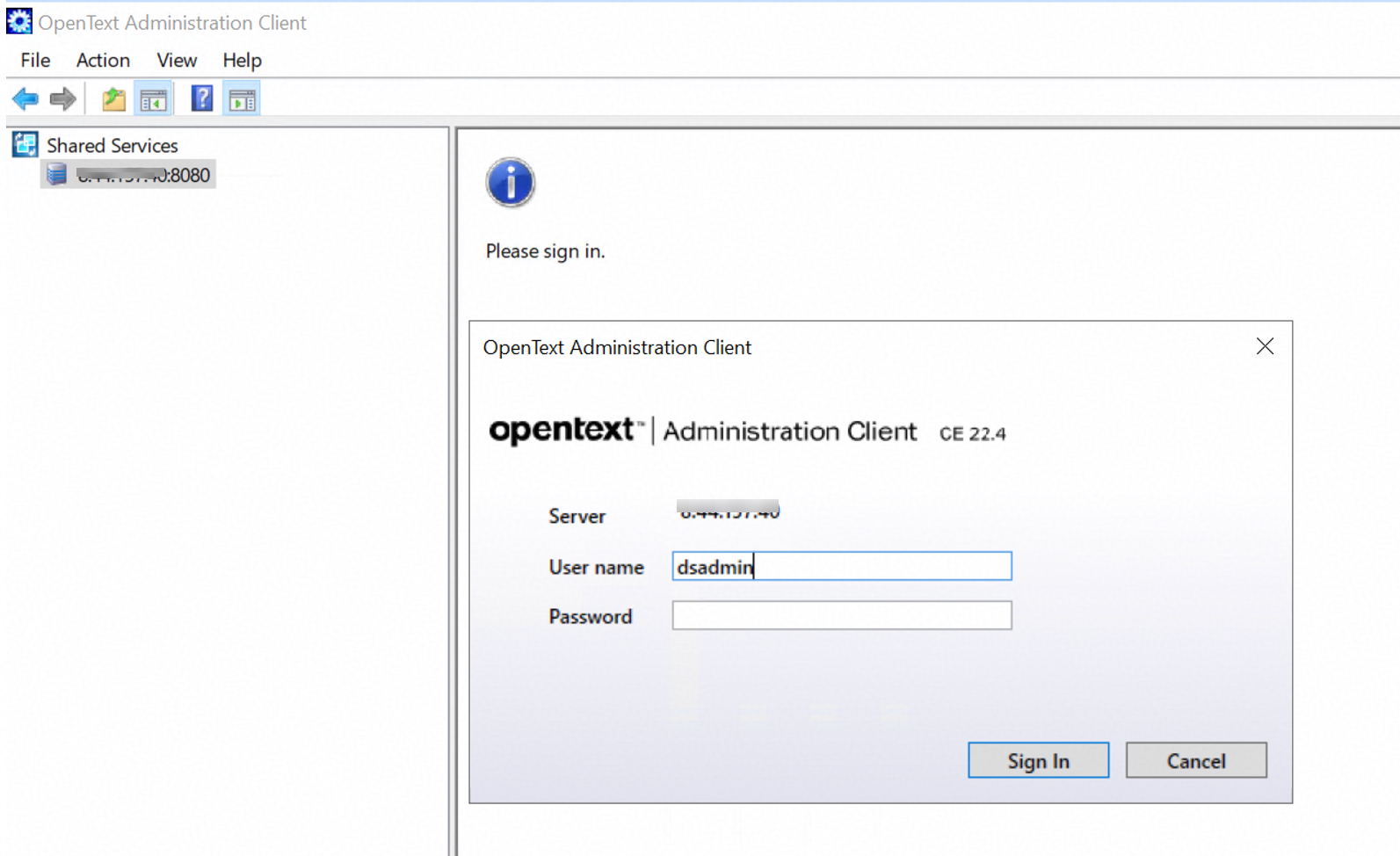

1.2 Sign in to the archive server created in the previous step.

2. Add the storage to the archive server through the S3 protocol.

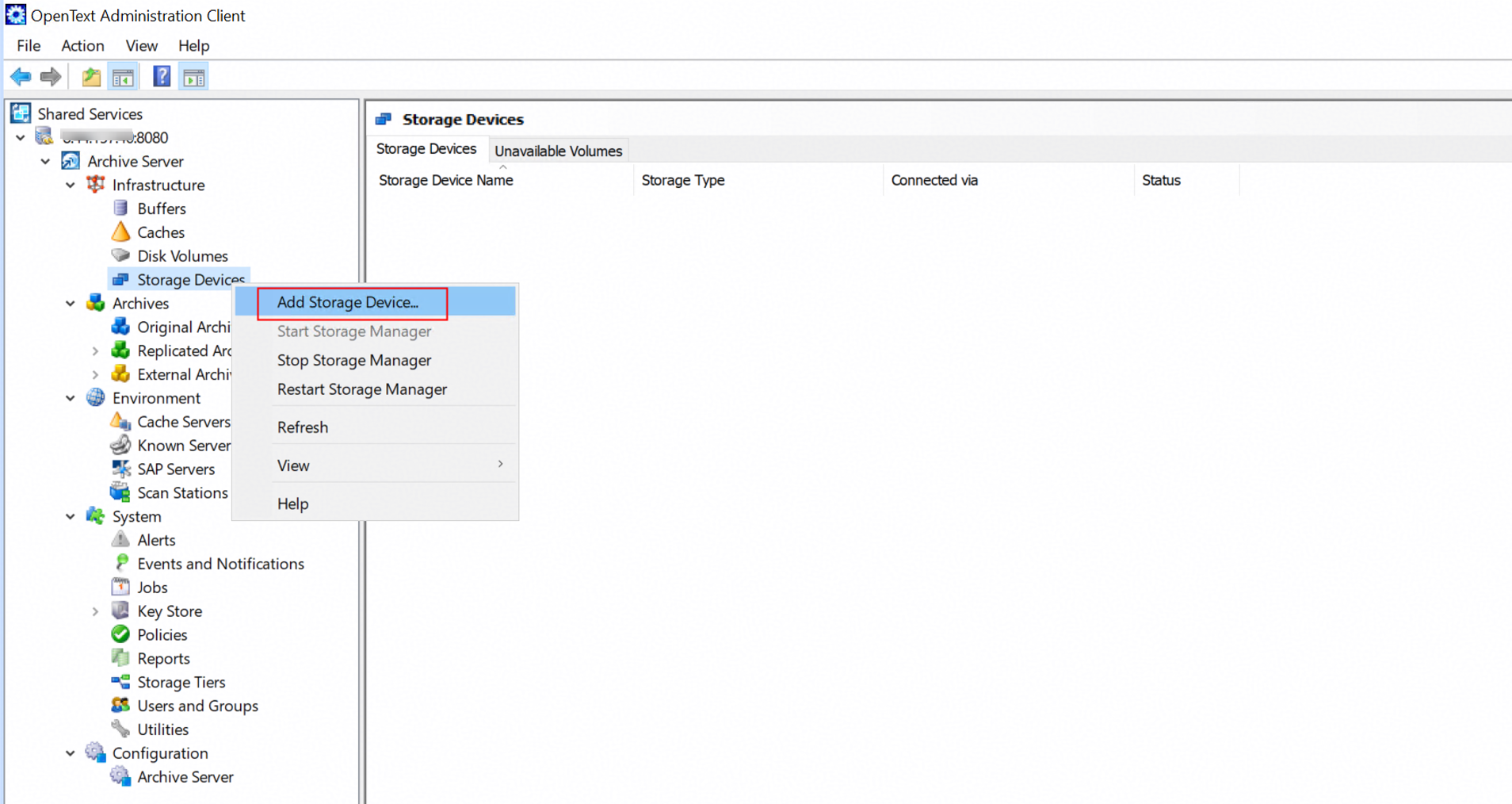

2.1 Right-click Storage Devices and choose Add Storage Device.

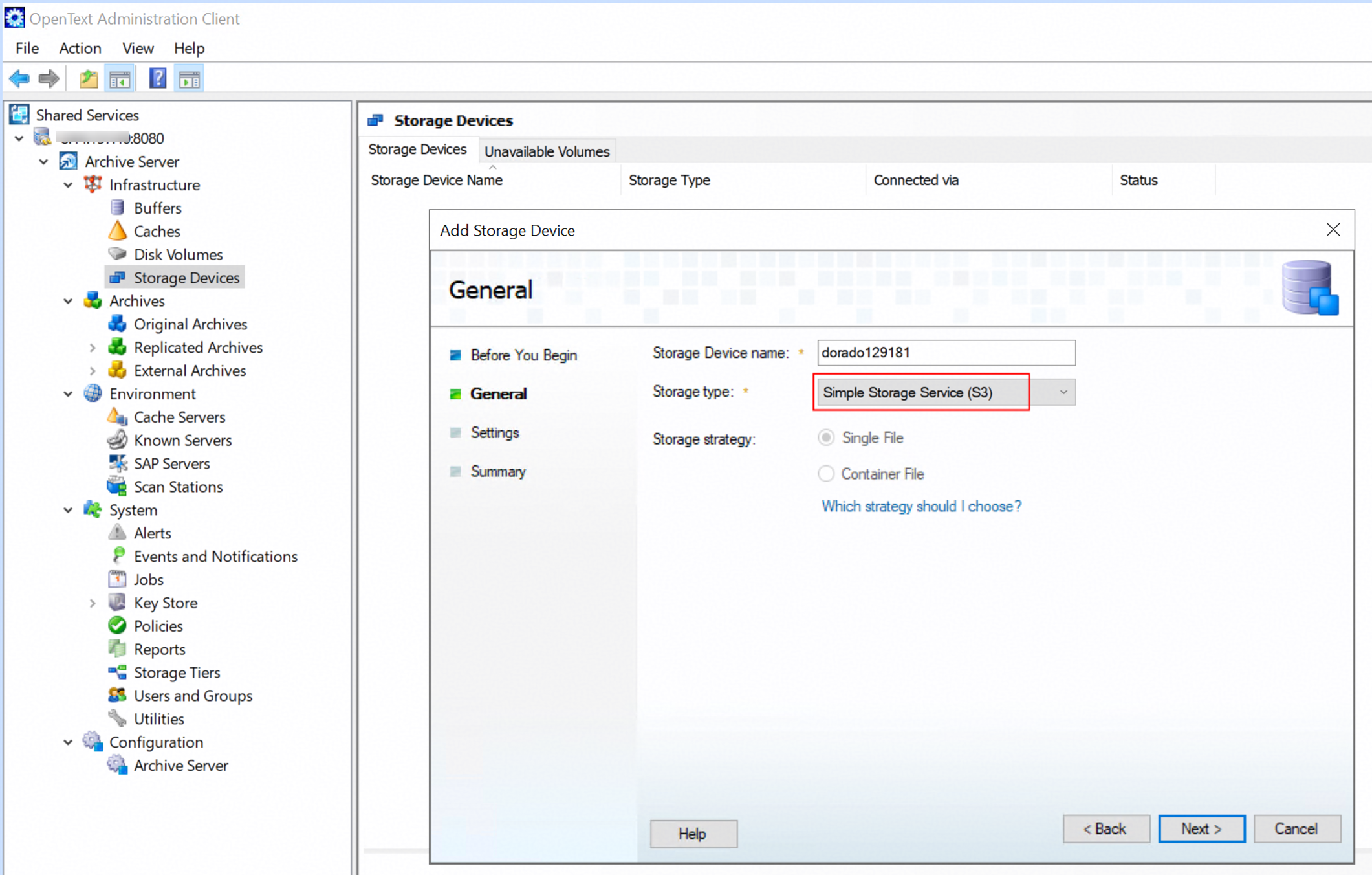

2.2 Input the Storage Device name, and select Simple Storage Service(S3) as the Storage type.

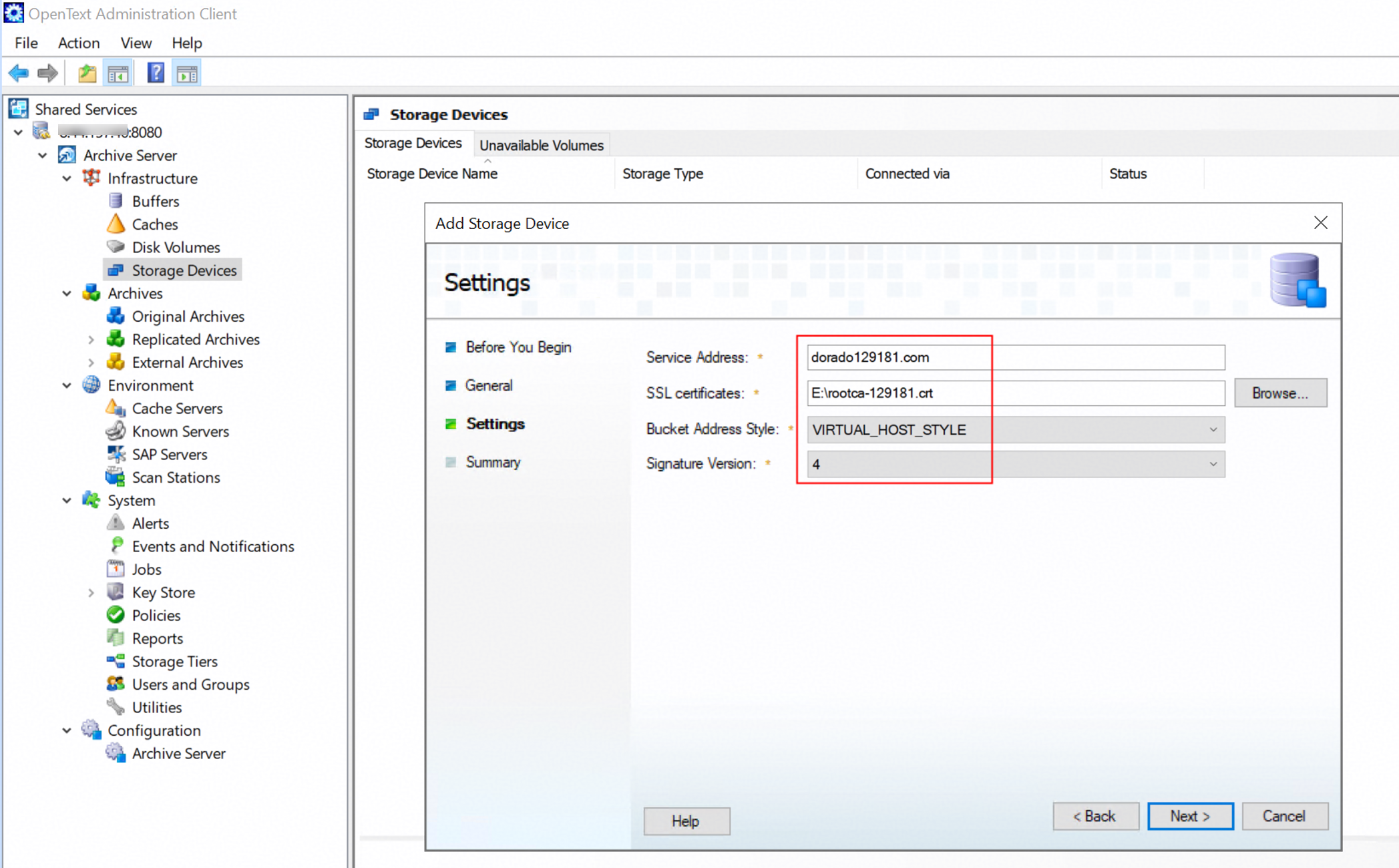

2.3 Input the domain name of the storage in the Service Address field, and choose the RootCA certificate exported from the storage as the SSL certificates. Select the VIRTUAL_HOST_STYLE in the Bucket Address Style field. Configure the Signature Version to 4

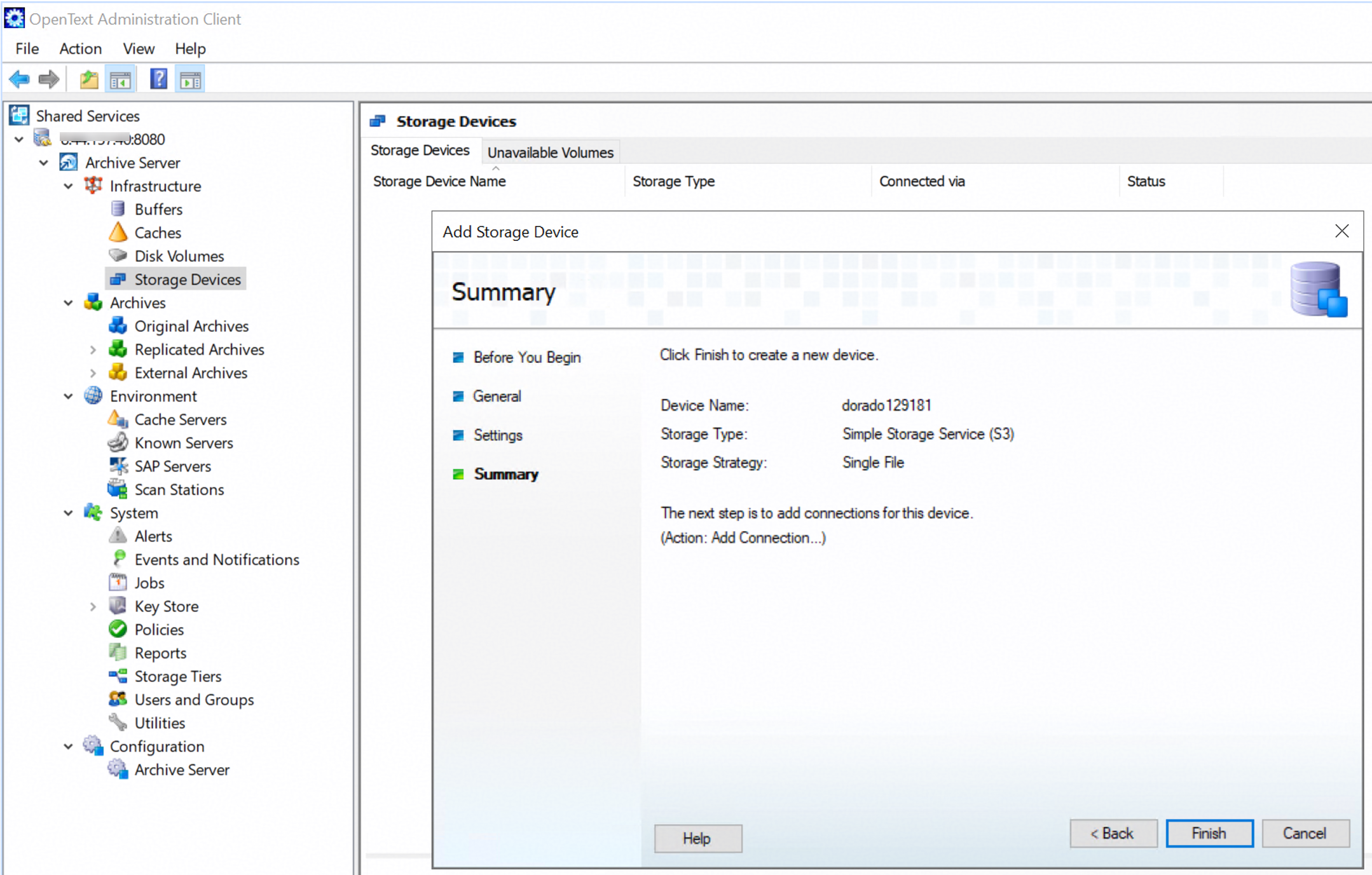

2.4 Click Finish to complete Add Storage Device.

3. Test the connection between the storage and the archive server.

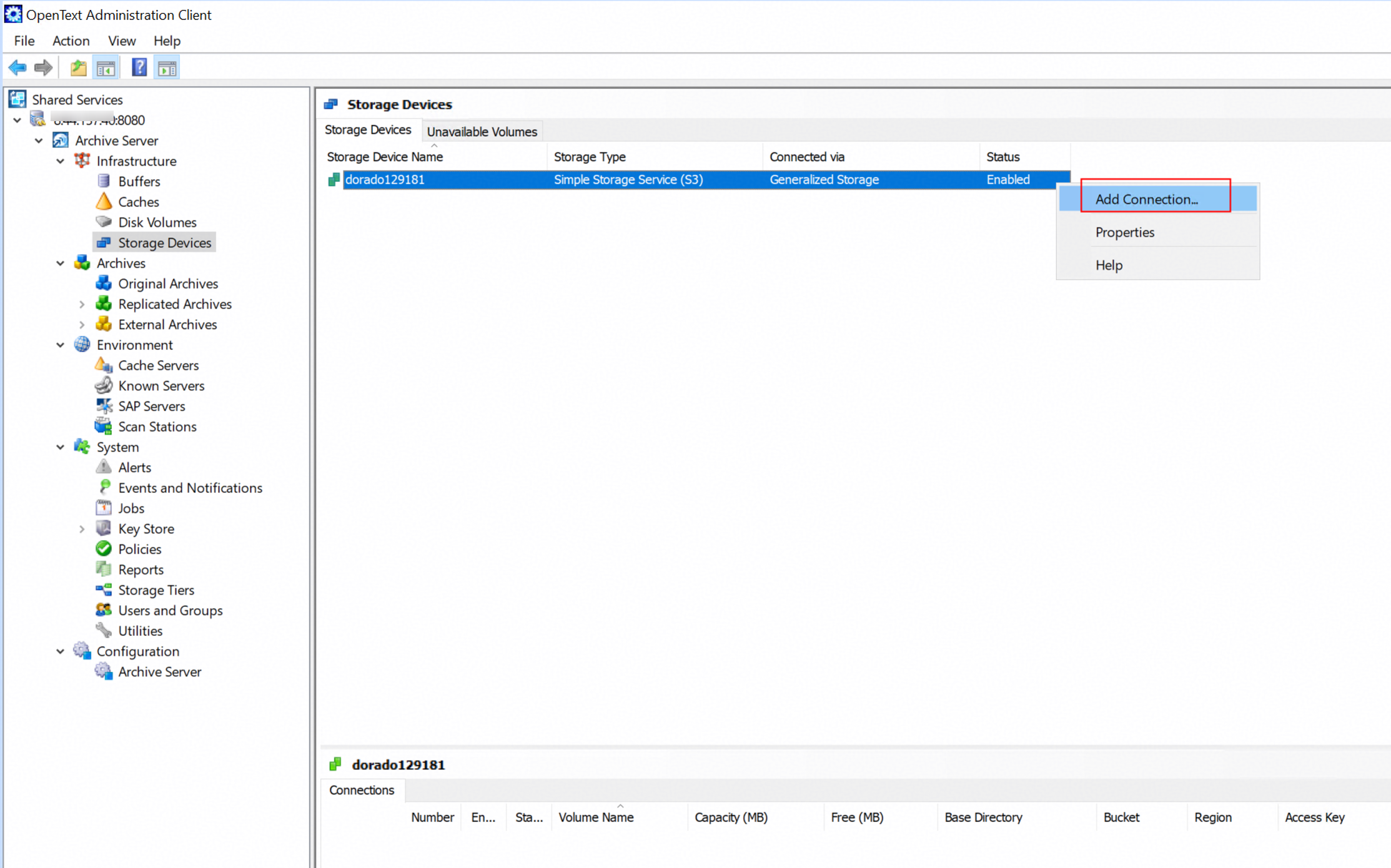

3.1 Right-click the storage device created in the previous step, and choose Add connection.

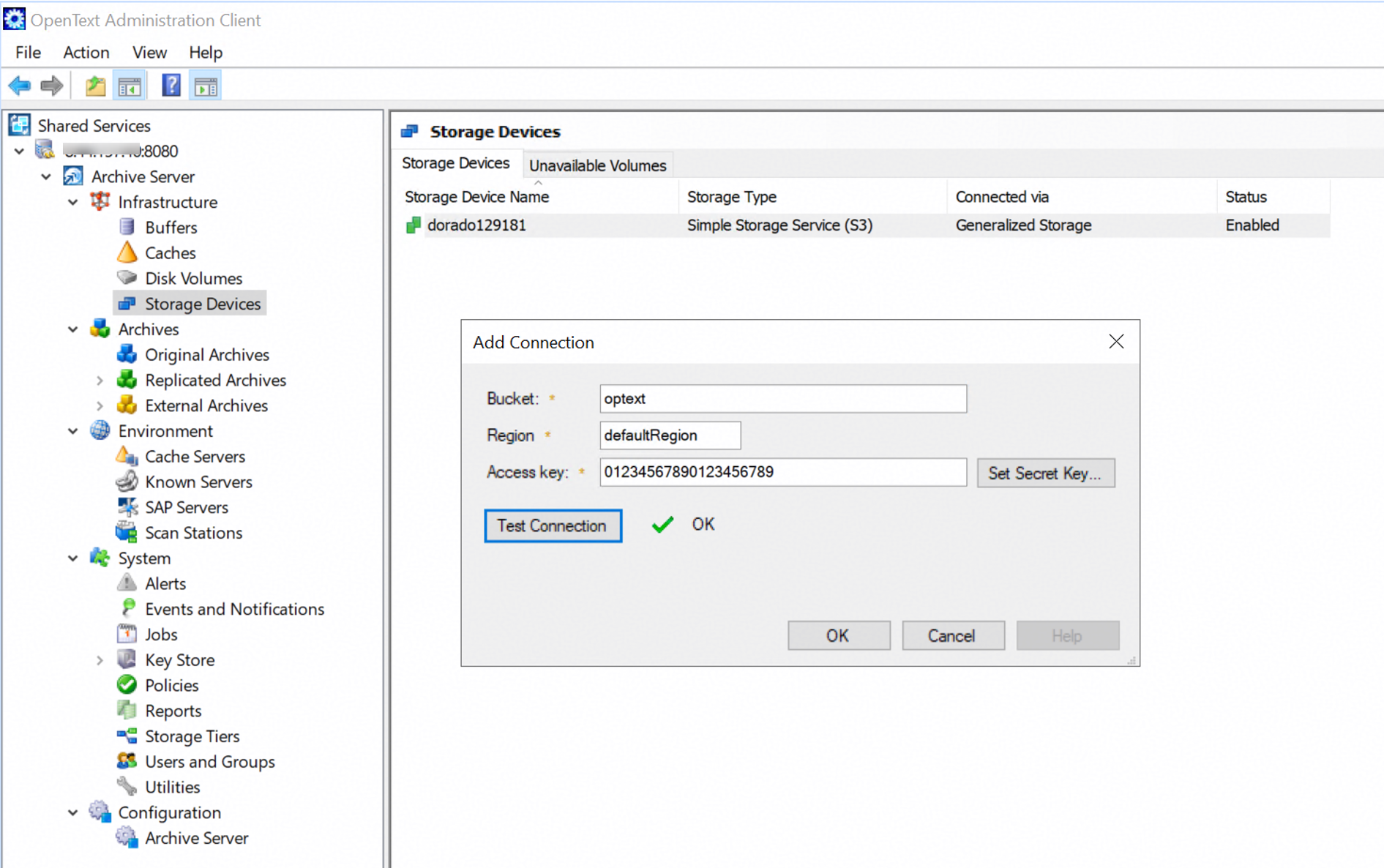

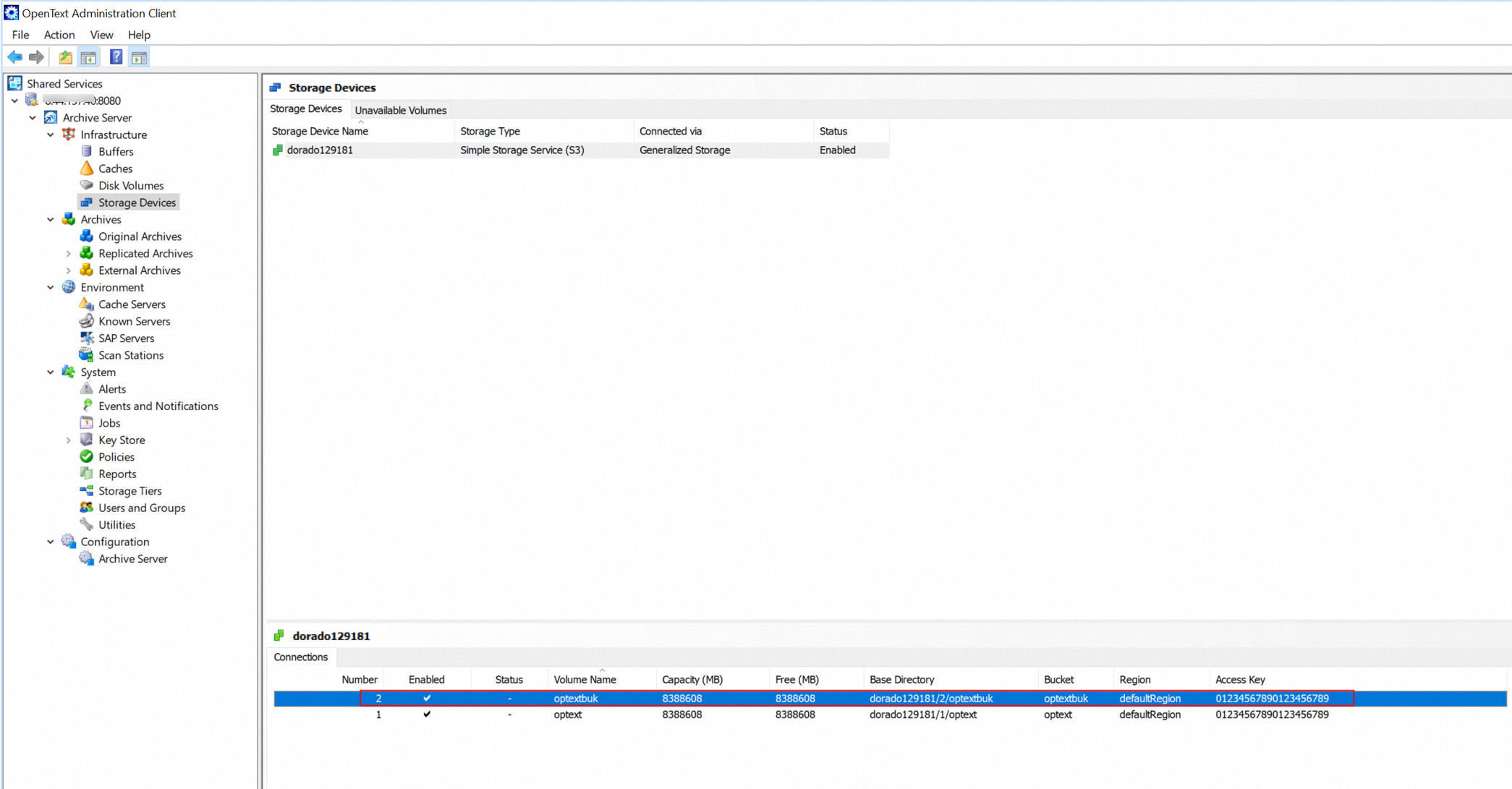

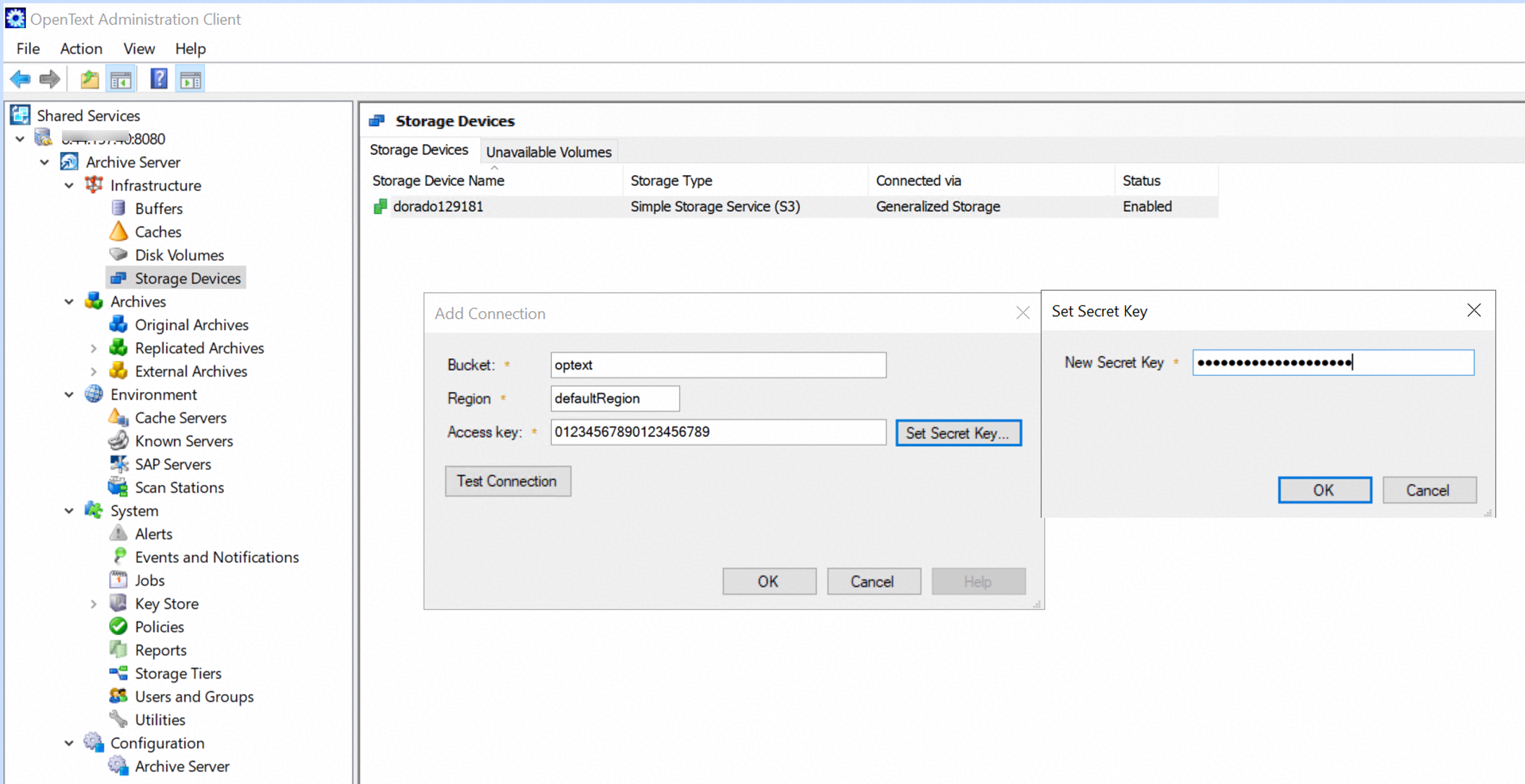

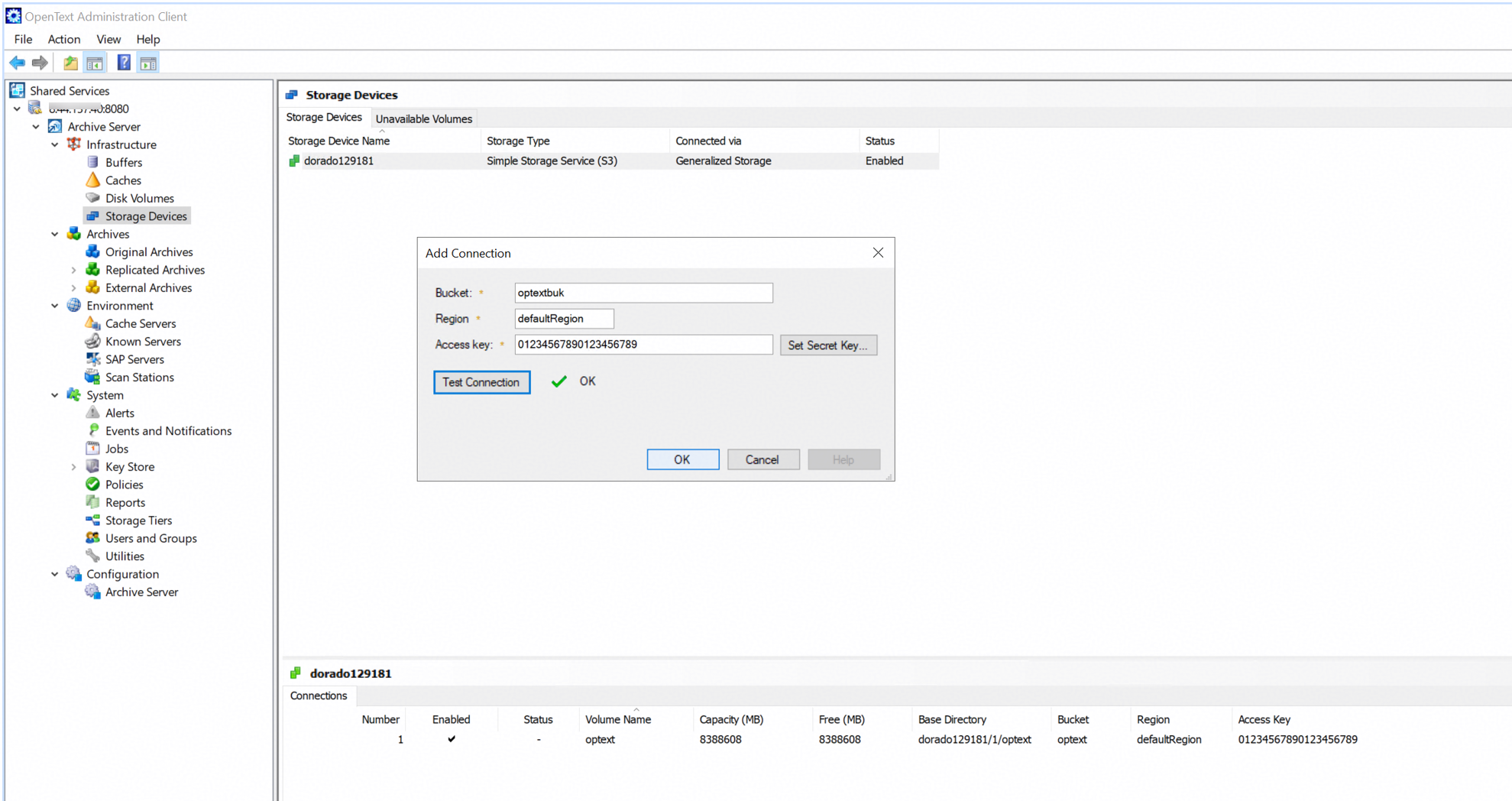

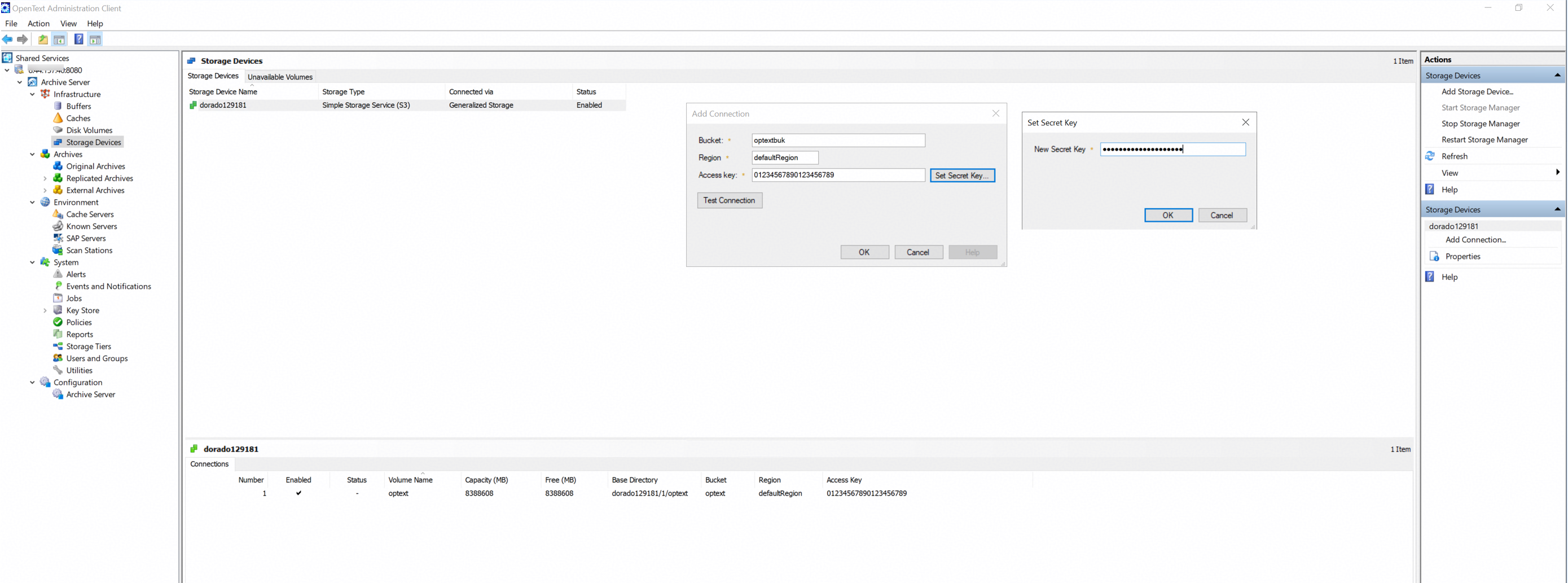

3.2 Input a name in the Bucket field. Select defaultRegion in the Region field. Input the Access key and Secret key of the storage.

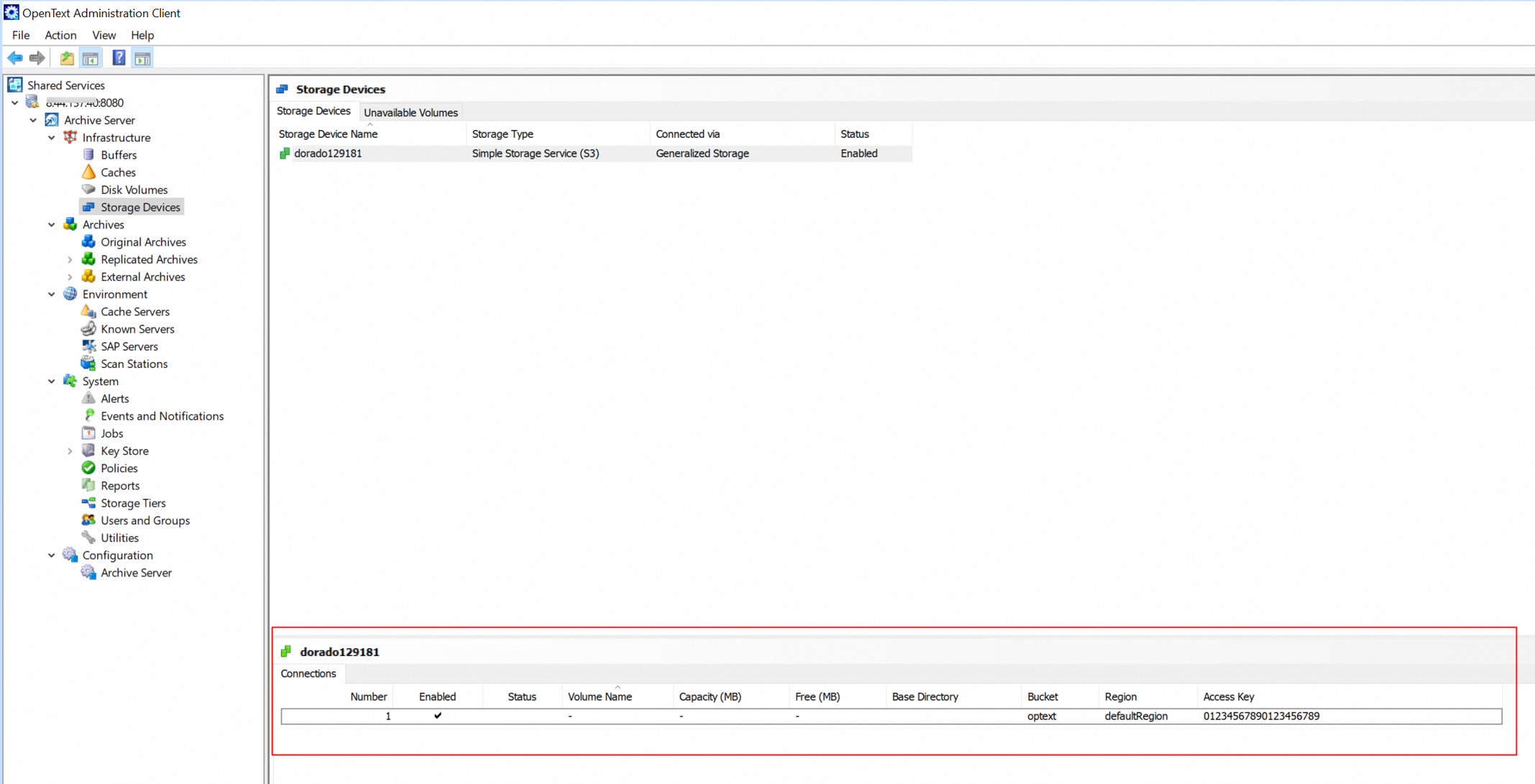

3.3 Click Test Connection and the result is OK.

4.Add the connection for the storage device.

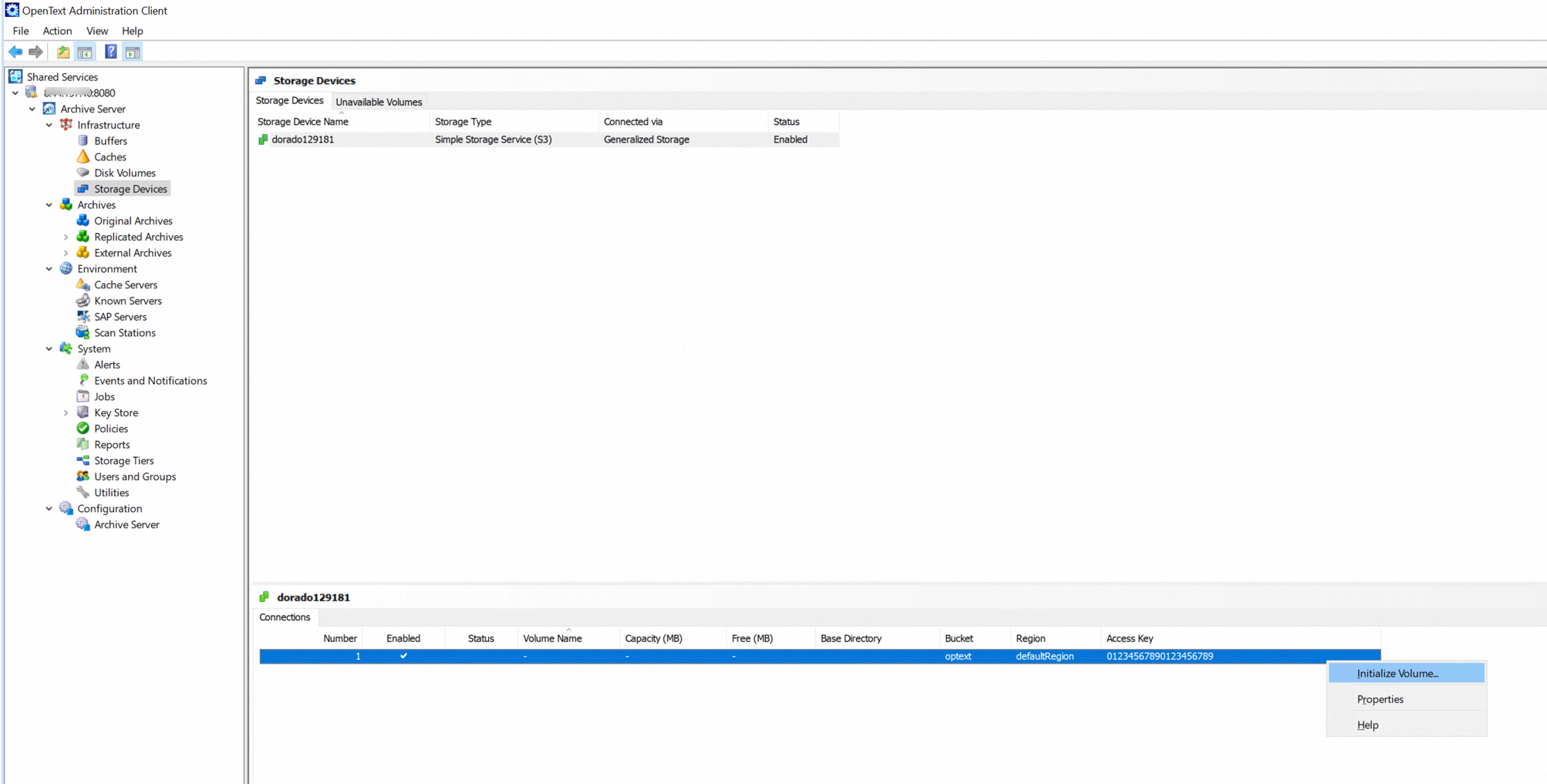

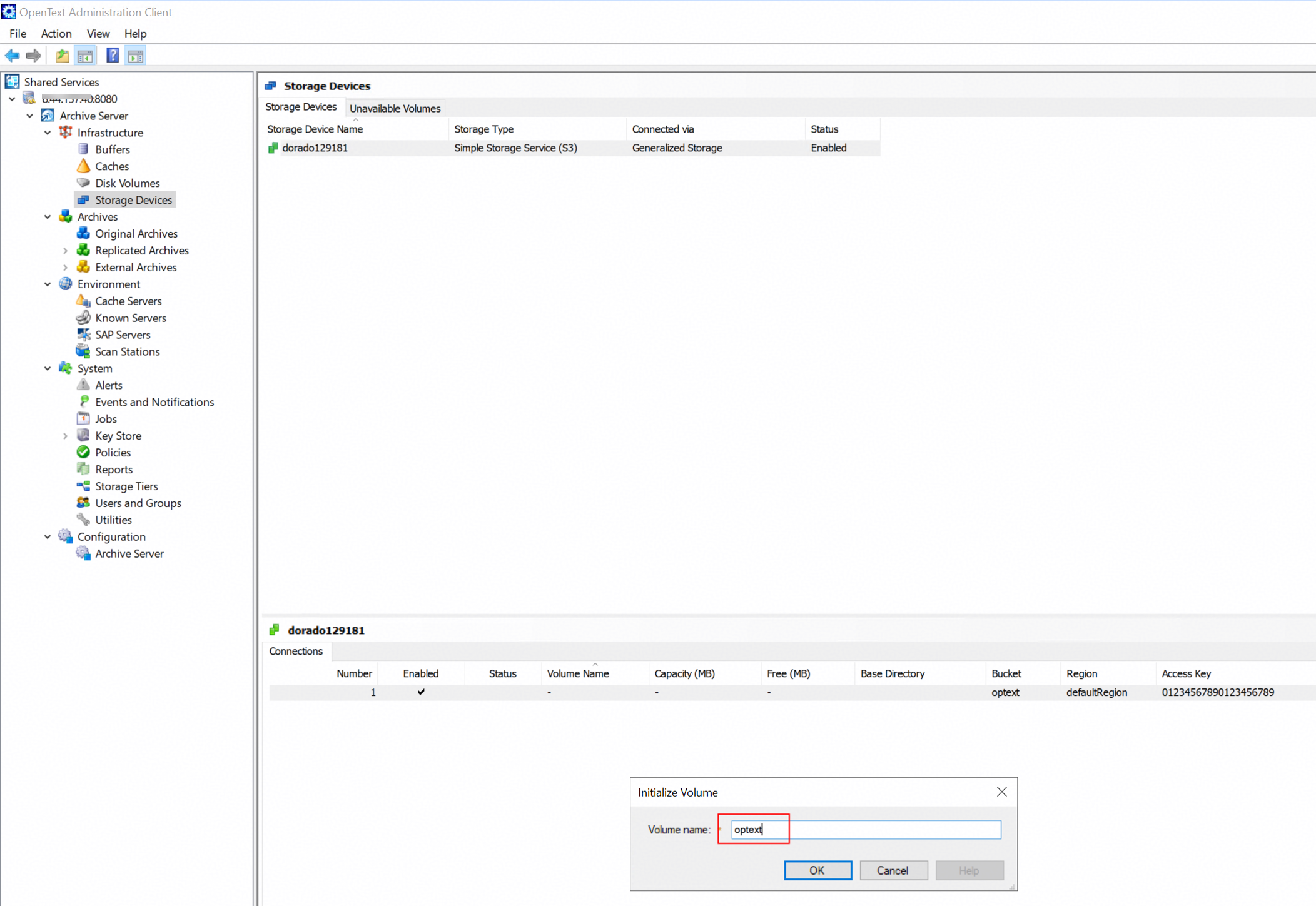

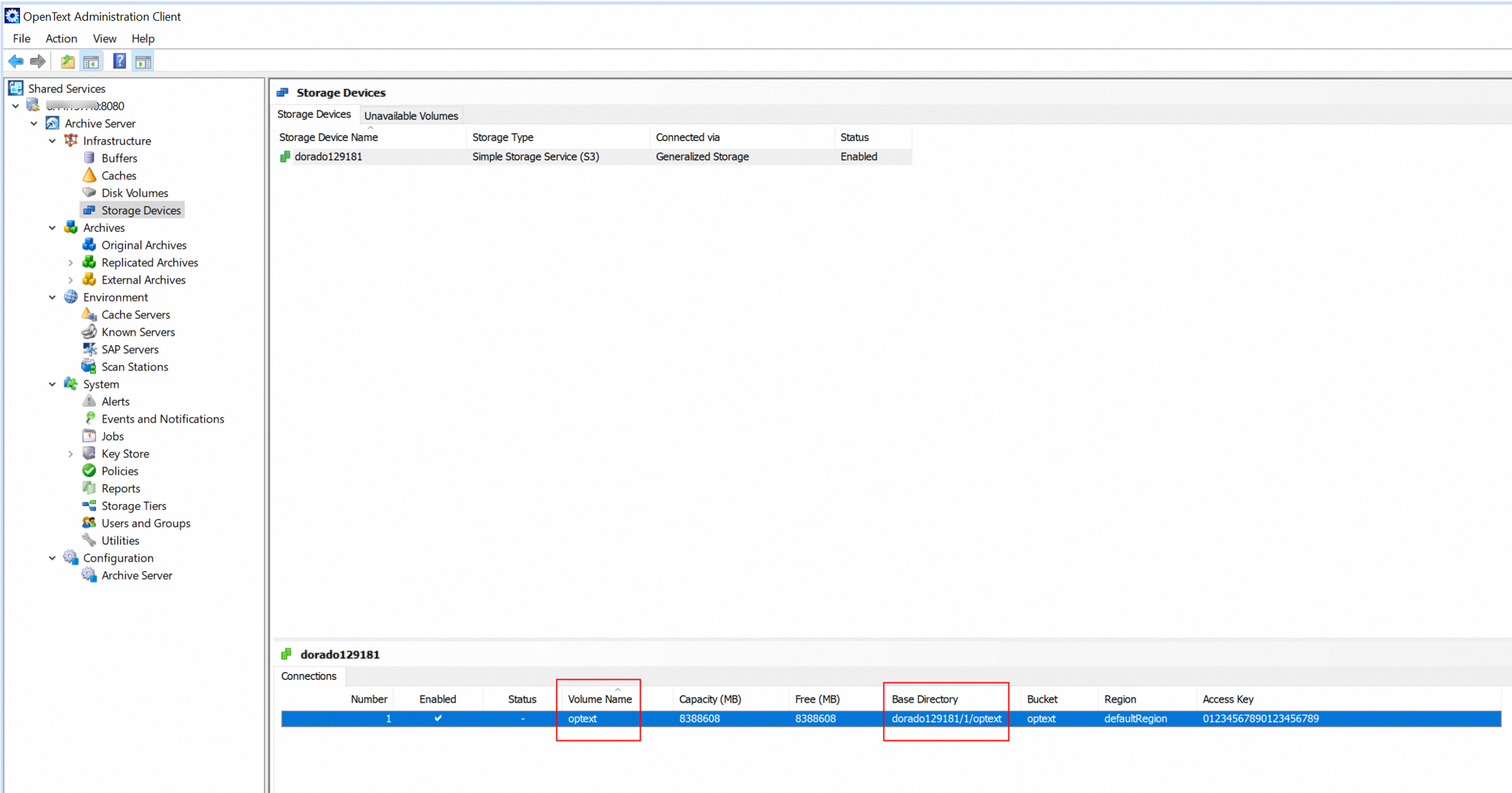

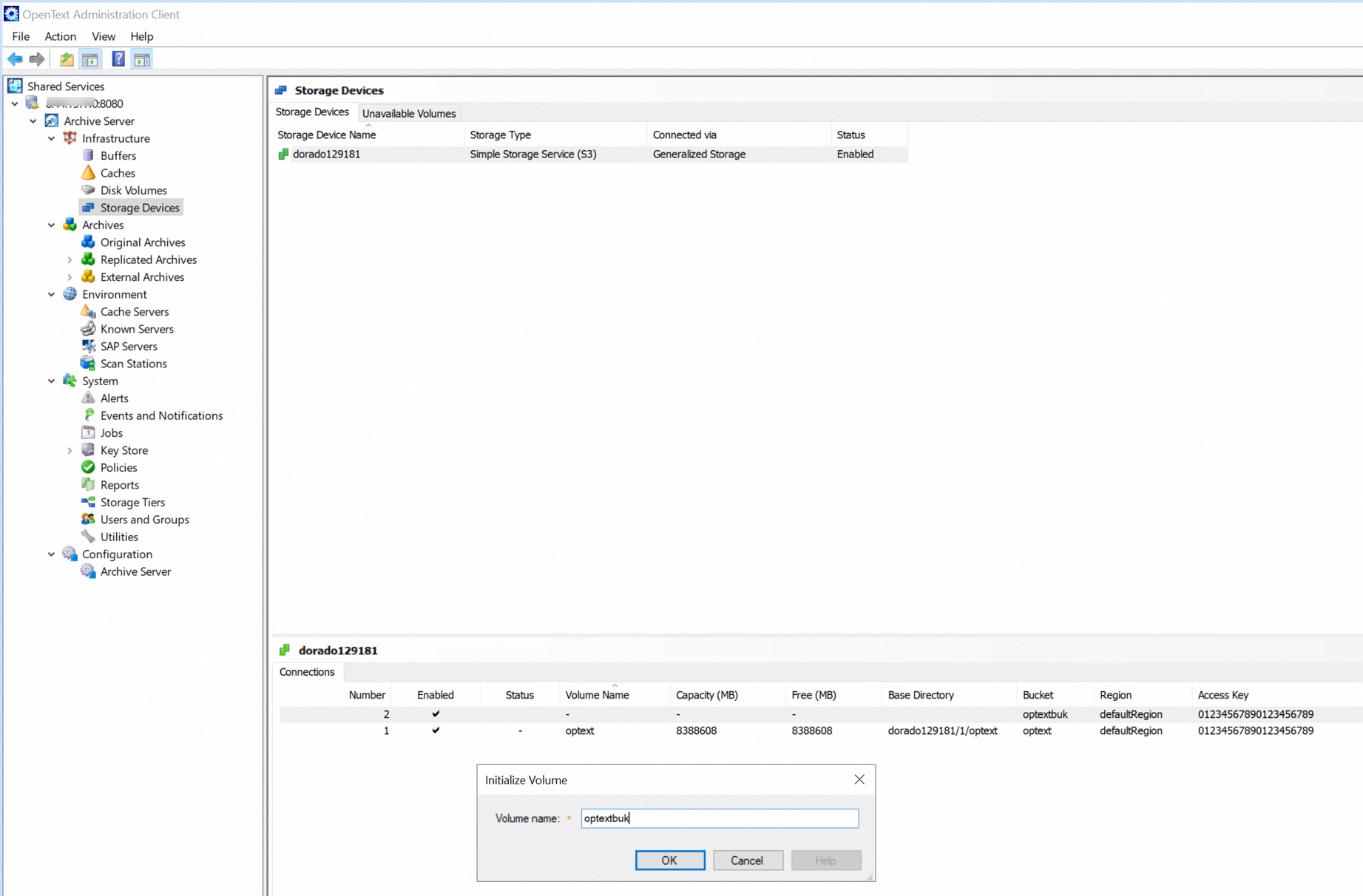

5. Initialize volume for the connection.

Test Conclusion

Passed

Test Purpose

To verify that the storage can be added to the archive server as S3 target storage using Path Style.

Test Networking

Huawei OceanStor Flash Storage and Archive Server Test Networking

Prerequisites

1. The administration client, archive server, and SQL database have been deployed and configured successfully.

2. The S3 services of the storage have been configured successfully, including accounts, bucket, access certificates, security certificates, SSL certificates and service networks.

3. The storage has been added to the archive server as S3 target storage using Virtual Style in case 2.1.

Test Procedure

1. Modify the setup file of the storage device generated in case 2.1 and set the S3_BUCKET_ADDR parameter to PATH_STYLE.

2. Test the connection between the storage and the archive server.

3. Add the connection for the storage device.

4. Initialize volume for the connection.

Expected Result

1. In step 1, succeed to modify the storage setup file on the archive server.

2. In step 2, the connection test succeeded.

3. In step 3, succeed to add the connection.

4. In step 4, succeed to initialize volume.

Test Results

1. Modify the setup file of the storage device generated in case 2.1 and set the S3_BUCKET_ADDR parameter to PATH_STYLE.

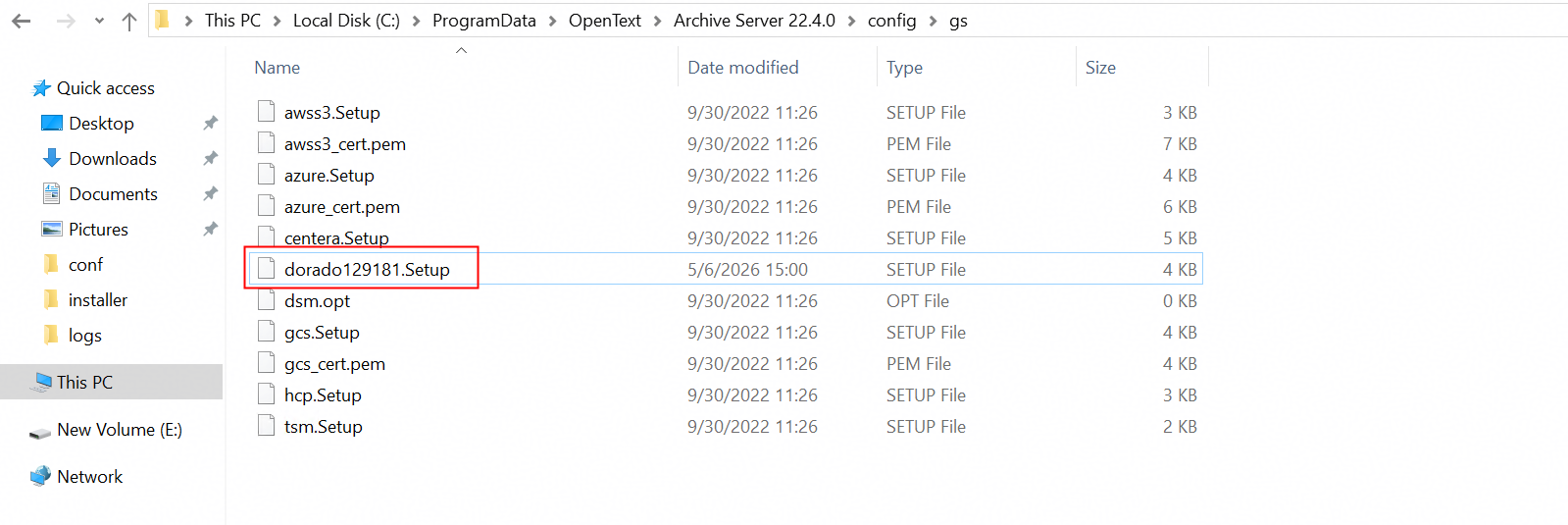

1.1 Navigate to the default OpenText directory at C:\ProgramData\OpenText\Archive Server 22.4.0\config\gs, and locate the generated OceanStor129181.setup file.

1.2 Check the OceanStor129181.setup file.

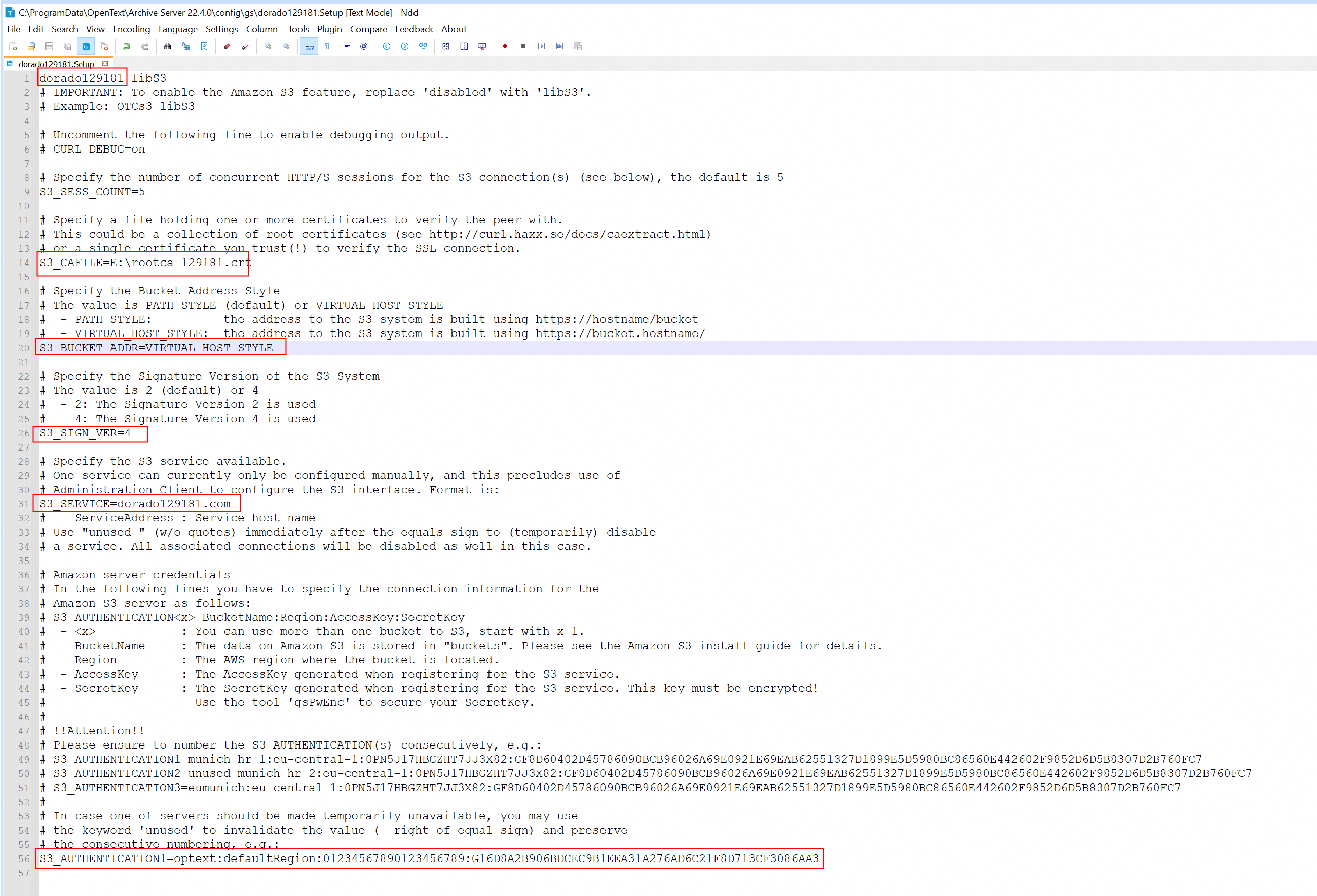

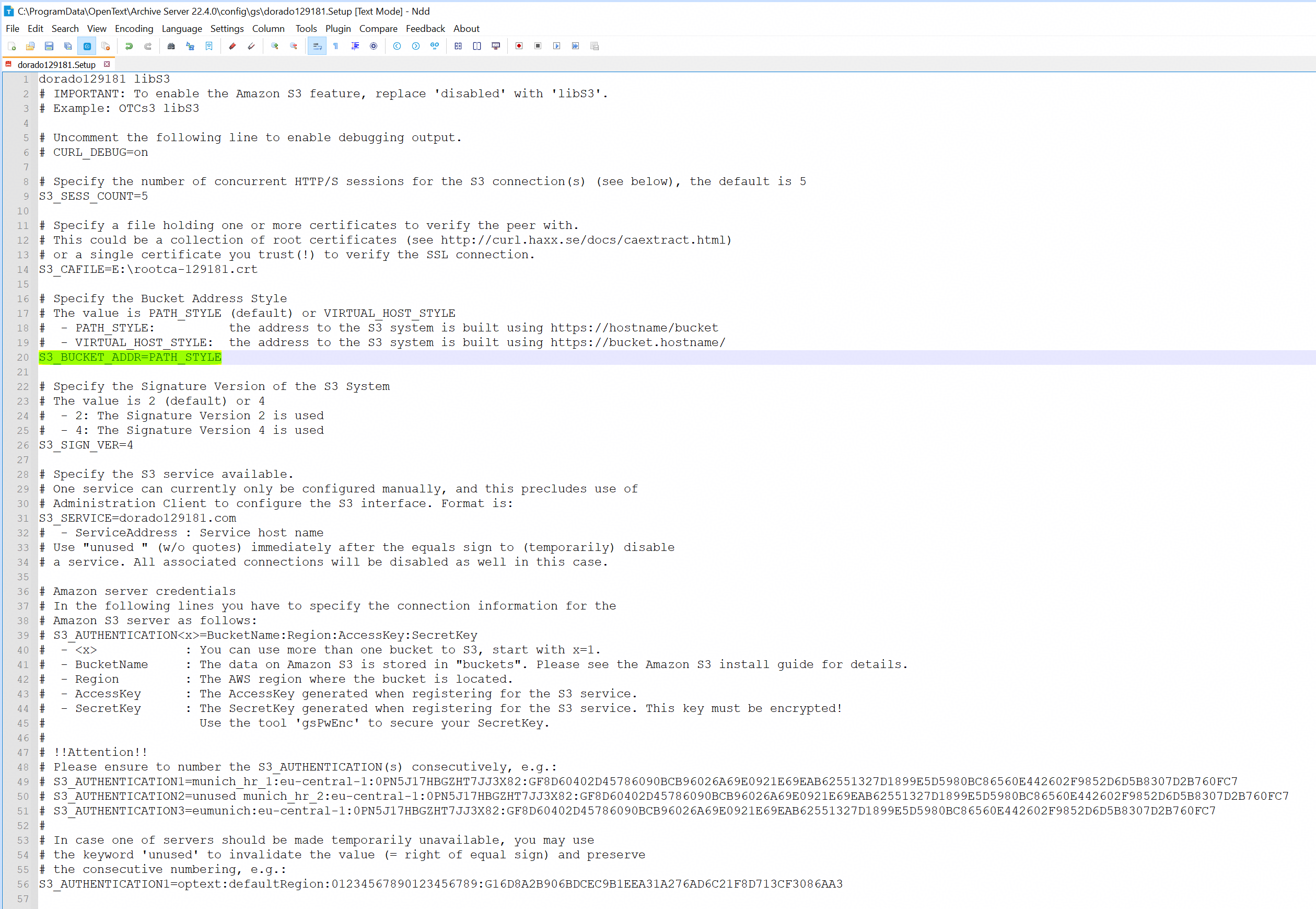

1.3 Modify the OceanStor129181.setup file and set the S3_BUCKET_ADDR parameter to PATH_STYLE. Save the changes.

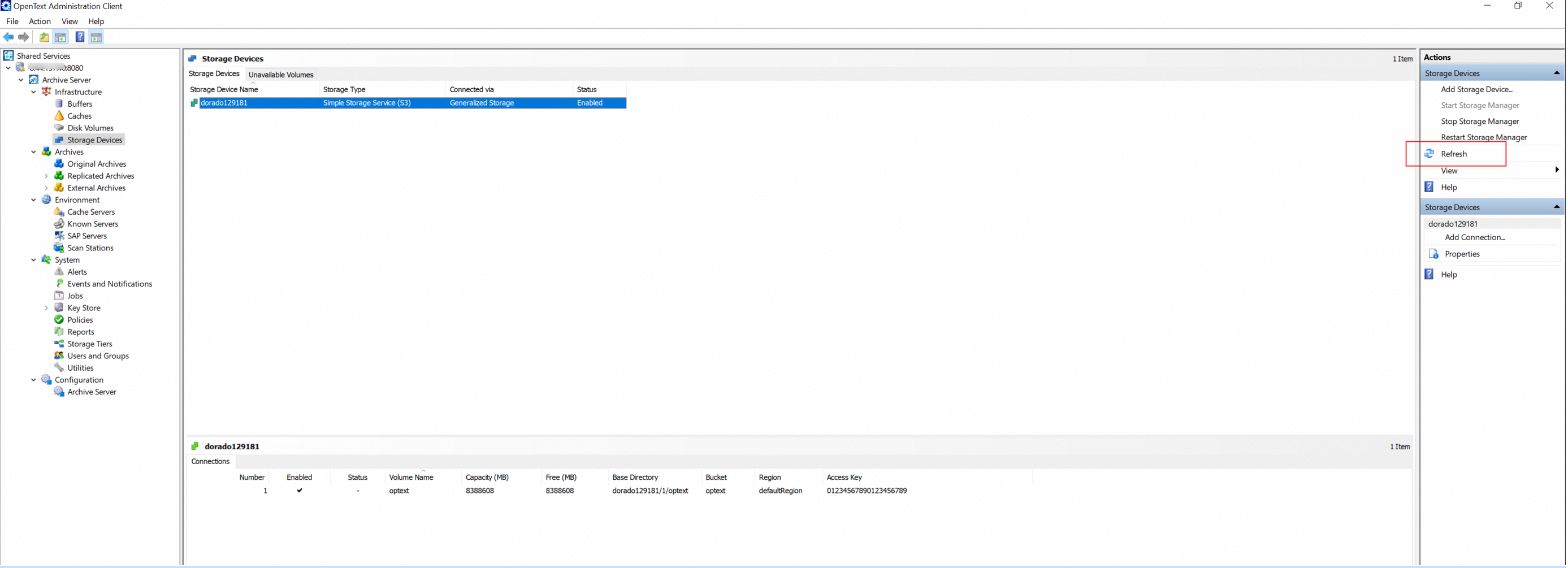

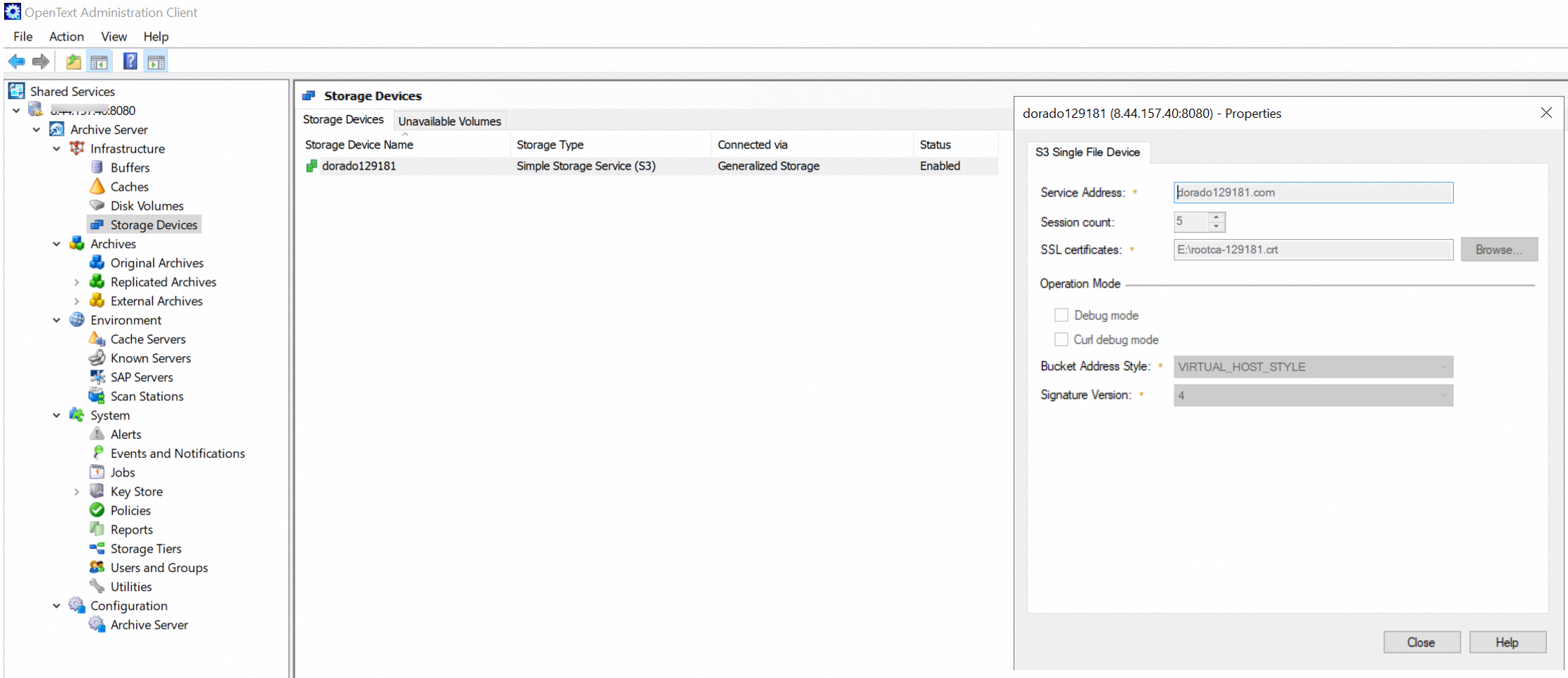

1.4 Refresh the storage device on the archive server and check the property of the storage device.

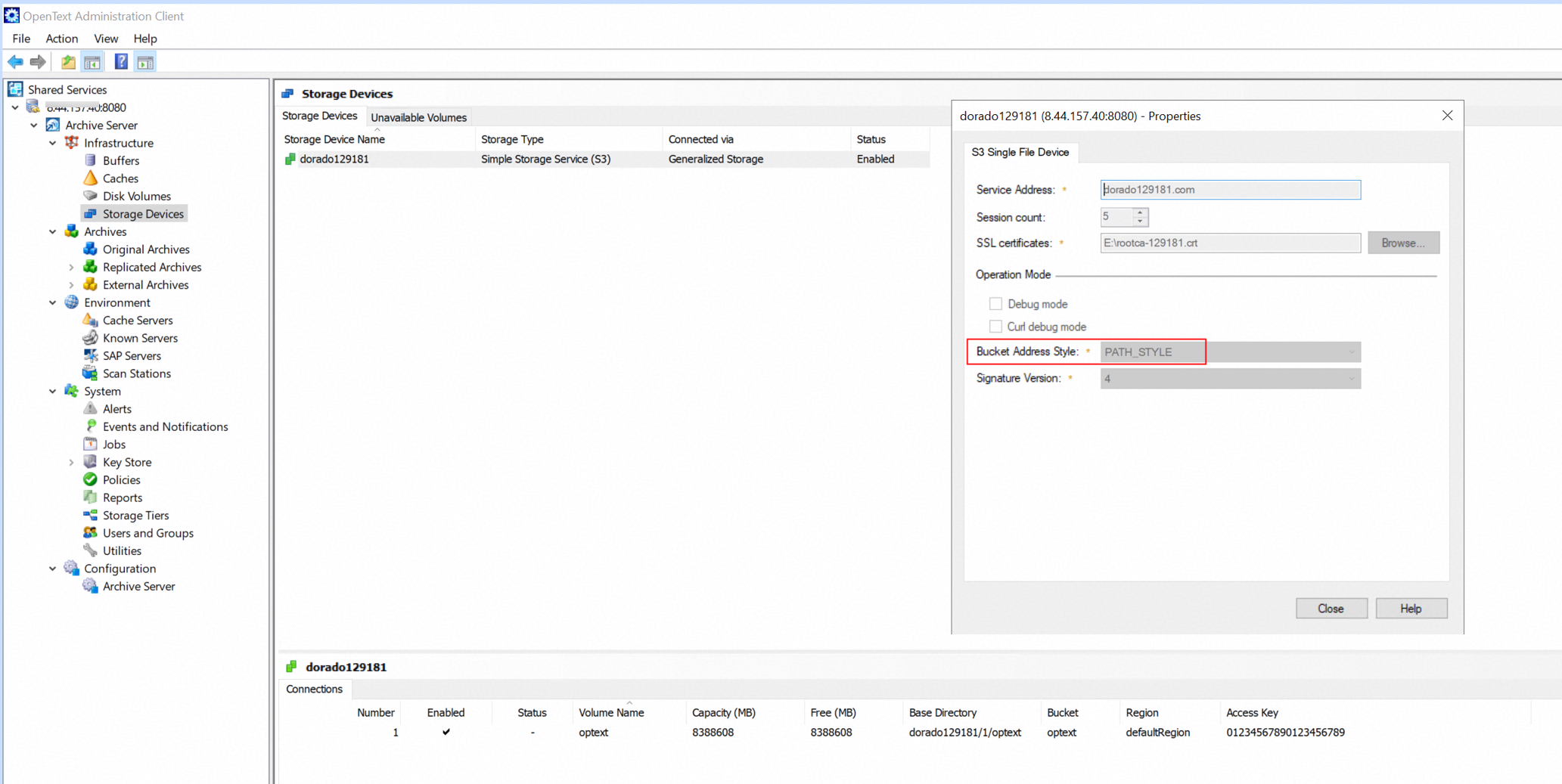

The Bucket Address Style has been changed to path style successfully.

2. Test the connection between the storage and the archive server.

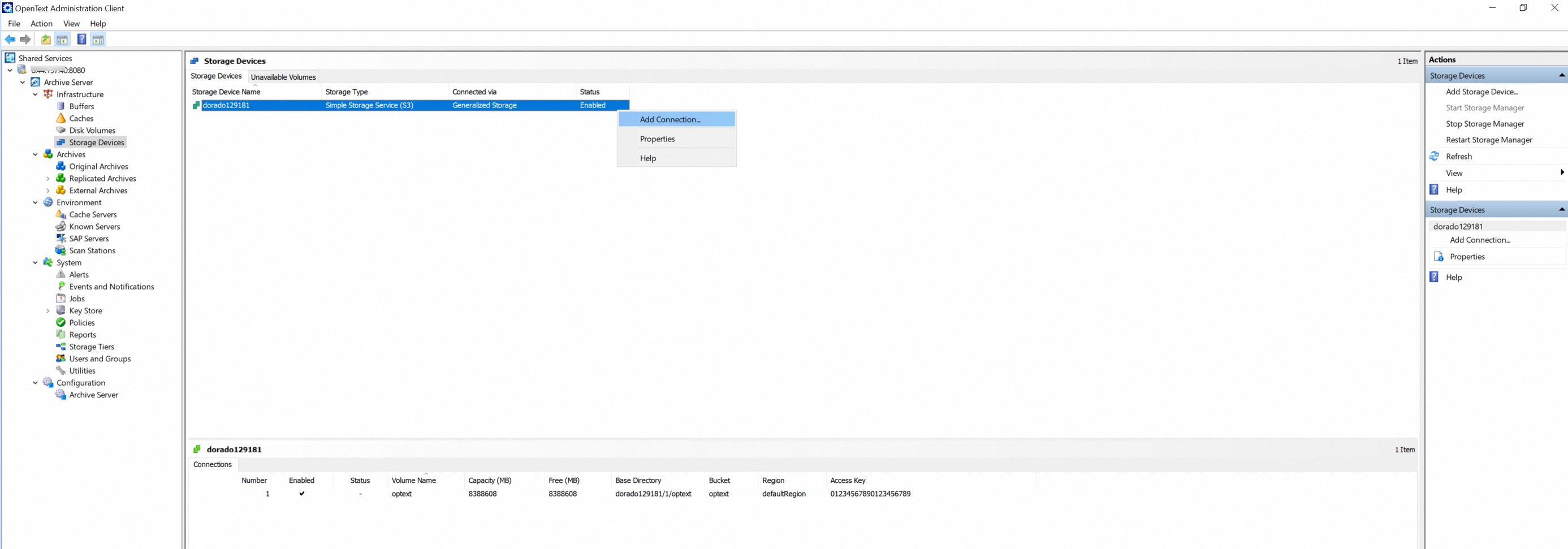

2.1 Right-click the storage device created in the previous step, and choose Add connection.

2.2 Input a name in the Bucket field. Select defaultRegion in the Region field. Input the Access key and Secret key of the storage.

2.3 Click Test Connection and the result is OK.

3. Add the connection for the storage device.

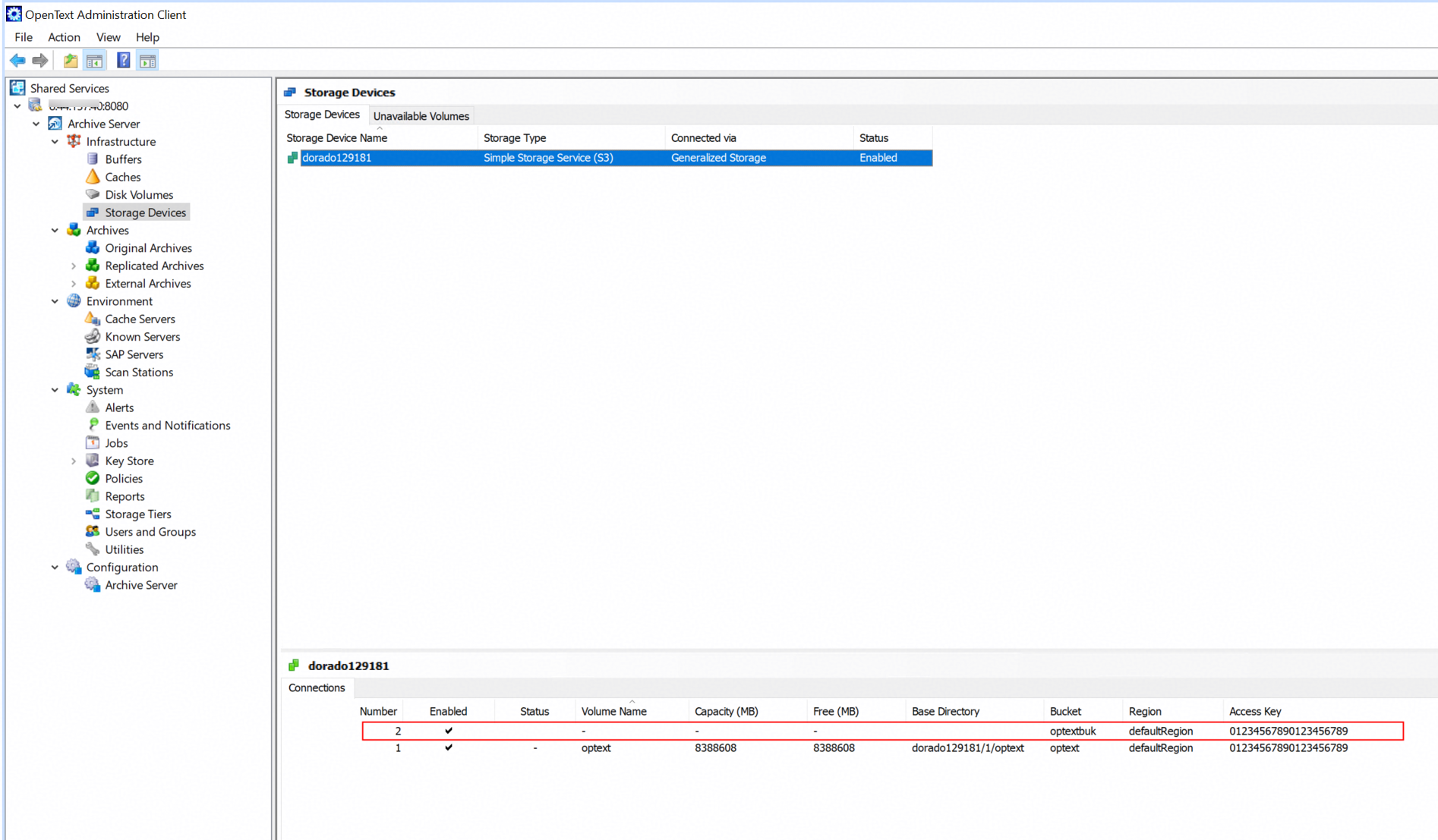

4. Initialize volume for the connection.

Test Conclusion

Passed

Test Purpose

To verify that the archive server can archive files to the storage.

Test Networking

Huawei OceanStor Flash Storage and Archive Server Test Networking

Prerequisites

1. The administration client, archive server and SQL database have been deployed configured successfully.

2. The S3 services of the storage have been configured successfully, including accounts, namespace, access certificates, security certificates, SSL certificates and service networks.

3. The storage has been added to the archive server as S3 target successfully.

Test Procedure

1. Create the Original Disk Buffer on the archive server.

2. Create the Original Archive on the archive server.

3. Prepare some files and write the files to the archive server’s local buffer. And check the files in the archive server’s local buffer.

4. Run related PoolWrite job to write the files in the archive server’s local buffer to the volumes of the storage. And check the files in the storage.

Expected Result

1. In step 1, succeed to create the Original Disk Buffer.

2. In step 2, succeed to create the Original Archive.

3. In step 3, the files are written to the archive server’s local buffer successfully.

4. In step 4, the files are written to the storage successfully.

Test Results

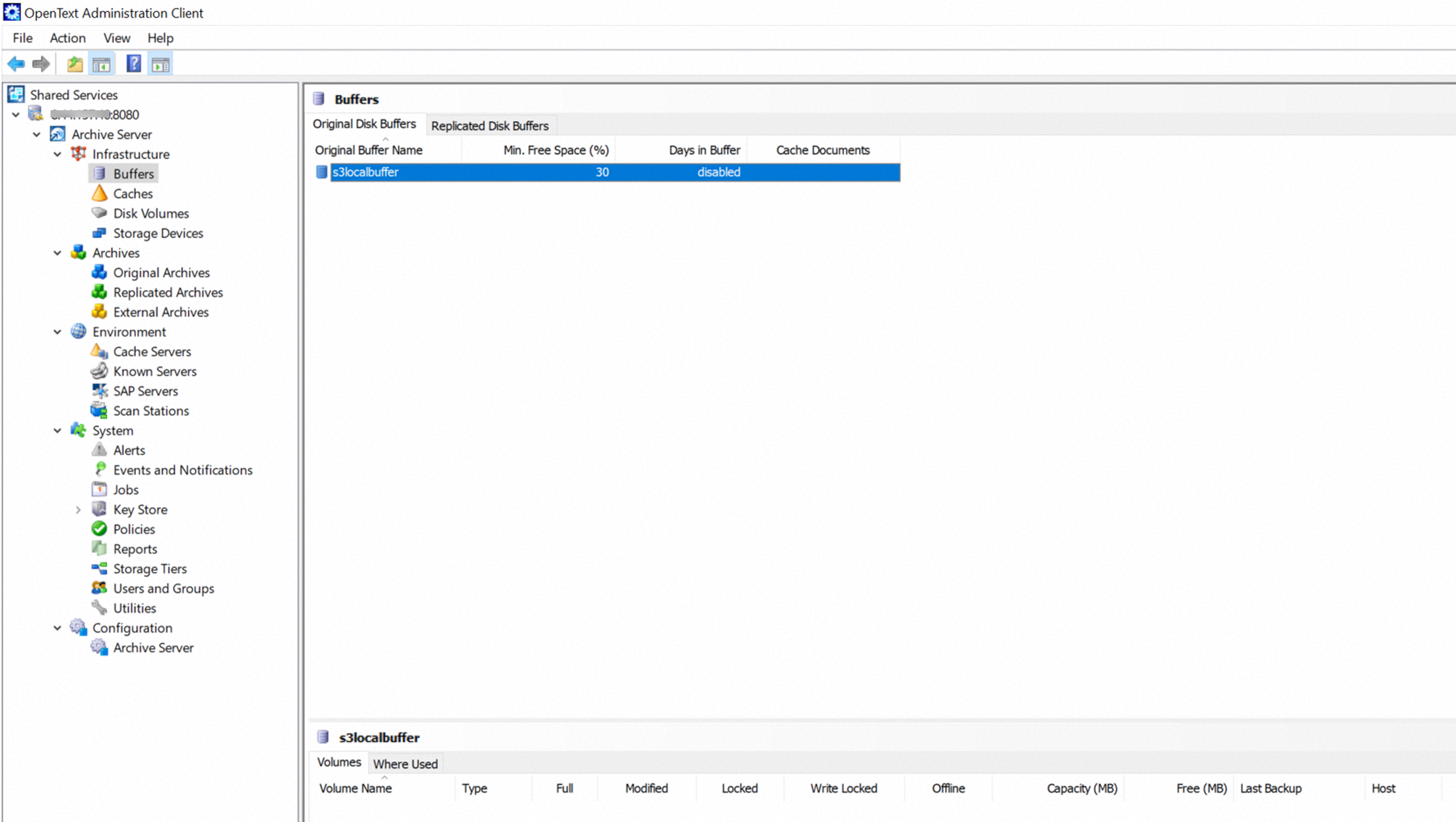

1. Create the Original Disk Buffer on the archive server.

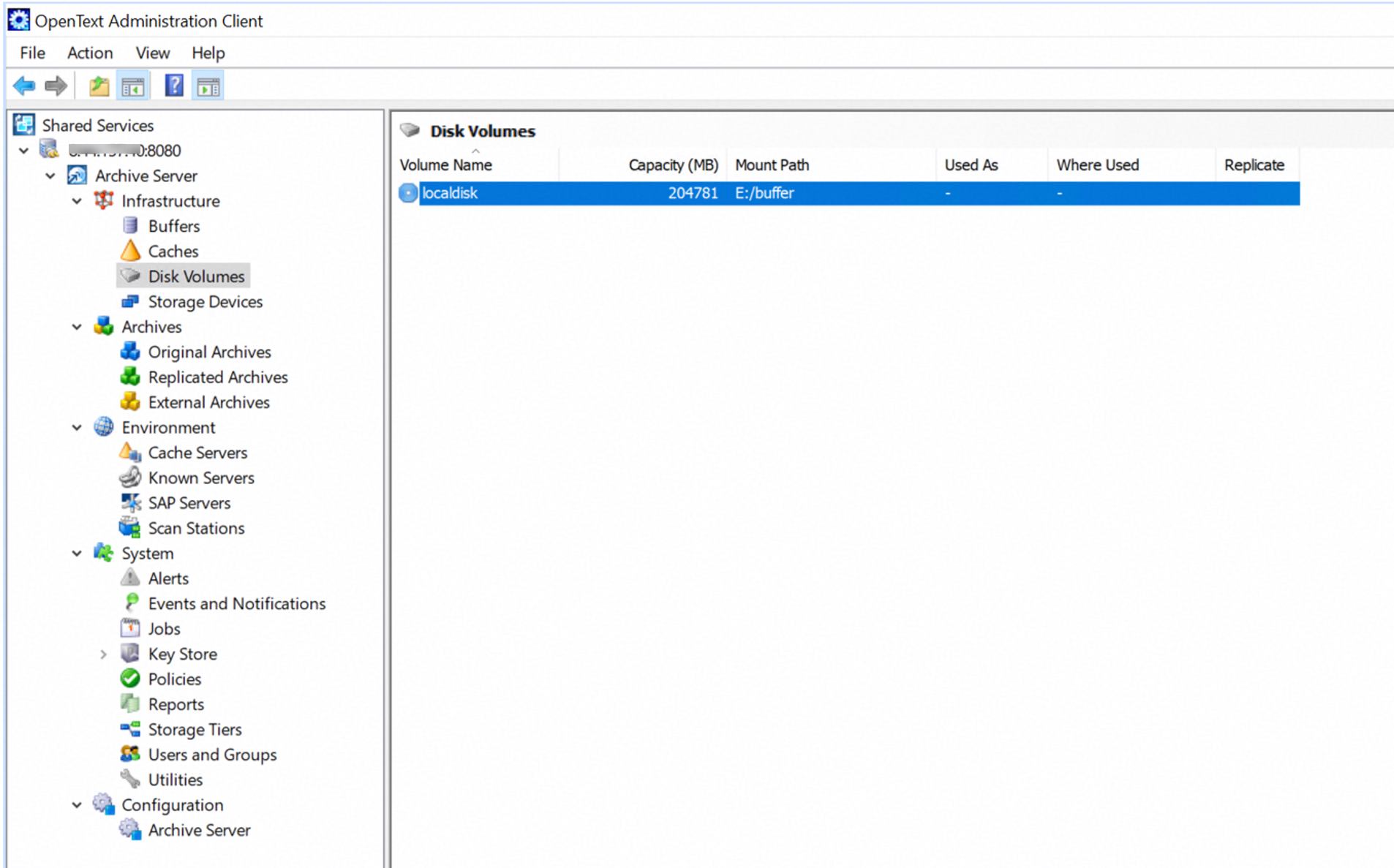

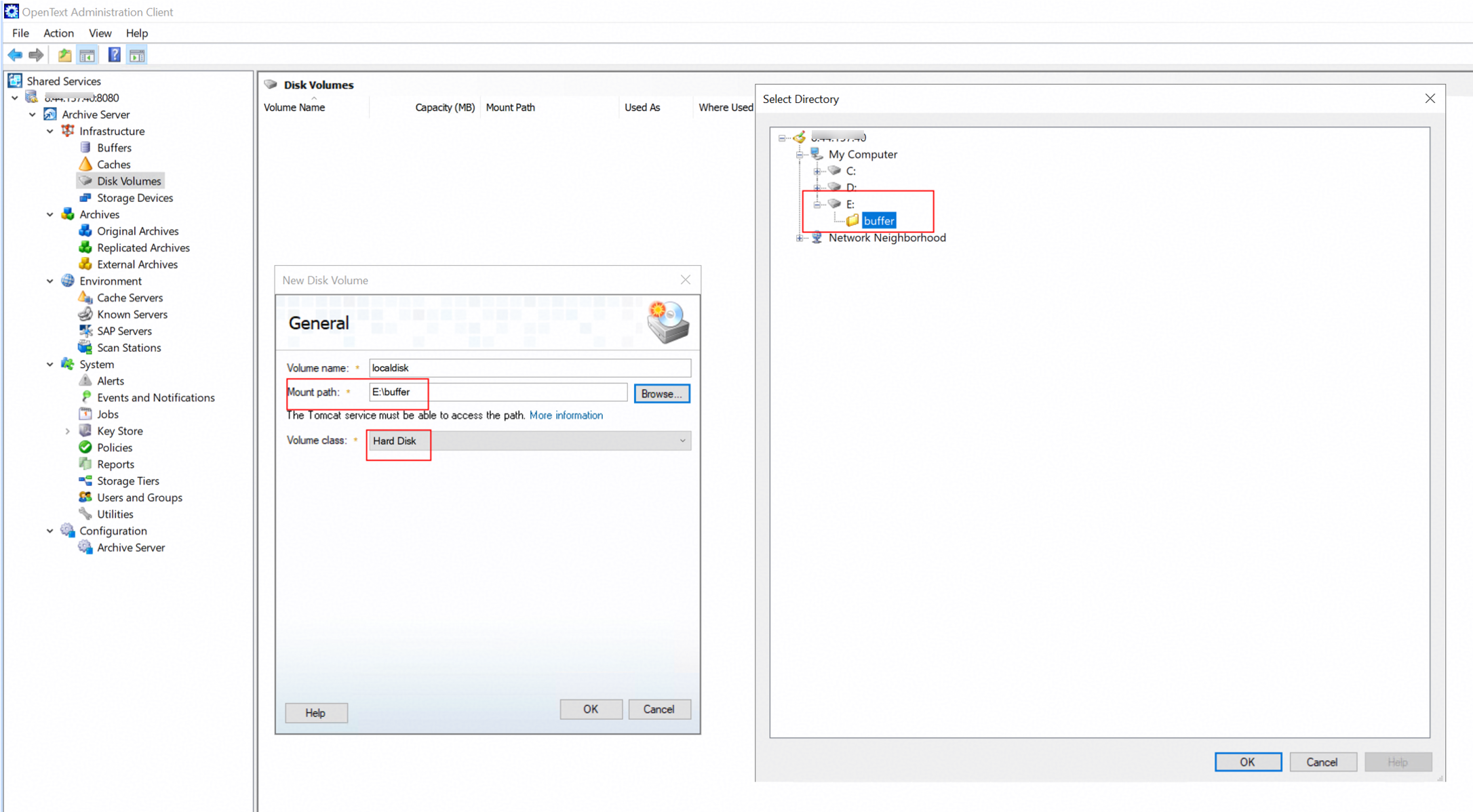

1.1 Create a new disk volume in the local disk E:\.

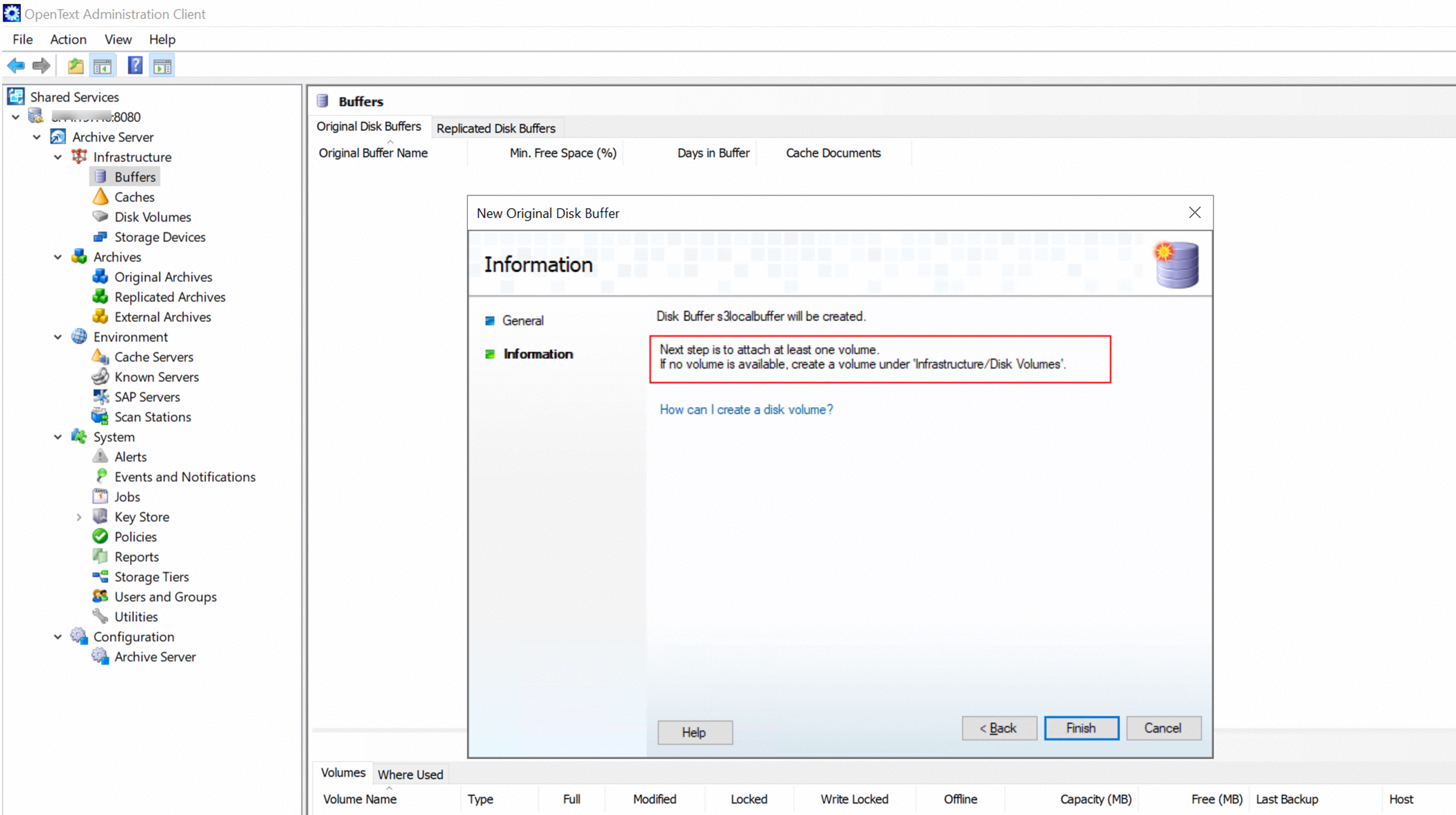

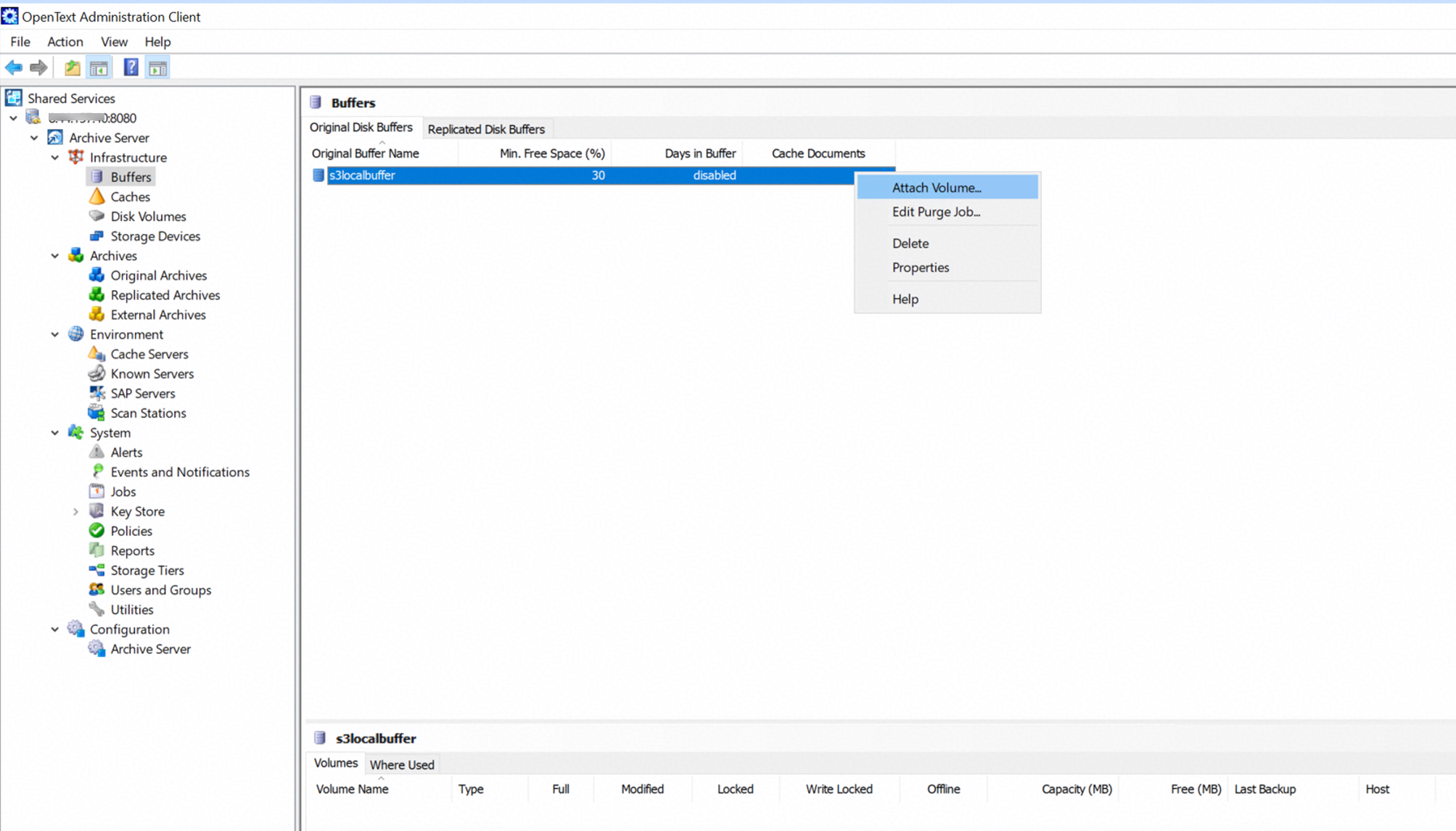

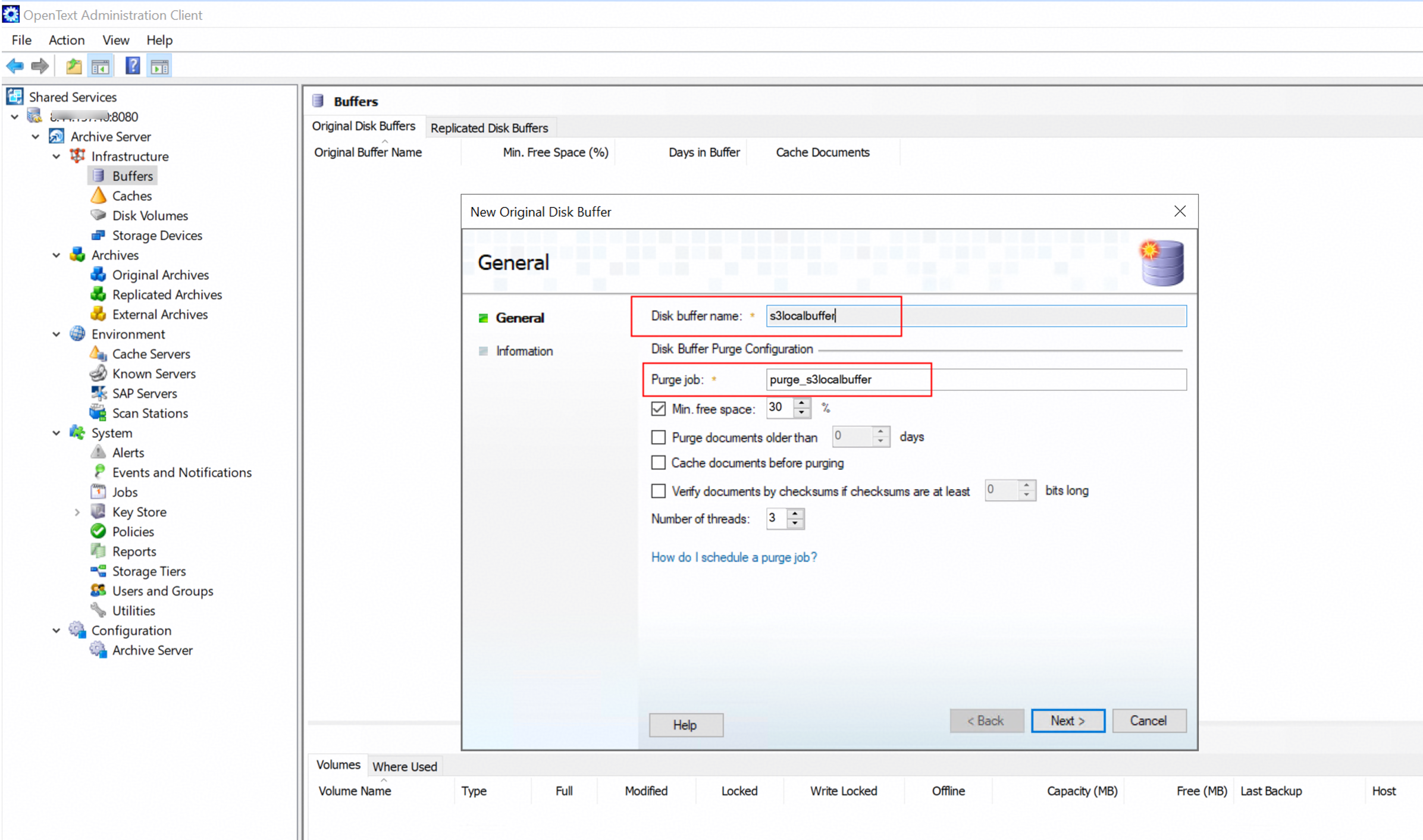

1.2 Create a new disk buffer.

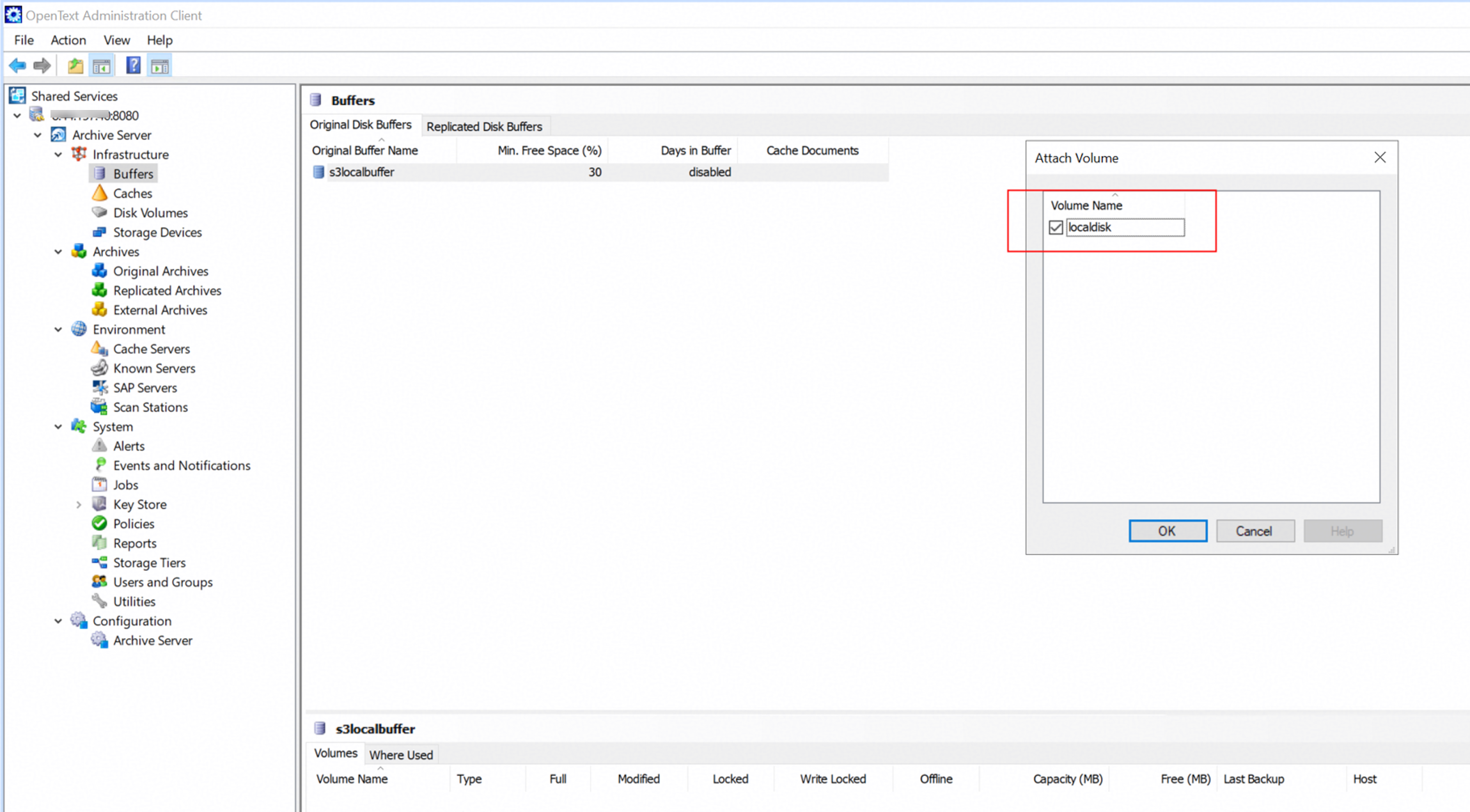

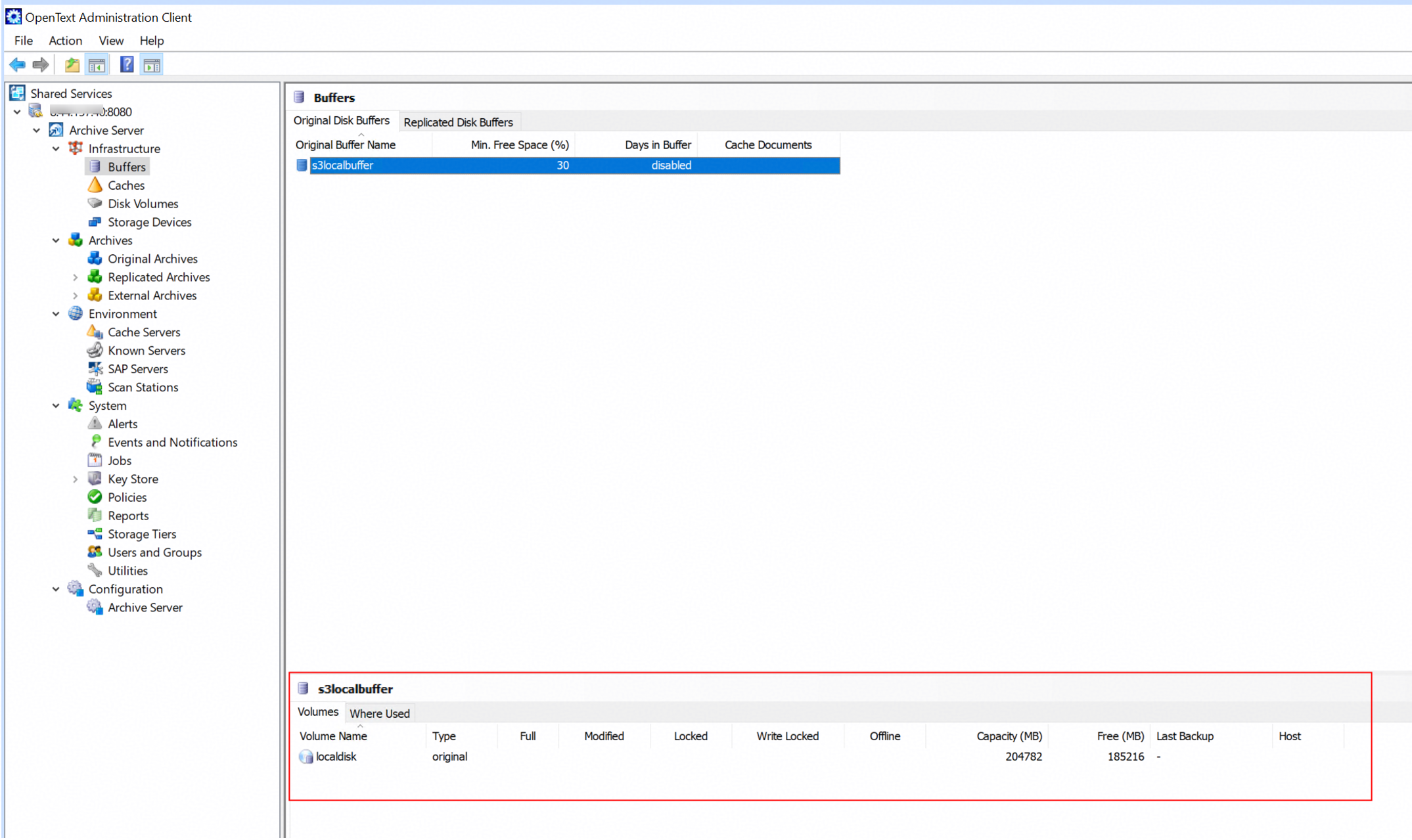

1.3 Attach the local disk volume to the buffer created in the previous step.

2. Create the Original Archive on the archive server.

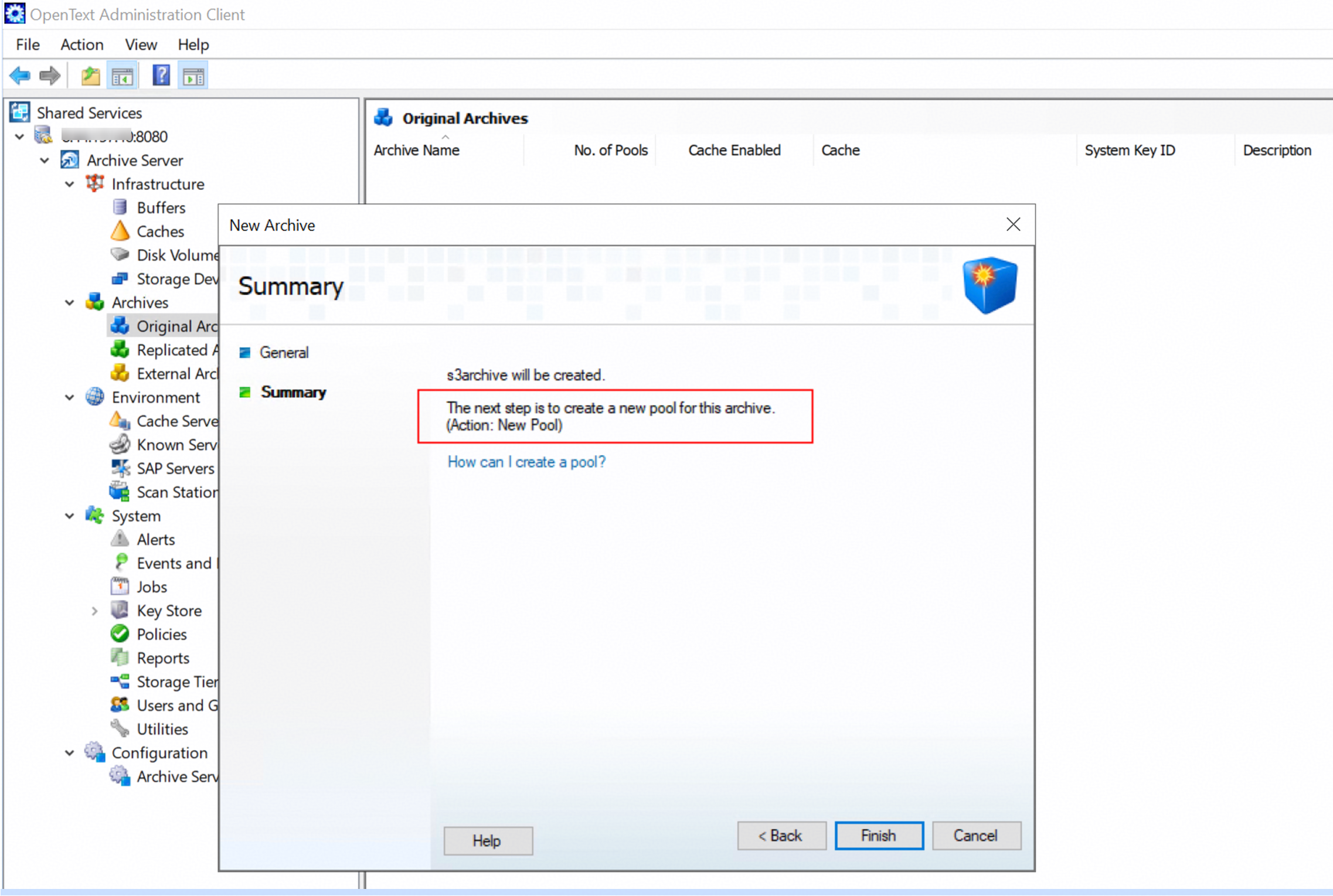

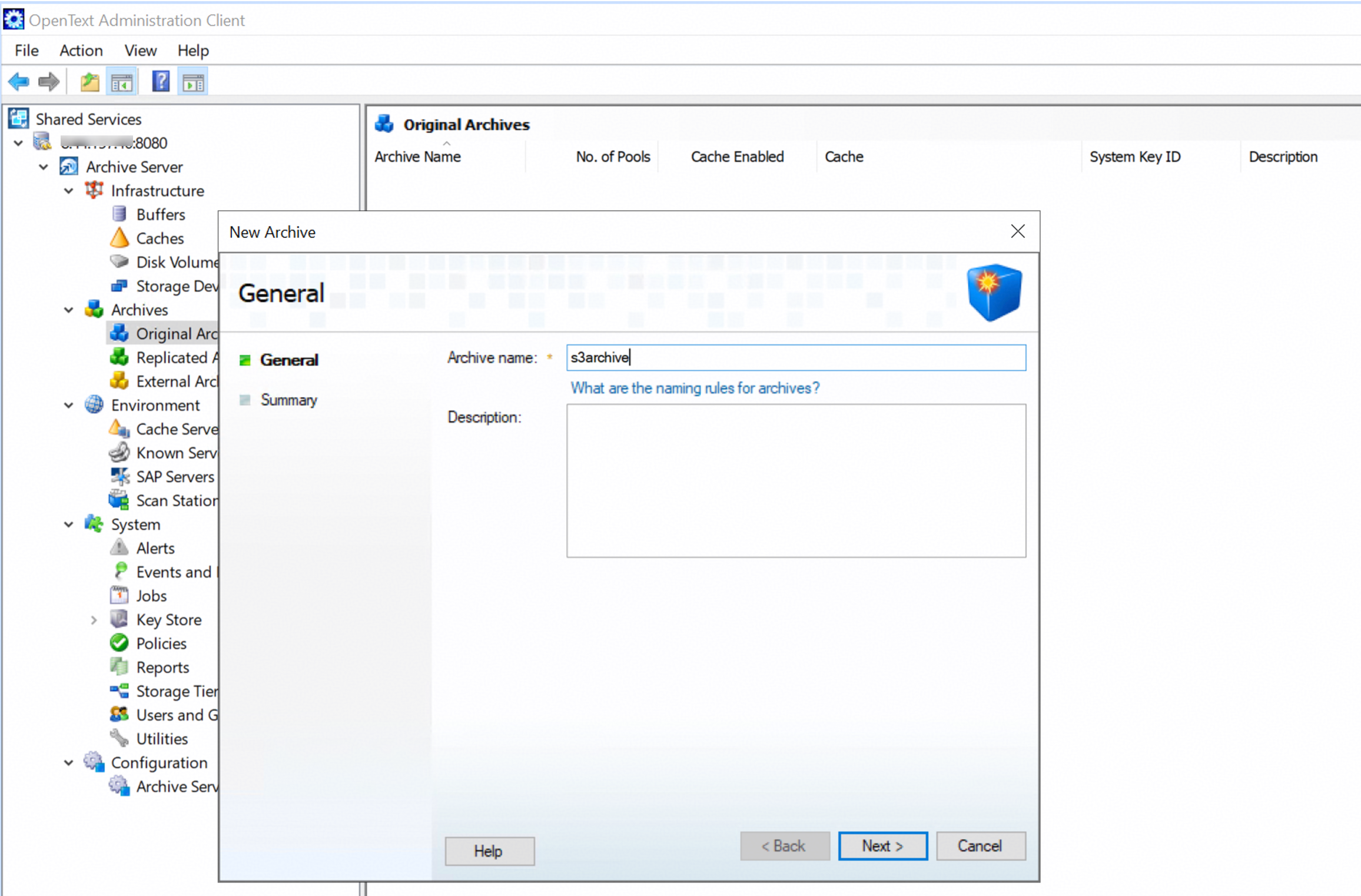

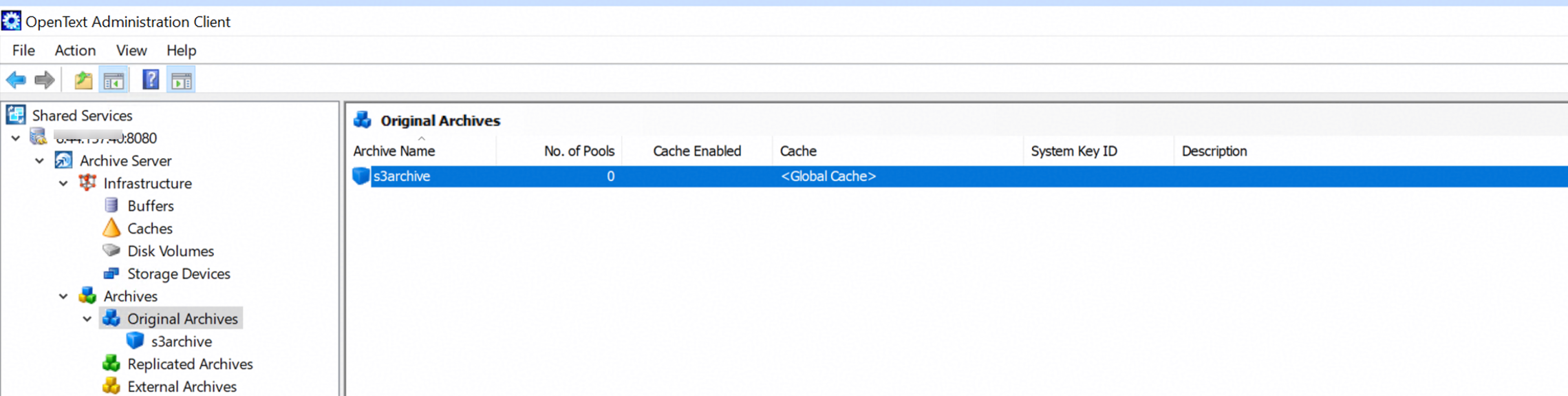

2.1 New an Original Archive on the archive server.

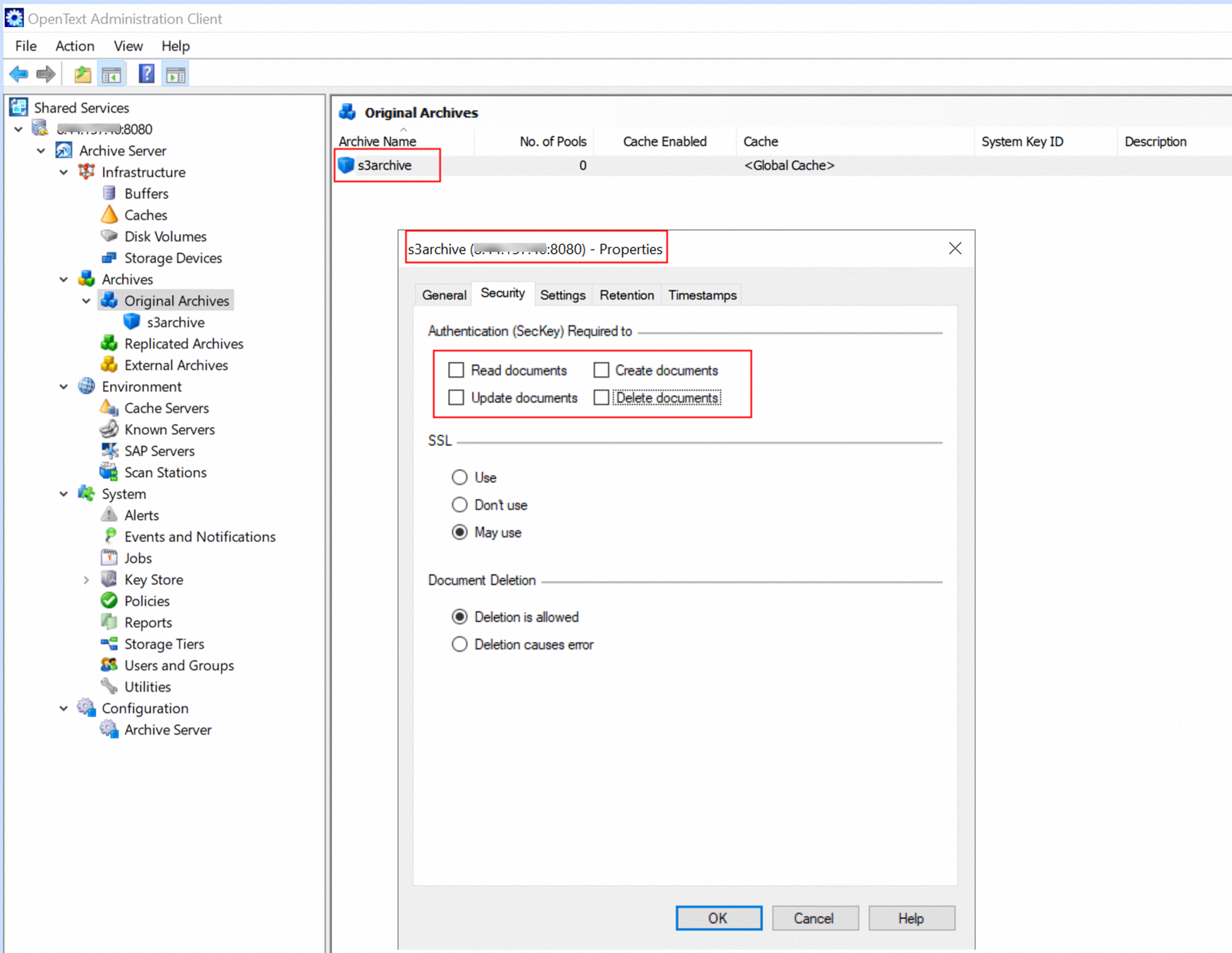

2.2 Modify the security of the archive.

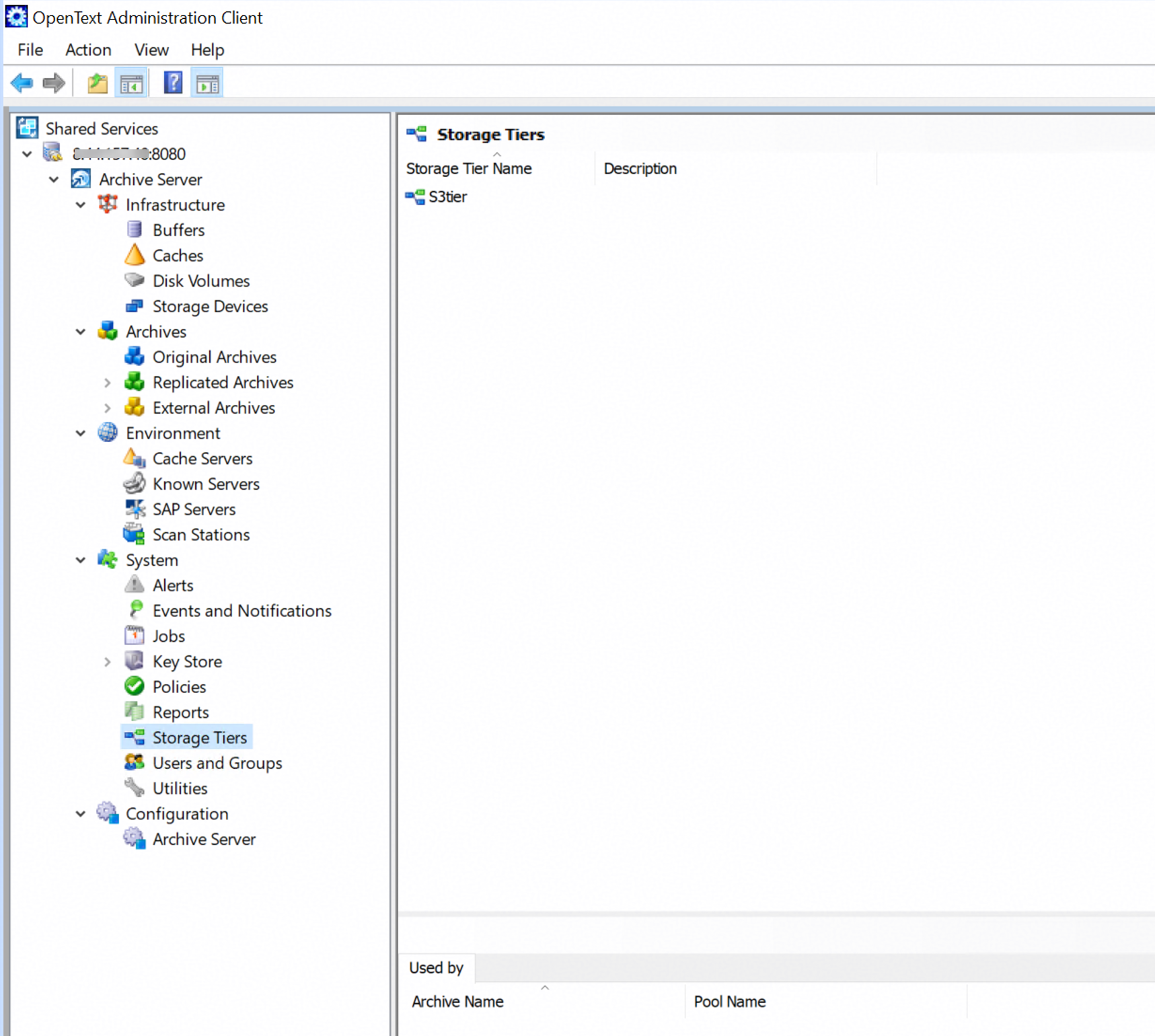

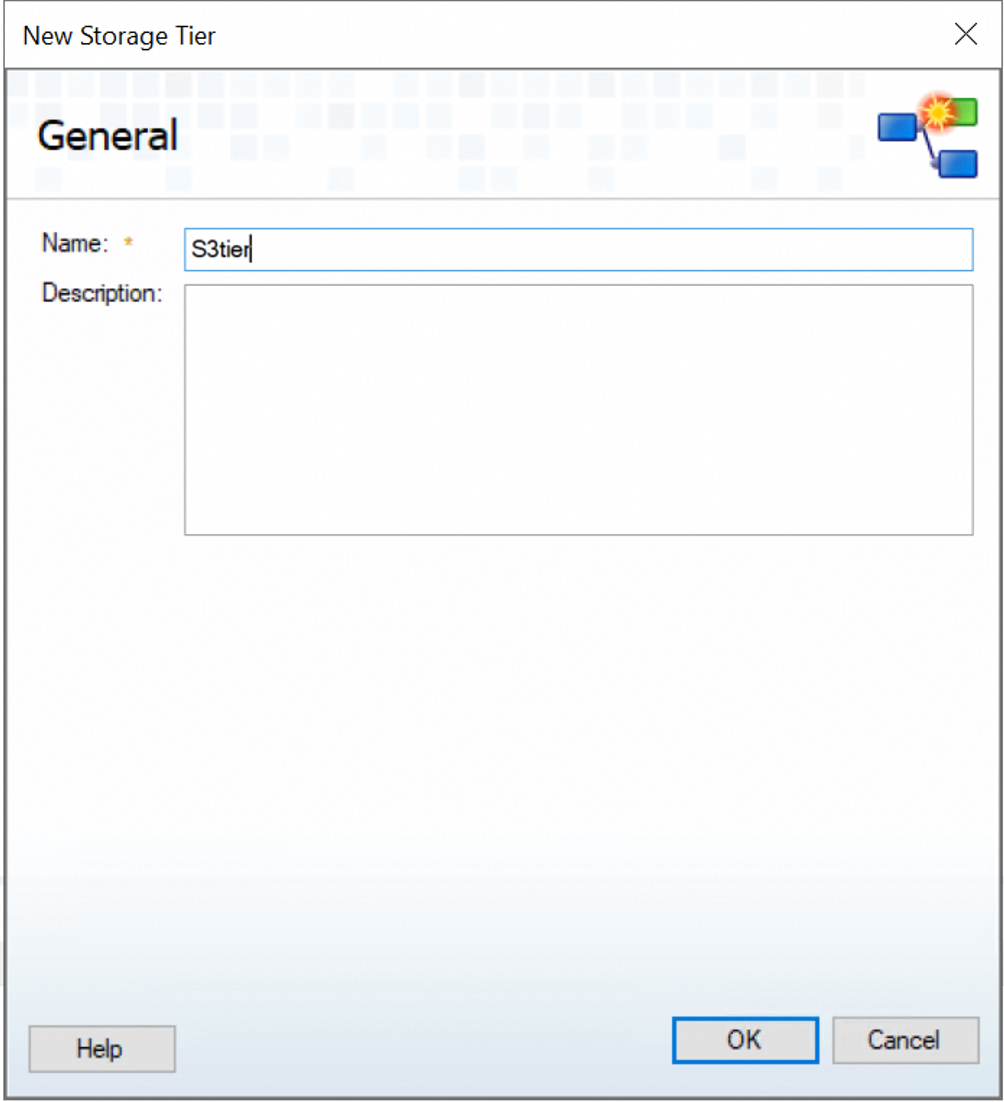

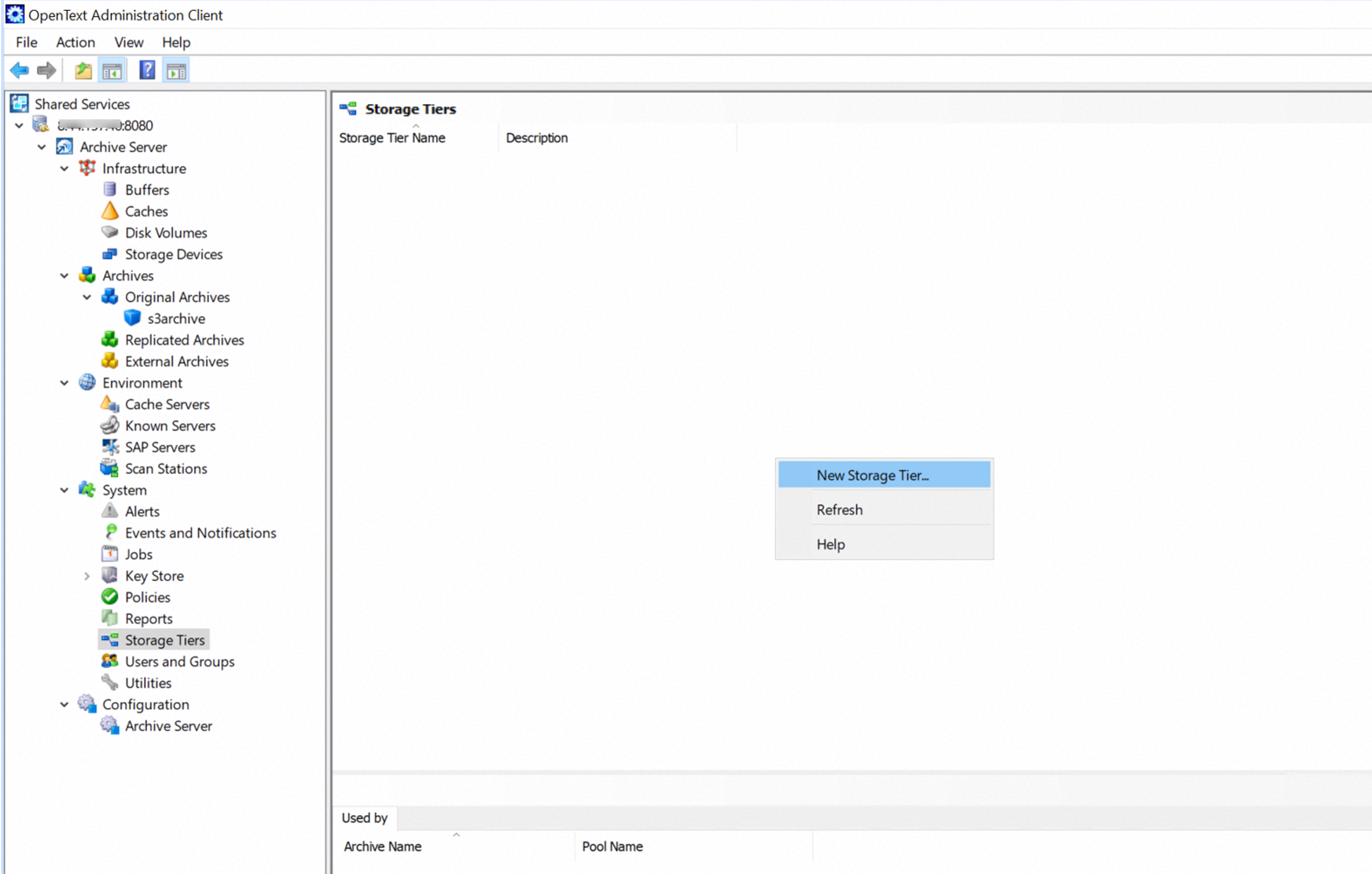

2.3 Create a storage tier on the archive server.

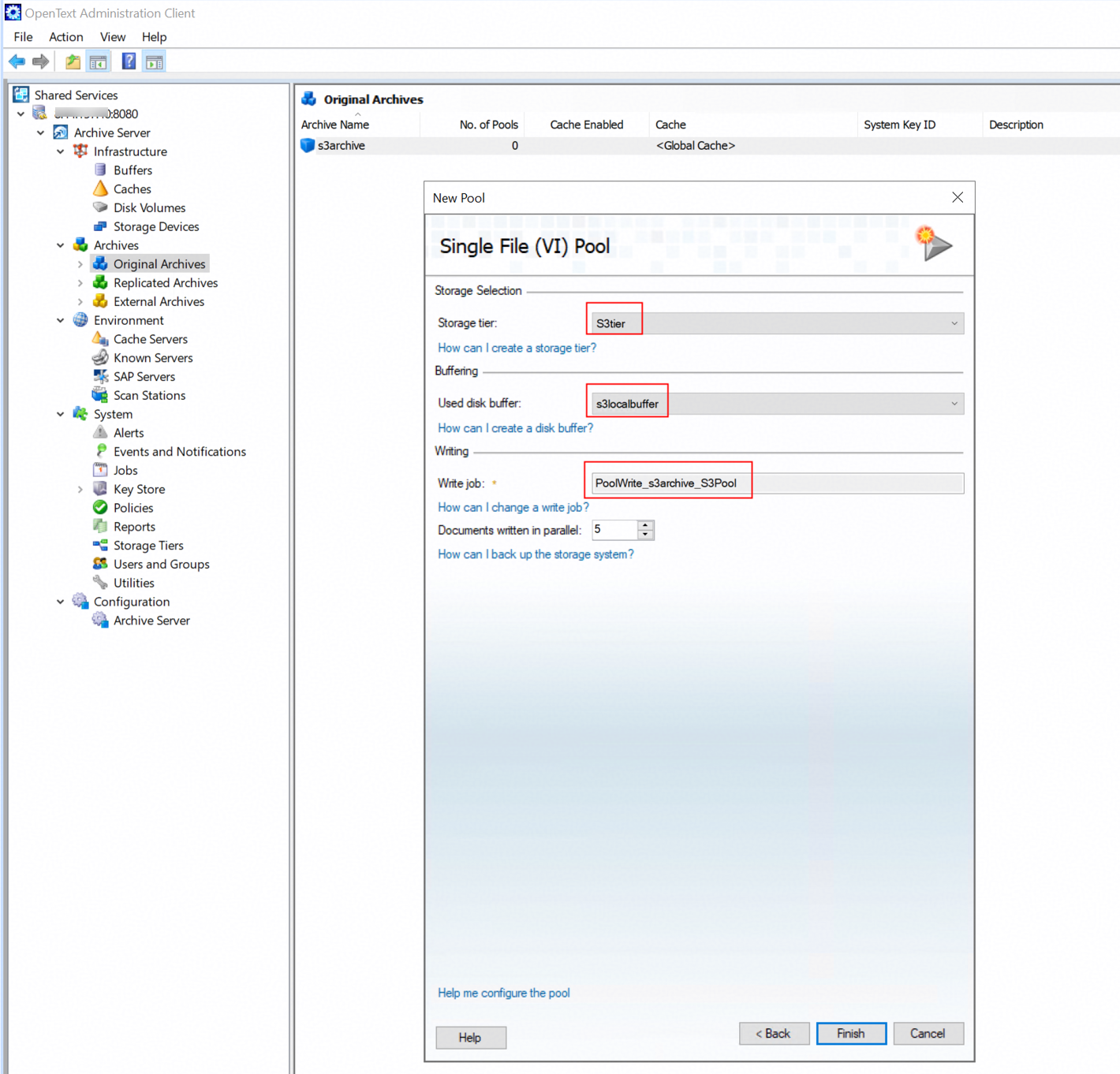

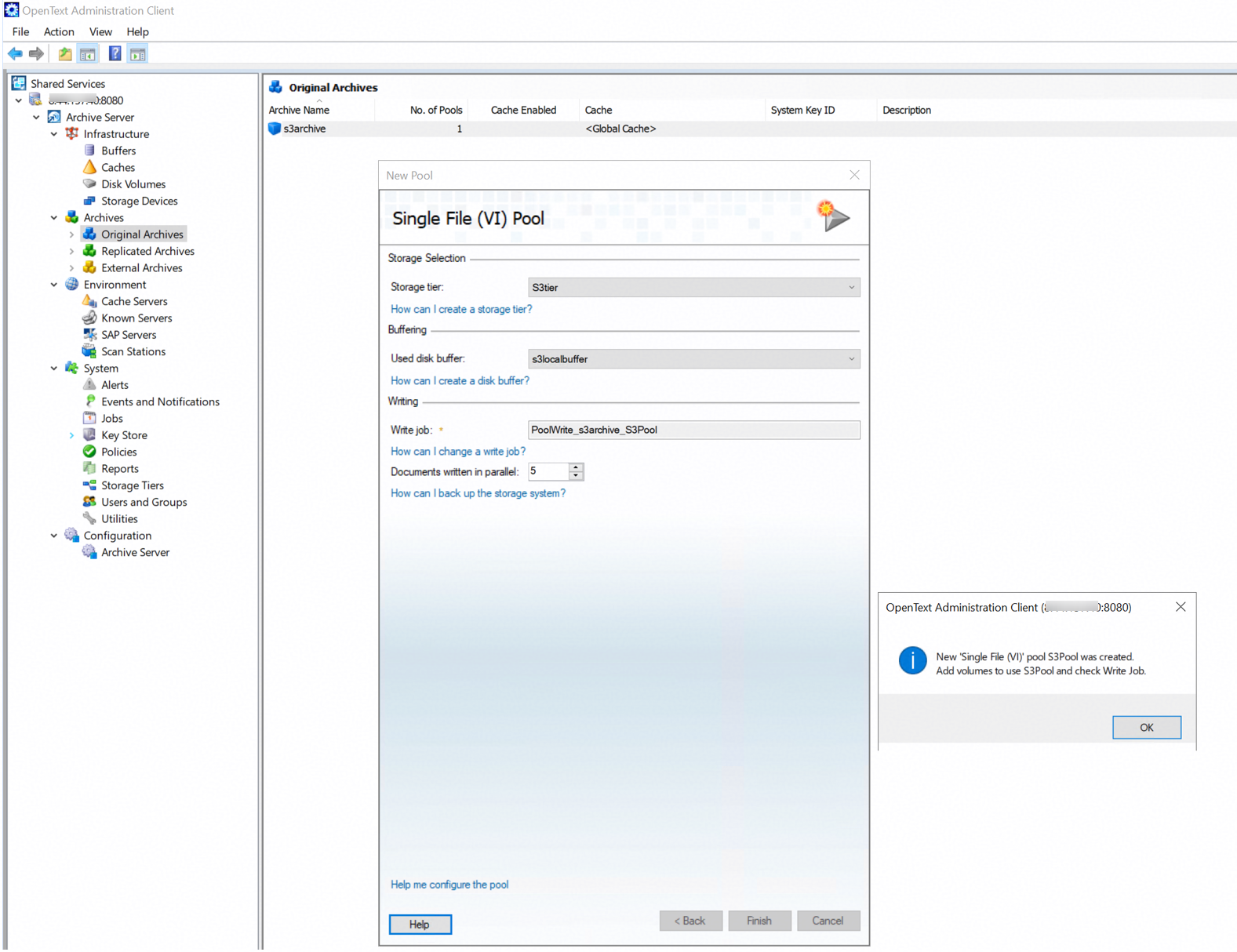

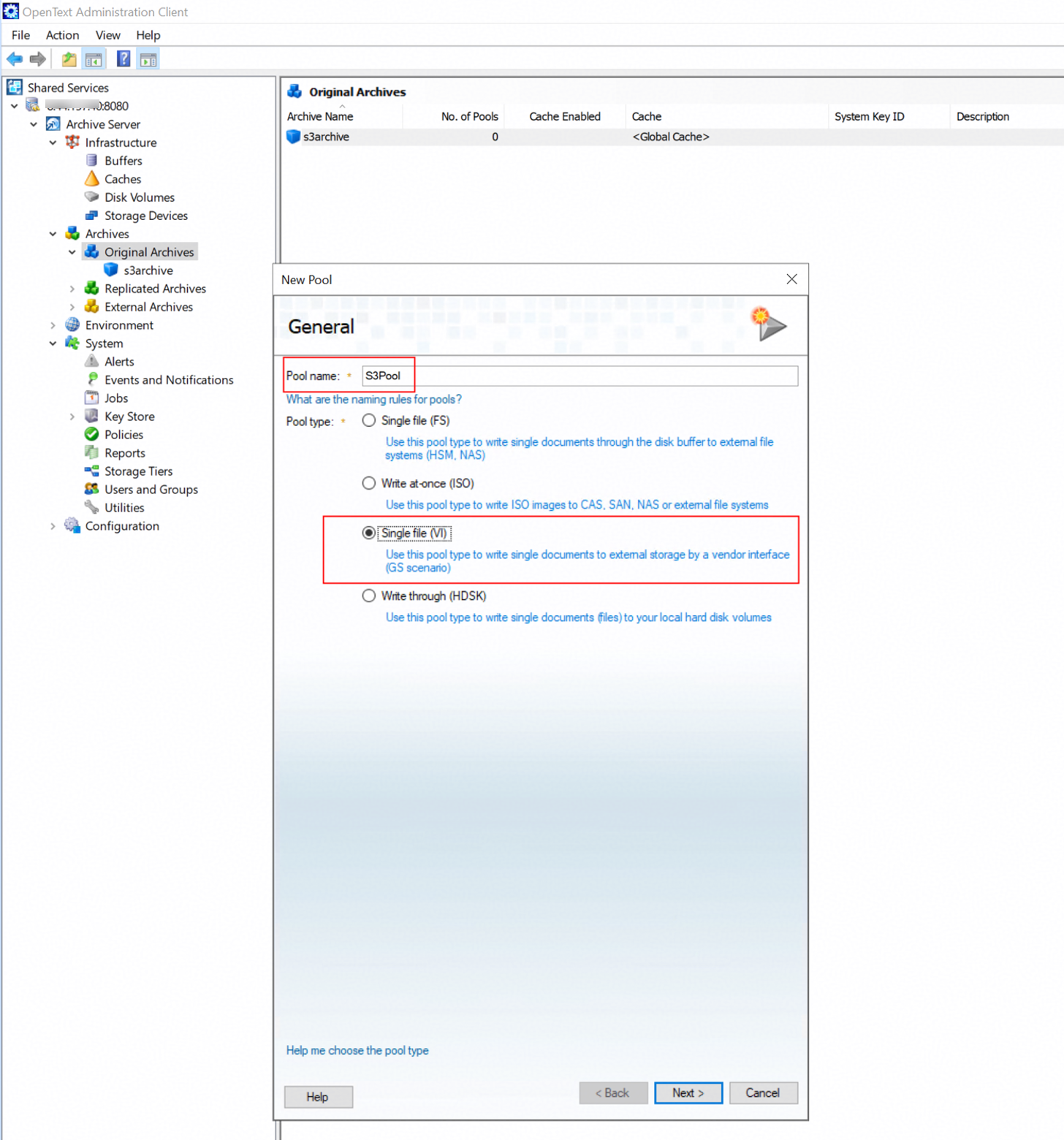

2.4 Create a new pool for archive in Single file (VI) type.

2.5 Select the disk buffer and storage tier created in previous step.

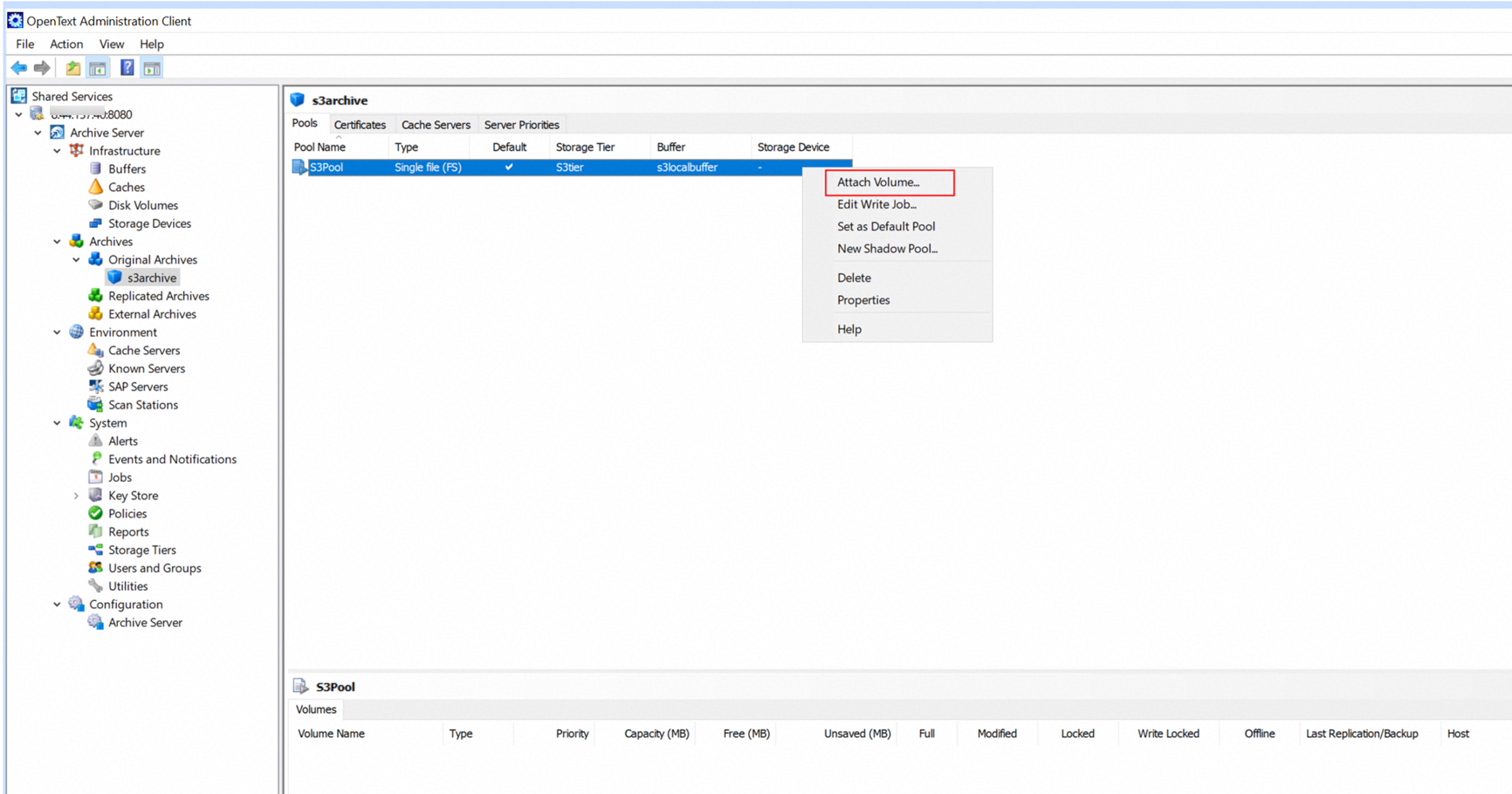

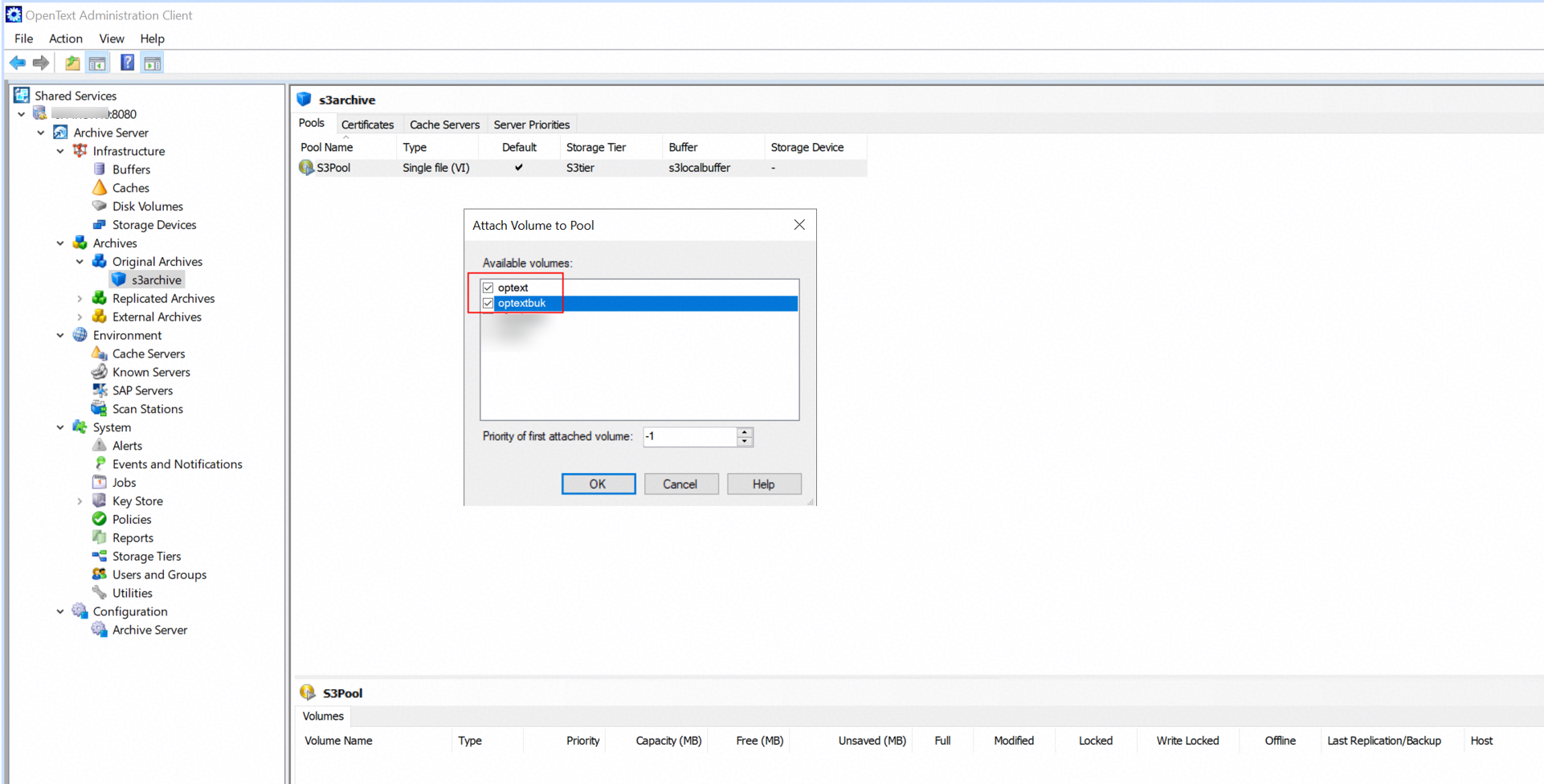

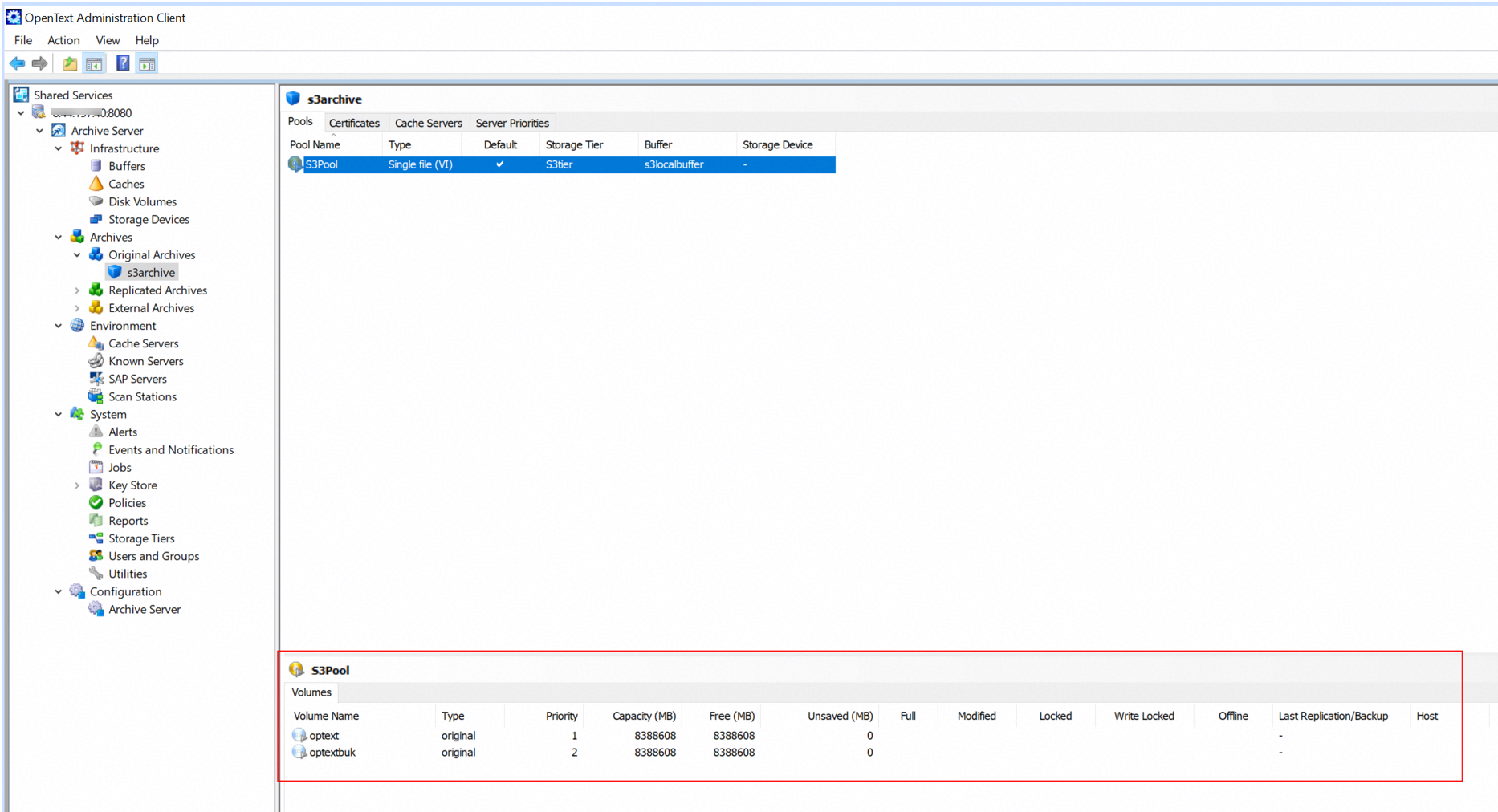

2.6 Attach the volume to use pool.

3. Prepare some files and write the files to the archive server’s local buffer. And check the files in the archive server’s local buffer.

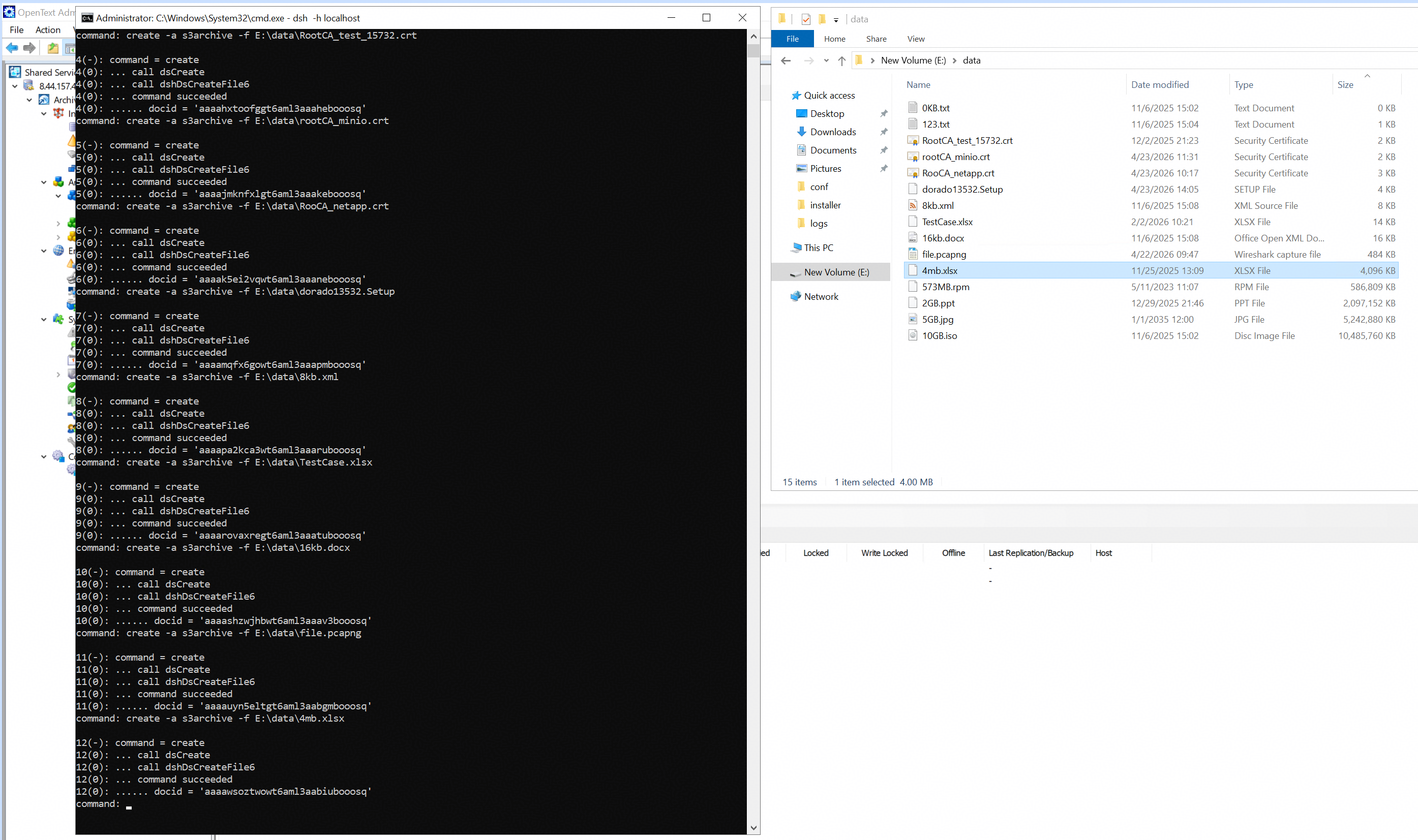

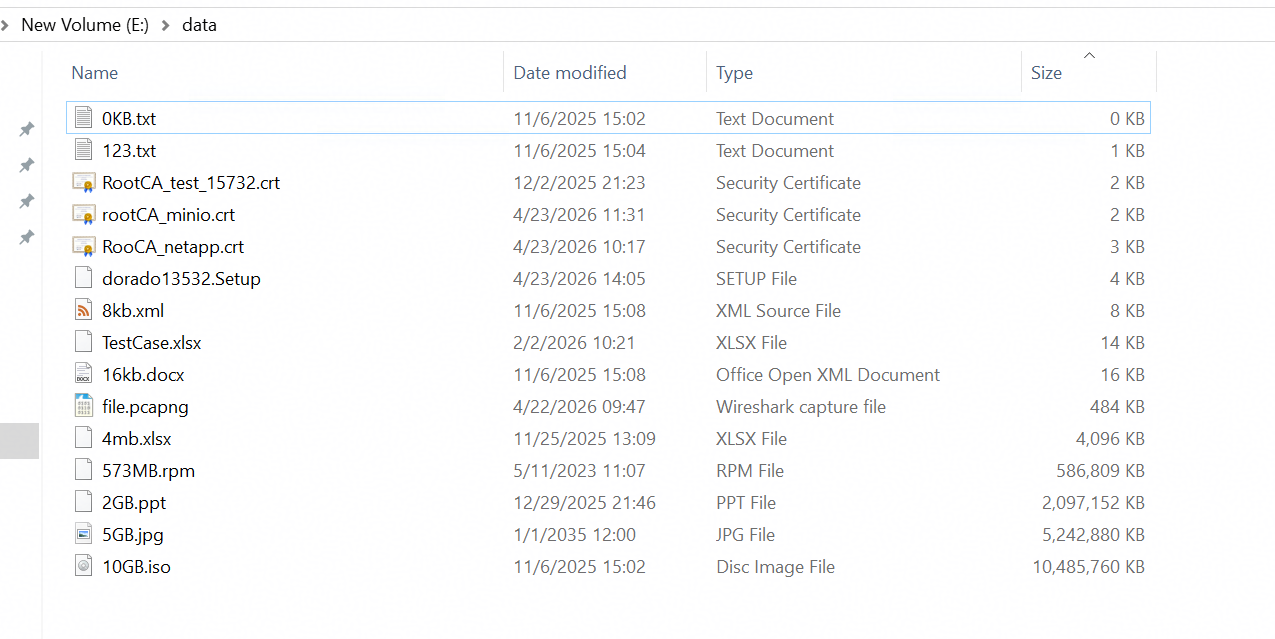

3.1 Test files are created.

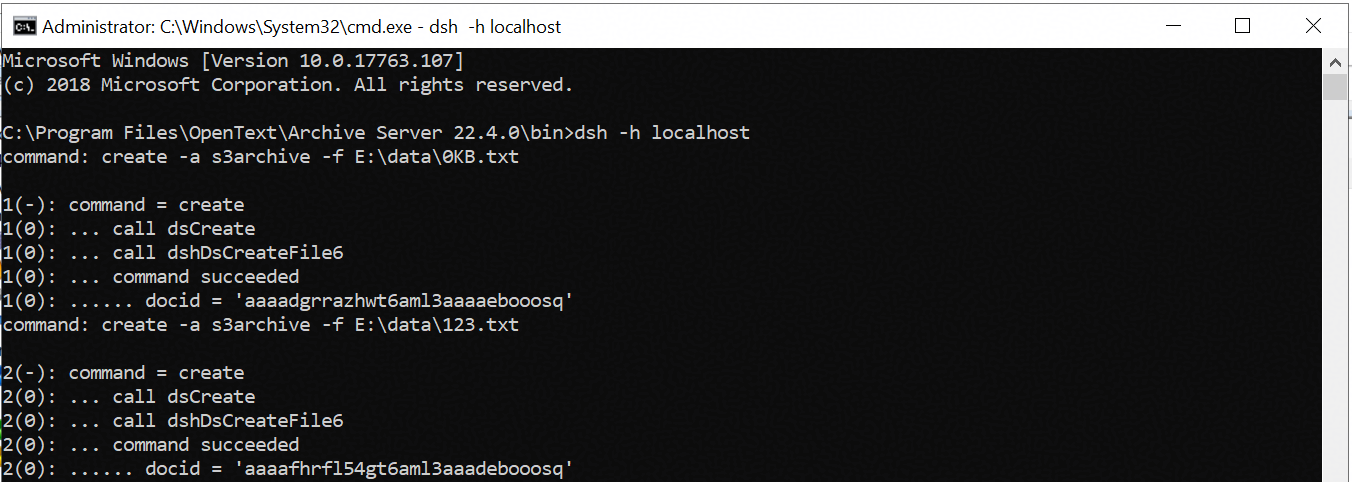

3.2 Write the test files to the archive server’s local buffer.

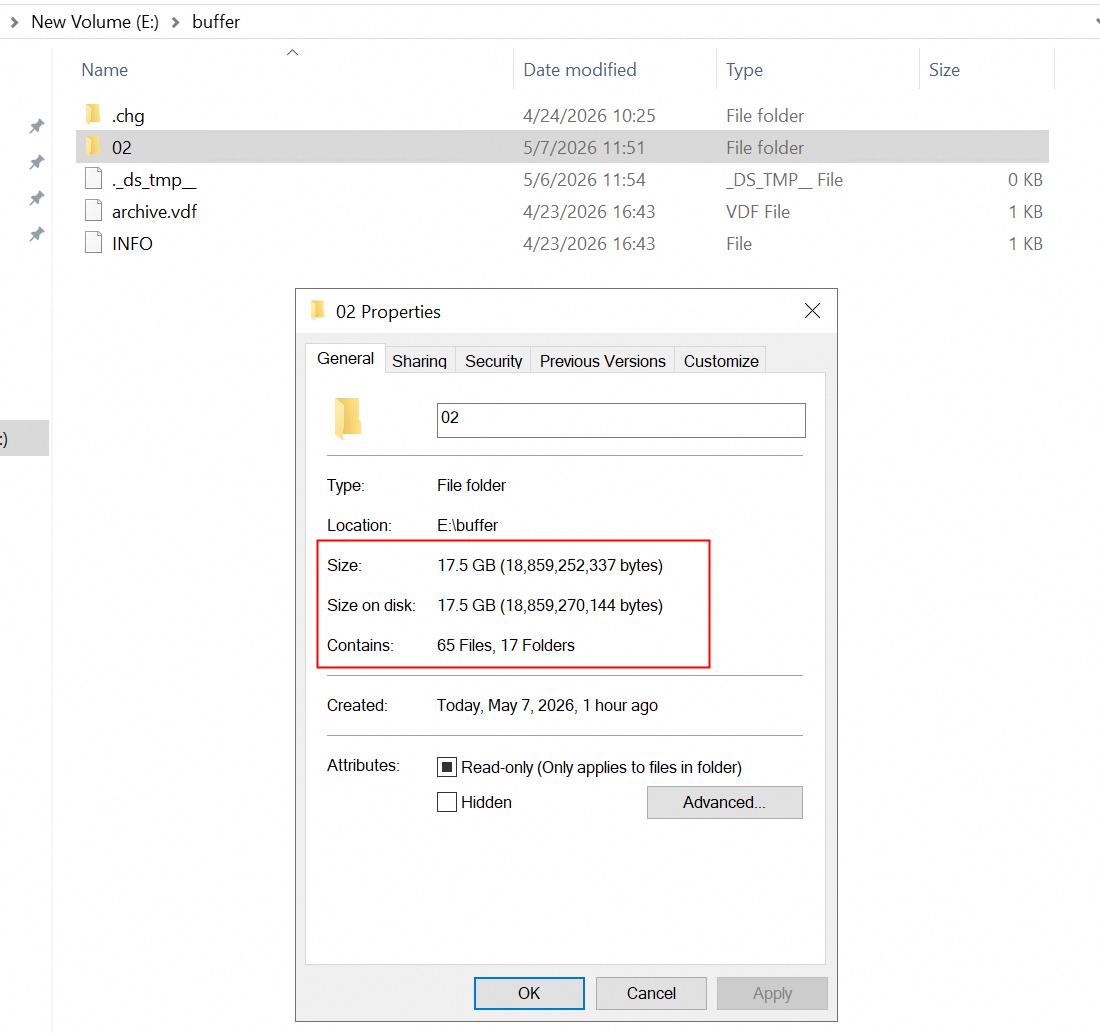

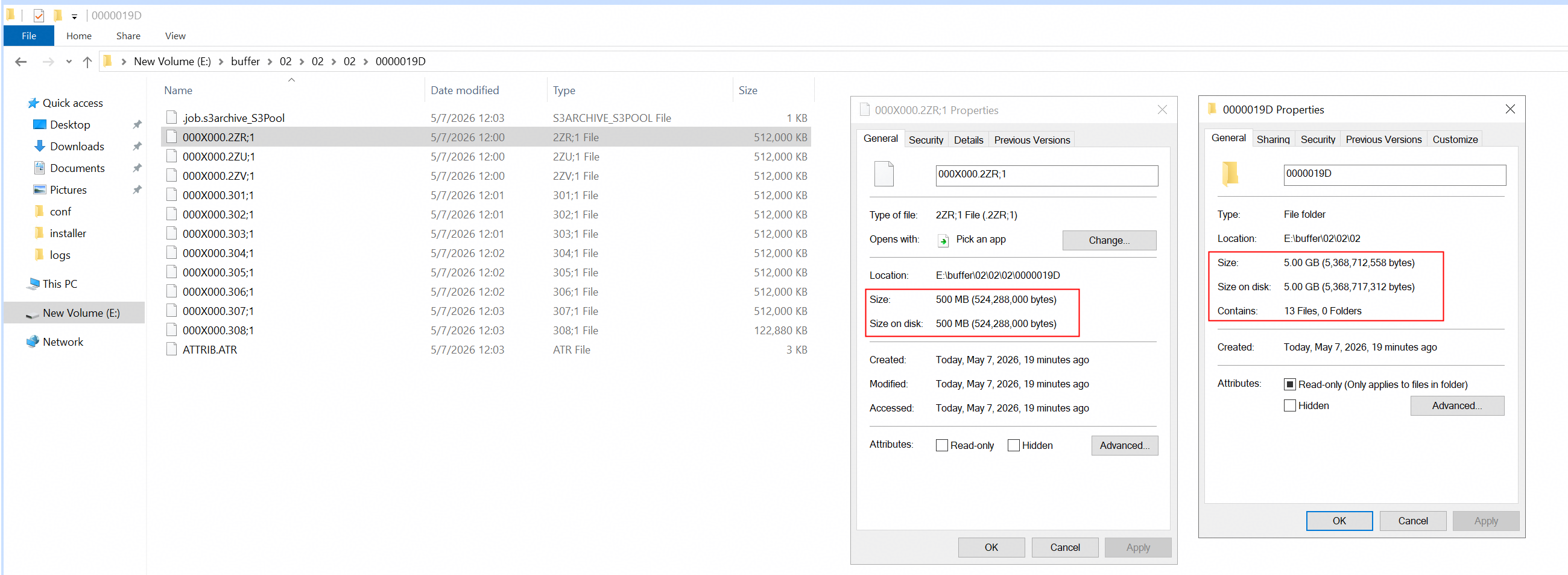

3.3 Data of the test files has been written into the local buffer.

4. Run related PoolWrite job to write the files in the archive server’s local buffer to the volumes of the storage. And check the files in the storage

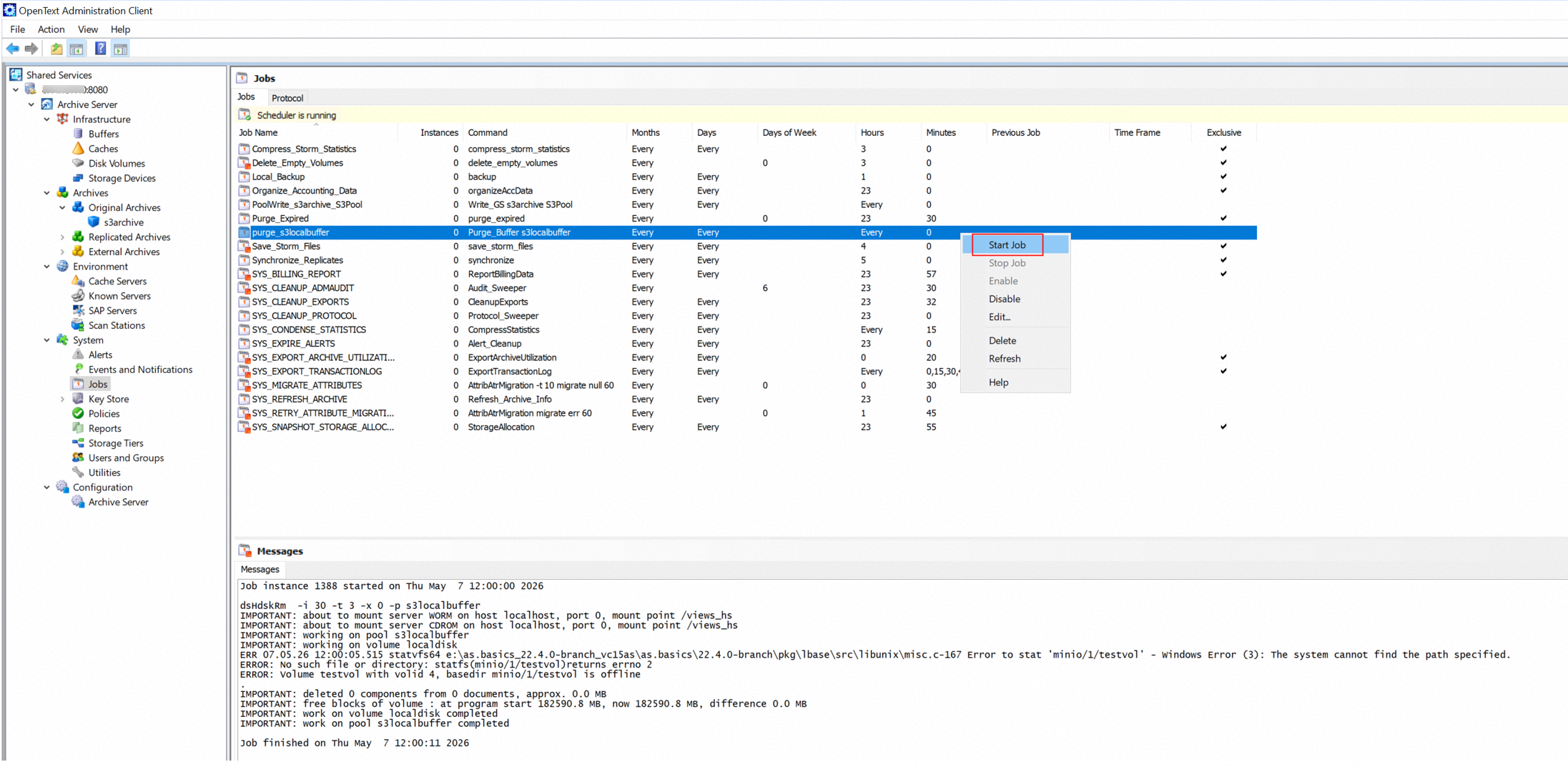

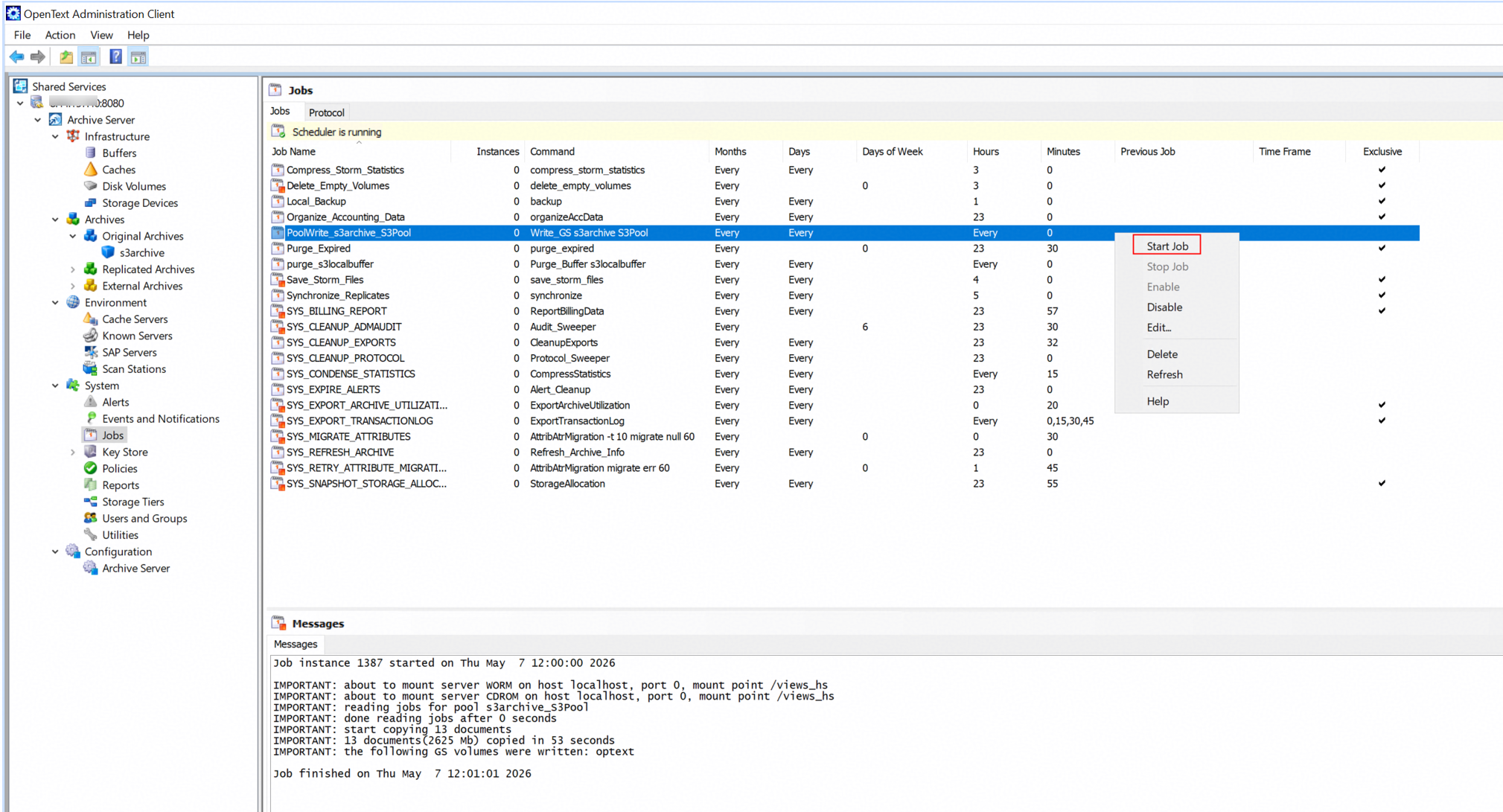

4.1 Start the related PoolWrite job.

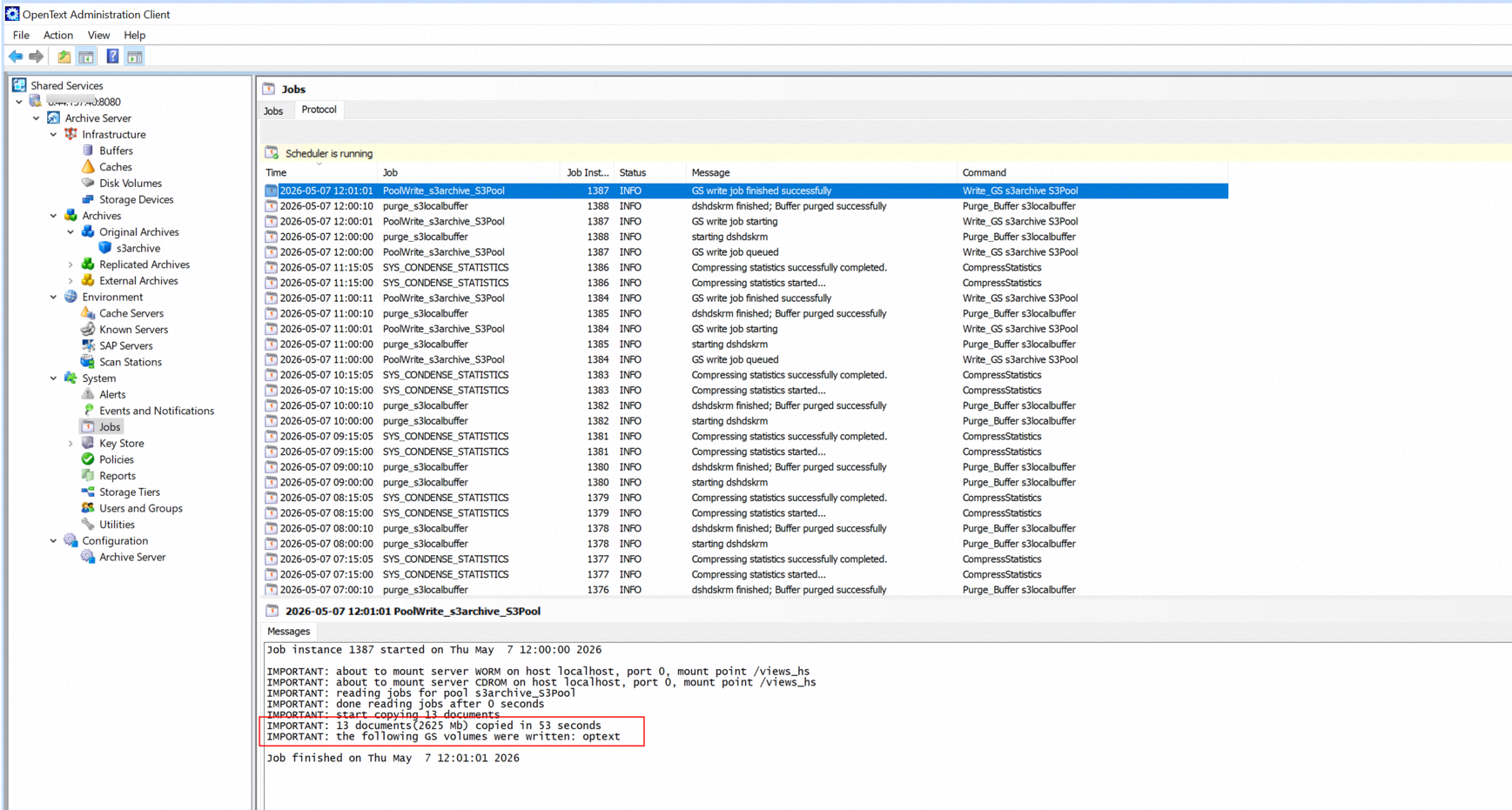

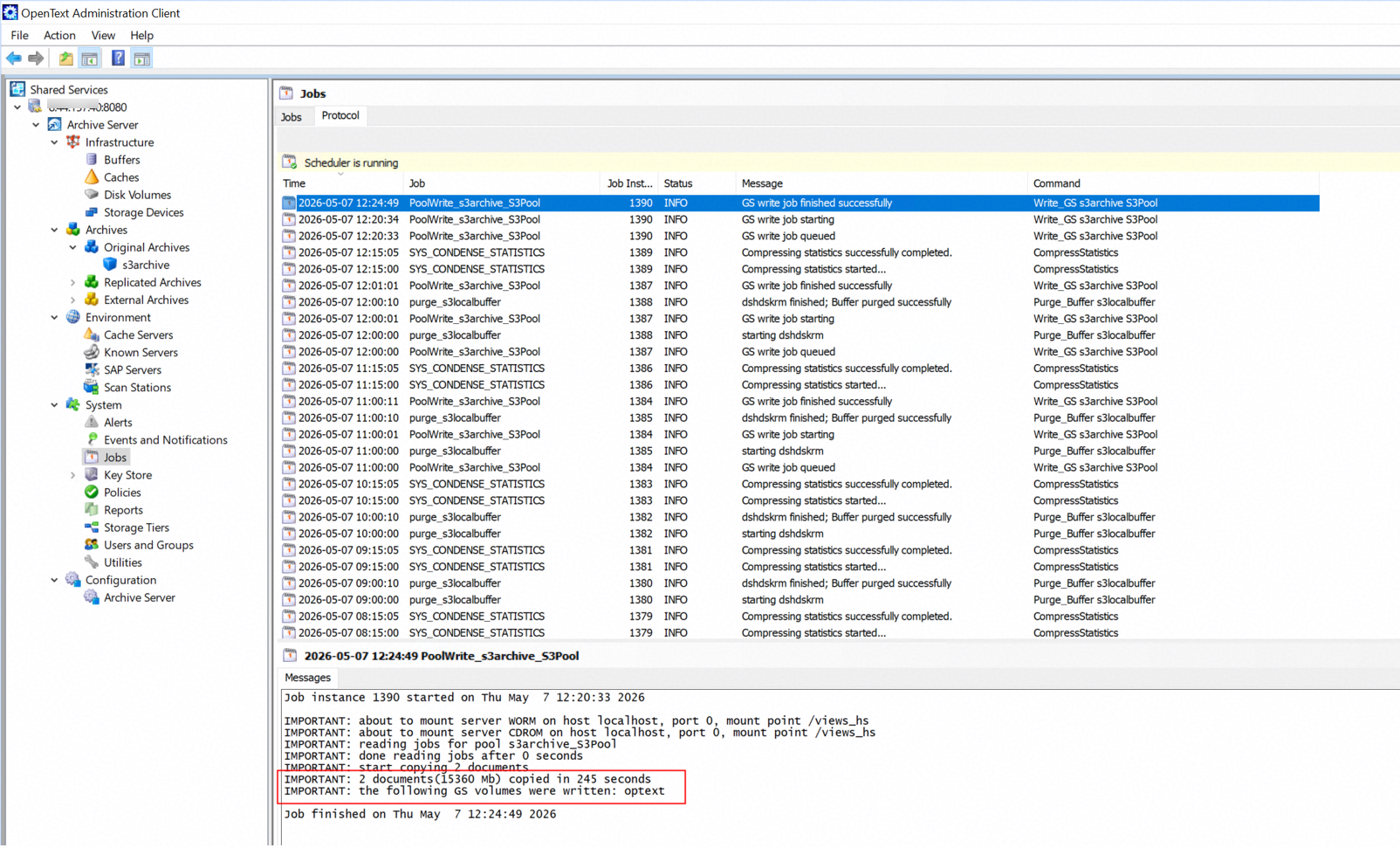

4.2 Job has been completed successfully and files have been archived.

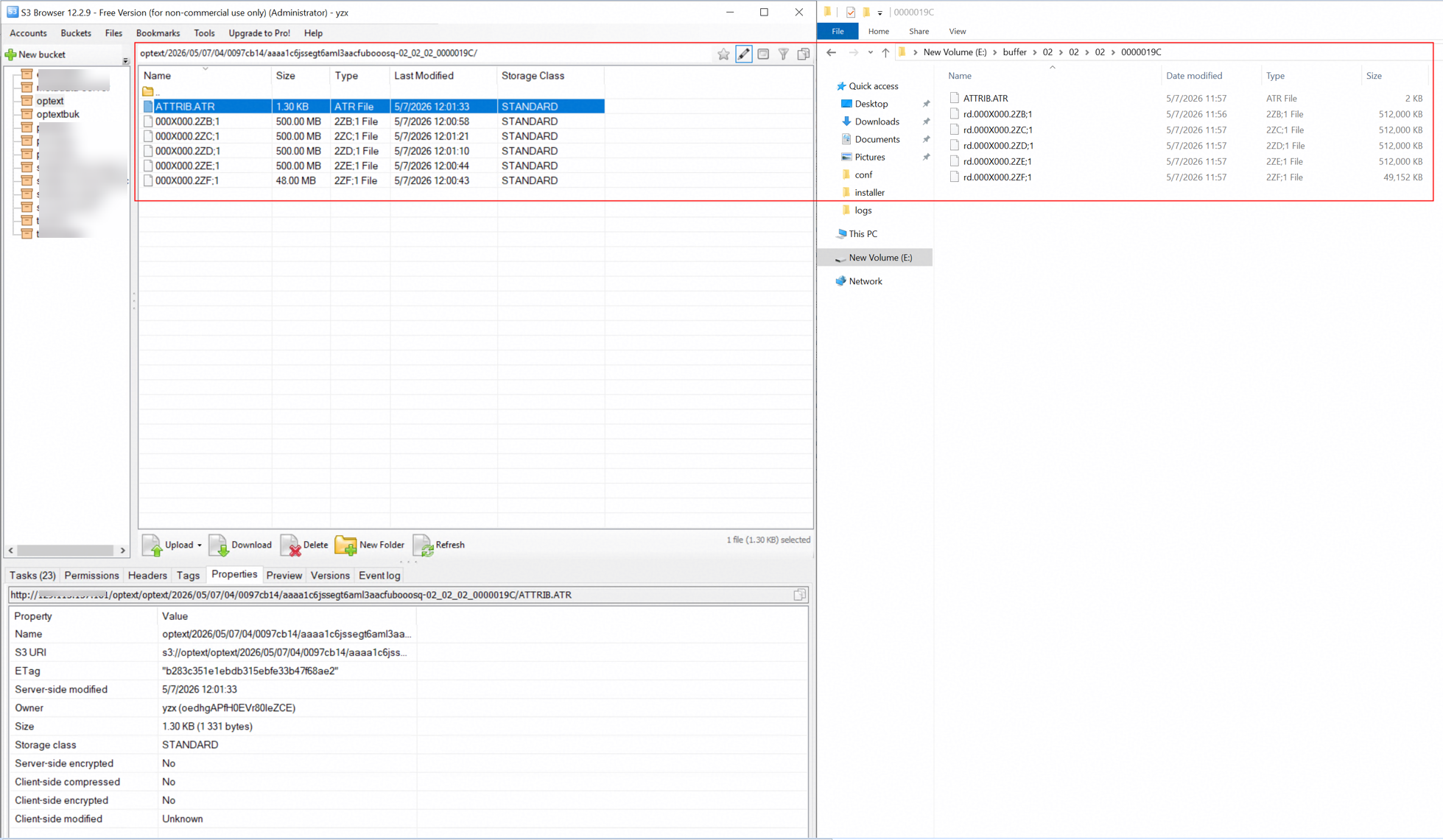

4.3The files have been written into the storage successfully.

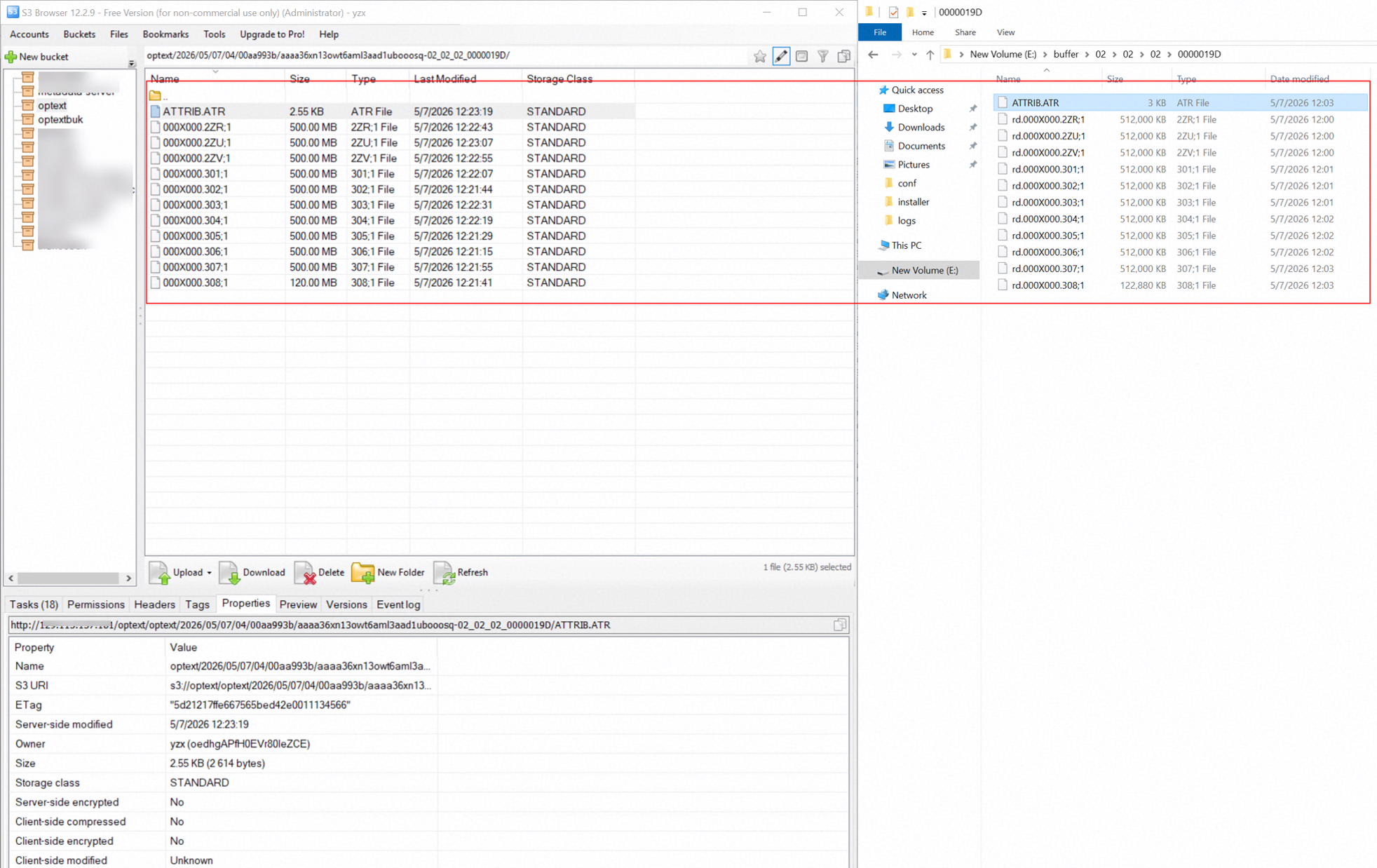

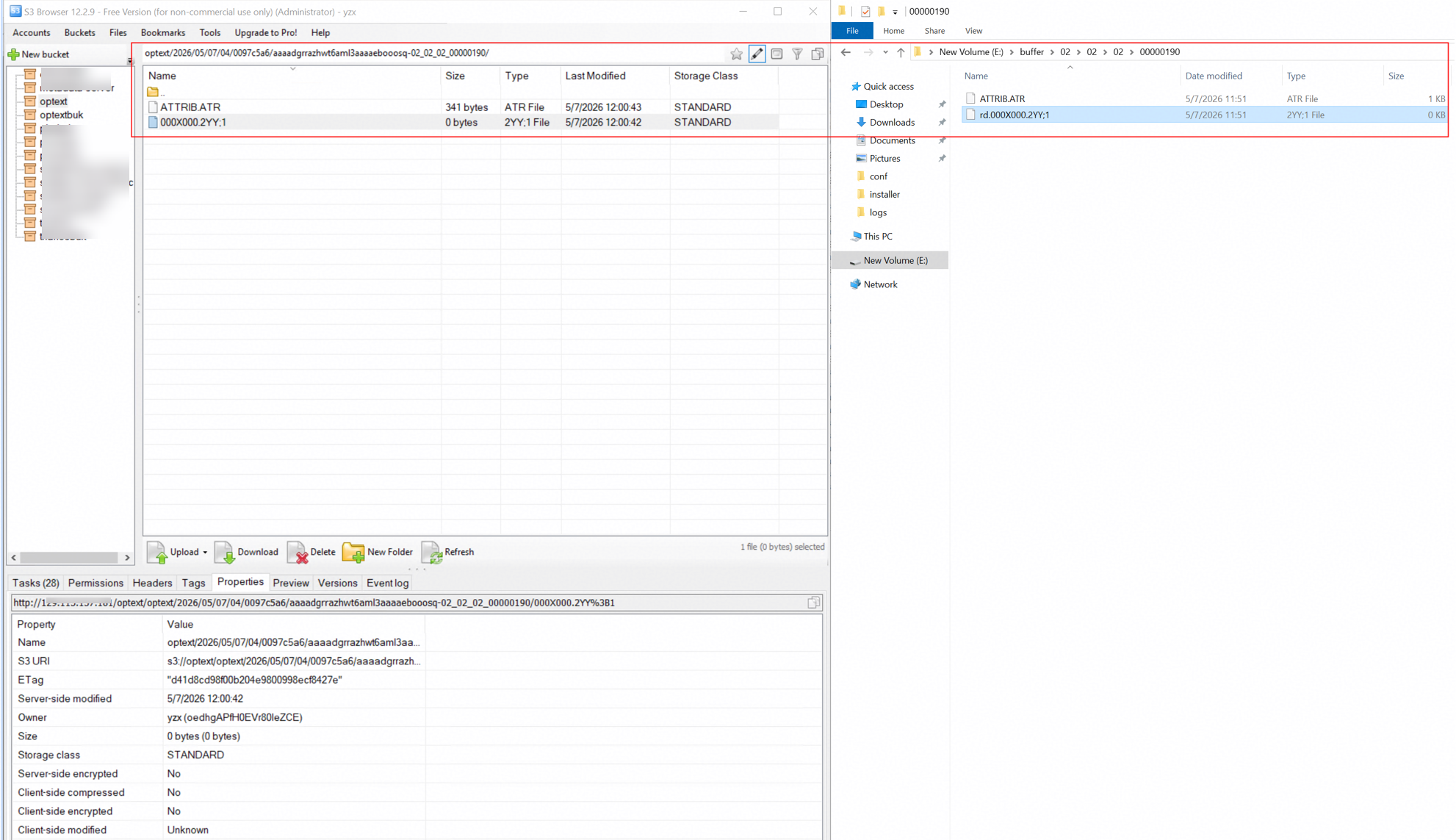

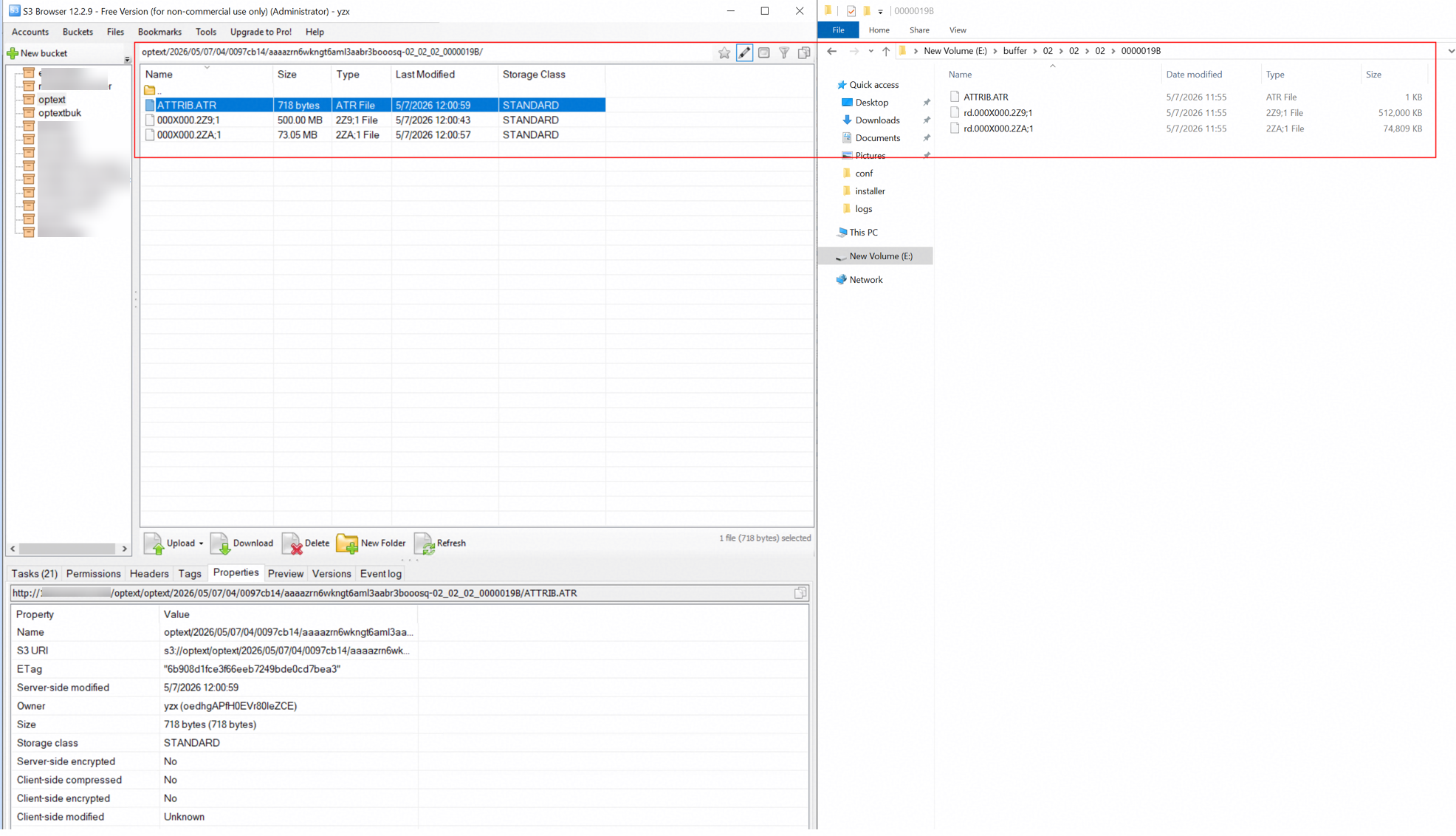

4.4 The folder structure in the storage is the same as that in the local buffer.

Test Conclusion

Passed

Test Purpose

To verify that archived files can be retrieved from the storage through the archive server.

Test Networking

Huawei OceanStor Flash Storage and Archive Server Test Networking

Prerequisites

1. The administration client, archive server, and SQL database have been deployed and configured successfully.

2. The S3 services of the storage have been configured successfully, including accounts, namespace, access certificates, security certificates, SSL certificates and service networks.

3. The storage has been added to the archive server as S3 target successfully.

4. Some files (original files) have been archived to the storage successfully and the docids have been recorded.

Test Procedure

1. Run related Purge job to clean the archive server’s local buffer. And check the files in the archive server’s local buffer.

2. Prepare a destination directory for retrieving files.

3. In the archive server, retrieve the archived files from the storage to the destination directory.

4. Check the consistency of the retrieved files and original files.

Expected Result

1. In step 1, the files in the archive server’s local buffer are cleared successfully.

2. In step 3, the files are retrieved to the destination directory successfully.

3. In step 4, the retrieved files and original files are consistent.

Test Results

Prerequisites

The docids have been recorded while archiving the files.

E:\data\10GB.iso

docid = ‘aaaa6rd1qd5wt6aml3aahwubooosq’


docid = ‘aaaa36xn13owt6aml3aad1ubooosq’

E:\data\2GB.ppt

docid = ‘aaaa1c6jssegt6aml3aacfubooosq’

E:\data\573MB.rpm

docid = ‘aaaazrn6wkngt6aml3aabr3booosq’

E:\data\4mb.xlsx

docid = ‘aaaawsoztwowt6aml3aabiubooosq’

E:\data\file.pcapng

docid = ‘aaaauyn5eltgt6aml3aabgmbooosq’

E:\data\16kb.docx

docid = ‘aaaashzwjhbwt6aml3aaav3booosq’

E:\data\TestCase.xlsx

docid = ‘aaaarovaxregt6aml3aaatubooosq’

E:\data\8kb.xml

docid = ‘aaaapa2kca3wt6aml3aaarubooosq’

E:\data\OceanStor13532.Setup

docid = ‘aaaamqfx6gowt6aml3aaapmbooosq’

E:\data\RooCA_netapp.crt

docid = ‘aaaak5ei2vqwt6aml3aaanebooosq’

E:\data\rootCA_minio.crt

docid = ‘aaaajmknfxlgt6aml3aaakebooosq’

E:\data\RootCA_test_15732.crt

docid = ‘aaaahxtoofggt6aml3aaahebooosq’

E:\data\123.txt

docid = ‘aaaafhrfl54gt6aml3aaadebooosq’

E:\data\0KB.txt

docid = ‘aaaadgrrazhwt6aml3aaaaebooosq’

Test Result

1. Run related Purge job to clean the archive server’s local buffer. And check the files in the archive server’s local buffer.

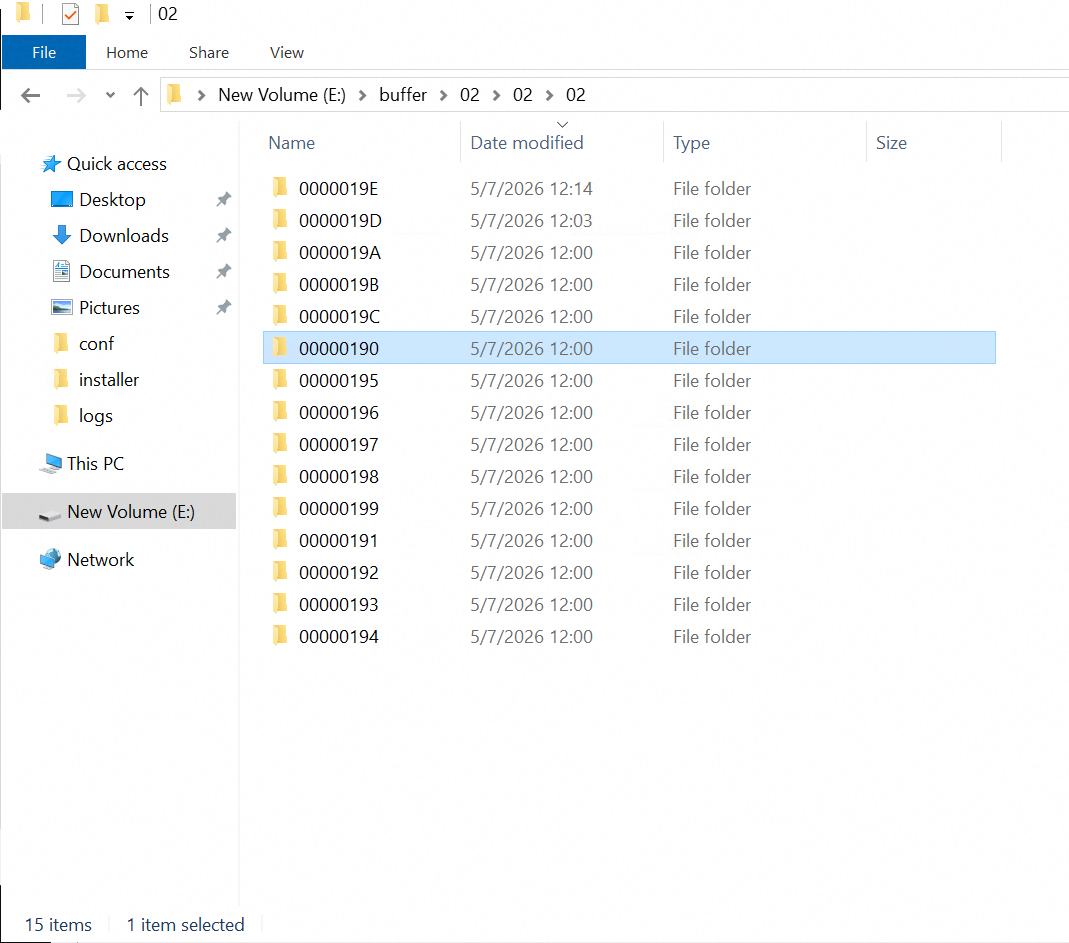

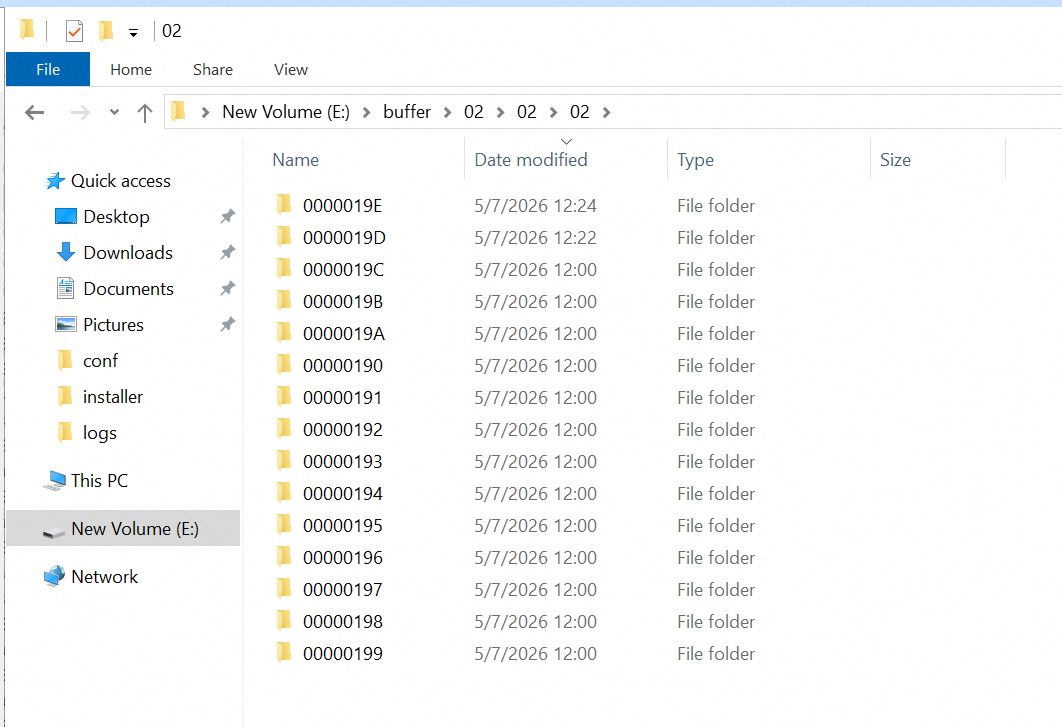

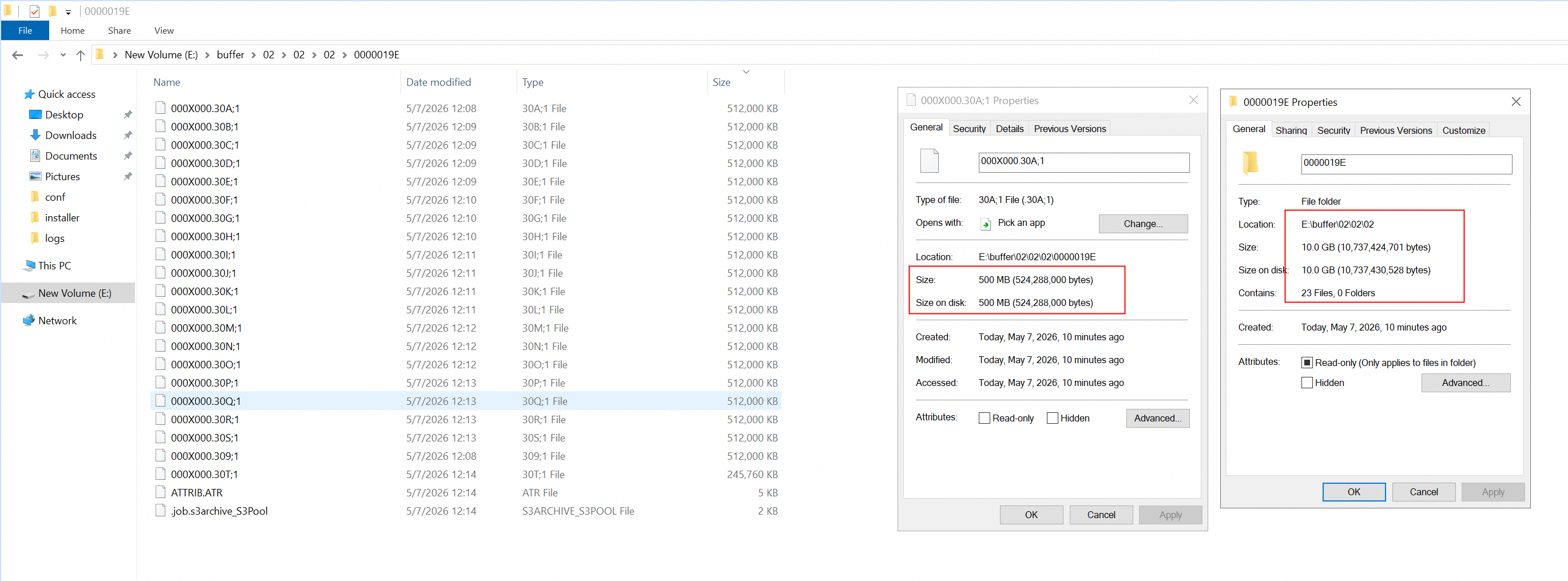

1.1 Before running the job, folder ‘02’ is in the local buffer.

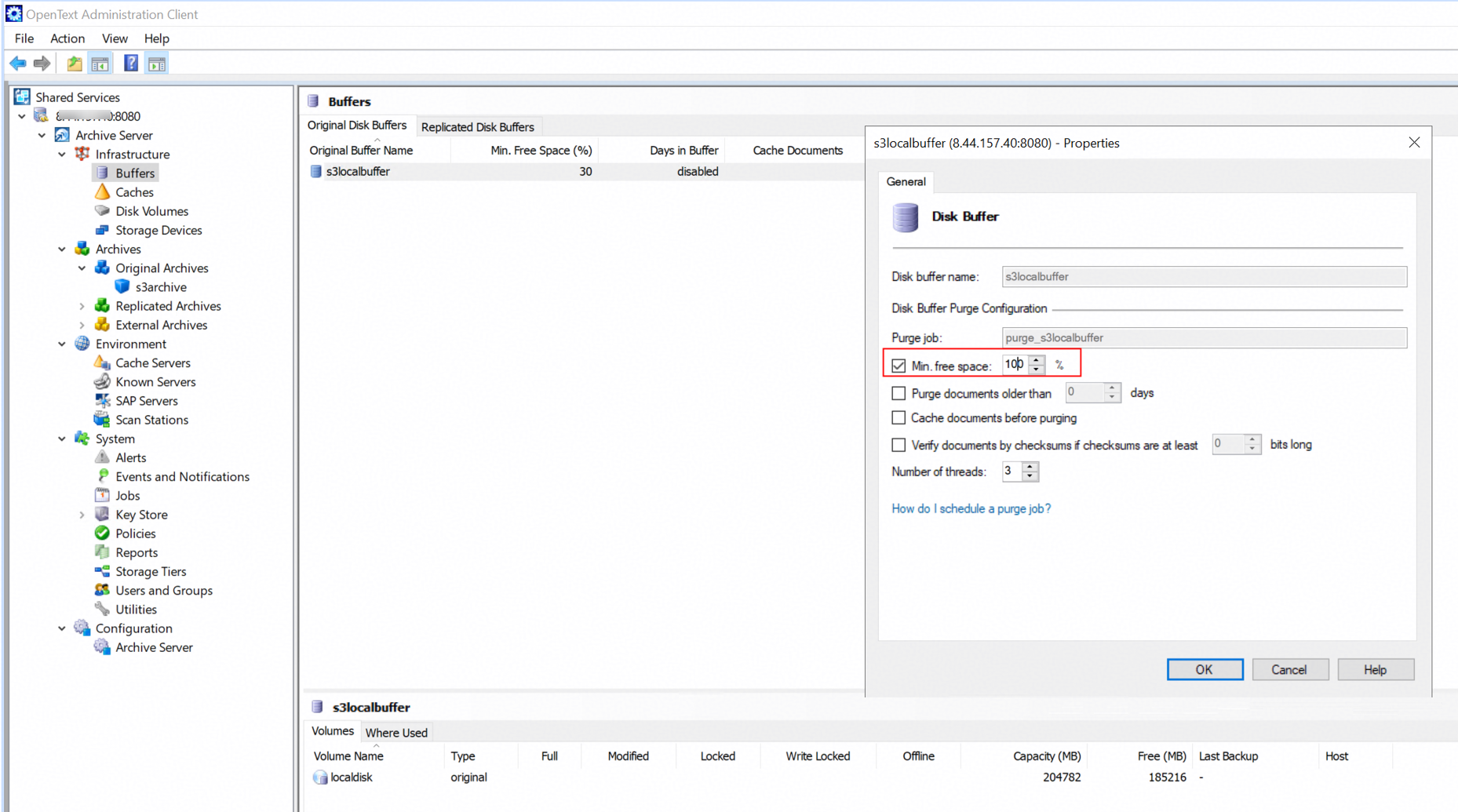

1.2 Change Min. free space to ‘100%’ in related buffer properties, so that the data can be purged immediately for testing purposes.

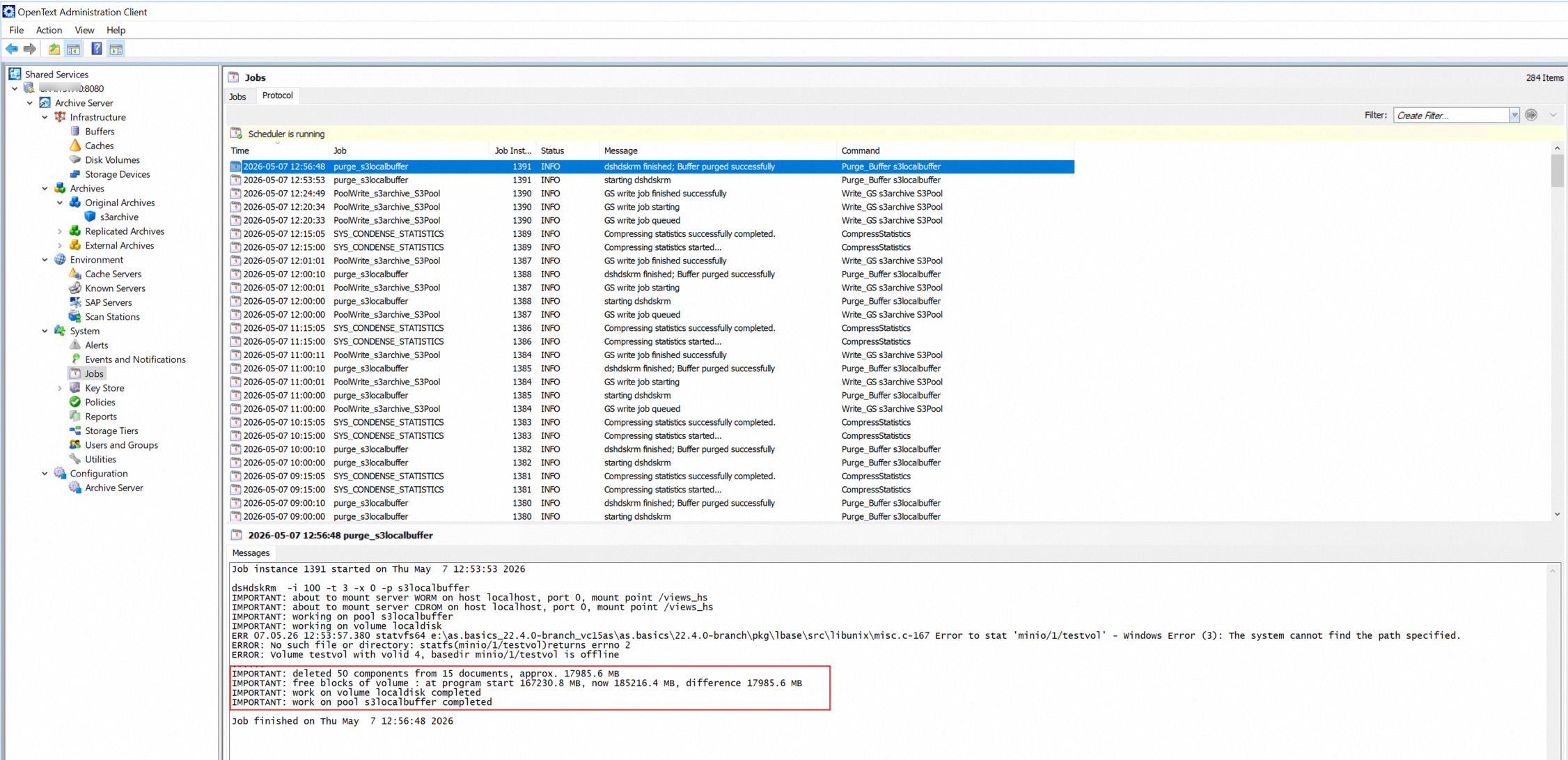

1.3 Start the purge job.

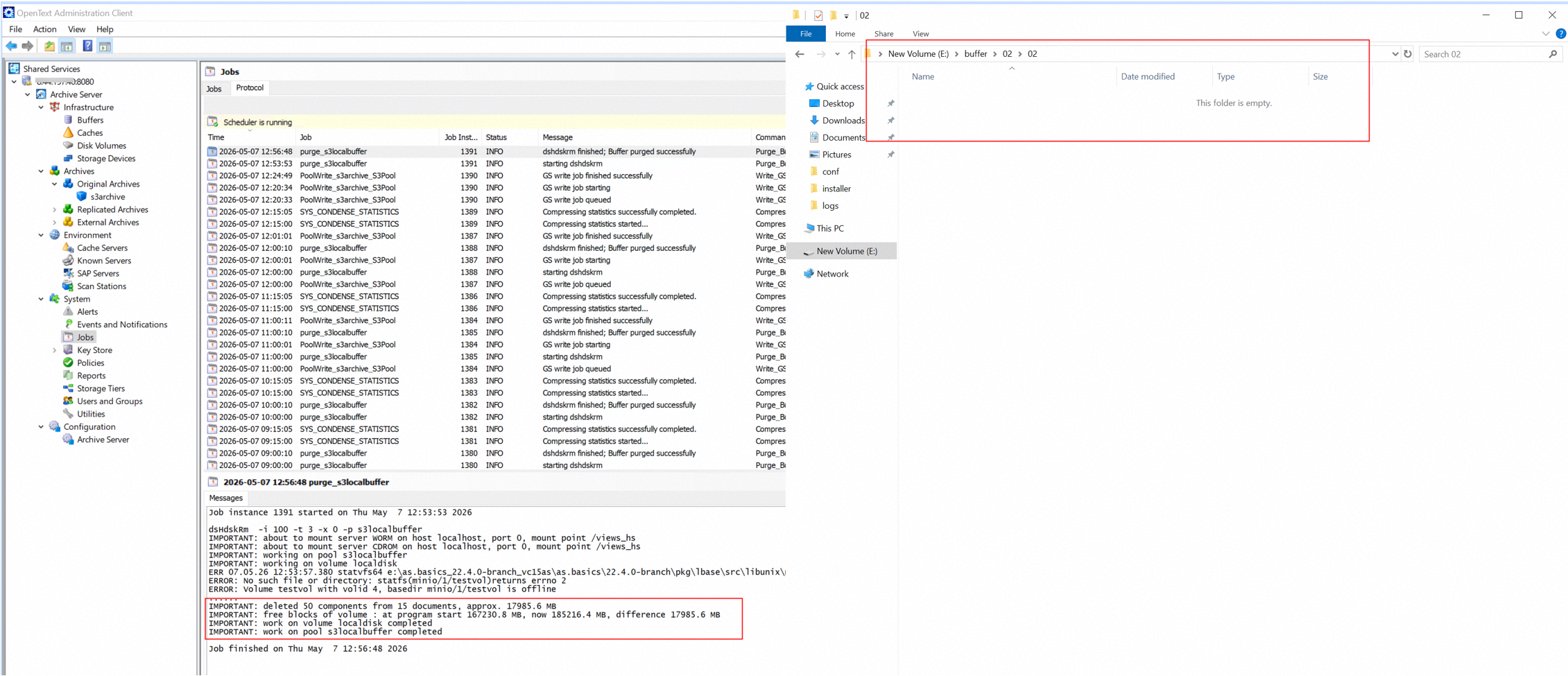

1.4 The folder ‘02’ in the archive server local buffer has been removed.

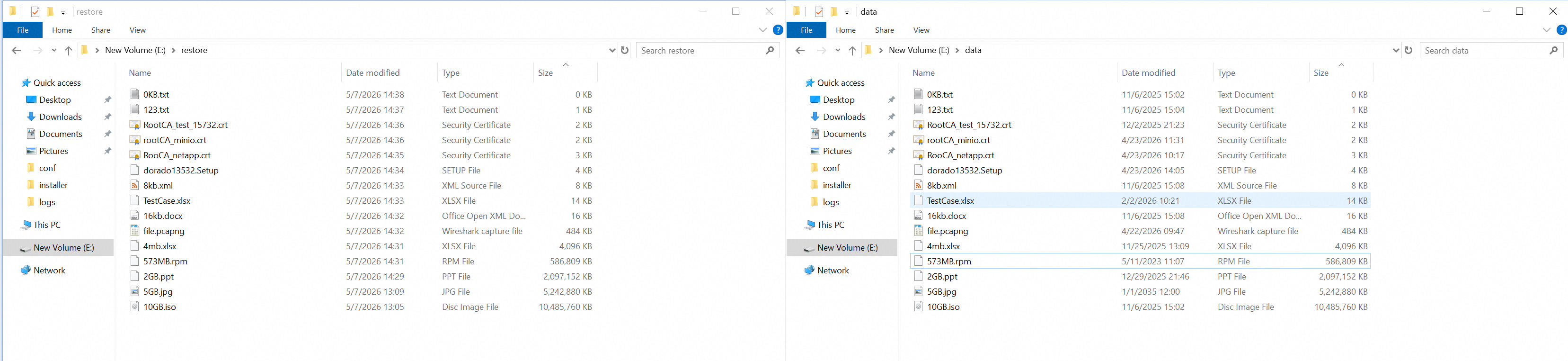

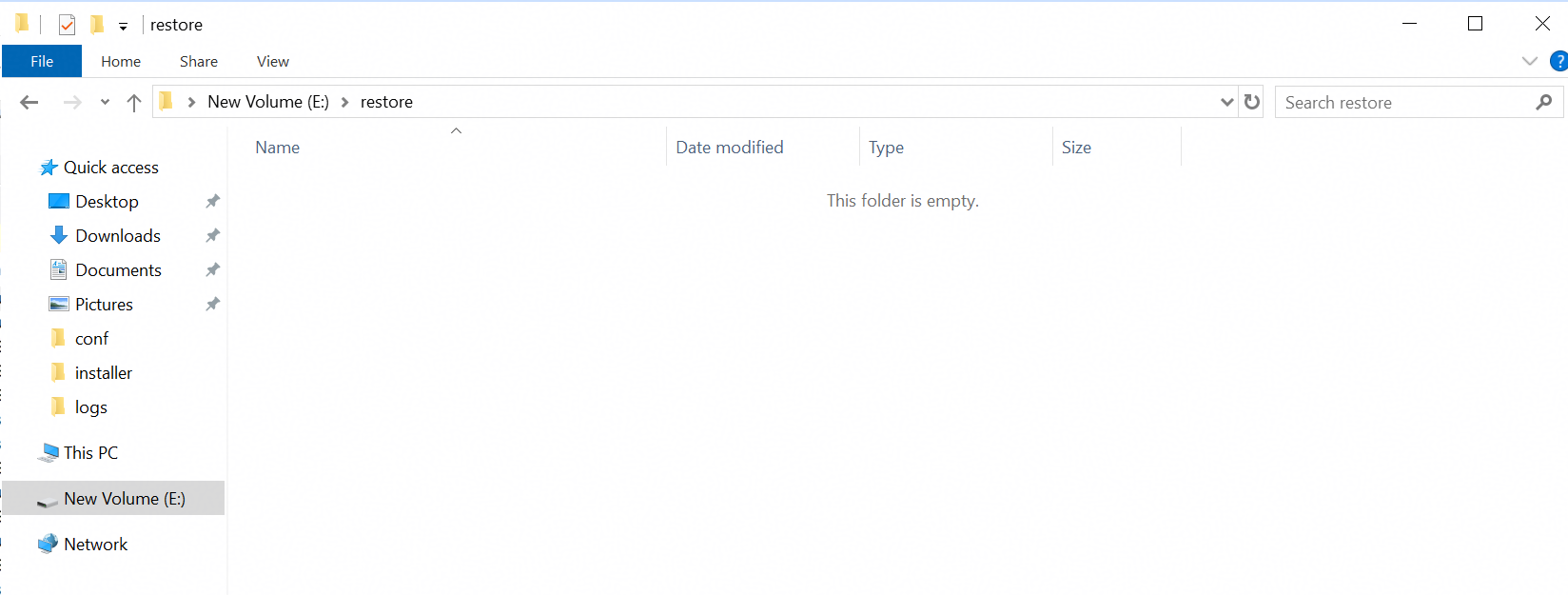

2. Create a new folder in the local disk as the destination directory for retrieving files.

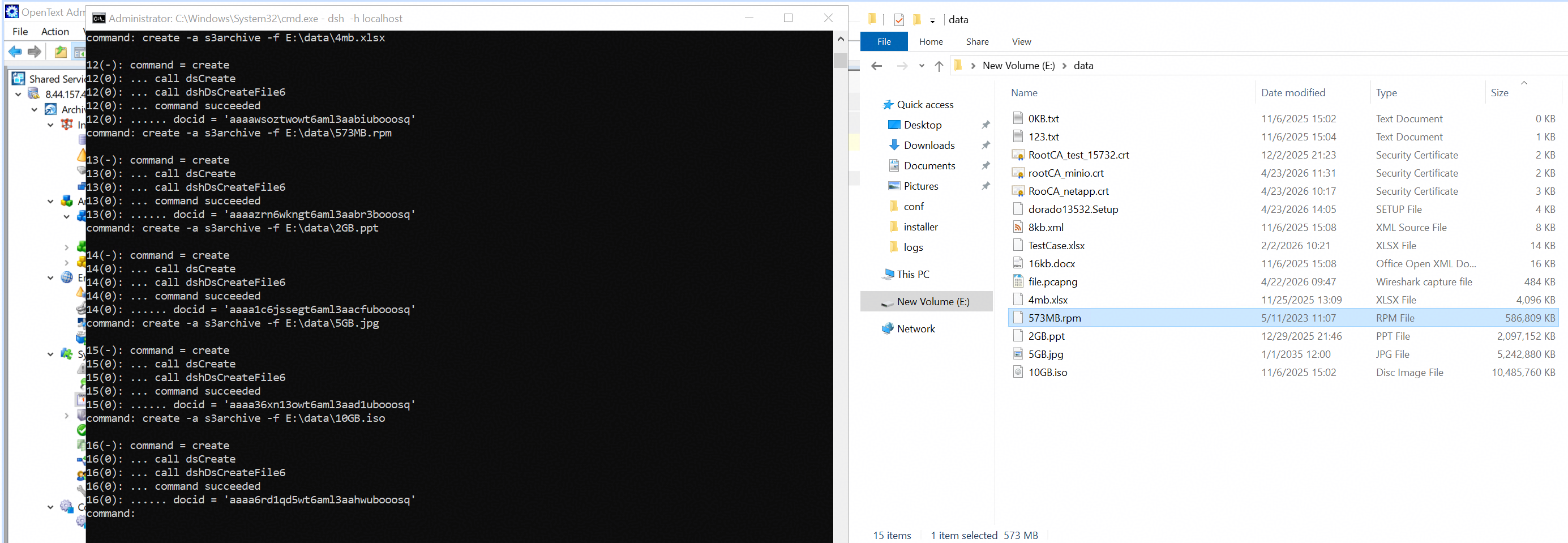

3. In the archive server, retrieve the archived files with the docids recorded earlier from the storage to the destination directory.

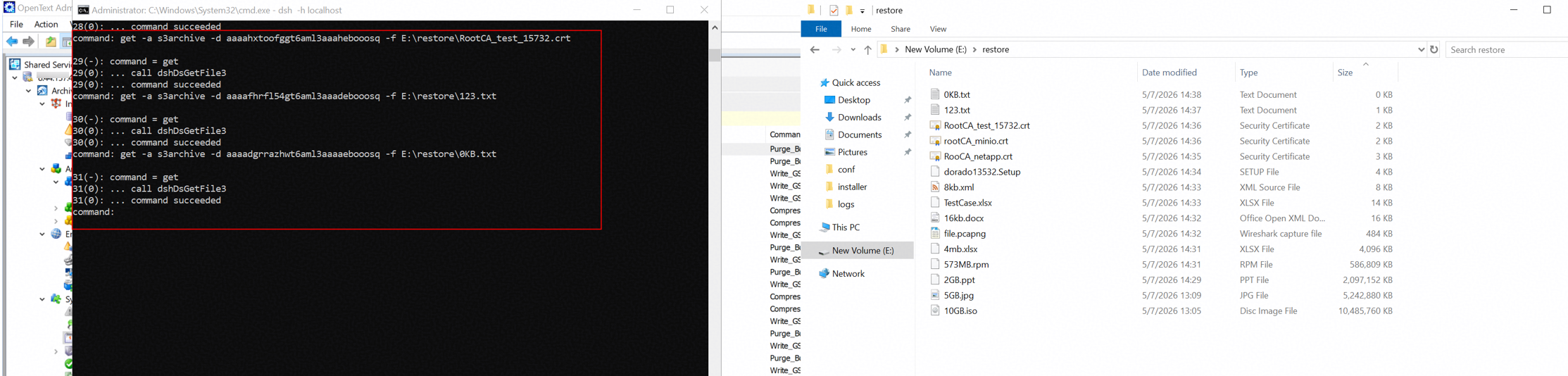

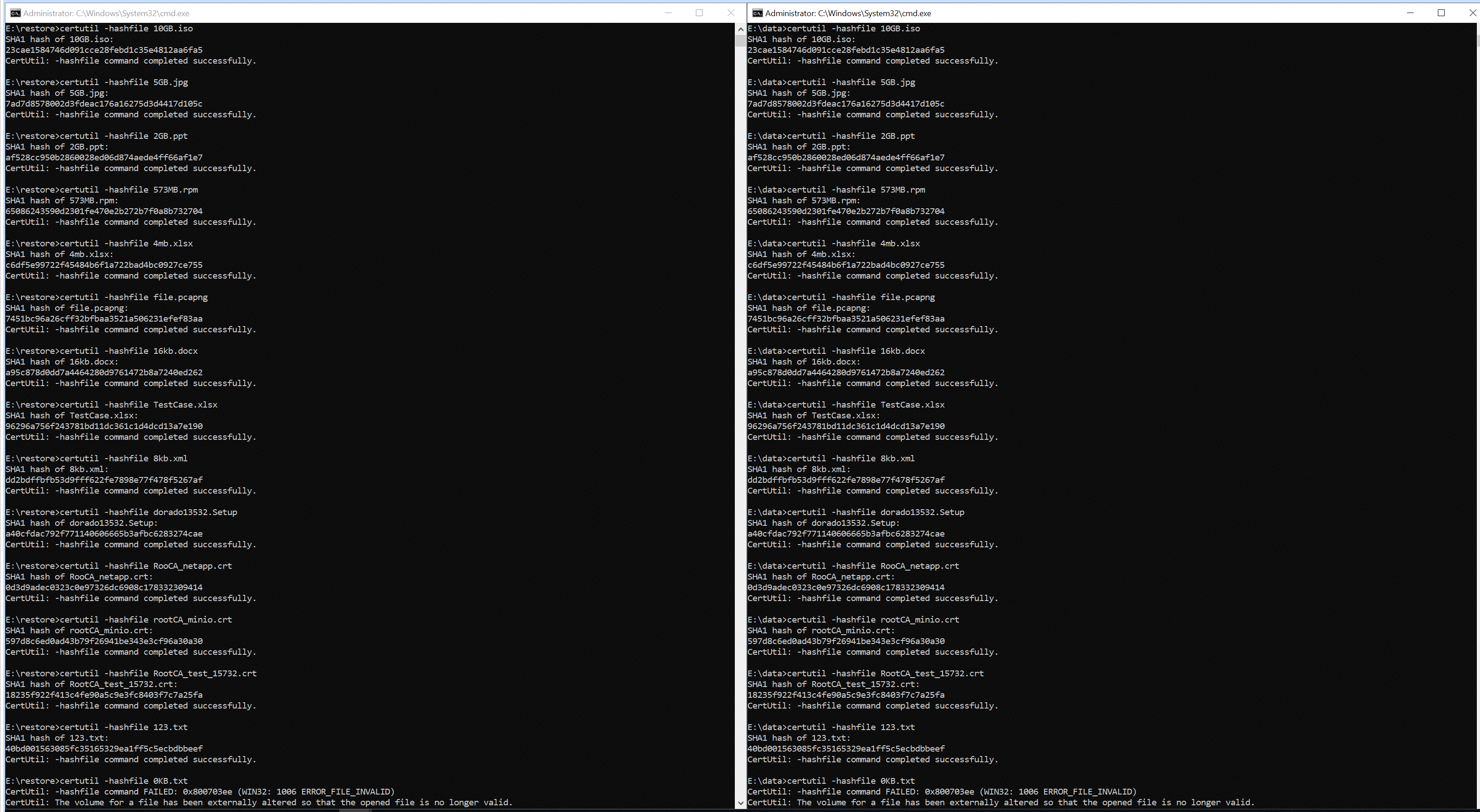

4. The MD5 value of the retrieved files and original files are the same. That indicates the retrieved files and original files are consistent.

Test Conclusion

Passed
